Congratulations on your purchase of the Uniden cordless telephone. This
cordless phone is designed and engineered to exacting standards for reliability,
long life, and outstanding performance.

Note: Some illustrations in this manual may differ from the actual unit for
explanation purposes.

* The Caller ID and Caller ID on Call Waiting features require subscription to the

services provided by your network supplier. There is usually a fee for these
services. The Caller ID on Call Waiting service is currently unavailable in New
Zealand.

Be sure to visit our Website: www.uniden.com.au or www.uniden.co.nz

Welcome

Features

• 2.4GHz Extended Range • 3 Line Backlit Easy to Read Display
Technology • Audio Boost

• Visual Ringer LED • Last Number Redial

• Large Backlit Keys • Find Handset Key

• Caller ID* • Earpiece/Ringer Volume Controls

• Caller ID on Call Waiting* • Hearing Aid Compatible

(CIDCW) • 20 Channel Auto Scan

• Name Tag* (POP ID) • Desk or Wall Mountable

• 10 Speed Dial Memory

• One-Touch Emergency Dial

[2]

Controls and Functions

1. Handset antenna

2. Audio boost switch

3. Volume/ (ring)/+ key (p. 16/ 14)

4. Volume/ (ring)/- key (p. 16/ 14)

5. Handset battery compartment

6. Handset visual ringer LED

7. Handset earpiece

8. LCD display

9. CID key (p. 27)

10. Redial/pause key (p. 16/ 23)

11. /tone/ key (p. 22)

12. Memory key (p. 21)

13. Menu key (p. 11)

14. Talk key (p. 15)

15. Emergency ( ) key (p. 20)

16. Flash key (p. 19)

17. / key (p. 22)

18. Delete/channel key (p. 22/ 18)

19. Select key (p. 11)

20. Handset microphone and ringer speaker

21. Handset charging contacts

22. Headset jack

23. Beltclip hole

[3]

24. DC in 9V jack

25. Telephone line jack

26. Visual ringer switch (p. 8)

27. Ringer tone button (p. 14)

28. Ringer volume adjuster (p. 14)

29. Ringer on/off switch (p. 14)

30. Base speaker

31. Base visual ringer LED

32. Base antenna

33. Charge/in use LED (p. 7)

34. Find handset key (p. 18)

35. Base charging contacts

Terms Used in this Manual

• Standby Mode - The handset may be sitting in or off the base, but is NOT in use. The talk key has
not been pressed and there is no dial tone.

• Talk Mode - The handset is off the base and the talk key has been pressed, enabling a dial tone.

• CID - Caller ID

• CIDCW - Caller ID on Call Waiting

• Emergency Dial - One touch speed dial key

[4]

35

Installing the Phone

Do the following steps:

A. Choose the best location
B. Install the Rechargeable Battery Pack into the Handset
C. Connect the base unit and charge the handset
D. Set the visual ringer brightness (optional)
E. Mount the base unit on a wall (optional)

A. Choose the best location

When choosing a location for your new phone, here are some important guidelines you should
consider:

• The location should be close to both a phone jack and a continuous power outlet (one which

is not connected to a switch).

• The base and handset should be kept away from sources of electrical noise such as motors

and fluorescent lighting.

• The base can be placed on a desk, tabletop, or mounted on a standard wall plate. For better

reception, place the base as high as possible.

• The base should be placed in an open area for optimum range and reception.

Avoid noise sources such as a window
by a street with heavy traffic

Avoid heat sources, such as radiators,

air ducts, and sunlight

Choose a central location

Avoid other cordless telephones

Avoid personal computers

Avoid excessive moisture, extremely
low temperatures, dust, mechanical
vibration, or shock

Avoid microwave ovens
Avoid television sets and
other electronic equipment

! If your home

has specially
wired alarm
equipment
connected to
the telephone
line, be sure
that installing
the system
does not
disable your
alarm
equipment.

! If you have

questions
about what will
disable your
alarm
equipment,
contact your
telephone
company or a
qualified
installer.

GETTING STARTED

[5]

[6]

B. Install the Rechargeable Battery Pack into the Handset

The handset is powered by a rechargeable battery pack.
The battery recharges automatically when the handset is
placed in the main base or charging cradle.

1) Locate the separate battery and battery cover.

2) Plug the battery pack connector (red & black wires) into
the jack inside the battery compartment. (The connector
notches fit into the grooves of the jack only one way.)
Match the wire colors to the polarity label in the battery
compartment, connect the battery, and listen for a click
to insure connection.

3) Make sure you have a good connection by slightly
pulling on the battery wires. If the connection is secure,
the battery jack will remain in place.

4) Place the battery case cover back on the handset by
sliding it upwards until it clicks into place.

! Use only the

supplied
AAD--041S
AC adapter.
Do not use
any other AC
adapter.

! Do not place

the power cord
where it
creates a trip
hazard or
where it could
become
chafed and
create a fire or
electrical
hazard.

GETTING STARTED

[7]

C. Connect the Base Unit and Charge the Handset

1) Connect the AC adapter to the DC in 9V
jack and to a standard 240V AC wall outlet.

• Connect the AC adapter to a continuous
power supply.

• Place the base unit close to the AC
outlet so that you can unplug the AC
adapter easily.

The rechargeable battery is already installed in your phone.

2) Place the handset in the base unit.

3) Make sure that the charge/in use LED illuminates.
If the LED does not illuminate, check to see that the AC adapter is plugged in
and the handset makes good contact with the base charging contacts.

4) Charge the handset battery pack for at least 15-20 hours before using
your new cordless telephone for the first time! To maximize the charge
capacity of your battery pack, DO NOT plug the telephone cord into the base
unit and wall jack until the battery is fully charged.

D. Set the Visual Ringer Brightness

The visual ringer switch allows you to set the
brightness of the visual ringer/messages
LED on the base. There are three options to
choose from: high, low and off. If you set the
switch to off, visual ringer/messages LED
never flashes.

[8]

5) Once the handset battery pack is
fully charged, connect the
telephone cord to the tel line
jack and to a telephone outlet. If
your telephone outlet isn't
modular, contact your telephone
company for assistance.

6) After the phone is connected, pick up the handset from the base and press
talk. If you do not get a dial tone, check the following:

• Be sure the telephone cord is securely connected to both the base and an

active telephone jack.

• Be sure the charge/in use LED is on. If not, check the AC adapter.

• Be sure the handset is fully charged.

• Be sure the battery is installed correctly.

Australia
Tel Line adaptor
(supplied)

E. Mount the Base Unit on a Wall

Standard wall plate mounting

This phone can be mounted on any standard
wall plate.

1) Remove the wall mount adapter from the
base and snap it into the notches on the
bottom of the base.

2) Plug the AC adapter to the DC in 9V jack.

3) Wrap the AC adapter cord inside the
molded wiring channel as shown.

4) Plug the AC adapter into a standard
240V AC wall outlet.

5) Plug the telephone cord into the tel
line jack.

6) Wrap the cord inside the molded wiring
channel as shown.

7) Plug the telephone cord into the
telephone outlet.

8) Raise the antenna to a vertical position.

9) Align the mounting slots on the base with the
mounting posts on the wall.
Then push in and down until the phone is firmly seated.

Direct wall mounting

If you don't have a standard wall plate, you can mount your phone directly to the wall.
Before doing this, consider the following:

• Avoid electrical cables, pipes, or other items behind the mounting location that could
cause a hazard when inserting screws into the wall.

If the base unit is

mounted on the
wall, always put

the handset in

the base with the

CID display

facing forward to

make sure the

handset does not

fall out of the

base.

GETTING STARTED

[9]

[10]

• Try to mount your phone within 1.5m of a working phone jack to avoid
excessive cord lengths.

• Make sure the wall material is capable of supporting the weight of the base
and handset.

• Use #10 screws (minimum length of 35mm) with anchoring devices suitable
for the wall material where the base unit will be placed.

1) Insert two mounting screws into the wall, (with their appropriate

anchoring device), 100mm apart. Allow about 3mm
between the wall and screw heads for mounting the phone.

2) Refer to steps 1 through 9 on page 9 to mount the telephone.

Installing the Beltclip

To attach the beltclip

Insert the beltclip into the holes on each side of the handset.
Press down until it clicks.

To remove the beltclip

Pull both sides of the beltclip to release the tabs from the holes.

Headset Installation

Your phone may be used with an optional headset.
To use this feature, insert the headset plug into the headset jack.
Your phone is ready for hands-free conversations.
(Headset may be purchased by visiting our website at;
www.uniden.com.au or www.uniden.co.nz )

3mm

100mm

Basic Setup

There are four basic options that you will need to set up: AutoTalk, CIDCW (Caller ID
on Call Waiting), Name Tag and Insert 0.

AutoTalk

Autotalk allows you to answer the phone simply by removing the handset from the
base. You do not have to press any keys.

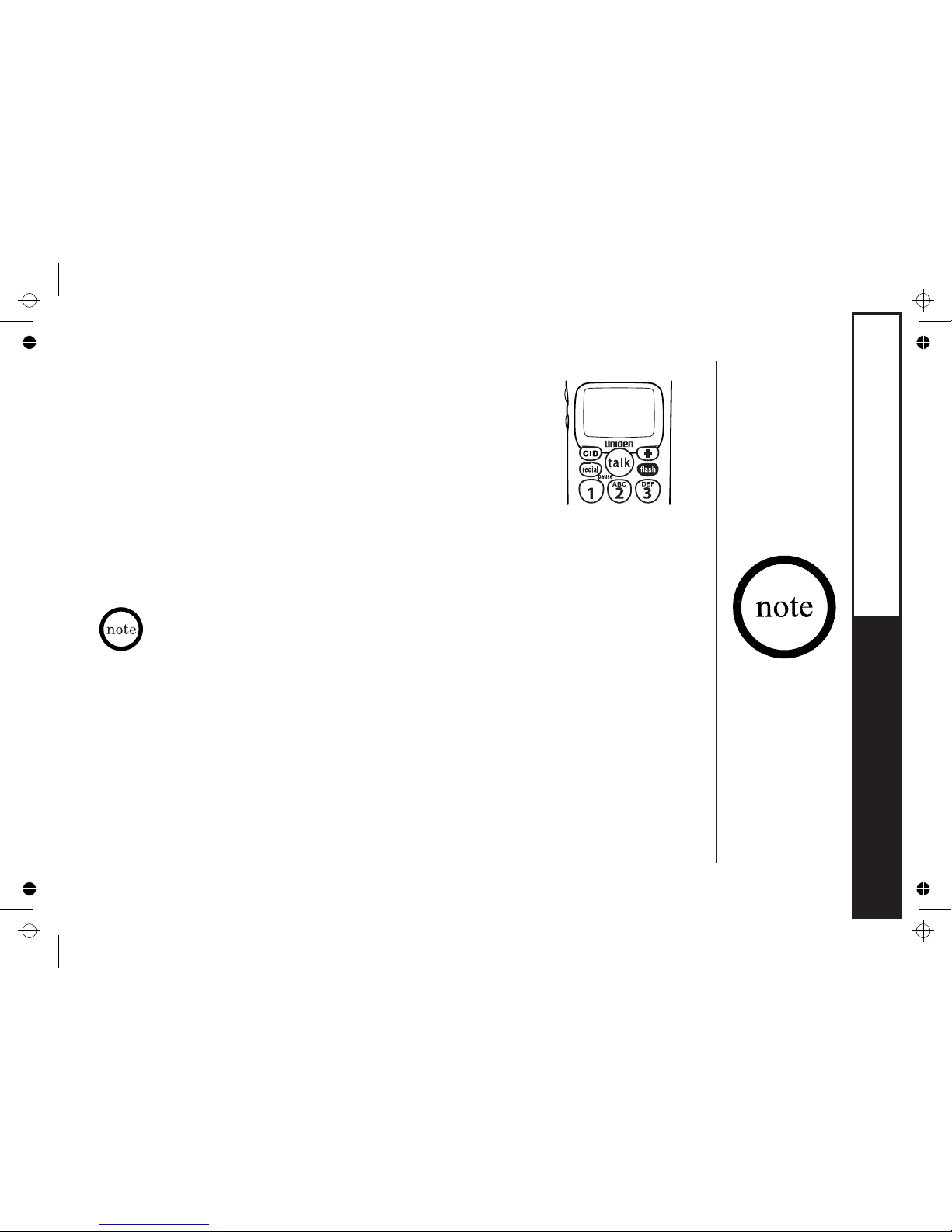

1) When the phone is in standby mode, press the menu
key. The following screen appears.

2) Press the select key to turn AutoTalk on.

3) Press the menu key to complete the setting. The handset returns to
standby mode.

Activating Caller ID on Call Waiting

Caller ID allows you to see the number of the calling party before you answer the phone.
Caller ID on Call Waiting (CIDCW) lets you see the number of a call that comes in when
you are on the line.

You must subscribe to Caller ID service through your local telephone provider to use this
feature. You must also subscribe to Call Waiting Service to use Caller ID on Call
Waiting.

1) When the phone is in standby mode, press the menu
key. The following screen appears.

Name Tag :On

Name Tag :On

GETTING STARTED

[11]

2) Press the volume/ /- key to select CIDCW.

3) Press the select key to toggle and turn on Caller ID on Call Waiting.

4) Press the menu key and return the handset to the base unit to complete the
setting. The handset returns to standby mode.

Setting Name Tag (POP ID)

The Name Tag feature works with the Caller Display number from Caller ID. You must
subscribe to Caller ID service through your local telephone provider to use this feature.
There is usually a fee for this service. When the phone rings the caller display number,
when received will be compared to numbers stored in the dial memory. If there is a
match then any name stored with the dial memory number will be displayed (see page 21).

1) When the phone is in standby mode, press the menu
key. The following screen appears.

2) Press the volume/ /- key twice to select
Name Tag .

3) Press the select key to toggle Name Tag On or Off.

4) Press the menu key to complete the setting.
The handset returns to standby mode.

[12]

Name Tag :On

Name Tag :On
