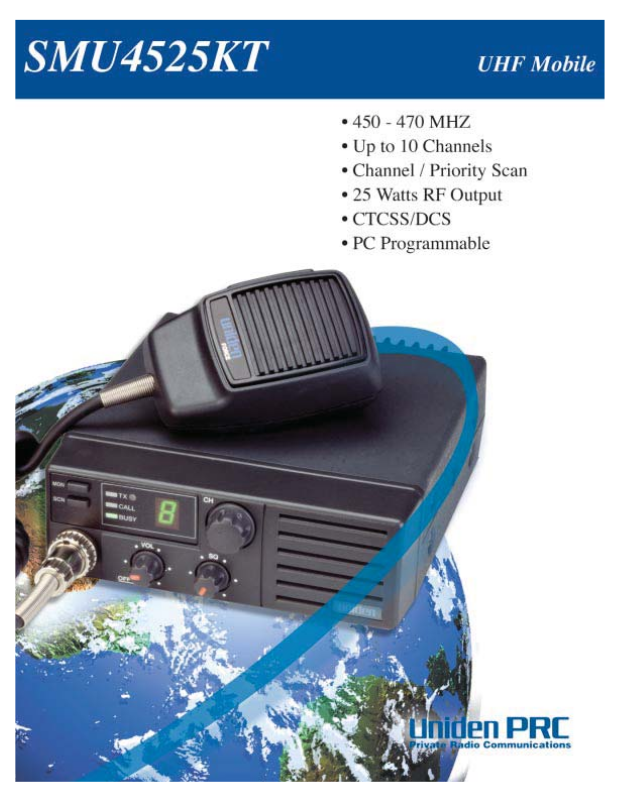

Uniden SMU-4525TK brochure

SMU4525KT Specifications

General

Frequency Range 450-470 MHz RF Power Ouptput 25 watt
Channels Up to 10 Operating Voltage 13.6 VDC
Standby Current 800 mA Transmit Current 8 Amps
Operating Temperature -30C to +60C Operating Bandwidth 7 MHz)
Channel Increments 12.5 kHz Channel Spacing 25 kHz
Frequency Stability +/- 5 PPM Weight w/Battery 2.53 lbs.
Demensions 6.1” x 7.5” x 2.2” Scan Channel/Priority
CTCSS/CDCSS Standard Busy Channel Lockout Standard

Receiver

Sensitivity-12dB Sinad 0.35 uV
Selectvity >70 dB
IMD >65 dB
Spurious Response >75 dB
Image Response >75 dB
Hum & Noise -40 dB (Unsquelched)

-50 dB (Squelched)

Audio Output 5 W External

2 W Internal
Audio Distortion <5%
Signal Displacement 3 kHz

Transmitter

Hum & Noise -45 dB
Audio Distortion <5%
Spurious & Harmonics -60 dB
Modulation 16K0F3E

16K0F1D

Each unit includes operator’s guide, mounting bracket,
microphone and power cord.

A Product of RELM Wireless Corporation

7100 Technology Drive West Melbourne, FL 32904

Phone [phone] • Fax [phone]

FCC Identification Number AMWUL083

Specifications subject to change without notice.

All measurement in accordance with EIA/TIA-603 standards.
