Uniden SMU250KTS User Manual

ULZZ01102ZZ

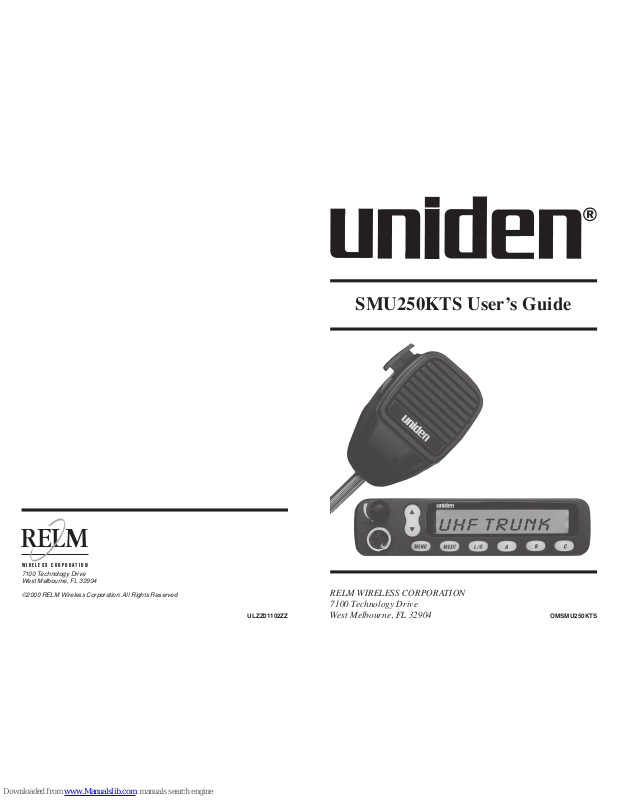

SMU250KTS User’s Guide

7100 Technology Drive West Melbourne, FL 32904

WIRELESS CORPORATION

RELM WIRELESS CORPORATION 7100 Technology Drive West Melbourne, FL 32904 OMSMU250KTS

Safety information

Through the provisions of the Occupational Safety and Health Act (OSHA) of 1970, the United Status Department of Labor has established an electromagnetic safety standard which applies to the use of two-way radio equipment. The proper use of this transceiver will result in exposure below the OSHA limit. The following precautions shall be observed:

• DO NOT operate the transceiver of any radio equipment with the antenna touching,

or close to, the eyes, faces, or exposed body parts.

• DO NOT operate the transmitter of any radio equipment unless all the Radio

Frequency (RF) connectors are secure and any open connectors are properly terminated.

• DO NOT operate the transmitter of any radio equipment near electrical blasting

caps or in an explosive environment.

• DO NOT let children operate any transmitter-equipped radio equipment.

• Have your radio equipment installed and service by a qualified technician.

Caution: RELM does not represent this radio to be waterproof. Do not use the radio in damp or high-moisture environments.

Two year Limited Warranty

WARRANTOR: RELM Wireless Corporation (“RELM” or “Warrantor”).

ELEMENTS OF WARRANTY: RELM Wireless Corporation warrants to

the purchaser that all new Radio equipment of RELM's manufacture shall be free of defects in material and workmanship. Equipment and accessory items not manufactured by RELM carry the standard warranty of the manufacturer thereof.

WARRANTY DURATION: The warranty period for all parts is two (2) years. The warranty period shall commence upon installation of the equipment or two (2) months from the date of shipment from the factory, whichever comes first.

The warranty shall terminate and be of no further effect two (2) years from its origin or at the time the Product is (a) damaged or not maintained as reasonable, (b) modified, (c) improperly installed, (d) is repaired by someone other than Warrantor or Authorized Warranty Repair Station for a defect or malfunction covered by this Warranty, or (e) used in a manner or purpose for which the Product was not intended or in an environmental condition for which the Product was not intended.

STATEMENT OF REMEDY: Where permitted by law, this Warranty is in lieu of all other Warranties expressed or implied, including warranties of merchantability or fitness for a particular purpose, and no representative or person is authorized to assume for us any other liability. This warranty shall not extend to incidental or consequential damages arising from operation of Product(s) which are subject of this Warranty. Some States do not allow limitation of implied warranties so the above limitations may not be applicable. You may have rights as defined by individual State law.

WARRANTY REGISTRATION CARD: In order to facilitate the service under this Warranty, Purchaser should return the Warranty Registration Card to Warrantor. However, return of the Warranty Registration Card is not a precondition of this Warranty. This Warranty will be observed by the Warrantor whether or not the Warranty Registration Card is returned, on the condition that other evidence, satisfactory to Uniden, of the date of the original installation or purchase is provided to the Warrantor.

PROCEDURE FOR OBTAINING PERFORMANCE OF WARRANTY:

To obtain warranty service, the Customer must return the radio properly packed, freight prepaid, to Warrantor or any Authorized Warrantor Repair Station. It will be returned freight prepaid.

Contents

Safety Information ................................................................................ 2

Introduction .......................................................................................... 5

Congratulations............................................................................... 5

Description ..................................................................................... 5

Service ............................................................................................ 5

Features........................................................................................... 6

Programmable Features .................................................................. 6

Unpacking............................................................................................. 7

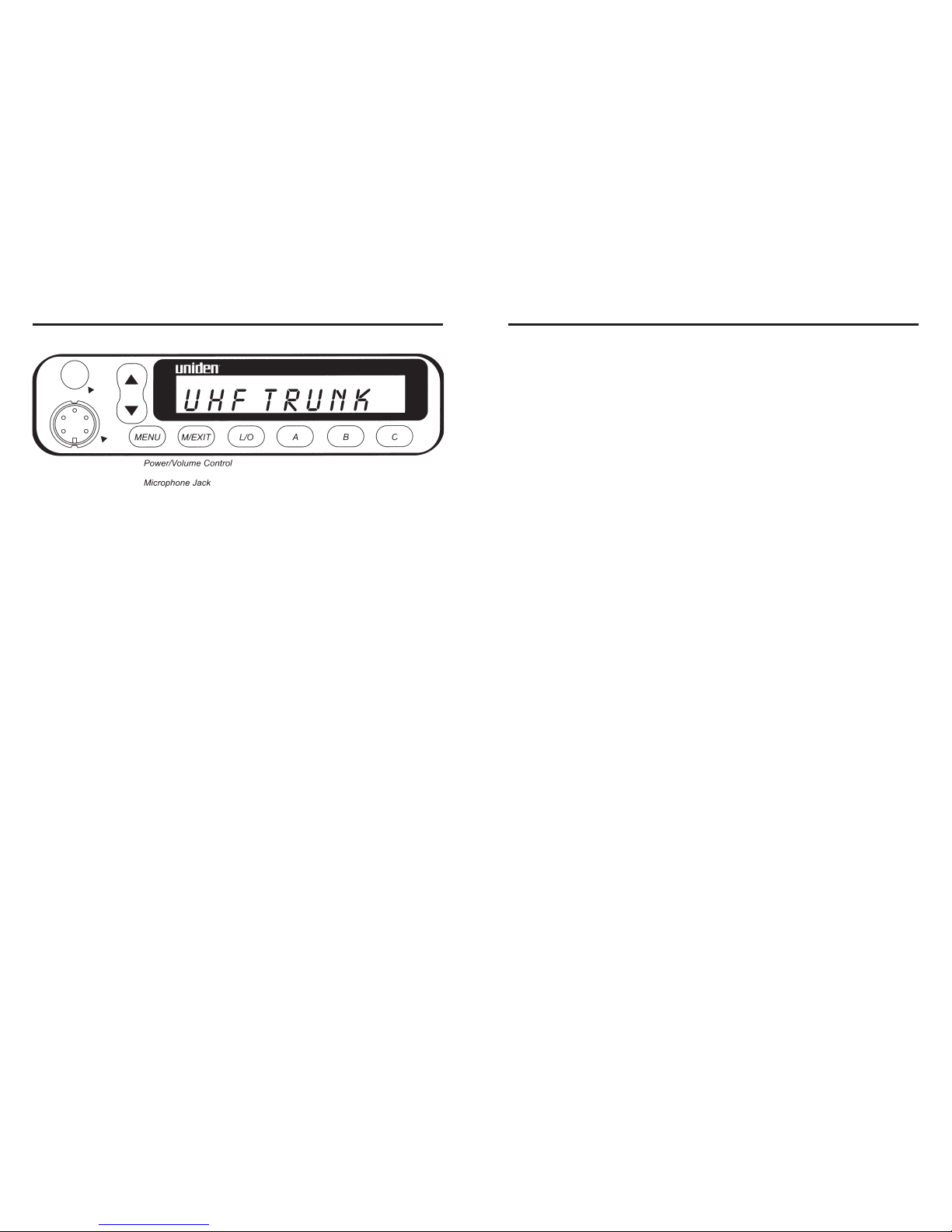

Controls and Functions ......................................................................... 8

General Operation................................................................................. 9

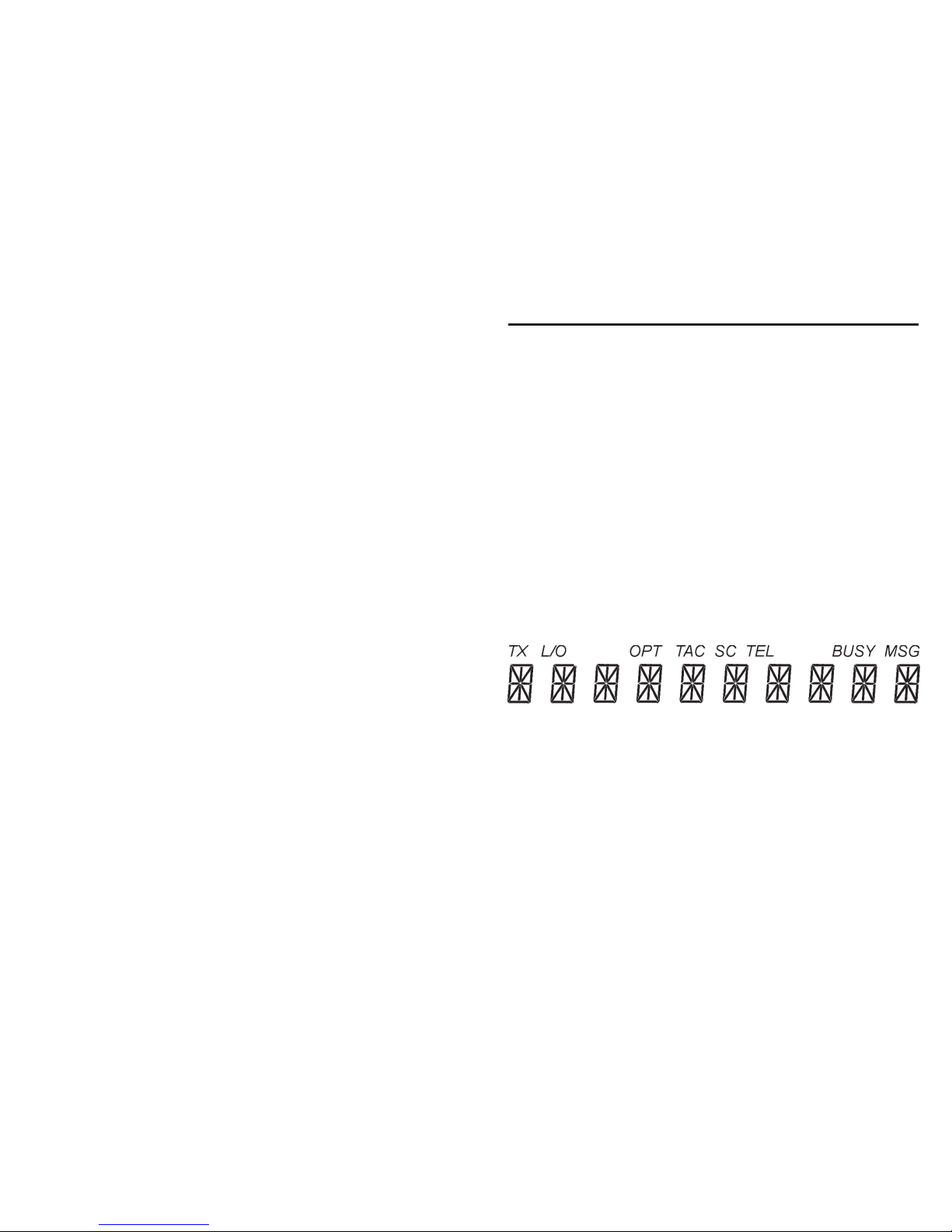

LCD Display ................................................................................... 9

Applying Power and Setting the Volume........................................ 9

Trunking Mode Operation .................................................................. 10

Talk Group Selection .................................................................... 10

System Selection .......................................................................... 10

Transmit........................................................................................ 10

Telephone Operation..................................................................... 11

Receive ......................................................................................... 11

Scan Operation ............................................................................. 11

Scan Limitations ........................................................................... 12

Scan Lock Out .............................................................................. 13

Revert Operation........................................................................... 13

Queuing and Tones ....................................................................... 14

TAC Operation ............................................................................. 14

Call Function ................................................................................ 15

Call Alert Function ....................................................................... 15

Telephone Interconnect Functions................................................ 16

Other Functions .................................................................................. 17

MENU Operation ......................................................................... 17

A/B/C Quick Keys Operation ....................................................... 18

Conventional Operation...................................................................... 19

Transmit/Receive.......................................................................... 19

Transmit Time Out Timer (TOT).................................................. 19

Operational Check

After installation, a complete operational check by your Uniden Dealer will assure you of a quality installation.

Accessories

Standard Microphone ........................................................... AMX100A

DTMF Encode Microphone................................................. AMX101A

Heavy Duty Microphone ...................................................... AMX105A

Mobile Power Cord w/Fuse (15A) ....................................... AMX120A

Base Station Microphone......................................................... AMX151

External Speaker (4 ohm, 10 Watt).......................................... AMX250

110VAC Power Supply (with built-in speaker) ................... ST14P1001

220VAC Power Supply (with built-in speaker) ................... ST14P1002

Technical Support and Service

Your Uniden dealer can provide you with technical assistance and information. If your radio does not perform properly, take it to a Uniden dealer for servicing. The radio contains no user-serviceable parts. Unauthorized adjustment will void the warranty and may cause illegal radio operation. Be sure that a qualified technician services your radio equipment. When servicing the radio, use only factoryauthorized replacement parts.

Busy Channel Lockout ([SOLO) .................................................. 19

Scan .............................................................................................. 19

Special Features .................................................................................. 20

Function Tones.............................................................................. 20

Radio Installation................................................................................ 21

Considerations .............................................................................. 21

Power Requirements .................................................................... 21

Antenna......................................................................................... 21

Mounting ..................................................................................... 21

Operational Check ....................................................................... 22

Accessories ................................................................................... 22

Technical Support and Service ..................................................... 22

Two-year Limited Warranty................................................................ 23

Radio Installation

Considerations

All Uniden radios and associated accessories are tested before shipment to ensure operational status. However, since vehicle configuration in which Uniden radios and accessories are installed are non-standard, Uniden recommends the following installations considerations .

Power Requirements

The SMUP250KTS requires a 13.6V DC, 10 ampere power source with a negative ground. Install a fuse in the power leads near the power source to protect the power source compartment and passenger compartment from fire and electrical hazards. (The AMX 120A Power Cable is equipped with an in-line 15 ampere fuse.) If the radio is connected directly to the vehicle battery, a fuse must be installed as close to the battery terminal as possible.

Route power leads to minimize proximity to other electrical systems such as instruments, engine electrical components, braking systems, entertainment systems, etc.

Secure power leads to supporting structures or components with insulated clamps that completely isolate the power leads from the supporting structures or components. When power leads are routed through a firewall, bulkhead, or similar structure, use a rubber grommet to protect power leads from chafing.

Antenna

Follow antenna manufacturer's mounting instructions. Mount antenna in a location which gives the highest unrestricted radiation pattern. Use low loss, 95% shielded, Teflon coaxial cable between antenna and radio antenna jack. Keep antenna cable length short to insure maximum power output.

Mounting

Mount the equipment with your safety and the safety of others in mind. Do not obstruct the operator's physical or visual access to the controls. Ensure easy access to the microphone and radio controls. Be sure the equipment does not interfere with the vehicle's operation.
