Uniden EXA 7950 User Manual
NOTE
Fold out the back cover of
this owner’s manual to use
the handy “Controls and
Functions” page
for reference.
CONTENTS
CONTENTS
Controls and Functions ..........................Back Cover Fold-out
Introduction...................................................1
Welcome............................................................1
•
Features ............................................................1
•
Included in Your Package ..............................................2
•
Installing and Adjusting Your Phone...............................3
Desk/Tabletop Installation..............................................3
•
Wall Installation......................................................4
•
Installing the Handset Battery Pack ......................................8
•
Charging the Battery Pack .............................................8
•
Cleaning the Battery Contacts...........................................9
•
Page...............................................................9
•

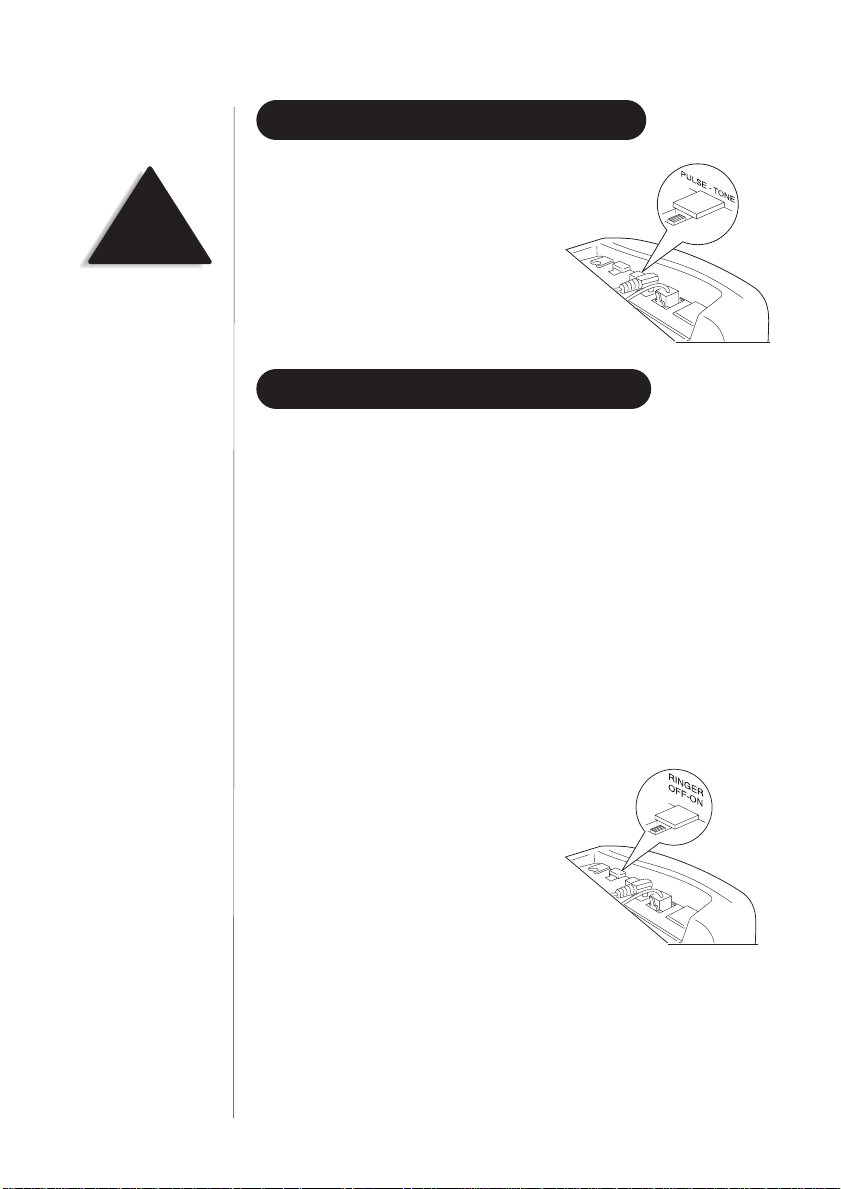

Setting the Pulse/Tone Switch..........................................10
•
Adjusting the Ringer Controls ..........................................10
•
Automatic Digital Code Security ........................................11
•
Using Your New Phone .........................................12
Making and Receiving Calls............................................12
•
Flash and Call Waiting................................................12
•
Storing a Phone Number in Memory ....................................13
•
Dialing a Stored Number..............................................13
•
Chain Dialing .......................................................14
•
• Erasing a Stored Number from Memory ..................................14
• Redial .............................................................15
Tone..............................................................15
•
• Traveling Out-of-Range................................................15
• Channel ...........................................................15
• Using the SpeakerPhone ..............................................15
• Three-way call ......................................................15
Setting Up the Integrated Answering Device........................16
•
The Integrated Answering Device .......................................16
•
OF YOUR OWNER’S MANUAL
Features ...........................................................16
•
Turning the Answering System On/Off...................................17
•
Setting the Clock ....................................................17
•
Setting Your Outgoing Message (GREETING) ..............................18
•
Selecting the Message Record Time......................................19
•
Selecting a Pin Code .................................................20
•
Calling Party Control Feature ..........................................20
•
Setting the Toll Saver Switch...........................................21
•
Using the Reset Button ...............................................21
Using the Integrated Answering Device............................22
•
Playing Your Messages................................................22
•
Repeating a Message .................................................22
•
Skipping a Message ..................................................23
•
Deleting a Message ..................................................24
•
Voice Memo ........................................................24
•
Recording a Conversation .............................................25
•
Remote Access Away from Home........................................25
•
Remote Room Monitor................................................27
Troubleshooting ..............................................28
•
Quick Reference Chart................................................28
Specifications.................................................31
Introduction
WELCOME
Congratulations on your purchase of the Uniden EXA7950 cordless
telephone and answering system. This phone is designed and
engineered to exacting standards for reliability, long life, and
outstanding performance.
FEATURES
• 900 MHz Extended Range Technology
TO YOUR NEW PHONE
• Integrated Telephone Answering Device (ITAD)
• 10 Number Memory Dialing
• 3 Instant Dial Priority Keys
• 32 Digit Redial
• Flash and Pause
• Pulse/Tone Dialing
• Page
• 7 Hour Talk Time
• Handset Earpiece and Ringer Volume Control
• Hearing Aid Compatible
INTRODUCTION
The EXA7950 features include AutoTalk™ and AutoStandby™. AutoTalk allows
you to answer a call by just removing the handset from the base so you don’t
have to waste time pushing buttons or flipping switches. AutoStandby allows
you to hang up by simply returning the handset to the base.
The UltraClear Plus™ true compander circuitry virtually eliminates
background noise. This innovative technology, together with 40
different channels, provides you with the best possible reception during
all your conversations.
To protect you against misbilled calls which might result from your phone
being activated by other equipment, the EXA7950 has Random Code™
digital security which automatically selects one of over 65,000 digital
security codes for the handset and base. Also, the AutoSecure™ feature
electronically locks your phone when the handset is in the base.
To get the most from your phone, please read this owner’s manual thoroughly.
Also, be sure to complete the product registration form and mail it in.
INTRODUCTION
Be sure to visit our web site at: www.uniden.com.
1
TIP
To get the most from your
phone, please read this
owner’s manual thoroughly.
Also be sure to complete
and mail the product
registration form.
INCLUDED IN YOUR PACKAGE
NOTE
If any of these items are
missing or damaged,
contact the Uniden Parts
Department at (800) 554-3988.
Hours are from 8:30 a.m. to
5:00 p.m. Central Time,
Monday through Friday. We
can also be reached on the
web at www.uniden.com
.
Handset
Rechargeable Battery
Base
Telephone Cord
AC Adapter
Wall Mount Adapter
Also included:
• This Owner’s Manual
• Precautions and Important Safety Instructions/Warranty Information
• Registration Card
2
TIP
Before choosing a location
for your phone, read the
“Installation Considerations”
included in the “Precautions
and Important Safety
Instructions” brochure.
Installingand Adjusting YourPhone
DESK/TABLETOP INSTALLATION
INSTALLING AND ADJUSTING
1) Plug the AC adapter cord into the 9 VDC input jack on the back of
the base.
2) Wrap the AC adapter cord around the strain relief notch.
Place the power cord so that it does not create a trip
hazard or where it could become chafed and create a fire
or electrical hazard.
3) Plug the AC adapter into a standard 120 VAC wall outlet.
AND ADJUSTING YOUR PHONE
4) Charge the battery (refer to “Charging the Battery Pack,” page 8).
5) Plug one end of the telephone cord into the
back of the base.
6) Plug the other end of the cord into your telephone jack on the wall.
Use only the Uniden AC adapter supplied with this phone
and DO NOT use an outlet controlled by a wall switch.
TEL LINE jack on the
INSTALLING
3
HINT
Before using your phone,
fully charge the NickelCadmium battery pack for
15-20 hours.
7) Set the base on a desk or tabletop, and
place the handset into the base
as shown. Then, raise the antenna
to a vertical position.
WALL INSTALLATION
Standard wall plate mounting
▼
This phone can be mounted on any standard AT&T or GTE wall plate.
CAUTION
Place the power cord so
that it does not create a
trip hazard or where it
could become chafed and
create a fire or
electrical hazard.
1) Slide the wall mount adapter into
the notches at the top of the base.
2) Rotate the wall mount adapter
down and snap it into place at the
bottom of the base.
3) Plug the AC adapter into the base.
4) Put the AC adapter cord inside the
molded wiring channel, then wrap it
around the strain relief notch. Plug
the AC adapter into a standard
120 VAC wall outlet.
4
!
DO NOT use an outlet
controlled by a wall switch.
5) Plug one end of the telephone
cord into the TEL LINE jack
on the back of the base, then
plug the other end into a
standard telephone jack.
6) Line up the mounting slots on
the base with the mounting
posts on the wall, then push
in and down until the
phone is firmly seated.
!
Before you plug the other
end of the telephone cord
into the modular jack on
the wall, charge the battery
(refer to “Charging the
Battery Pack,” page 8).
7) On the base unit, pull the handset
retainer out of the slot and rotate
it clockwise 180 degrees.
8) Flip the retainer from front to back,
then slide it back into the slot so
that the lip of the retainer faces up
and the oval is at the bottom of the
retainer. This will hold the handset
in place.
INSTALLING AND ADJUSTING
5
Direct wall mounting
▼
If you don’t have a standard wall plate, you can mount your phone
directly to the wall. Before doing this, consider the following:
• Select a location away from electrical cables, pipes, or other items
behind the mounting location. Inserting screws into areas such as
this can be hazardous.
• Try to mount your phone within 10 - 15 feet of a working phone
jack in order to avoid excessive lengths. Remember, you are not
mounting your phone to a wall plate with a built-in phone jack.
• If the selected mounting area has no wooden support beams directly
behind it, you will need the appropriate anchoring devices in order
for the wall to properly support your phone.
1) Insert two mounting screws into
the wall, with their appropriate
anchoring device if necessary,
3-15/16 inches apart. Allow about
3/16 of an inch between the wall
and screw heads for mounting
the phone.
2) Slide the wall mount into the
notches at the top of the base.
3) Rotate the wall mount adapter
down and snap it into place at
the bottom of the base.
4) Plug the AC adapter into the base.
6
5) Put the AC adapter cord inside the
molded wiring channel, then wrap
the AC adapter cord around the
strain relief notch. Plug the AC
adapter into a standard
120 VAC wall outlet.
6) Plug one end of the telephone cord
into the
of the base, then plug the other end
into a standard telephone jack.
7) Line up the mounting slots on the base
with the mounting screws on the wall,
then push in and down until the
phone is firmly seated.
TEL LINE jack on the back
INSTALLING AND ADJUSTING
8) On the base unit, pull the handset
retainer out of the slot and rotate
it clockwise 180 degrees.
7
9) Flip the retainer from front to back,
then slide it back into the slot so
that the lip of the retainer faces up
and the oval is at the bottom of the
retainer. This will hold the handset
in place.
INSTALLING THE HANDSET BATTERY PACK
1) Remove the handset battery cover.
2) Plug the battery’s cable into
1
2
the handset
3) Replace the battery cover.
3
The plastic connectors will fit together only one
way. Make sure the battery’s connector is
NOTE
properly aligned. Use only the Uniden battery
pack (model BT-905).
CHARGING THE BATTERY PACK
▼
Initial battery charging
Before plugging the phone line into your new phone for the first time,
fully charge the rechargeable battery pack for 15-20 hours
without interruption.
1) Place the handset on the base.
status
2) Make sure that the
LED lights. If the LED doesn’t light, check to
see that the AC adapter is plugged in and that the handset makes good
contact with the base charging contacts.
8
!
Use only the Uniden
battery (BT-905) supplied
with your phone.

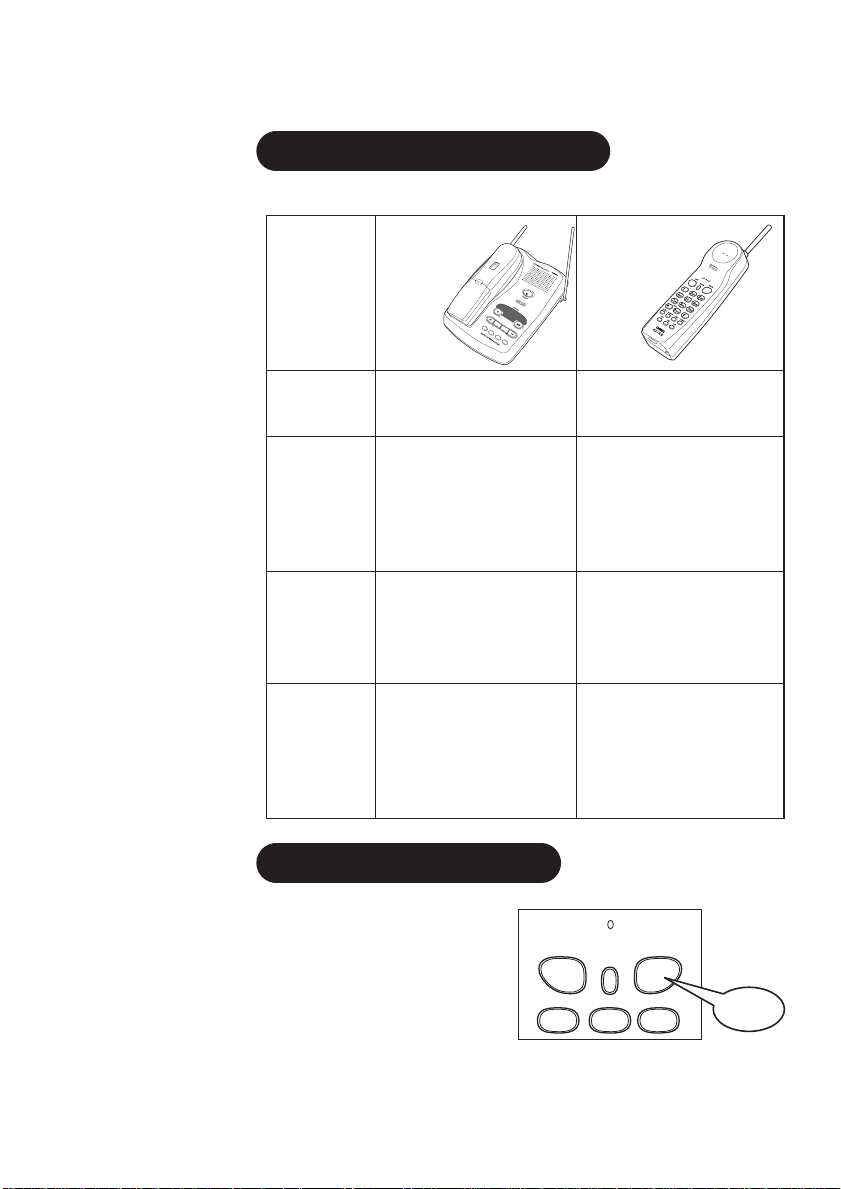

Low battery indicator
▼
When the battery pack is very low and
needs to be charged, the phone is programmed to eliminate functions in
order to save power. If the phone
is not in use, the
flashes every three seconds.
If the phone is in use, the
LED flashes every three seconds
and the handset beeps. Complete your
conversation as quickly as possible and
return the handset to the base for charging.
talk/batt
LED
talk/batt
talk
talk flash
batt
mem
CLEANING THE BATTERY CONTACTS
To maintain a good charge, clean all charging contacts on the handset
and base about once a month with a pencil eraser or other contact
cleaner. DO NOT use liquids or solvents; you may damage your phone.
PAGE
To locate the handset (while it’s
off the base), press
base. The handset beeps
for 60 seconds.
page
on the
INSTALLING AND ADJUSTING
Paging is canceled, when the
handset is returned to the base.
9
Loading...
