Page 1
Digital Spread
Spectrum provides
the longest range,
the clearest sound
and the best privacy.
OPERATING GUIDE
Page 2
Uniden Australia Pty.
Ltd/Uniden New
Zealand Ltd DOES NOT
represent this unit to be
waterproof. To reduce
the risk of fire,
electrical shock or
damage to the unit,
DO NOT expose this
unit to rain or moisture.
PRECAUTIONS
Before you read anything else, please observe the following:
▼
Rechargeable Nickel-Cadmium Battery Warning
1) This equipment contains a Rechargeable Nickel-Cadmium
Battery.
2) The Rechargeable Nickel-Cadmium Battery contained in this
equipment may explode if disposed of in a fire.
3) Do not short-circuit the battery.
4) Do not charge the Rechargeable Nickel-Cadmium Battery used
in this equipment in any charger other than the one designed
to charge this battery as specified in this guide.
5) Using another charger may damage the battery or cause the
battery to explode.
Rechargeable Nickel-Cadmium Batteries must be disposed of
properly
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
▼
Note for use of this device in New Zealand
1) The grant of a Telepermit for any item of terminal equipment
indicates only that Telecom has accepted that the item complies
with minimum conditions for connection to its network. It
indicates no endorsement of the product by Telecom, nor does
it provide any sort of warranty. Above all, it provides no
assurance that any item will work correctly in all respects with
another item of Telepermitted equipment of a different make or
model, nor does it imply that any product is compatible with all
of Telecom’s network services.
2) Immediately disconnect this equipment should it become
3) This equipment shall not be used in any manner which could
2
physically damaged, and arrange for its disposal or repair.
constitute a nuisance to other Telecom customers.
Page 3
CONTENTS
Introduction ..........................................................................................4
• Welcome ........................................................................................4
• Features ........................................................................................4
• Important Safety Instructions ......................................................5
• Included in Your Package............................................................7
• Controls and Functions ................................................................8
Installing and Adjusting Your Phone ................................................11
• Desk/Tabletop Installation ........................................................11
• Wall Installation ..........................................................................12
• Installing the Handset Battery Pack ..........................................13
• Charging the Battery Pack..........................................................13
OF YOUR OPERATING GUIDE
• Cleaning the Battery Contacts ..................................................14
• Adjusting the Ringer Control......................................................15
• Adjusting the Earpiece Volume..................................................15
• Changing the Handset Ringer....................................................15
• Automatic Digital Code Security................................................15
Using Your New Phone ....................................................................16
• Making and Receiving Calls ......................................................16
• Redial ..........................................................................................16
• Page ............................................................................................16
• Call Waiting ................................................................................17
• Call Waiting in Australia ............................................................17
• Call Waiting in New Zealand ....................................................17
• Storing a Phone Number in Memory ........................................18
• Dialing a Stored Memory ..........................................................18
• Erasing a Stored Number from Memory. ..................................18
• Chain Dialing ..............................................................................19
• Travelling Out-of-Range ............................................................19
Troubleshooting ..................................................................................20
• Quick Reference Chart ..............................................................20
CONTENTS
Specifications ......................................................................................22
Warranty..............................................................................................24
• Australia ......................................................................................22
• New Zealand ..............................................................................23
3
Page 4
WELCOME
Congratulations on your purchase of the Uniden 910
DG Max cordless telephone. This phone is designed for
reliability, long life, and outstanding performance utilising
the latest in 900 MHz Spread Spectrum technology.
FEATURES
• 15 Channels (Aust)
TO YOUR NEW PHONE
• 900 MHz Spread Spectrum Technology
• 20 Enhanced Memory Dial Locations
(16 Digits Maximum per Memory)
• 32 Digit Redial
INTRODUCTION
• Redial, Flash, and Pause
• Page
• 14 Day Standby Battery Time
• 5 Hour Talk Time
• Handset Earpiece and Ringer Volume Control
• Call Waiting Compatible
• Auto Talk
• Auto Standby
• Any Key Answer
Digital Spread Spectrum Technology utilises a “wider frequency
band” vs. a “single narrow band” used in standard digital transmissions. The result is a more secure conversation with the clarity
of digital sound, extended range, and minimal interference from
other cordless phones.
Random Code™ digital security automatically selects one of over
TM
TM
16,000,000 codes for the handset and base.
These features enhance your phone’s security and also prevent
INTRODUCTION
4
unauthorised calls as a result of your phone being activated by
other equipment.
Page 5
IMPORTANT SAFETY INSTRUCTIONS
CAUTION
In the event of a
storm, unplug your
cordless phone
from the power
source. A strong
power surge may
damage your phone.
Under power failure,
the telephone may
not operate. Please
ensure that a
seperate phone, not
dependant on local
power is available
during emergencies.
When using your telephone equipment, these basic safety precautions
should always be followed to reduce the risk of fire, electrical shock,
and injury to persons:
1) Read and understand all instructions.
2) Follow all warnings and instructions marked on the product.
3) Unplug this product from the wall outlet before cleaning, and use a
dry cloth, without liquid or aerosol cleaners.
4) Do not use this product near water; for example, near a bath tub,
wash bowl, kitchen sink or laundry tub, in a wet basement or near a
swimming pool.
5) Do not place this product on an unstable cart, stand or table. The
telephone may fall, causing serious damage to the unit.
6) This product should be operated only from the type of power source
indicated on the marking label. If you are not sure of the type of
power supply to your home, consult your dealer or local power
company.
7) Do not allow anything to rest on the power cord. Do not locate this
product where the cord will be damaged by persons walking on it.
8) Do not overload wall outlets and extension cords, as this can result
in the risk of fire or electrical shock.
9) Never push objects of any kind into this product through cabinet
slots, as they may touch dangerous voltage points or short out parts
that could result in a risk of fire or electric shock. Never spill liquid
of any kind on the product.
10) To reduce the risk of electric shock, do not disassemble this product.
Take it to qualified service personnel when service or repair work is
required. Opening or removing covers may expose you to dangerous
voltages or other risks. Incorrect reassembly can cause electric shock
when the appliance is subsequently used.
5
Page 6
11) Unplug this product from the wall outlet and refer servicing to
qualified service personnel under the following conditions:
CAUTION
To reduce the risk of
fire or injury to
persons by the battery,
read and follow these
instructions.
A. If the power supply cord is damaged or frayed.
B. If liquid has been spilled into the product.
C. If the product has been exposed to rain or water.
D. If the product does not operate normally when following
the operating instructions.(Adjust only those controls that
are covered by the operating instructions. Improper adjustment of other controls may result in damage, and will often
require extensive repair work by a qualified technician).
E. If the product has been dropped, or the cabinet has been
damaged.
F. If the product exhibits a distinct change in performance.
12) Do not use the telephone to report a gas leak in the vicinity of the
leak.
6
Page 7
TIP
To get the most from
your phone, please
read this owner’s
manual thoroughly.
Also be sure to
complete and mail
the product
registration form.
INCLUDED IN YOUR PACKAGE
Handset Base
NOTE
If any of these
items are missing
or damaged,
contact the place
of purchase.
Wall Mount
Bracket
Rechargeable
Battery
AC Adaptor
MEMO
MEMO
2X Memory
Stickers
Wall
Mounting
Screws
REGISTRATION
CARD
Registration
Card
Telephone
Cord and plug
(Aust only)
Digital Spread
Spectrum provides
the longest range,
theclearest sound
and the best privacy.
OPERATING GUIDE
This Owner’s
Manual
7
Page 8
11
10
CONTROLS AND FUNCTIONS
3
1
7
8
1) Battery Compartment
2) Redial/Pause
9
2
8
5
6
4
7) Flash
8) Volume Up and Down
3) Talk
4) Charging Contacts
5) Handset Microphone
6) Mem
8
9) C Wait
10) in use LED
11) batt low LED
Page 9
12
14
13
12) Page
13) Base Charging Contacts
14) Status LED’s (power, in
use, page, charge)
15) DC in 9V
16) Tel Line
15 16
9
Page 10
This Page is intentionally left blank
10
Page 11
TIP
Before choosing a
location for your phone,
read the “Important
Safety Instructions”
on page 5.
DESK/TABLETOP INSTALLATION
INSTALLING AND ADJUSTING
1) Plug the AC adaptor cord into the 9 VDC input jack on
the back of the base.
2) Plug the AC adaptor into a standard 230/240 VAC wall
outlet.
3) Charge the battery (refer to “Charging the Battery Pack,”
page 13).
4) Plug one end of the telephone cord onto the TEL LINE
jack on the back of the base.
5) Plug the other end of the cord into your telephone jack
on the wall.
AND ADJUSTING YOUR PHONE

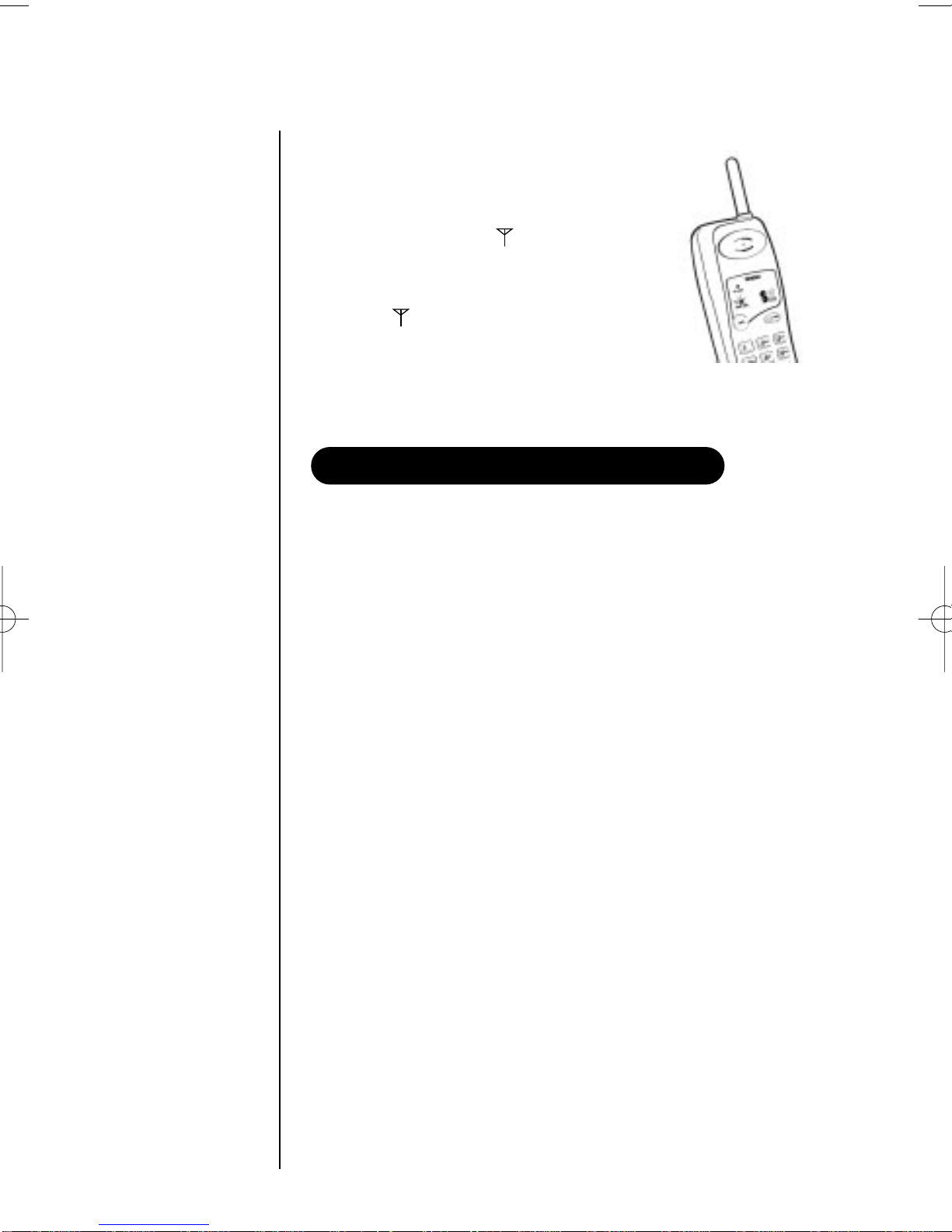

6) Set the base on a desk or tabletop
and place the handset into the base
as shown. Then, raise the antenna
to a vertical position.
Use only the Uniden AC adaptor supplied with this phone.
INSTALLING
11
Page 12
INSTALLING AND ADJUSTING YOUR PHONE
CAUTION
Place the power cord
so that it does not
create a trip hazard
or where it could
become chafed and
create a fire or
electrical hazard.
▼
Wall Installation

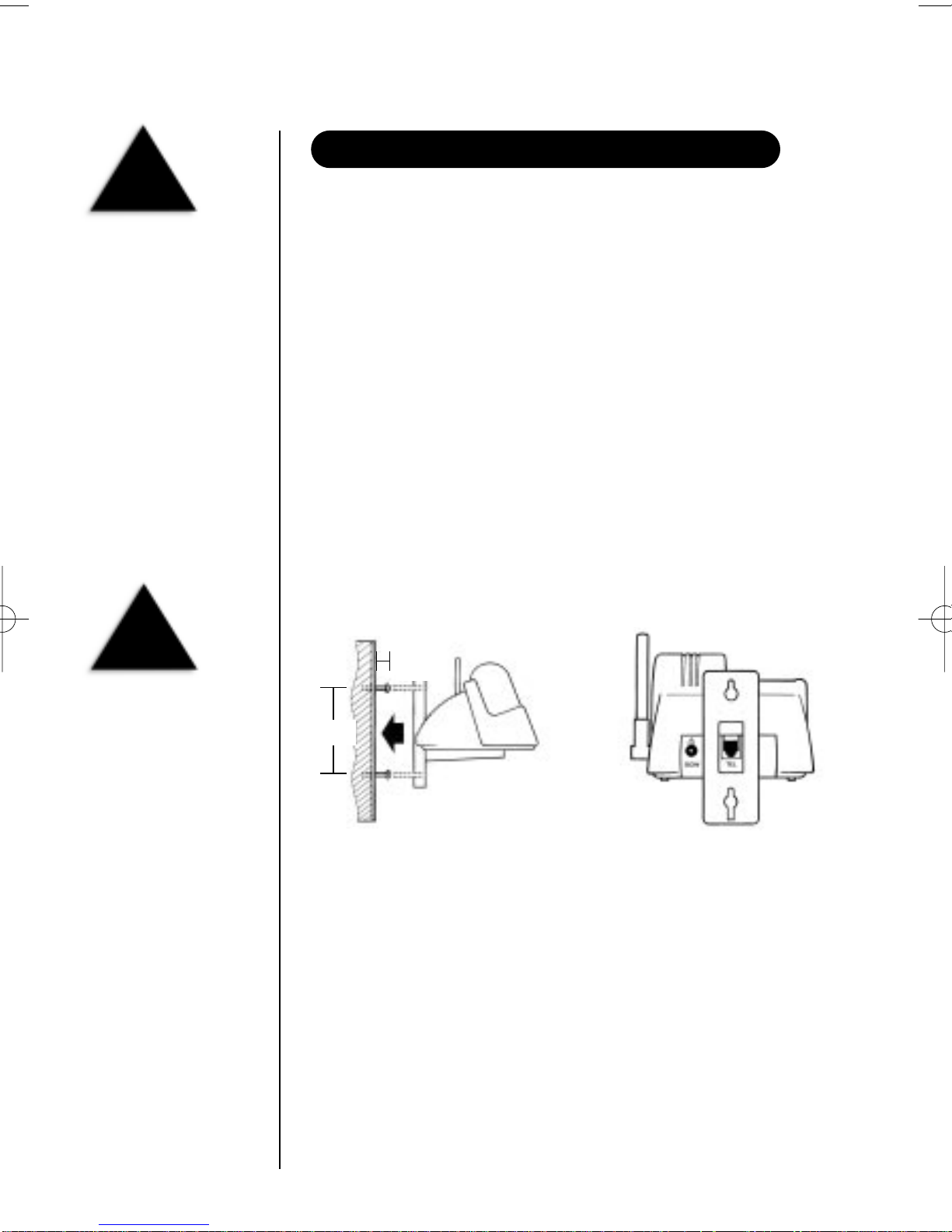

You can mount your phone directly to the wall. Before doing this,
consider the following:
• Select a location away from electrical cables, pipes, or other
items behind the mounting location. Inserting screws into areas
such as this can be hazardous.
• Try to mount your phone within 10 - 15 feet of a working
phone jack in order to avoid excessive cord lengths. Remember,
you are not mounting to a wall plate with a built in phone jack.
• If the selected mounting area has no wooden support beams
directly behind it, you will need the appropriate anchoring
devices in order for the wall to properly support your phone.
1) Insert two mounting screws into the wall, with their appropriate
anchoring device if necessary, 83mm apart. Allow about 5mm
between the wall and screwheads for mounting the phone.
HINT
Before using your
phone, fully charge
the Nickel-Cadmium
battery pack
for 12-15 hours.
5mm
83mm
2) Attach the wall mount bracket into place on the bottom of the
phone.
3) Plug the AC adaptor into the base.
4) Plug the AC adaptor into a standard 230-240 VAC wall outlet.
5) Plug one end of the telephone cord into the TEL LINE jack on
the back of the base, then plug the other end into a standard
telephone jack.
6) Line up the mounting slots on the wall mount bracket with the
mounting screws on the wall, then push in and down until the
12
phone is firmly seated.
Page 13
CAUTION
Use only the Uniden
battery supplied with
your phone.
NOTE
INSTALLING THE HANDSET BATTERY PACK
1) Press in on the battery cover
release and slide the cover down
until it comes off.
2) Align the plastic connector of
the Nickel Cadium battery pack
with it’s socket and plug it in.
3) Place the battery pack inside.
The black lead will be
on the right when the
plug is properly aligned.
Please observe how the lead is
positioned.
4) Slide the battery cover on until it
snaps into place.
CHARGING THE BATTERY PACK
▼
Initial Battery Charging
Before plugging the phone line into your new phone for the first
time, fully charge the rechargeable battery pack for 12-15 hours
without interruption.
1) Place the handset on the base.
2) Make sure that the charge LED
lights. If the LED doesn’t light,
check to see that the AC adaptor
is plugged in and that the
handset makes good contact
with the base charging contacts.
13
Page 14
▼
Low Battery Indicator
The low battery indicator shows when the
battery needs to be re-charged. If the phone
is not in use, batt low/ LED flashes every
three seconds and beeps once every
30 seconds. If the phone is in use, the
batt low/ LED flashes every three
seconds and the earpiece speaker beeps.
Complete your conversation as quickly as
possible and return the handset to the base for charging.
CLEANING THE BATTERY CONTACTS
To maintain a good charge, clean all charging contacts on the
handset and base about once a month with a pencil eraser or other
contact cleaner. DO NOT use liquids or solvents; you may damage
your phone.
14
Page 15
ADJUSTING THE RINGER CONTROL
When the phone is either charging or in standby mode, pressing
the ▼or ▲key on the handset selects the handset ringer volume.
There are two ringer volume settings; high and low.
ADJUSTING THE EARPIECE VOLUME
There are four volume settings for the handset earpiece; high,
normal, medium, and low. The handset earpiece volume can
only be adjusted during a call. To lower the volume, press
▼
. To raise the volume, press ▲.
CHANGING THE HANDSET RINGER
When the phone is either charging or in standby mode,
1) Press flash button.
2) Press 1,2,3 or 4 on the keypad to select ringer tone.
The tone will automatically be programmed in.
AUTOMATIC DIGITAL CODE SECURITY
To prevent other parties from making unauthorised calls on
your phone line, a digital code was added to the DG 910. Your
phone’s handset and base share this code, which is randomly
set each time you place the handset in the charging cradle.
To re-establish communication between the handset and the
base in the event of a power failure
1) Restore power to the base
2) Place the handset on the base. The in use LED blinks to
indicate that the digital security code is reset.
15
Page 16
MAKING AND RECEIVING CALLS
To answer
a call
To make a
call
To hang up
Handset
On Base
Pick up the handset. Press any button.
1 Pick up the handset.
2 Press talk.
3 Listen for the dial tone.
4 Dial the number.
Press talk, or return the handset to the
base (AutoStandby).
Handset
Off Base
1 Press talk.
2 Listen for the dial tone.
3 Dial the number.
REDIAL
If a number you have dialed is engaged, or you would like to call
YOUR NEW PHONE
back the last number dialed,
1) Press talk.
2) Listen for the dial tone.
3) Press rdl/p
PAGE
To locate the handset (while it’s off the
base), press page on the base. The
handset beeps for about 15 seconds.
USING
USING YOUR PHONE
16
Page 17
NOTE
CALL WAITING
▼
Call Waiting in Australia
Accessing the Call Waiting Service Using the C Wait Button
1) While talking, you will hear the call waiting signal (series of
beep tones).
2) Press the c wait button to switch call and put the current call
on hold.
3) To switch back to original call, press the c wait button again.
The flash + 2 call
waiting procedure toggles
call between the
incoming and the original
call (vice versa).
The flash + 1 procedure
will drop the current call
connection and pick up
the incoming call or the
call on hold.
Accessing the Call Waiting Service Using the Flash Button
1) While talking, you will hear the call waiting signal (series of
beep tones).
2) Press the flash button then 2 to switch call and put the current
call on hold.
3) To switch back to original call, press the flash button then 1.
▼
Call Waiting in New Zealand
You must subscribe to Telecom's Call Waiting Service before you
can use this feature. Please call Telecom to check on the availability
of this feature in your area.
Accessing the Call Waiting Service Using the C Wait or
Flash Button
1) While talking you hear the Call Waiting beep signal.
2) Press the c wait or flash button. This feature sends a 600mS
NOTE
You must subscribe to
Telecom's Call Waiting
Service before you can
use this feature.
timed “hook-flash” on the telephone line for accessing services
such as Call Waiting, etc.
17
Page 18
STORING A PHONE NUMBER IN MEMORY
NOTE
The rdl/p button
counts as one digit.
Pressing rdl/p on
the handset, more
than once increases
the length of pause
between numbers.
1) Remove the handset from the base.
2) Press mem and the in use LED blinks.
3) Enter the phone number, up to 16 digits. If a pause is needed
during dialing to access a long distance service, press rdl/p.
4) Press mem again.
5) Enter a two digit memory location (01-20) on the keypad.
The in use LED will stop flashing and a tone indicates that the
number is stored.
DIALING A STORED MEMORY
▼
Using the memory location features
1) Press talk.
NOTE
An error sounds and
the erase procedure
will be cancelled
if more than
30 seconds elapse
between each
keystroke.
2) Press mem.
3) Enter the memory location (01-20) on the keypad. The
number automatically dials.
ERASING A STORED NUMBER FROM MEMORY
1) Remove the handset from the base unit.
2) Press the mem button twice.
3) Press the memory location (01-20).
A tone indicates that the stored number
is erased from memory.
18
Page 19
NOTE
CHAIN DIALING
On certain occasions after dialing a number, you may be requested
to enter an access code, such as your account number. You can
enter this number into a memory location for later use by doing the
following.
1) Store the access code into one of the memory locations (01-20).
2) Dial the party or service main number.
3) When you need to enter the special number, press mem
followed by the memory location (01-20)
TRAVELLING OUT-OF-RANGE
As you begin to move too far from your base unit, you will hear a
When out of range,
the batt low/ LED
will start to flash
and the handset
beeps twice every
15 seconds.
clicking sound. As you travel further out-of-range, the voice
transmission will begin to break up. If you pass the range limits of
the base unit, your call will terminate.
19
Page 20
QUICK REFERENCE CHART
If your phone is not performing to your expectations, please try
these simple steps before calling Uniden customer service.
AUSTRALIA 1800 632 789
NEW ZEALAND 0800 4 UNIDEN
0800 4 864336
TROUBLESHOOTING
PROBLEM
YOUR NEW PHONE
The charge light
won’t come on
when the handset is
placed in the base.
Audio sounds weak
and/or scratchy.
Can’t make or
receive calls.
SUGGESTION
• Make sure the AC Adaptor is plugged
into the Base Unit and wall outlet.
• Make sure Handset is properly seated in
Base.
• Make sure that the charging contacts on
the Handset and Base Unit are clean.
• Make sure that the Base antenna is in a
vertical position.
• Move the Handset and/or Base to a
different location away from metal
objects or appliances and try again.
• Check both ends of the Base telephone
line cord.
• Make sure the AC Adaptor is plugged
into the Base and wall outlet.
• Disconnect the AC Adaptor for a few
minutes, then reconnect it.
• Place the handset back on the charging
cradle for a few seconds. The in use
LED will blink indicating that the phone
has been reset.
TROUBLESHOOTING
20
Handset doesn’t ring
or receive a page.
• The Nickel-Cadmium battery pack may
• The handset may be too far away from
• Place the base unit away from appliances
• Place the handset back on the charging
be weak. Charge the battery on the base
unit for 12-15 hours.
the base unit.
or metal objects.
cradle for a few seconds.
The in use LED will blink indicating that
the phone has been reset.
Page 21
PROBLEM
SUGGESTION
No dial tone
Does not
ring
No power on
the handset
unit
Does not
charge
• Check for the telephone line cord connectors
at both ends that they are pushed in firmly
until they click.
• If you had a power failure or had unplugged
the base unit, replace the handset on the base
unit for two to five seconds to reset the system.
• You may have exceeded the Ringer
Equivalence Number(REN) limit of how many
phones can be connected to the same line.
The REN total of all devices(printed on the
bottom label of each unit) should not exceed
three(3). Disconnect the appropriate units to
lower the REN total.
• Check the Ni-Cd battery pack connection
inside the battery compartment on the handset.
• The handset rechargeable Ni-Cd battery pack
may need to be charged.
• Make sure the charging contacts on both the
base unit and the handset are in contact during
charging.
• The charging contacts may need to be cleaned
refer to page 5, No 3 or page 14.
• The Ni-Cd battery pack may need to be
discharged first before a full charge.
Range is
limited
Calls received
flutters or
fades
Cannot store or
recall phone
numbers from
memory
• Raise or reposition the antenna on the base or
handset.
• Move the base unit so that it is centrally
located in your residence or office and make
sure that the base unit is not located near
appliances.
• The handset rechargeable Ni-Cd battery pack
may need charging.
• You may be out of normal operating range.
Move closer to the base unit.
• When storing phone numbers, make sure that
the handset is in the standby position.
• When recalling stored phone numbers, check
first for a dial tone.
• Always use two digits when entering/recalling
memory index numbers.
21
Page 22
AUSTRALIAN SPECIFICA TIONS
General
The DG 910 complies with TS001, TS002, TS004, AS/NZ3260,
ACA Radio Communications Class Licence (Spread Spectrum
Devices).
Frequency Control: PLL
Modulation: Direct Sequence Spread Spectrum; DBPSK
OF YOUR NEW PHONE
Operating Temperature 0º to 50º C
Base
Frequency: 915 to 928 Mhz (15 Channels)
Size: 132mm (W) x 115mm (D) x 102mm (H)
Weight: Approx. 220g.
Power Source: AC Adaptor
Handset
Frequency: 915 to 928 Mhz (15 Channels)
Power Requirements: Rechargeable Nickel-Cadmium Battery pack
Size: (including antenna) 49mm (W) x 28mm (D) x 190mm (H)
Weight: Approx. 158g (including battery)
Battery: BT-990
(including antenna)
Approval No. V96295
Input: 240VAC, 50Hz
Output: 9VDC, 300mA
Capacity: 600 mAH 3.6V
SPECIFICATIONS
Specifications, Features and availability of Optional
SPECIFICATIONS
22
Accessories are all subject to change without prior notice.
Talk Mode: 5 hours
Standby Mode: 14 Days
Page 23
NEW ZEALAND SPECIFICATIONS
General
The DG 910 complies with PTC200, RFS29.
Frequency Control: PLL
Modulation: Direct Sequence Spread Spectrum; DBPSK
Operating Temperature 0º to 50º C
Base
Frequency: 921 to 929 Mhz (15 Channels)
Size: 132mm (W) x 115mm (D) x 102mm (H)
(including antenna)
Weight: Approx. 219g. (including optional Battery)
Power Source: AC Adaptor
Approval No. V96295
Input: 240VAC, 50Hz
Output: 9VDC, 300mA
Handset
Frequency: 921 to 929 Mhz (15 Channels)
Power Requirements: Rechargeable Nickel-Cadmium Battery pack
Size: (including antenna) 49mm (W) x 28mm (D) x 190mm (H)
Weight: Approx. 158g (including battery)
Battery: BT-990
Capacity: 600 mAH 3.6V
Talk Mode: 5 hours
Standby Mode: 14 Days
Specifications, Features and availability of Optional
Accessories are all subject to change without prior notice.
23
Page 24
WARRANTY
One-Year Limited Warranty
Important: Evidence of original purchase is required for
warranty service.
WARRANTOR: Uniden Australia Pty Limited ACN 001 865 498
Uniden New Zealand Limited
ELEMENTS OF WARRANTY: Uniden warrants to the original retail
owner for the duration of this warranty its DG 910 (here in after
referred to as the Product), to be free from defects in materials and
craftsmanship with only the limitations or exclusions set out below.
WARRANTY DURATION: This warranty to the original retail owner
only, shall terminate and be of no further effect 12 months after the
date of original retail sale. This warranty will be deemed invalid if
the product is: (A) Damaged or not maintained as reasonable and
necessary, (B) Modified, altered or used as part of any conversion
kits, subassemblies, or any configurations not sold by Uniden,
(C) Improperly installed, (D) Repaired by someone other than an
authorised Uniden Repair Agent for a defect or malfunction covered
by this warranty, (E) Used in conjunction with any equipment or
parts or as a part of a system not manufactured by Uniden.
PARTS COVERED: This warranty covers for one (1) year, the
Base/Charging Unit and Handset only. All accessories (AC Adaptor,
Wall Mount Bracket etc) are covered for 90 days only.
STATEMENT OF REMEDY: In the event that the product does not
conform to this warranty at any time while this warranty is in effect,
the warrantor, at its discretion, will repair the defect or replace the
product and return it to you without charge for parts and service.
THIS WARRANTY DOES NOT COVER OR PROVIDE FOR THE
REIMBURSEMENT OR PAYMENT OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES. THIS GUARANTEE IS IN ADDITION
TO AND DOES NOT IN ANY WAY AFFECT YOUR RIGHTS UNDER
THE CONSUMER GUARANTEE ACT.
24
Page 25
WARRANTY CARD: If a Warranty Card has been included with this
Product, please complete and return to us within 14 days of
purchase. Your name and the serial number of the Product will then
be registered in our database and this will help us process your claim
with greater speed and efficiency should you require warranty
service.
PROCEDURE FOR OBTAINING PERFORMANCE OF WARRANTY:
In the event that the product does not conform to this warranty, the
Product should be shipped or delivered, freight pre-paid, with
evidence of original purchase (e.g. a copy of the sales docket) to the
warrantor at:
UNIDEN AUSTRALIA PTY LIMITED
SERVICE DIVISION
345 Princes Highway, Rockdale,
NSW 2261
Ph: (02) 9599 3577 Fax: (02) 9599 3278
FREE CALL 1800 632 789
Customers in other States should ship or deliver the Product freight pre-paid to
their nearest Uniden Authorised Repair Centre.(Contact Uniden for the nearest
Warranty Agent to you)
UNIDEN NEW ZEALAND LIMITED
SERVICE DEPARTMENT
150 Harris Road, East Tamaki,
Auckland
Ph: 0-9-273 8383 Fax: 0-9-274 0009
Toll Free: 0800 4 UNIDEN
4 864336
25
Page 26
UNIDEN ©1999 Uniden Australia Pty Limited ©1999 Uniden New Zealand Limited
All Rights Reserved.
Loading...
