Umax X10 User Manual
Contents
Important safety instructions ……………………………………………………………………………………………………… 5
1. Product overview …………………………………………………………………………………………………………. 7
1-1. Top view ………………………………………………………………………………………………………………………………. 7
1-2. Front and right side view ……………………………………………………………………………………………………. 7
1-3. Rear view ……………………………………………………………………………………….................................................. 8
1-4. View of Remote controller and each key’s function …………………………………………………………… 9
2. Prepare …………………………………………………………………………………………………………………….…… 10
2-1. Check the contents of X10 package …………………………………………………………………….. 10
2-2. Install AAA batteries into the remote controller ………………….………………………………. 10
2-3. Optional items …………………………………..…………………................................................................ 11
2-3-1. Passive speaker(CAP10) ………………………………………………………………………………. 11
2-3-2. WiFi USB dongle …………………………………………………………………………………………. 11
2-4. Purchased X10 without hard disk …………………………………………………….……………………. 12
2-5. Purchased X10 including hard disk …………………………………………………….…………………. 12
2-6. Hard disk partition and format ………………………………………………………………………..……. 12
3. Connection ……………………………………………………………………………………………………………………. 14
3-1. Necessary connection ……………………………………………………………………............................... 14
3-2. The specification of X10 Amplifier ………………………………………………………………………… 15
3-3. Passive loudspeaker & Active loudspeaker …………………………………………………………… 15
3-4. Extra connection ……………………………………………………………………………………………………. 15
4. Turn ON and Start ………………………………………………………………………………………………………. 16
5. SETUP ……………………………………………………………………………………………………………………………. 16
5-1. CD Ripping ……………………………………………………………………………………………………………. 17
5-2. Audio ……………………………………………………………………………………………………………………… 17
5-3. Network …………………………………………………………………………………………………………………. 17
5-3-1. Wired Setup ………………………………………………………………………………………………….. 18
5-3-1-1. DHCP(Auto IP) ………………………………………………………………………………….. 18
5-3-1-2. Static IP ………………………………………………………………………………………..…… 18
5-3-2. Wireless Setup ………………………………………………………………………………………………. 19
5-4. Samba Server ………………………………………………………………………………………………………… 19
5-5. System ……………………………………………………………………………………………………………………. 19
5-5-1. OSD Language ……………………………………………………………………………………………… 20
5-5-2. Time Set(Internet) ………………………………………………………………………………………….... 20
5-5-3. Auto Play ……………………………………………………………………………………………………….... 20
5-5-4. Firmware Version …………………………………………………………………………………………….. 20
5-5-5. Firmware Update …………………………………………………………………………………………….. 20
5-5-6. Factory Reset …………………………………………………………………………………………………… 21
6. CD Database(Music DB) ……………………………………………………………….…………………………… 21
6-1. What is CD Database(Music DB) ? ……………………………………………..……………………….. 21
6-2. What is freedb ? …………………………………………………………………………..……………………… 22
7. CD Loading(Ripping) …………………………………………………………………………..…………………….. 22
7-1. In case that the X10 is connected to network(Internet) ……………….……………………. 22
7-1-1. Ripping All …………………………………………………………………………………………………… 22
7-1-2. Ripping Track ………………………………………………………………………………………………. 23
7-2. In case that X10 is NOT connected to network(Internet) ………………..………………… 25
7-2-1. Ripping All ………………………………………………………………………………………………….. 26
7-2-2. Ripping Track ……………………………………………………………………………………………… 27
8. How to use Music DB(CD database) ………………………………………………………..……………… 27

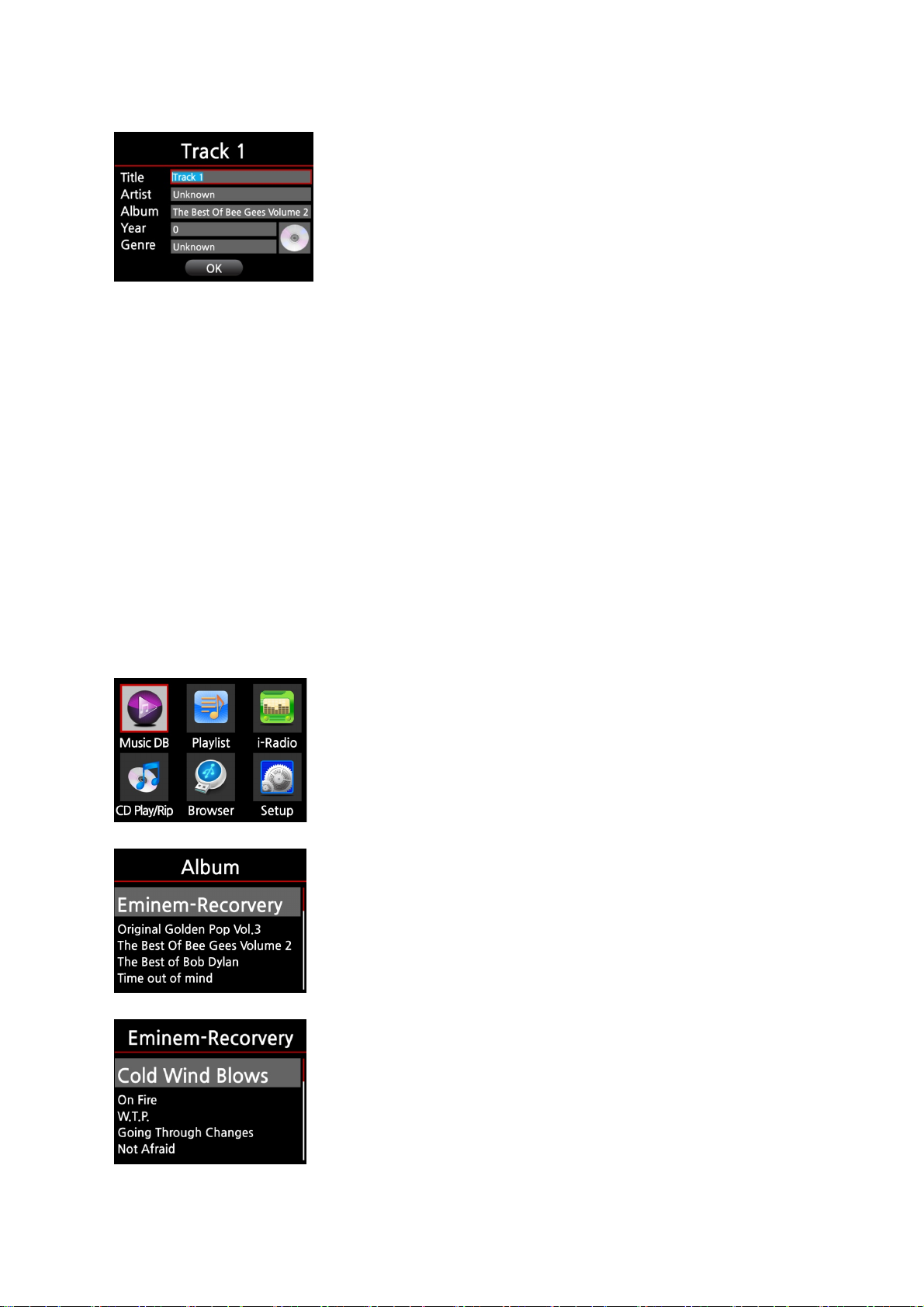

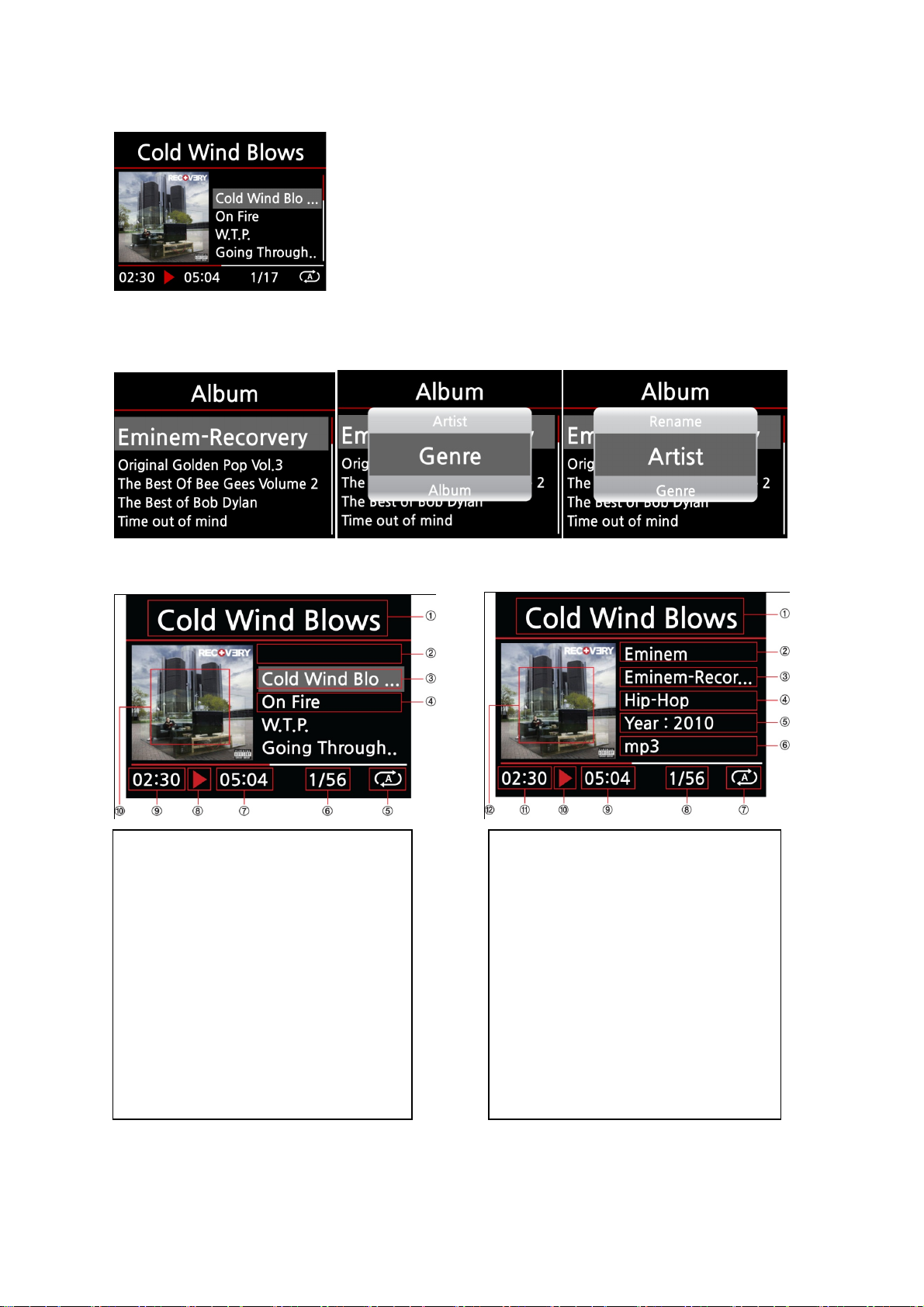

8-1. Play music loaded(ripped) into X10 …………………………………………………………………….. 27
8-2. SEARCH function ………………………………………………………………………………………………….. 29
8-3. How to manage Music DB …………………………………………………………………………………… 29
8-3-1. Delete or rename music in Music DB …………………………………………………………. 29
8-3-2. Copy music in other storage to Music DB …………………………………………………. 30
9. Edit TAG info of music in Music DB or in other storage …………………..…………….…….. 31
9-1. How to edit TAG info of the music in Music DB ………………………………………………… 31
9-2. How to edit TAG info of the music in other storages(USB, etc) …………………………. 32
10. Audio CD direct play ……………………………………………………….…………… ………………………….. 32
10-1. In case that X10 is connected to network(Internet)…………………………..………………. 32
10-2. In case that X10 is NOT connected to network(Internet) ……………………….…………. 33
11. Data CD direct play ……………………………………………………………………………………………………. 34
12. Playlist …………………………………………………………………….………………………………………..………….. 34
12-1. How to make Playlist …………………………………………………………………………………………. 34
12-2. How to play Playlist ……………………………………………………………………………….…………… 36
12-3. How to edit Playlist ……………………………………………………………………………………………. 36
13. Music Streaming …………………………………………………………………………………….………..………….…. 37
14. Internet Radio …………………………………………………………………………………………….…..…….……..…. 37
14-1. How to play Internet Radio …………………………………………………………..………..……….……. 37
14-2. How to make My Favorite and play it ……………………………………….…………………………. 38
15. USB host port for USB devices ……………………………………….………………….……………................ 38
16. External USB mass storage ……………………………….…………………………….………..…………………... 39
17. Browser …………………………………………………………………………………………………………………………… 39
17-1. Play data CD ………………………………………………………………………..………………….…………..… 39
17-2. Copy music in other storages to Music DB ………………………………………………………….. 39
17-3. TAG Edit …………………………………………………………………………….…………………………..……….. 39
18. Extra function …………………………………………………………………………………………………..…..………… 40
18-1. Bookmark …………………………………………………………………………………………………....…………. 40
18-2. E.Q.(Equalizer) ……………………………………………………………………………………………....……..…. 40
18-3. Standby ………………………………………………………………………….…………………………..….……….. 40
18-4. Change of play mode ………………………………………………………………………………..….………. 41
18-5. Alarm set ……………………………………………………………………………………………………….…..…… 41

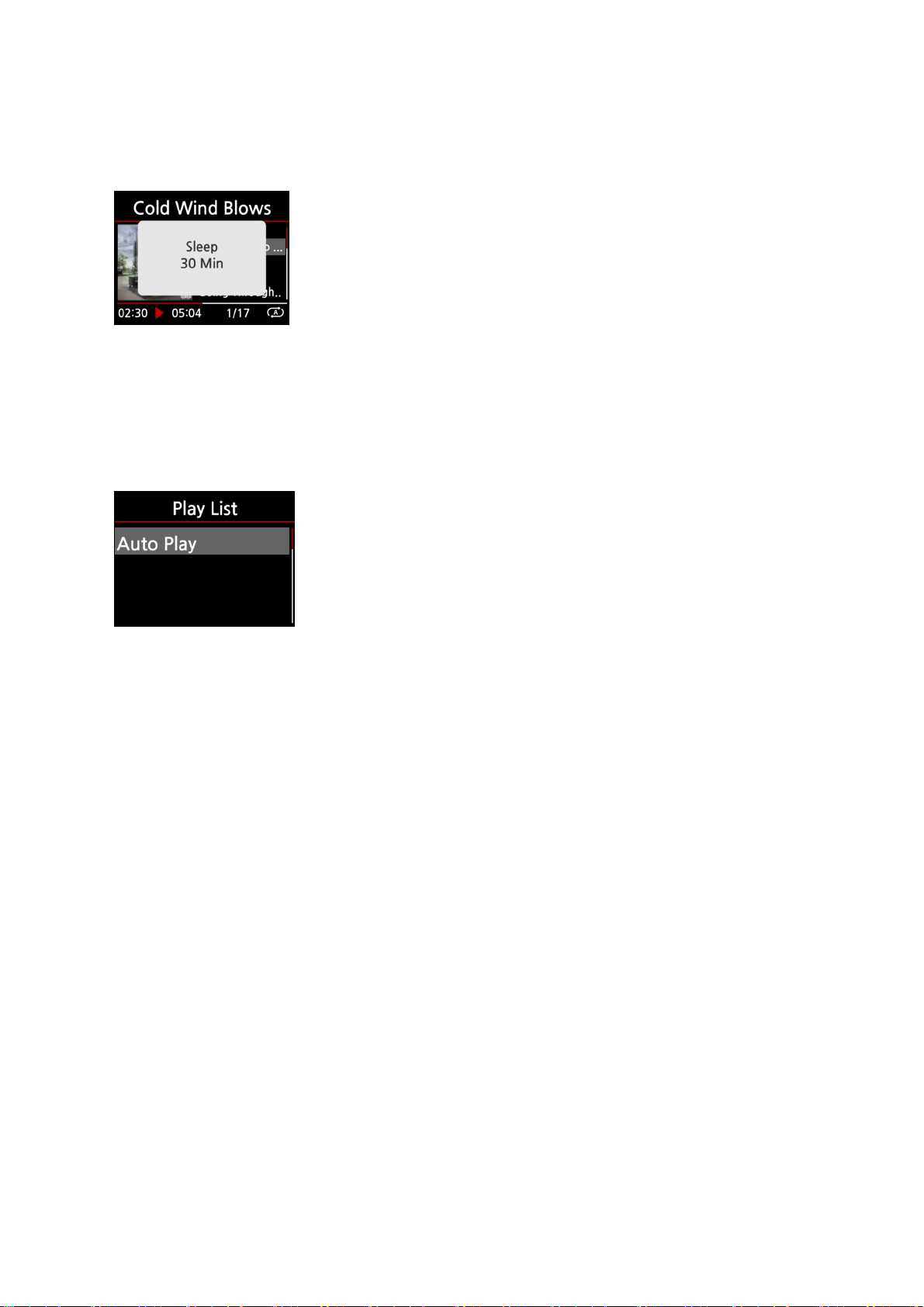

18-6. Sleep mode …………………………………………………………………………………………………..…..……. 42
18-7. Auto Play ………………………………………………………………………………………………………..….…… 42
19. Specification ……………………………………………………………………….………………………………………..... 43
20. Troubleshooting …………………………………………………………….……………………………………….….….. 44
Important safety instructions
For your own safety, please read the following important safety instructions carefully before
attempting to connect this unit to the main power supply. They will enable you to get the best
performance from the unit and prolong the life of the unit:
1.Read the instructions.
2.Keep the instructions.
3.Heed all warnings.
4.Follow all instructions.
5.Do not use this product near water.
6.Clean only with dry cloth.
7.Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8.Do not remove the casing of this product.
9.Only use this product indoors. Do not expose the product to dripping/splashing water, rain or
high humidity.
10.Keep this product away from direct sunlight, naked flames or heat.
11.Do not install near any heat sources such as radiators, heat registers, stoves, or other electrical
equipment(including amplifiers) that produce much heat.
12.Do not place any other electrical equipment on the product.
13.Do not place any sources of danger on the product(e.g. objects containing liquid, burning
candles)
14.This product includes batteries. Please refer to safety and disposal instructions for batteries in
this user manual.
15.Unplug this product during lightning storms or when unused for long period of time.
16.Refer all servicing to qualified service personnel. Servicing is required when the product has
been damaged, such as the power supply cord, damaged plug, liquid spillage, objects dropped on
the unit, exposure to rain or moisture, does not operate properly, or has been dropped.
WARNING
- Using headphones at a high volume can impair your hearing. This product can produce
sounds in decibel ranges that may cause hearing loss for a normal person, even for
exposure less than a minute. The higher decibel ranges are offered for those that may be
experiencing some hearing loss. Over time your hearing ‘comfort level’ adapts to higher
volumes of sound, so after prolonged listening, what sounds ‘normal’ can actually be loud
and harmful to your hearing. To guard against this, set your volume to a safe level.
- Loudspeakers : Before making any connections to loudspeakers, make sure all power is
turned off and only use suitable interconnects.
- Only use attachments/accessories specified and supplied by the manufacturer.
FCC regulations
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE
CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS
COULD VOID THE USER AUTHORITY TO OPERATE THE EQUIPMENT.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy. If not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures.
- Re-orient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
1. Product overview
1-1. Top view
① Up arrow: Move cursor to upper side.
② Down arrow : Move cursor to down side.
③ Left arrow : Move cursor to left side.
④ Right arrow : Move cursor to right side.
⑤ Play/Pause/OK : Play/Pause/Selection
⑥ Return : Go back to upper level
⑦ Menu : Show up menu
⑧ Power : Power ON/OFF
1-2. Front and right side view
① CD-ROM drive
② 3.5” TFT LCD screen
③ Remote control receiver
④ Hard disk door
1-3. Rear view
① Power(24V/3.5A) : AC adapter socket
② Speaker connector : Connect a passive speaker
③ Headphone : Connect headphone
④ Line Out : Connect to amplifier with a good quality interconnect cable.
⑤ Line In(AUX In) : Connect to tuner or turntable with a good quality cable
⑥ USB Host : Connect to USB devices
⑦ USB Target for PC : Connect to PC with the supplied USB cable
⑧ Ethernet LAN : Connect to LAN cable
⑨ SPDIF(Optical Out) : Connect to decoder with good quality optical audio
cable
⑩ Power Switch : After connecting AC adapter, switch to ON.
1-4. View of Remote Controller and each key’s function
1. POWER : Power ON/OFF
2. HOME : Go to home screen
3. SEARCH : Pop up search menu
4. Alphanumeric : Enter number & alphabet
5. NOW PLAYING : Go to Playing Screen
6. STOP : Stop playing
7. MENU : Popup menu
8. ARROW : Move cursor to upper side
9. ARROW : Move cursor to left side
10. OK : Confirmation
11. RETURN : Go back to upper level
12. PREVIOUS : Play previous music
13. NEXT : Play next music
14. RIP : Pop up ripping menu
15. REC : Pop up recording menu
36. SHUFFLE : Change play mode.
37. ALARM SET : Alarm setting
38. SLEEP : Go to sleep mode
39. EJECT : Eject CD
40. Not applicable
16. SORT : Sort file list
17. BOOK MARK : Make bookmark
18. E.Q. : Pop up equalizer menu
19. TAG EDIT : Edit MP3 ID3 TAG info
20. AUX : Select external source
21. STANDBY : Go to standby mode.
22. SETUP : Go to setup
23. MUTE : Mute/unmute sound
24. CAP/NUM : Toggle numeric key and alphabet
key
25. PLAY/PAUSE : Toggle Play and Pause
26. VOL+ : Volume up
27. VOL- : Volume down
28. ARROW : Move cursor to right side
29. ARROW : Move cursor to down side
30. INFO : Get more detailed information of
current music
31. SEEK/-15 : Seek backward by 15 seconds.
32. SEEK/+15 : Seek forward by 15 seconds.
33.
PLAYLIST : Go to playlist screen
34. i-RADIO : Go to i-radio screen
35. FAVORITE : Go to favorite list of i-radio
2. Prepare
2-1. Check the contents of X10 package
①Main unit
②Remote controller + AAA batteries x 2EA
③USB cable
④AC adapter
⑤Power cord
⑥Manual
2-2. Install AAA batteries into the remote controller.
Open the battery door and put the batteries.
2-3. Optional items
If you purchased optional items like passive loudspeaker(CAP10) and WiFi USB dongle, please
check below contents
2-3-1. Passive speaker(CAP10)
.
1 Speaker units
2 Speaker cable
3 Manual
2-3-2. WiFi USB dongle
801.11b/g/n WiFi USB dongle
2-4. Purchased X10 without hard disk.
You need a 3.5” SATA hard disk and install it into the X10 like below picture and format it.
【 TIP ① 】 We strongly recommend NTFS file system when you do format hard disk.
【 TIP ② 】 X10 supports 3.5” SATA(1/2) hard disk and up to two(2) TeraBytes
2-5. Purchased X10 with an internal hard disk installed.
Check whether HDD is formatted, or not.
Go to set 3. Connection.
2-6. Hard disk partition and format.
With the computer under Windows 2000/XP/Vista/7, you can make partitions and do format hard
disk by using the Disk Manager Utility.
【 TIP ③ 】 X10 supports up to two(2) partitions.
① Connect X10 to your computer via USB
cable just like an external hard disk. Wait until
the computer recognizes it.
② Place mouse point on My Computer and
right click choose Manager.
③ Select Disk Manger and click it. Then, X10
hard disk will be listed like left picture.
④ Select the X10 hard disk and click right
button and select New Partition and click it.
⑤ Press Next when the New Partition
Wizard appears.
⑥ Select Primary partition and click next.
⑦ Select partition size. If you want one
partition, press Next.
【 TIP ④ 】 For FAT32 file system, the size is
limited to Max. 32000MB.
⑧ Click Next.
⑨ Select File system and click Next.
【 TIP ⑤ 】 We strongly recommend NTFS file
system. If you choose FAT32 file system,
maximum size of hard disk will be limited to
32GB only.
【 TIP ⑥ 】 Don’t check Enable file and folder
When completed, the detailed information will
be shown like the left.
⑩ Click Finish.
3. Connection
3-1. Necessary connection
Connect a loudspeaker to the speaker connectors, and then connect AC adapter to the X10 like
the picture below and switch ON the X10.
【 TIP ① 】 When you connect to a loudspeaker, make sure the X10 is NOT powered.
Loading...
