DIGITAL CAMERA
AstraPix 490
OPERATING MANUAL
1
Thanks for purchasing this high-quality Digital Still
Camera!
This unit allows you to easily create an electronic album.
Please read this manual carefully so as to enjoy all its fea-
tures.
Read thoroughly the Safety Precautions. They contain
extremely important information regarding the safe use of this
product.
For information on installing and operating the included appli-
cation software, please read the software instructions. Do not
hesitate to contact our service facility for upgraded information
for your future use.
Introduction
2
Unpacking
First check and identify the contents of your Digital Still Camera
package, as below:
Optional fittings
Introduction
Camera case
Digital Camera
Driver disc
USB cable
Earphone
Battery
CF card
Adapter
3
CAUTION: To prevent fire or risk of electrical shock, do not expose
this unit to rain or excessive moisture.
WARNING:To prevent electrical shock, do not attempt to modify this
unit in any way. No user serviceable parts inside. Refer
servicing to qualified personnel.
When using the flash do not use this unit too close to
your subject, as this can cause damage to the eyes.
FCC
NOTICE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rule. Operation is subject to the
following two conditions:
A. This device may not caus harmful interference.
B. This device must accept any interference received,
including interference that may cause undesired
operation.
Safety Precautions
4
OPERATING CONDITIONS:
. This camera is neither waterproof nor splash-proof.
Do not use the camera if any water has entered the camera.
Switch the camera off, and then disconnect the power source
(batteries or AC Power Adapter). If you are using the AC
Power Adapter,unplug the adapter from the AC Power wall
socket after you have disconnected the camera. Then contact your dealer. Do not continue to use it, as this may cause
a fire or electrical shock.
. Do not leave the unit where it may be extremely hot or
humid (direct sunlight).
CARRYING YOUR CAMERA:
. When carrying be sure to always attach and use the hand
strap provided. Hold the camera firmly in your hand ,with the
strap securely around your wrist.
. Never point the lens at direct sunlight, CMOS damage may
occur.
Safety Precautions
Introduction.................................................................................................1
Safety Precautions.....................................................................................3
Table of Contents.......................................................................................5
Quick Start Guide.......................................................................................6
Identification of Controls...........................................................................11
Image Quality...........................................................................................14
Flash.........................................................................................................15
Indicator Light...........................................................................................17
Getting Started.........................................................................................18
Taking Pictures.........................................................................................23
Basic Recording Operation......................................................................23
Self-Timer.................................................................................................25
Sequence Image Capture........................................................................27
Video Clip Capture...................................................................................29
Audio Memo.............................................................................................31
Digital Zoom.............................................................................................32
Record Mode Menu..................................................................................33
Record Menu Setup.................................................................................33
How to Display Record Menu..................................................................... 34
Selecting Capture Mode...........................................................................35
Digital Zoom.............................................................................................36
Flash Mode...............................................................................................37
Advanced Options....................................................................................38
Adjusting Screen Brightness....................................................................45
Playback Mode.........................................................................................44
Playback Mode Menu...............................................................................48
Display Format.........................................................................................49
Delete Images..........................................................................................50
Digital Zoom X 2 .....................................................................................52
DPOF Print...............................................................................................54
Screen Brightness....................................................................................55
Information................................................................................................56
TV Display..............................................................(Not supported in USA)
MP3 Playback..........................................................................................58
System Requirements..............................................................................60
Software Installation.................................................................................61
Image Downloading.................................................................................66
Troubleshooting.......................................................................................69
Appendix..................................................................................................71
Support.........................................................................................................75
Table of Contents
6
Quick Start Guide

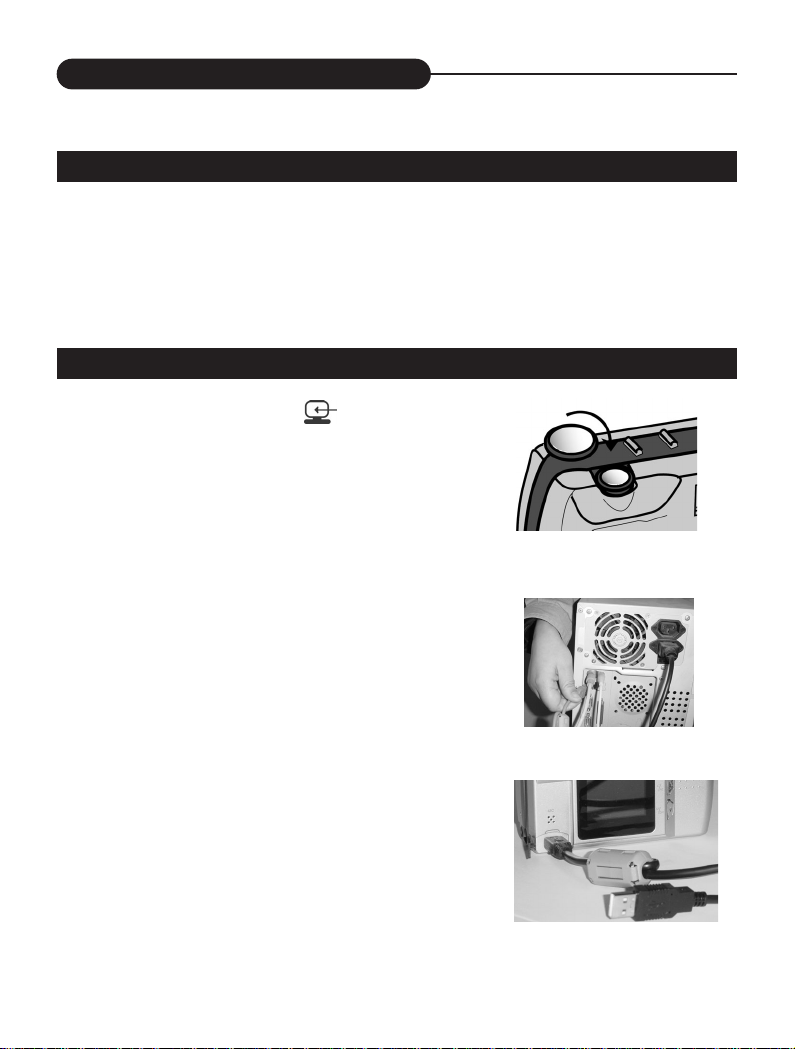

Connect to a printer or PC using USB cable
Use DC adapter (optional) to power the unit
Connect to a TV or an earphone
HOOKUP
7
Quick Start Guide
1. Insert the batteries or use the DC
adapter (optional) to power the camera.
2. Insert the Compact Flash card
(optional).
1. Turn the function dial to .
.The camera will turn on and be set to record
mode.
2. Open the lens cover.
.The live view will appear on the LCD monitor.
3. Press the DISP/ENTER/REP button to
turn on/off the LCD monitor.
PREPARATION (refer to page 18-20)
RECORDING (refer to page 23-45)
8
Quick Start Guide
4. Frame your subject on the LCD
monitor or viewfinder.
.Compose the image and make sure it
is clear.
5. Press the shutter-release button
to take the pictures.
. The red lamp flashes slowly while the
image is being stored into the memory.
IMAGE PLAYBACK (refer to page 46-56)
1.Turn the function dial to .
2. Use the LT/RT or UP/DN buttons
to scroll through the images.
9
Quick Start Guide
DELETING IMAGES (refer to page 52-53)
1.Turn the Function dial to .
2.Press LT/RT or UP/DN to highlight
the image you want to delete.
3.Press MENU/STOP to access to the
menu.
4.Highlight the delete icon
and enter it.
Select CURRENT to delete the current
photo or ALL to delete all photoes including the memo. Select REFORMAT to
delete all photos and MP3 files.
DELETE
CURRENT
ALL
REFORMAT
Exit
10
Quick Start Guide
5. Press the DISP/ENTER/REP button
again.
A confirmation screen will appear.
6. Press the UP/DN to select "YES",
and enter it.
The LCD monitor returns to the next
image after deleting it.
DELETE?
YES
NO
Exit
NOTICE:
When opening the menu or pressing the direction buttons, a description of the icon highlighted will appear in the bottom left of TFT LCD.
11
Identification of Controls
1. Function dial
2. Shutter/Play/Pause
3. NQ (Normal Quality)
4. Flash
5. Mode
6. Status LCD
7. Flash lamp
8. Self-timer lamp (Red)
9. Viewfinder window
10. Lens
11. Lens cover slide
CAMERA BODY
1
2
3
4
5
6
7
8
9
10
11
12
Identification of Controls
1
2
3
4
5
6
7
8
9
10
11
1. Orange LED indicator
2. Green LED indicator
3. Viewfinder
4. MENU/STOP
5. DISP/ENTER/REP
6. Strap eyelet
7. LT/RT
8. Up/DN
9. LCD monitor
10. USB interface
11. MIC
CAMERA BODY
13
Identification of Controls
1
2
1. TV/Phones
2. DC in 6v
1
2
3
4
5
6
1. Power
2. Record
3. Playback
4. MP3 playback
5. Software/Download
6. TV output
47
NQ
HQ
SQ
AUTO
1
2
3 4
5
6
7
9
8
1. Snapshot
2. Self-timer
3. Sequence
4. Video clip
5. Audio memo
6. Battery Power Level
7. Image quality
8. Flash lamp
9. Recordable
image no.
CAMERA BODY
Indications of Function Dial & Status LCD
14
Image Quality
IMAGE QUALITY
When the camera is turned on, the default image quality settings
will be used. This default settings can be changed manually.
The number of images stored depends on the image quality level
used: High Quality (HQ), Normal Quality (NQ) or Super Quality
(SQ).
MODE COMPRESSION RATE
Super Quality 1:4
High Quality 1:8
Normal Quality 1:16
In the Capture mode, each time you press
the NQ button, the quality mode changes,
which is shown on the status LCD:
This function is not available in Audio
Memo and Video Clip.
NQ
HQ
SQ
15
Flash
When the camera is turned on, the default setting of flash
mode is 'No Flash'. The other flash modes can be set by using
the Flash button. Press this button to toggle between the three
flash modes.
AUTOFLASH
NO FLASH
FORCEDFLASH
In autoflash ,the flash will fire
automatically when the light
level is low or your subject is
backlit.
Use flash cancel when photographing subjects that are
beyond the flash range or
when flash photography is
prohibited.
The flash will fire every time a
picture is taken, regardless of
lighting. Use forced-flash to
reduce harsh shadows on
your subject's face.
BUILT-IN FLASH LAMP
AUTO
16
Flash
NOTICE:
The default setting is No flash. Under the capture mode of the
sequence or video clip, the flash cannot be set up.
CHANGING THE FLASH MODE
1. In Record mode, press the
Flash button.
.The currently set flash mode
appears on the status LCD.
2. Repeatedly press the button.
.The flash mode on the status
LCD changes in cycle.
.Select the mode you desired.
AUTO
17
Indicator Light
There are three indicator lights on
this unit:
1. Green light
. When it flashes, this indicates the
camera is being charged.
. When it glows, this indicates the
next operation can be done.
2. Orange light
. When the system is busy, it will
flash, it is suggested that the next
operation should not be done.
3. Red light
.When Self-timer is selected, it will
flash.
1
2
3
18
Getting Started
1. Open the battery cover.
.Slide the cover in the direction of the
arrow and fold it up to open it.
2. Insert the batteries
.Match the batteries to the polarity
indicated on the back of the cover.
3. Close the cassette cover.
.While pulling up the cover slightly,
fold it down and slide it back until it
clicks.
NOTICE:
Make sure the unit is turned off before removing the batteries.
INSERTING THE BATTERIES
19
Getting Started
You may use a compact flash card for image storage before
capturing images.
1. Open the battery cover.
.Slide the cover in the direction of the
arrow and fold it up to open it.
2. Insert the compact flash card
into the card slot, pushing it until
the card- release lever pops out.
.Push the card in straight, not at an
angle.
.If the card stops mid-way, confirm the
direction of the card, never apply
force.
3. Fold the card-release lever
down.
INSERTING THE COMPACT FLASH CARD
20
Getting Started
4. Close the battery cover.
.While pulling up the cover slightly, fold
it down and slide it back until it clicks.
NOTICE:
Make sure the unit is turned off before removing the compact
flash card.
21
Getting Started
1. Open the battery cover.
.Slide the cover in the direction of the
arrow and fold it up to open it.
2. Lift the card-release lever until it is
straight out.
3. Press the card-release lever to
eject the card.
.When the card is ejected, pull it straight
out.
4. Close the battery cover.
.While pulling up the cover slightly, fold it
down and slide it back until it clicks.
REMOVING THE COMPACT FLASH CARD
22
Getting Started
1. Align and tighten
.Align the screw on the tripod with
the camera's mounting socket, then
tighten the screw.
NOTICE:
.When using a tripod ,be sure to open and extend its legs fully
to stabilize the camera .
TRIPOD MOUNTING
Loading...
