USER GUIDE & SERVICE MANUAL

RIGHT PRODUCT. RIGHT PLACE. RIGHT TEMPERATURE. SINCE 1962.

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Marine Series • SP18 • 15" Crescent Ice Maker

USER GUIDE & SERVICE MANUAL

u-line.com

Table of Contents

Intro

Safety

Safety and Warning Disposal And Recycling

Installation

Environmental Requirements Electrical Cutout Dimensions Product Dimensions Water Hookup General Installation Integrated Panel Installation Grille / Plinth Installation Door Swing

Wire Diagram Product Liability Warranty Claims Parts Ordering Replacement Parts System Diagnosis Guide Compressor Specifications Troubleshooting Extended Defrost Warranty

Door Adjust

Maintenance

Door Latch Cleaning Cleaning Condenser Extended Non-Use

Operating Instructions

First Use Ice Airflow and Product Loading

Service

Troubleshooting

USER GUIDE

u-line.com

WELCOME TO U-LINE

Congratulations on your U-Line purchase. Your product comes from a company with over ve decades of premium modular ice

making, refrigeration, and wine preservation experience. U-Line creates products focused on functionality, style, and inspired

innovations — paying close attention to even the smallest details. Applications include residential, outdoor, ADA height

compliant, marine, and commercial. Complete product categories include Beverage Centers, Wine Refrigerators, Ice Machines,

Refrigerators, Freezers, and Dispensers.

Our advanced refrigeration systems, large and exible capacities, and Built-In to Stand Out® clean integrated look allow you

to preserve the right product, in the right place, at the right temperature. Since 2014, U-Line has been part of the Middleby

family of brands. All products are designed, engineered, and assembled in Milwaukee, Wisconsin, USA, and select products

are available worldwide.

PRODUCT INFORMATION

Looking for additional information on your product? User Guides, Spec Sheets, CAD Drawings, Compliance Documentation,

and Product Warranty information are all available for reference and download at u-line.com.

PROPERTY DAMAGE / INJURY CONCERNS

In the unlikely event property damage or personal injury is suspected related to a U-Line product, please take the following

steps:

1. U-Line Customer Care must be contacted immediately at +1.414.354.0300.

2. Service or repairs performed on the unit without prior written approval from U-Line is not permitted. If the unit has been

altered or repaired in the eld without prior written approval from U-Line, claims will not be eligible.

GENERAL INQUIRIES

U-Line Corporation

8900 N. 55th Street

Milwaukee, Wisconsin 53223 USA

Monday - Friday 8:00 am to 4:30 pm CST

T: +1.414.354.0300

Email: sales@u-line.com

u-line.com

SERVICE & PARTS ASSISTANCE

Monday - Friday 8:00 am to 4:30 pm CST

T: +1.800.779.2547

Service Email: onlineservice@u-line.com

Parts Email: onlineparts@u-line.com

CONNECT WITH US

Introduction

Designed, engineered and assembled in WI, USA

USER GUIDE

NOTICE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Safety and Warning

Please read all instructions before installing,

operating, or servicing the appliance.

Use this appliance for its intended purpose only and follow

these general precautions with those listed throughout this

guide:

SAFETY ALERT DEFINITIONS

Throughout this guide are safety items labeled with a

Danger, Warning or Caution based on the risk type:

DANGER

Danger means that failure to follow this safety

statement will result in severe personal injury or

death.

WARNING

Warning means that failure to follow this safety

statement could result in serious personal injury

or death.

CAUTION

Caution means that failure to follow this safety

statement may result in minor or moderate

personal injury, property or equipment damage.

Safety and Warning 1

USER GUIDE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Disposal and Recycling

DANGER

RISK OF CHILD ENTRAPMENT. Before you throw

away your old refrigerator or freezer, take off

the doors and leave shelves in place so children

may not easily climb inside.

If the unit is being removed from service for disposal,

check and obey all federal, state and local regulations

regarding the disposal and recycling of refrigeration

appliances, and follow these steps completely:

1. Remove all consumable contents from the unit.

2. Unplug the electrical cord from its socket.

3. Remove the door(s)/drawer(s).

Disposal and Recycling 1

USER GUIDE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Environmental Requirements

This model is intended for indoor/interior applications only

and is not to be used in installations that are open/

exposed to natural elements.

This unit is designed to operate between 50°F (10°C) and

100°F (38°C). Higher ambient temperatures may reduce

the unit’s ability to reach low temperatures and/or reduce

ice production on applicable models.

For best performance, keep the unit out of direct sunlight

and away from heat generating equipment.

In climates where high humidity and dew points are

present, condensation may appear on outside surfaces.

This is considered normal. The condensation will

evaporate when the humidity drops.

CAUTION

Damages caused by ambient temperatures of

40°F (4°C) or below are not covered by the

warranty.

Environmental Requirements 1

USER GUIDE

WARNING

Electrical

SHOCK HAZARD — Electrical Grounding

Required. Never attempt to repair or perform

maintenance on the unit until the electricity has

been disconnected.

Never remove the round grounding prong from

the plug and never use a two-prong grounding

adapter.

Altering, cutting or removing power cord,

removing power plug, or direct wiring can cause

serious injury, fire, loss of property and/or life,

and will void the warranty.

u-line.com

Never use an extension cord to connect power to

the unit.

Always keep your working area dry.

NOTICE

Electrical installation must observe all state and

local codes. This unit requires connection to a

grounded (three-prong), polarized receptacle

that has been placed by a qualified electrician.

The unit requires a grounded and polarized 115 VAC,

60 Hz, 15A power supply (normal household current). An

individual, properly grounded branch circuit or circuit

breaker is recommended. A GFCI (ground fault circuit

interrupter) is usually not required for fixed location

appliances and is not recommended for your unit because

it could be prone to nuisance tripping. However, be sure

to consult your local codes.

See CUTOUT DIMENSIONS for recommended receptacle

location.

Electrical

USER GUIDE

NOTICE

Cutout Height

18-7/8"

(479 mm)

26" (660 mm) Minimum

See Electrical

6SHFLɟFDWLRQV

for Power Supply

Filler Panel (Not Provided by U-Line) –

Needed to Attach Mounting Flange on Unit

Toe Kick

14-1/4"

(362 mm)

Cutout Width

3/4"

(19 mm)

Minimum Flange

Mounting Area

3/4" (19 mm) Minimum

Flange Mounting Area

3/4"

(19 mm)

Minimum Flange

Mounting Area

(102 mm)

(178 mm)

Preferred location for electrical outlet

LVLQDGMDFHQW

cabinet.

5/8" (16 mm)

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Cutout Dimensions

PREPARE SITE

Your U-Line product has been designed for either free-

standing or built-in installation. When built-in, your unit

does not require additional air space for top, sides, or

rear. However, the front grille must NOT be obstructed,

and clearance is required for an electrical and water

connection in the rear.

CAUTION

Units can NOT be installed behind a closed

cabinet door.

CUTOUT DIMENSIONS

It is extremely important that this unit sits on a

level surface, as it does not have feet levelers. If

it is not level, the ice mold will not fill evenly.

Cutout Dimensions 1

USER GUIDE

15-1/8"

(384 mm)

24-1/2" (622 mm) *

18-7/8"

(479 mm)

7 9/16"

1/2"

*Add 1-1/2" For Water Line Clearance

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Product Dimensions

Product Dimensions 1

USER GUIDE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Water Hookup

PREPARE PLUMBING

The water valve uses a standard 1/4" (6.35 mm)

compression fitting. U-Line recommends using accessory

water hook up kit – part # 80-54674-00. The kit includes a

10' (3 m) braided flexible water supply line and a brass

hose fitting.

CAUTION

Plumbing installation must observe all state and

local codes. All water and drain connections

MUST BE made by a licensed/qualified plumbing

contractor. Failure to follow recommendations

and instructions may result in damage and/or

harm.

Water Supply Connection

CAUTION

Do not use any plastic water supply line. The line

is under pressure at all times. Plastic may crack

or rupture with age and cause damage to your

home.

Do not use tape or joint compound when

attaching a braided flexible water supply line

that includes a rubber gasket. The gasket

provides an adequate seal – other materials

could cause blockage of the valve.

Failure to follow recommendations and

instructions may result in damage and/or harm,

flooding or void the product warranty.

Use new hose set. Do not reuse old hose set.

When connecting the water supply, please note the

following:

• Before installing the unit and connecting to the cold

water supply, review the local plumbing codes.

• The water pressure should be between 20 and 120 psi

(138 and 827 kPa).

• The water line MUST have a shut-off valve in the

supply line.

• The water line should be looped into 2 coils. This will

allow the unit to be removed for cleaning and servicing.

Make certain that the tubing is not pinched or damaged

during installation.

WARNING

CAUTION

Turn off water supply and disconnect electrical

supply to unit prior to installation.

Use caution when handling back panel. The

edges could be sharp.

1. Turn off water supply and disconnect electrical supply

to product prior to attempting installation.

2. Remove the back panel.

Connect to potable water supply only.

Door Swing 1

USER GUIDE

Remove

ZLWKɠDW

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

3. Locate water valve inlet.

4. Break away filler feature

in bushing with flat

screwdriver.

9. Install retaining clip.

screwdrive

5. Thread water line

through back panel hole

(with bushing).

6. Locate water valve inlet

and connect to valve.

7. Turn on water supply

and check for leaks.

8. Reinstall back panel.

Door Swing 2

USER GUIDE

NOTICE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

General Installation

LEVELING INFORMATION

Because these units do not have leveling legs, it

is extremely important that they sit on a level

surface. If they are not level, the ice mold will

not fill evenly.

Use a level to confirm

the unit is level. Level

should be placed along

top edge and side edge

as shown.

INSTALLATION

1. Plug in the power/electrical cord.

2. Gently push the unit into position. Be careful not to

entangle the cord and water line.

3. Re-check the leveling, from front to back and side to

side. Make any necessary adjustments.

4. Remove the interior packing material and wipe out the

inside of the unit with a clean, water-dampened cloth.

General Installation 1

USER GUIDE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Integrated Panel Installation

This model accepts a 1/4" insert panel.

INSERT PANEL INSTALLATION

Install the insert as follows:

CAUTION

Use care when handling the insert. Insert edges

may be sharp.

1. Remove top hinge screw pin

with Phillips head screwdriver.

Remove door by tilting forward

and lifting off bottom hinge pin.

5. Slide custom door panel insert into 1/4" (6 mm)

channel in door front.

6. Holding door gasket out of the way, replace handle on

door, making sure it is seated properly on insert and

that screw holes line up.

7. Install two small screws removed in Step 3.

8. Starting at the corners and working inward, push door

gasket into place on door.

9. Place door on bottom hinge pin and install upper hinge

screw.

2. Pull door gasket out of groove

(top edge of door only). Start in

the middle and pull outward,

moving toward the edge. This

may take some force.

3. Remove top screw on each side

securing door handle. Slightly

separate door handle from door.

4. Pull handle up and off.

Integrated Panel Installation 1

USER GUIDE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Grille - Plinth Installation

REMOVING AND INSTALLING GRILLE

WARNING

Disconnect electric power to the unit before

removing the grille.

When using the unit, the grille (plinth strip/base

fascia) must be installed.

WARNING

DO NOT touch the condenser fins. The condenser

fins are SHARP and can be easily damaged.

Removing the grille

1. Disconnect power to the unit.

2. Loosen the three screws (1).

3. Remove grille (2) from unit.

Installing the grille

1. Align cabinet and grille holes and secure, but do not

over tighten grille screws (1).

2. Reconnect power to the unit.

Grille - Plinth Installation 1

USER GUIDE

3/4" (19 mm) Min.

Wall

90°

Door Swing

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Door Swing

All units have a zero clearance for the door to open 90°.

U-Line recommends a minimum door clearance of 3/4"

(19 mm) to accommodate the handle if the unit is

installed next to a wall or similar type of structure.

Door Swing 1

USER GUIDE

NOTICE

Hinge screws

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Door Adjustments

CHECKING DOOR ALIGNMENT

The unit’s door is aligned at the factory before shipment.

However, its alignment could have been disturbed during

shipment.

Properly aligned, the door’s gasket should be

firmly in contact with the cabinet all the way

around the door (no gaps).

1. Carefully examine the door’s gasket to ensure that it is

firmly in contact with the cabinet.

2. When inspecting door alignment, make sure the door

gasket is not pinched on the hinge side of the door.

To reverse the door mounting, perform the following:

1. Remove grille (see GRILLE-PLINTH INSTALLATION).

2. Remove top hinge from cabinet (three screws). Hold

door to keep it from falling.

3. Lift the door off the bottom hinge.

ALIGNMENT AND ADJUSTMENT

1. Loosen (do not remove) top and bottom hinge screws.

2. Align door squarely with cabinet. Make sure gasket is

firmly in contact with cabinet all the way around the

door (no gaps).

3. Tighten bottom hinge screws.

4. Tighten top hinge screws.

REVERSING THE DOOR

Location of the unit may make it desirable to mount the

door on the opposite side of the cabinet.

The hinge hardware will be removed and reinstalled on the

opposite side of the cabinet.

4. Remove bottom hinge from cabinet (two screws).

5. Remove screws on opposite side of cabinet.

Door Adjustments 1

USER GUIDE

Plastic

Hole Plug

Plastic

Hole Plug

Screw

Right Side

Door Swing

Right Side

Invert

Left Side

Door Swing

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

6. Install hinge on opposite side at bottom of cabinet.

Align hinge outer edge with cabinet before tightening

screws.

7. Relocate plastic spacer/bushing on top and bottom of

door to opposite side. Clean out bushing hole in door

bottom with a screwdriver if necessary.

9. Remove plastic hole plug from door handle and

relocate to opposite side. Lift the handle slightly and

press on the locking tab, then gently pry the hole plug

out of the hole, being careful not scratch the top cap.

Hinge

Screw

Hinge

10.Attach handle removed in Step 8 to opposite side of

door frame. Be sure to tighten all four screws removed

in Step 8.

11.Remove pivot screw from top hinge, invert screw and

reinstall pivot screw in top hinge.

8. Using a Phillips screwdriver, remove the two screws

holding the custom stainless handle from the original

location and remove the handle. Remove the two

screws on the opposite side of the door. Do not place

handle on door until you have completed step 9.

Press in locking tab, then lightly pry up to remove hole plug and move to opposite side

Door Adjustments 2

USER GUIDE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

12.Remove all three screws on the opposite side of the

hinge and carefully lift off the door latch assembly.

13.Place the door latch assembly on opposite side of unit.

Be sure to tighten all three screws securely.

14.Place door on lower hinge pin. Invert and install upper

hinge on door. Fasten upper hinge to unit (three

screws). Partially tighten screws.

15.Adjust door to ensure proper seal. Tighten upper and

lower hinge screws securely.

16.Replace screws in holes in bottom of unit on opposite

side.

17.Replace the grille.

Door Adjustments 3

USER GUIDE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Door Latch

The door latch assembly included with your unit can be

installed to prevent the door from opening when the

vehicle is in motion.

To install, perform the following:

1. Remove the two outer most screws from the non-hinge

side.

2. Place spacer (2) over mounting holes. Place latch (1)

on top of spacer (2). NOTE: Spacer (2) only required if

included with unit.

3. Re-install the screws, but do not tighten all the way.

4. Verify door latch engagement and adjust as necessary.

5. Tighten screws.

Door latch can be used to prop door open approximately

1/2" (13 mm) when unit is not in use.

Door Latch 1

USER GUIDE

NOTICE

OFF

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

First Use

All U-Line controls are preset at the factory. Initial startup

requires no adjustments.

U-Line recommends discarding the ice produced

during the first two to three hours of operation

to avoid possible dirt or scale that may dislodge

from the water line.

To turn the unit on or off:

Press the rocker switch located inside the door on the

front panel, or behind the grille.

First Use 1

USER GUIDE

NOTICE

OFF

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Ice

ICE MAKER OPERATION

When the ice bucket is full, the ice making mechanism will

shut off. However, the refrigeration system will continue

to cool and maintain the ice supply.

Do not place cans or bottles in the ice

compartment because they will freeze.

To turn off ice production: Raise the bin arm into

an upright and locked position. The unit will preserve

temperature for ice storage.

CAUTION

NEVER use an ice pick, knife or other sharp

instrument to separate cubes. Shake the ice

bucket instead.

During periods of limited use or high ambient

temperatures, it is common for cubes to fuse together.

Gently shake the bucket to break apart cubes. If not using

the ice maker regularly, empty the ice bucket periodically

to ensure fresh cubes.

It is normal for cubes to appear cloudy. The cause is air

trapped in the water because of fast freezing. It is not

caused by the health, taste or chemical make up of the

water. It is the same air that is in every glass of water you

drink.

Remove the ice bucket for emptying and cleaning. To

remove the ice bucket, raise the bin arm and remove the

bucket from the ice compartment. Use the ice bucket for

ice storage only.

If not intending to use the ice maker, turn the

water supply valve off. It is also important to

raise the bin arm of the ice maker (see above).

Failure to raise the bin arm may result in damage

to the water valve.

Certain sounds are normal during the unit’s operation. You

may hear the compressor or fan motor, the water valve,

or ice dropping into the ice bucket.

Ice 1

USER GUIDE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

ICE MAKER ADJUSTMENT

Ice Cube Thickness Adjustment

Interval - As Required

On ice maker equipped models, adjust the cube size by

changing water amount injected into the ice maker

assembly as follows:

3. Turn the adjusting screw toward the minus (-) sign

(clockwise) for smaller cubes or toward the plus (+)

sign (counterclockwise) for larger cubes.

4. Install the ice maker assembly cover.

1. Remove the ice maker assembly cover (1).

2. Find the adjusting screw on the ice maker assembly

control box (2). The adjusting screw is just below the

minus (-) and plus (+) signs on the control box.

CAUTION

Too large of an adjustment to the screw can

cause the water to overflow the ice maker and

can cause property damage.

Ice 2

USER GUIDE

NOTICE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Airflow and Product Loading

The unit requires proper airflow to perform at its

highest efficiency. Do not block the front grille at

any time, or the unit will not perform as

expected. Do not install the unit behind a door.

Airflow and Product Loading 1

USER GUIDE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Cleaning

EXTERIOR CLEANING

Vinyl Clad (Black or White) Models

Clean surfaces with a mild detergent and warm water

solution. Do not use solvent-based or abrasive cleaners.

Use a soft sponge and rinse with clean water. Wipe with a

soft, clean towel to prevent water spotting.

Clean any glass surfaces with a non-chlorine glass

cleaner.

Stainless Models

Stainless door panels, handles and frames can discolor

when exposed to chlorine gas, pool chemicals, saltwater

or cleaners with bleach.

Keep your stainless unit looking new by cleaning with a

good quality all-in-one stainless steel cleaner and polish

monthly. For best results use Claire

Polish and Cleaner. Comparable products are acceptable.

Frequent cleaning will remove surface contamination that

could lead to rust. Some installations may require cleaning

weekly.

Do not clean with steel wool pads.

Stainless Steel

If any surface discoloring or rusting appears, clean it

quickly with Bon-Ami

and a nonabrasive cloth. Always clean with the grain.

Always finish with Claire

Cleaner or comparable product to prevent further

problems.

Using abrasive pads such as ScotchBrite™ will

cause the graining in the stainless to become

blurred.

Rust not cleaned up promptly can penetrate the

surface of the stainless steel and complete

removal of the rust may not be possible.

Integrated Models

To clean integrated panels, use household cleaner per the

cabinet manufacturer’s recommendations.

INTERIOR CLEANING

Disconnect power to the unit.

Clean the interior and all removed components using a

mild nonabrasive detergent and warm water solution

applied with a soft sponge or non-abrasive cloth.

or Barkeepers Friend Cleanser®

Stainless Steel Polish and

Do not use stainless steel cleaners or polishes on

any glass surfaces.

Clean any glass surfaces with a non-chlorine glass

cleaner.

Do not use cleaners not specifically intended for stainless steel on stainless surfaces (this includes glass, tile and counter cleaners).

Rinse the interior using a soft sponge and clean water.

Do not use any solvent-based or abrasive

cleaners. These types of cleaners may transfer taste to

the interior products and damage or discolor the interior.

Cleaning 1

USER GUIDE

NOTICE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

DEFROSTING

Manual Defrost Models

This unit is a manual defrost model and will require

occasional defrosting. When there is build-up of 1/4"

(6 mm) or more of frost, manually defrost the unit.

CAUTION

DO NOT clean ice bucket using a dishwasher. The

bucket is not dishwasher safe and will be

damaged.

10.When the interior is dry, reconnect power and turn unit

on.

DO NOT use an ice pick or other sharp

instrument to help speed up defrosting. These

instruments can puncture the inner lining or

damage the cooling unit. DO NOT use any type of

heater to defrost. Using a heater to speed up

defrosting can cause personal injury and

damage to the inner lining.

To defrost:

1. Disconnect power to the unit.

2. Remove ice bucket and discard ice.

3. Place towel or other absorbent material on bottom of

ice bin.

4. Fill the ice bucket half full with warm, not hot water.

This will help the unit defrost faster.

NOTE: To safeguard against contaminates in ice, discard

first three batches of ice after defrosting.

5. Place the ice bucket back into the unit on top of the

towel or other absorbent material.

6. Prop the door in an open position (2 in. [50 mm]

minimum).

7. After about 1 hour remove the ice bin and discard

water.

8. Allow the frost to melt naturally.

9. After the frost melts completely clean the interior and

all removed components. (See INTERIOR CLEANING).

Cleaning 2

USER GUIDE

NOTICE

Condenser

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Cleaning Condenser

INTERVAL - EVERY SIX MONTHS

To maintain operational efficiency, keep the front grille

free of dust and lint, and clean the condenser when

necessary. Depending on environmental conditions, more

or less frequent cleaning may be necessary.

WARNING

Disconnect electric power to the unit before

cleaning the condenser.

WARNING

DO NOT touch the condenser fins. The condenser

fins are SHARP and can be easily damaged.

DO NOT use any type of cleaner on the

condenser unit.

1. Remove the grille. (See GRILLE-PLINTH

INSTALLATION).

2. Clean the condenser coil using a using a soft brush

with a “combing” action or vacuum cleaner. Do not

touch the condenser coil.

3. Install the grille.

Cleaning Condenser 1

USER GUIDE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Extended Non-Use

VACATION/HOLIDAY, PROLONGED SHUTDOWN

The following steps are recommended for periods of

extended non-use:

1. Remove all consumable content from the unit.

2. Disconnect the power cord from its outlet/socket and

leave it disconnected until the unit is returned to

service.

3. Turn off the water supply.

4. If ice is on the evaporator, allow ice to thaw naturally.

5. Clean and dry the interior of the cabinet. Ensure all

water has been removed from the unit.

6. Disconnect the water and drain line (if applicable)

making sure all water is removed from the lines.

For questions regarding winterization, please

call U-Line at +1.800.779.2547.

CAUTION

Damage caused by freezing temperatures is not

covered by the warranty.

Do not put anti-freeze in your unit.

7. The door must remain open to prevent formation of

mold and mildew. Open door a minimum of 2"

(50 mm) to provide the necessary ventilation.

WINTERIZATION

If the unit will be exposed to temperatures of 40°F (5°C)

or less, the steps above must be followed. In addition, P60

drain pumps in clear ice machines must be drained

according to the following procedure:

1. Remove the drain pump from the ice machine.

2. Drain the water in the pump’s reservoir by turning the

pump upside down and allowing the water to drain

through the pump’s inlet and vent tube fittings.

3. After water is drained, reinstall the drain pump and

reattach all connections.

Extended Non-Use 1

USER GUIDE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Troubleshooting

BEFORE CALLING FOR SERVICE

If you think your U-Line product is malfunctioning, read

the CONTROL OPERATION section to clearly understand

the function of the control.

If the problem persists, read the NORMAL OPERATING

SOUNDS and TROUBLESHOOTING GUIDE sections below

to help you quickly identify common problems and

possible causes and remedies. Most often, this will resolve

the problem without the need to call for service.

IF SERVICE IS REQUIRED

If you do not understand a troubleshooting remedy, or

your product needs service, contact U-Line Corporation

directly at +1.414.354.0300

When you call, you will need your product Model and

Serial Numbers. This information appears on the Model

and Serial number plate located on the upper right or rear

wall of the interior of your product.

NORMAL OPERATING SOUNDS

All models incorporate rigid foam insulated cabinets to

provide high thermal efficiency and maximum sound

reduction for its internal working components. Despite this

technology, your model may make sounds that are

unfamiliar.

Normal operating sounds may be more noticeable because

of the unit’s environment. Hard surfaces such as cabinets,

wood, vinyl or tiled floors and paneled walls have a

tendency to reflect normal appliance operating noises.

• Evaporator: Refrigerant flowing through an evaporator

may sound like boiling liquid.

• Condenser Fan: Air moving through a condenser may

be heard.

• Automatic Defrost Drain Pan: Water may be heard

dripping or running into the drain pan when the unit is

in the defrost cycle.

TROUBLESHOOTING GUIDE

DANGER

ELECTROCUTION HAZARD. Never attempt to

repair or perform maintenance on the unit

before disconnecting the main electrical power.

Troubleshooting - What to check when problems occur:

Problem Possible Cause and Remedy

Light Remains on When Door Is Closed.

Unit Develops Frost on Internal Surfaces.

Unit Develops Condensation on External Surfaces.

Product Is Freezing.

Turn off light switch if equipped. Check reed switch.

Frost on the rear wall is normal and will melt during each off cycle.

If there is excessive build-up of 1/4" or more, manually defrost the unit.

Ensure the door is closing and sealing properly.

High ambient temperature and excessive humidity can also produce frost.

The unit is exposed to excessive humidity. Moisture will dissipate as humidity levels decrease.

Because product in contact with the rear wall may freeze, ensure no product is touching the rear wall.

Adjust the temperature to a warmer set point.

Listed below are common refrigeration components with a

brief description of the normal operating sounds they

make. NOTE: Your product may not contain all the

components listed.

• Compressor: The compressor makes a hum or pulsing

sound that may be heard when it operates.

Troubleshooting 1

USER GUIDE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Problem Possible Cause and Remedy

Product is Not Cold Enough.

Air temperature does not indicate product temperature. See CHECKING PRODUCT TEMPERATURE below.

Adjust the temperature to a cooler set point. Ensure unit is not located in excessive

ambient temperatures or in direct sunlight. Ensure the door is closing and sealing

properly. Ensure the interior light has not remained on

too long. Ensure nothing is blocking the front grille,

found at the bottom of the unit. Ensure the condenser coil is clean and free of

any dirt or lint build-up.

CHECKING PRODUCT TEMPERATURE

Causes which affect the internal temperatures of the cabinet include:

• Temperature setting.

• Ambient temperature where installed.

• Installation in direct sunlight or near a heat source.

• The number of door/drawer openings and the time the

door/drawer is open.

• The time the internal light is illuminated. (This mainly

affects product on the top rack or shelf.)

• Obstruction of front grille or condenser.

To check the actual product temperature in the unit:

1. Partially fill a plastic (nonbreakable) bottle with water.

2. Insert an accurate thermometer.

3. Tighten the bottle cap securely.

4. Place the bottle in the desired area for 24 hours.

5. Avoid opening the unit during the testing period.

6. After 24 hours, check the temperature of the water. If

required, adjust the temperature control in a small

increment (see CONTROL OPERATION).

Troubleshooting 2

USER GUIDE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Wire Diagram

RELAY

NEUTRAL WHITE

(DARK BLUE)

BLACK

(BROWN)

OVERLOAD

EMU

PLUG

EMBRACO

CAP

ONLY

COMPRESSOR

GROUND:

GREEN or

GREEN W/ YELLOW

RED

ICEMAKER

YELLOW

4 1

BROWN

BIN

NONCC

RED

WHITE

BROWN

41532

HOLD

BLACK

WATER

CAM

OR BLUE

ORANGE

YELLOW

BROWN W/YELLOW

220-240 VOLT

3 RPM

MOTOR

MOLD HEATER

OR BLUE BLACK

BLACK

LIMIT

BROWN

115

VOLT

PLUG

(SMOOTH)

(RIBBED)

BLACK-HOT

BLACK-NEUTRAL

BLACK

(BROWN)

GROUND:

GREEN or GREEN W/ YELLOW

WHITE

(DARK BLUE)

POWER CORD ASSEMBLY

532

MANUAL CONTROL ICEMAKER & COMBO

CONTROL

COND

FAN

LIGHT BLUE

ALL OTHER MODELS

BI1215 ONLY

SEE COMPRESSOR

DIAGRAMS

42312_C WIRING DIAGRAM

BLACK (BROWN)

ROCKER

YELLOW

BLUE

(LIGHT BLUE)

SWITCH

(DARK BLUE)

RED

WHITE

(ORANGE)

BLACK(BROWN)

BROWN

(ORANGE)

(DARK BLUE)

WHITE

(BROWN) BLACK

WATER

(DARK BLUE) WHITE

VALVE

Wire Diagram 1

USER GUIDE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Product Liability

Field service technicians are authorized to make an initial

assessment in the event of reported damages. If there are

any questions about the process involved, the technician

should call U-Line for further explanation.

While inspecting for defects or installation issues, photos

should be taken to document any damages or issues

found.

During the assessment, if the service technician is able to

find the source of the damage and it can be resolved by

replacement of a part, the servicer is authorized to

replace the part in question. The part that caused the

damage must be returned to U-Line in its entirety. The

part must be clearly labeled with the serial number of the

unit it was removed from, the date, and the servicer who

removed the part.

If the service technician determines the damage is the

result of installation issues (water connection/drain, etc.),

the consumer would be notified and the issues shall be

resolved at the direction of the consumer.

If damage is evident and the service technician is unable

to find the source, U-Line must be contacted at 1-800-

799-2547 for further direction

8900 N. 55th Street • Milwaukee, WI 53223

T: +1.414.354.0300 • F: +1.414.354.354.5696

Website: www.u-line.com

Right product. Right place.

Right temperature Since 1962.

Product Liability 1

USER GUIDE

14 30911 1 2 XXXX

Year

Month

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Warranty Claims

The following information defines the parameters for filing

a warranty claim:

• Valid serial number needed

• Valid model number needed

• Narda (or equivalent) form or submitted online at

www.u-line.com

• 60 day submittal deadline from date of completed

service

• Only one repair or unit per warranty claim

• Refrigerant should be labeled and included on the labor

submittal

warranty status. We also accept the following

information to verify warranty status:

• New Construction Occupancy Documents

•Closing Paperwork

• Final Billing – Remodel

Noting all of the following on the warranty claim will be

considered proof of purchase, hard copy will not be

required:

• Name of the selling Dealer

• Date of purchase/installation

• Order or Invoice number (if available)

• Door and water level adjustments are covered 30 days

from install date.

Serial Number Requirements:

A typical serial number is shown above. The first two

digits of the first segment, 14, represents the production

year. The number between the dashes, 12, represents the

production month. In most cases, warranty status can be

verified by the production date information within the

serial number.

• Description of document reviewed (i.e. store receipt,

closing paperwork, etc)

Parts and labor claims are paid separately. Indicate part

numbers and description for parts used in the warranty

repair. Include the purchase invoice and name of the parts

supplier used to procure the parts.

• Alternatively, a Proof of Purchase (or equivalent) may

submitted with the warranty claim to document

Warranty Claims 1

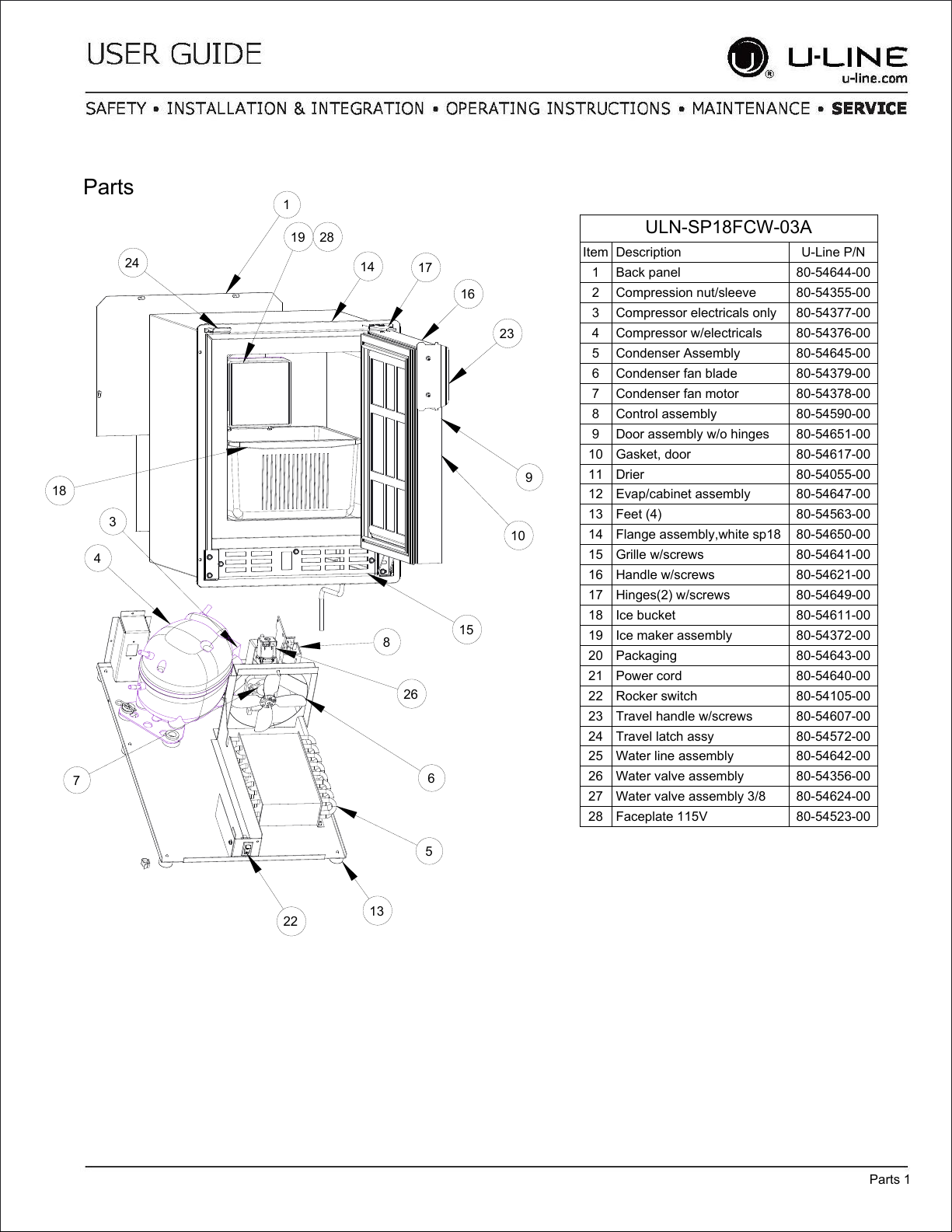

Parts

19 28

Item Description U-Line P/N

1 Back panel 80-54644-00

2 Compression nut/sleeve 80-54355-00

3 Compressor electricals only 80-54377-00

4 Compressor w/electricals 80-54376-00

5 Condenser Assembly 80-54645-00

6 Condenser fan blade 80-54379-00

7 Condenser fan motor 80-54378-00

8 Control assembly 80-54590-00

9 Door assembly w/o hinges 80-54651-00

10 Gasket, door 80-54617-00

11 Drier 80-54055-00

12 Evap/cabinet assembly 80-54647-00

13 Feet (4) 80-54563-00

14 Flange assembly,white sp18 80-54650-00

15 Grille w/screws 80-54641-00

16 Handle w/screws 80-54621-00

17 Hinges(2) w/screws 80-54649-00

18 Ice bucket 80-54611-00

19 Ice maker assembly 80-54372-00

20 Packaging 80-54643-00

21 Power cord 80-54640-00

22 Rocker switch 80-54105-00

23 Travel handle w/screws 80-54607-00

24 Travel latch assy 80-54572-00

25 Water line assembly 80-54642-00

26 Water valve assembly 80-54356-00

27 Water valve assembly 3/8 80-54624-00

28 Faceplate 115V 80-54523-00

ULN-SP18FCW-03A

Parts 1

USER GUIDE

NOTICE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Ordering Replacement Parts

If you have a purchasing account, please utilize our

service website to order parts.

Orders may also be placed by Fax or phone. See our

contact information below:

www.U-LineService.com (with service login)

FAX Number: +1.414.354.5696

Phone Number: +1.800.779.2547

Use only genuine U-Line replacement parts. The

use of non-U-Line parts can reduce speed of ice

production, cause water to overflow from ice

maker mold, damage the unit, and void the

warranty.

Warranty parts will be shipped at no charge after U-Line

confirms warranty status. Please provide the model, serial

number, part number and part description. Some parts

will require color or voltage information.

If U-Line requires the return of original parts, we will

inform you when the parts order is taken. This

requirement will be noted on your packing list. A prepaid

shipping label will be included with the replacement part.

Please enclose a copy of the parts packing list and any

labor claims with your return. Please be sure the model

and serial numbers are legible on the paperwork. Tag the

part with the reported defect.

When ordering a non-warranty part, you will need an open

account and tax exemption on file at U-Line. Another

option would be to visit www.u-line.com to locate an

authorized parts distributor in your area.

Ordering Replacement Parts 1

USER GUIDE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

System Diagnosis Guide

REFRIGERATION SYSTEM DIAGNOSIS GUIDE

System Condition

Normal Normal Slightly below

Overcharge Higher than

Undercharge Lower than

Partial Restriction

Complete Restriction

No Gas 0 PSIG to 25" Room

Suction Pressure

normal

Somewhat lower than normal vacuum

In deep vacuum

Suction Line

room temperature

Very cold may frost heavily

Warm-near room temperature

Warm - near room temperature

Room temperature (cool)

temperature (cool)

Compressor Discharge

Very hot Very hot Warm Cold Normal

Slightly warm to hot

Hot Warm Warm Extremely cold

Very hot Top passes

Room temperature (cool)

Cool to hot Room

Condenser Capillary

Hot to warm Cool Cold Higher than

warm - Lower passes cool (near room temperature) due to liquid

Room temperature (cool)

temperature (cool)

Tube

Room temperature (cool) or colder

Room temperature (cool)

Evaporator Wattage

normal

Lower than near inlet - Outlet below room temperature

Extremely cold near inlet - Outlet below room temperature backing up

No refrigeration Lower than

normal

Lower than

normal

System Diagnosis Guide 1

USER GUIDE

ULIN_0576_AW

OVERLOAD PROTECTOR

STARTING RELAY

RELAY COVER

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Compressor Specifications

DANGER

Electrocution can cause death or serious injury.

Burns from hot or cold surfaces can cause

serious injury. Take precautions when servicing

this unit.

Disconnect the power source.

Do not stand in standing water when working

around electrical appliances.

Make sure the surfaces you touch are not hot or

frozen.

Do not touch a bare circuit board unless you are

wearing an anti-static wrist strap that is

grounded to an electrical ground or grounded

water pipe.

Handle circuit boards carefully and avoid

touching components.

Refrigerant R134a

Voltage 115 VAC

Frequency 60 Hz

Run Cap n/a

Start Winding 12.1 Ohm at 77°F

Run Winding 3.9 Ohm at 77°F

LRA 18.0 A

FLA 2.0 A

Starting Device 213514105

Overload 4TM757KFBYY-53

* All resistance readings are ±10%

EM150HER

To measure the start winding resistance, measure across

the C and S pins.

To measure the run winding resistance, measure across

the C and R pins.

Also check S to R and you should get the sum of the run

and start windings.

To ensure the windings are not shorted, check the S and R

to ground.

Compressor Specifications 1

USER GUIDE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Troubleshooting - Extended

SPECIFIC ERRORS & ISSUES

CAUTION

Never attempt to repair or perform maintenance

on the unit until the main electrical power has

been disconnected from the unit.

TROUBLESHOOTING GUIDE

Concern Potential Causes Suggested Remedy

Will not eject ice (water frozen).

Will not fill with water.

Will not stop making ice.

Water will not stop filling.

Ejector blades will not stop turning.

Low ice production.

Not freezing (compressor and fan motors operating). Not freezing

(compressor not operating - fans operating).

Control setting too cold. Adjust control warmer (counterclockwise).

Control inoperable (1-2 contacts open) Replace control.

Bin switch inoperable. Replace bin switch.

Limit switch defective (open). Replace limit switch.

Ice maker assembly motor stalled. Replace motor.

Broken wire in ice maker circuit. Repair or replace wiring.

Water soaked cabinet insulation. Replace foamed cabinet assembly.

Dirty condenser. Clean condenser.

Water supply valve closed. Open water supply valve.

Water switch inoperable (open). Replace water switch.

Solenoid valve inoperable. Replace solenoid valve.

Fill tube outlet frozen. Defrost fill tube.

Broken wire in water fill circuit. Repair or replace wiring.

Bin switch inoperable (closed). Replace bin switch.

Bin arm binding. Lubricate bin arm pivot points or loosen bin arm lever screw.

Water switch inoperable (closed). Replace water switch.

Solenoid valve inoperable. Replace solenoid valve.

Stalled ice maker motor. Replace motor.

Temperature control inoperable. Ice maker is in continuous harvest cycle (contacts 1-2 closed).

Control inoperable (1-2 contacts will not open). Replace control.

Hold switch inoperable. Replace hold switch.

Broken wiring. Repair or replace wiring.

Short in mold heater. Replace heater.

Control set too cold. Adjust control warmer (counterclockwise).

Fan motor stalled. Replace fan motor.

Ice cubes too large. Lower water fill adjustment.

Dirty condenser. Clean condenser.

Bypass valve stuck open (Frost Free units only). Replace bypass valve (Frost Free units only).

Little or no frost pattern on evaporator. Check for sealed system leak or restriction.

Bypass valve stuck open (Frost Free units only). Replace bypass valve (Frost Free units only).

Relay inoperable. Replace relay.

Overload inoperable (open). Replace overload.

Compressor inoperable. Replace compressor.

Replace temperature control.

Troubleshooting - Extended 1

USER GUIDE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Concern Potential Causes Suggested Remedy

Not freezing (compressor and fans not operating).

Compressor overheating.

Compressor will not stop operating.

Water leak (under unit).

Water leak (inside unit).

Excessive frost buildup.

Noisy. Copper refrigeration tube touching cabinet. Carefully adjust tubing.

Ice buildup in drain trough or drainage problem.

Unit will not defrost (Frost Free units only).

Fresh food temperature too cold.

Power cord not plugged in. Plug in power cord.

On/Off switch in off position. Turn switch to on position.

On/Off switch inoperable (open). Replace On/Off switch.

Hold switch inoperable (open). Replace hold switch.

Control inoperable (2-3 contacts open). Replace control.

Broken wire in freeze circuit. Repair or replace wiring.

Ejector blades not in freeze position (12:00) Manually advance ejector blades to the 12:00 position (test ice

Condenser air flow restricted. Remove restriction (clean condenser and grille).

Condenser fan blade obstructed. Remove blade restriction.

Condenser fan motor stalled. Replace fan motor.

Compressor inoperable. Replace compressor.

Control set too cold. Adjust control warmer (counterclockwise).

Control inoperable (2-3 contacts will not open). Replace control.

Control sensing bulb not sensing mold temperature.

Evaporator fan stalled (Frost Free units only). Remove obstruction or replace motor.

Water supply line leaking at solenoid valve inlet. Tighten fitting or replace fitting gasket and/or fitting.

Water line leaking at solenoid valve outlet. Replace water line and fitting.

Water line leaking at fill tube. Tighten clamp or replace fill tube assembly.

Defrost drain line not in drain pan. Position drain line in drain pan.

Crack in water line. Replace water line.

Ice maker assembly fill cup obstructed. Remove obstruction.

Fill ice cup and fill tube out of alignment. Align fill tube and fill cup.

Water level too high. Adjust water level.

Defrost drain plugged (Frost Free units only). Ice in drain trough (Frost Free units only) (see below).

Door gasket not sealing properly. Adjust door hinges or replace door gasket.

Door out of alignment. Adjust door hinges.

Water soaked cabinet insulation. Replace foamed cabinet assembly.

Light stays on when door is closed. Repair or adjust light bracket.

Fan blade touching shroud. Adjust fan mounting or shroud.

Fan blade obstruction (wiring, foam insulation, packaging material).

Obstructed drain cup or tube. Clear obstruction.

Drain trough heater failed (Frost Free units only). Replace drain trough heater (Frost Free units only).

Kinked drain tube. Align drain trough and drain cup.

Drain trough spout and drain cup not aligned. Reroute drain tube.

Bypass coil inoperable. Replace bypass valve.

Defrost timer inoperable. Replace defrost timer.

Bypass valve inoperable. Replace bypass valve.

Temperature control set too cold. Adjust control to warmer setting (counterclockwise).

Bin/Freezer door not closing. Adjust or replace door.

Ice bucket not fully inserted. Check for ice behind bucket and push ice bucket in place.

maker and limit switch).

Fully insert bulb into ice maker tube. Rout bulb away from compressor discharge tube.

Remove obstruction.

Troubleshooting - Extended 2

USER GUIDE

DOES THE UNIT REFRIGERATE?

Sealed System Leak Electrical Failure Compressor Failure Fan Motor Failure Defrost System Failure

Low Voltage Voltage Drop Wiring

Temperature Control Failure Water Adjustment Bin Switch Failure

EVERYWHERE

INTERMITTENT

AT 3:00

YES

AT 12:00

DOES THE UNIT HARVEST ICE

IF THE EJECTOR BLADES ARE MOVED BY HAND OR WITH A

WRENCH ?

WHERE DO THE

EJECTOR BLADES

STOP?

Mold Heater Failure

Solenoid Valve Failure

Ice Motor Failure Hold Switch Failure Limit Switch Failure Binding Cam/Ejector

Water Switch Failure

IS THERE VOLTAGE AT THE

SOLENOID VALVE TERMINALS

DURING HARVEST?

UL183-11

YES

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

ICE MAKER DIAGNOSIS FLOW CHART

Troubleshooting - Extended 3

USER GUIDE

SWITCH

LIMIT

orange

black

MOTOR

MAKER

ICE

MOLD HEATER

WATER

SWITCH

FILL

MOTOR

FAN

LOAD

OVER

black

RELAY

START

COMP.

SWITCH

OFF

black

blue

black

CONTROL

TEMP.

black

orange

yellow

orange

SWITCH

BIN

red

brown

black

white

SWITCH

HOLD

VALVE

WATER

ground

UL183-4

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

ICE MAKER OPERATING CYCLES

Freeze Cycle

• Temperature control terminals 2 and 3 are closed.

• Power to the condenser.

• Power to the condenser fan.

Figure 1. Freeze Cycle

Troubleshooting - Extended 4

USER GUIDE

SWITCH

LIMIT

orange

black

MOTOR

MAKER

ICE

MOLD HEATER

WATER

SWITCH

FILL

MOTOR

FAN

LOAD

OVER

black

RELAY

START

COMP.

SWITCH

OFF

black

blue

black

CONTROL

TEMP.

black

orange

yellow

orange

SWITCH

BIN

red

brown

black

white

SWITCH

HOLD

VALVE

WATER

ground

UL183-5

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Harvest-1 Cycle

• Temperature control terminals 2 and 3 are open - 2 and

1 close.

• No power to the compressor or condenser fan.

• If bin arm is down, power goes through bin arm switch

to the ice maker motor. If bin arm is up, the ice maker

will not harvest.

Figure 2. Harvest-1 Cycle (Hold Switch in Normal Position)

Troubleshooting - Extended 5

USER GUIDE

SWITCH

LIMIT

orange

black

MOTOR

MAKER

ICE

MOLD HEATER

WATER

SWITCH

FILL

MOTOR

FAN

LOAD

OVER

black

RELAY

START

COMP.

SWITCH

OFF

black

blue

black

CONTROL

TEMP.

black

orange

yellow

orange

SWITCH

BIN

red

brown

black

white

SWITCH

HOLD

VALVE

WATER

ground

UL183-6

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

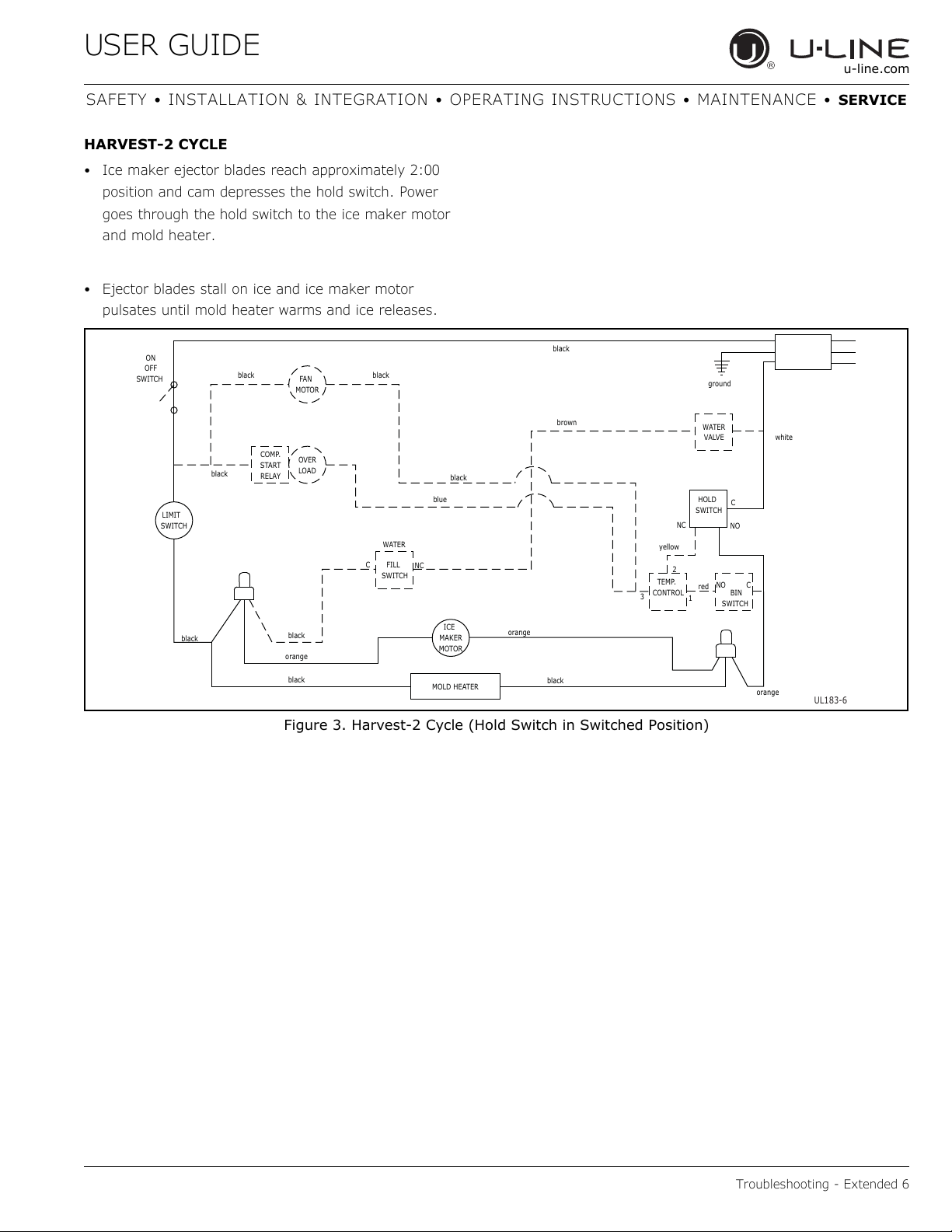

HARVEST-2 CYCLE

• Ice maker ejector blades reach approximately 2:00

position and cam depresses the hold switch. Power

goes through the hold switch to the ice maker motor

and mold heater.

• Ejector blades stall on ice and ice maker motor

pulsates until mold heater warms and ice releases.

Figure 3. Harvest-2 Cycle (Hold Switch in Switched Position)

Troubleshooting - Extended 6

USER GUIDE

SWITCH

LIMIT

orange

black

MOTOR

MAKER

ICE

MOLD HEATER

WATER

SWITCH

FILL

MOTOR

FAN

LOAD

OVER

black

RELAY

START

COMP.

SWITCH

OFF

black

blue

black

CONTROL

TEMP.

black

orange

yellow

orange

SWITCH

BIN

red

brown

black

white

SWITCH

HOLD

VALVE

WATER

ground

UL183-7

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

WATER FILL CYCLE

• Ice maker ejector blades reach approximately 10:00

position and cam depresses the water fill switch.

• Power to the water valve. Ice maker mold fills.

EJECT CYCLE

• Ejector blades push ice into bucket and stop at 12:00

position.

• Temperature control terminals 2 and 3 have closed

during harvest cycle.

• Next freeze cycle begins with power to the compressor

and condenser fan.

Figure 4. Water Fill Cycle

Troubleshooting - Extended 7

USER GUIDE

YELLOW WIRE

CONNECTION

RED WIRE

CONNECTION

BLUE/BLACK WIRE

CONNECTION

ICE MAKER CONTROL

183-8

FREEZE POSITION ICE HARVEST POSITION

CYCLE

CLOSED CIRCUIT

OPEN

CIRCUIT

FREEZE 2 - 1 2 - 3

HARVEST 2 - 3 2 - 1

183-9

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

TEMPERATURE CONTROL SPECIFICATIONS

Double Throw Ice Maker Thermostat Numbers 4548, AR-19-12, 2636, 2690, 2691, 2717, 2783, 2782-S, 2763-S, 2780, 80-26005-02

These temperature controls are double throw, single pole

controls. The sensing tube is inserted into the ice maker

mold and senses mold temperature. After ice is sensed in

the mold, the 2-3 contacts open (stopping the

compressor) and the 2-1 contacts are closed (starting the

ice maker motor). The 2-3 contacts close (2-1 contacts

open) before the end of the ice harvest cycle.The hold

switch prevents power going back to the compressor. This

prepares the control for the next cycle.

Figure 5. Temperature Controls - Manual Defrost Ice Makers

Troubleshooting - Extended 8

USER GUIDE

28.12

3.00

183-10

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

LIMIT SWITCH SPECIFICATIONS

• Normally closed Bi-metal switch

• Open temperature: 104°F

• Close temperature: 83°F

The function of this switch is to open in the event of an

overheating condition. This bi-metal thermostat is

normally closed and does not initiate the ice harvest

cycle. The ice harvest cycle is initiated by a double throw,

single pole temperature located remotely from the ice

maker assembly.

Figure 6. Limit Switch

Troubleshooting - Extended 9

USER GUIDE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

REPLACING ICE MAKER ASSEMBLY (CO29F ONLY)

1. Unplug the unit from the main power source.

2. Disconnect ice maker wire harness at plug (1).

3. Remove control capillary tube from sensing tube on ice

maker assembly (2).

4. Remove water inlet tube.

5. Remove front cover (3).

6. Advance the ejector blade to the 3 o’clock position by

turning the 5/16" hex head on the small brass gear

counterclockwise (4).

7. Remove three screws from wall of freezer housing (5).

8. Remove ice maker assembly.

9. Place new ice maker assembly into position and secure

with three screws (5).

10.Reconnect wire harness at plug.

11.Insert control capillary tube into ice maker sensing

tube.

12.Insert water inlet tube.

13.Apply Permagum

14.Install back panel.

15.Plug in unit and test.

to all exit holes.

Figure 7. Ice Maker Assembly

Troubleshooting - Extended 10

USER GUIDE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

REPLACING ICE MAKER ASSEMBLY (ALL MODELS EXCEPT CO29F)

1. Remove back panel.

2. Disconnect all wires at bell connectors (5 wires-Models

BI95, BI98 or SP18; or Plug-Models).

3. Remove capillary tube from sensing tube on ice maker

assembly (2).

4. Remove water inlet tube.

5. Remove front cover (3)

6. Advance ejector blades to the 3:00 position by turning

the 5/16" hex head on the small brass gear

counterclockwise (4).

7. Remove two screws from the side wall of evaporator

(5).

8. Remove screws from the bottom of the evaporator

plate.

9. Remove ice maker assembly from evaporator shelf.

10.Clean alumilastic from evaporator shelf.

11.Apply 1/4" layer of fresh alumilastic to heater side of

new ice maker.

17.Mount the back panel.

18.Plug in unit and test.

220 Volt Conversion List

All models listed in this manual are equipped to run on

110/115 volt. This document is a conversion list for the

applicable 220 volt parts for the following models:

•SP18

•BI95

•BI98

• SS1095

110V P/N 220V P/N Description

5263-S 5195 Fan Motor

80-39015-00 628109 I.M. motor (ice makers)

402 619 Ice maker assembly -

Models SP18, BI95, BI98 and model SS1095

402-29/1175 620 Ice maker assembly -

Models SP18, BI95, BI98 and model SS1095

2552A 2555A Water valve

5402-S 5404-S Compressor (ice makers)

150 650 Faceplate assembly

5414 5418 Relay

5413 5417 Overload

12.Replace parts in reverse order of removal.

13.Reconnect all wires.

14.Insert capillary tube into ice maker sensing tube.

15.Insert water inlet tube.

16.Apply permagum to all exit holes. Mount back panel.

Troubleshooting - Extended 11

USER GUIDE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Defrost

These units are manual defrost.

To defrost unit remove ice bucket. Turn unit off. Use

toweling inside to absorb water as it melts down. This will

help prevent water from getting onto customer’s floor.

The defrost duration is dependent upon usage or climate.

Typically, defrosting is needed approximately every 3 - 6

weeks and/or when 1/4" or more of frost is present -

whichever comes first.

Defrost 1

USER GUIDE

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

U-Line Corporation (U-Line) Limited Warranty

One Year Limited Warranty

For one year from the date of original purchase, this U-Line product warranty covers all parts and labor to repair or replace any part of the product that proves to be defective in materials or workmanship. For products installed and used for normal residential use, material cosmetic defects are included in this warranty, with coverage limited to 60 days from the date of original purchase. All service provided by U- Line under the above warranty must be performed by U-Line factory authorized service, unless otherwise specified by U-Line. Service provided during normal business hours.

Available Second Year Limited Warranty

Beyond the standard one year warranty outlined above, U-Line offers an extension of the one year warranty coverage for an additional second year from the date of purchase, free of charge. To take advantage of this second year warranty, you must register your product with U-Line within two months from the date of purchase at u-line.com providing proof of purchase.

Five Year Sealed System Limited Warranty

For five years from the date of original purchase, U-Line will repair or replace the following parts, labor not included, that prove to be defective in materials or workmanship: compressor, condenser, evaporator, drier, and all connecting tubing. All service provided by U-Line under the above warranty must be performed by U-Line factory authorized service, unless otherwise specified by U-Line. Service provided during normal business hours.

Terms

These warranties apply only to products installed in any one of the fifty states of the United States, the District of Columbia, or the ten provinces of Canada. The warranties do not cover any parts or labor to correct any defect caused by negligence, accident or improper use, maintenance, installation, service, repair, acts of God, fire, flood or other natural disasters. The product must be installed, operated, and maintained in accordance with the U-Line User Guide.

The remedies described above for each warranty are the only ones that U-Line will provide, either under these warranties or under any warranty arising by operation of law. U-Line will not be responsible for any consequential or incidental damages arising from the breach of these warranties or any other warranty, whether express, implied, or statutory. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. These warranties give you specific legal rights, and you may also have other rights which vary from state to state.

Any warranty that may be implied in connection with your purchase or use of the product, including any warranty of merchantability or any warranty fit for a particular purpose is limited to the duration of these warranties, and only extends to five years in duration for the parts described in the section related to the five ye ar limited warranty ab ove. Some states do not allo w l imitations on how long an implied warranty lasts, so the above limitations may not apply to you.

• The warranties only apply to the original purchaser and are non-transferable.

• The second year and five year warranties cover products installed and used for normal residential or designated marine use only.

• The warranties apply to units operated outside only if designed for outdoor use by model and serial number.

• Replacement water filters, light bulbs, and other consumable parts are not covered by these warranties.

• The start of U-Line’s obligation is limited to four years after the shipment date from U-Line.

• In-home instruction on how to use your product is not covered by these warranties.

• Food, beverage, and medicine loss are not covered by these warranties.

• If the product is located in an area where U-Line factory authorized service is not available, you may be responsible for a trip charge or you may be required to bring the product to a U-Line factory authorized service location at your own cost and expense.

• Units purchased after use as floor displays no coverage is provided for cosmetic defects.

• Signal issues related to Wi-Fi connectivity are not covered by these warranties.

, and/or certified reconditioned units, are covered by the limited one year warranty only and

For parts and service assistance, or to find U-Line factory authorized service near you, contact U-Line: 8900 N. 55th Street, Milwaukee, WI 53223 • u-line.com • onlineservice@u-line.com • +1.800.779.2547

Warranty 1

U-Line ULN-SP18FCS-03A, ULN-SP18FCS-20A, ULN-SP18FCB-03A, ULN-SP18FCB-20A, ULN-SP18FCW-03A User Guide & Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
