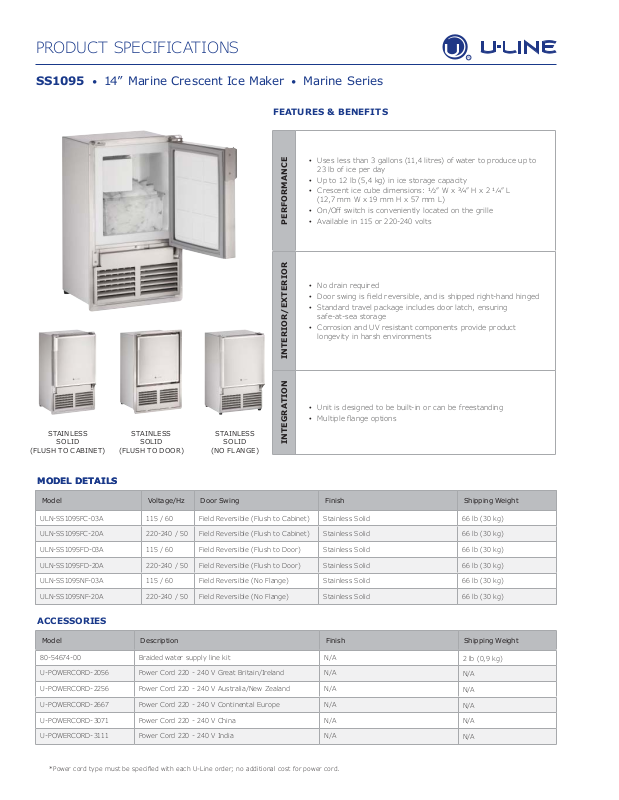

Page 1
PRODUCT SPECIFICATIONS
SS1095 • 14” Marine Crescent Ice Maker • Marine Series
FEATURES & BENEFITS
• Uses less than 3 gallons (11,4 litres) of water to produce up to
23 lb of ice per day
• Up to 12 lb (5,4 kg) in ice storage capacit y
• Crescent ice cube dimensions: 1⁄2” W x 3⁄4” H x 2 1⁄4” L
(12,7 mm W x 19 mm H x 57 mm L)
• On/Off switch is conveniently located on the grille
• Available in 115 or 220-240 volts
PERFORMANCE
• No drain required
• Door swing is fi eld reversible, and is shipped right-hand hinged
• Standard travel package includes door latch, ensuring
safe-at-sea storage
• Corrosion and UV resistant components provide product
longevity in harsh environment s
INTERIOR/EXTERIOR
• Unit is designed to be built-in or can be freestanding
• Multiple fl ange options
STAINLESS
SOLID
(FLUSH TO C ABINET)
MODEL DETAILS
MODEL DETAILS
Model Voltage/Hz Door Swing Finish
Model Voltage/Hz Door Swing Finish Shipping Weight
ULN-SS1095FC-03A 115 / 60 Field Reversible (Flush to Cabinet) Stainless Solid 66 lb (30 kg) $X,XXX $X,XXX $1,479 $1,649
ULN-SS1095FC-03A 115 / 60 Field Reversible (Flush to Cabinet) Stainless Solid 66 lb (30 kg)
ULN-SS1095FC-20A 220-240 / 50 Field Reversible (Flush to Cabinet) Stainless Solid 66 lb (30 kg) $X,XXX $X,XXX $1,579 $1,759
ULN-SS1095FC-20A 220-240 / 50 Field Reversible (Flush to Cabinet) Stainless Solid 66 lb (30 kg)
ULN-SS1095FD-03A 115 / 60 Field Reversible (Flush to Door) Stainless Solid 66 lb (30 kg) $X,XXX $X,XXX $1,479 $1,649
ULN-SS1095FD-03A 115 / 60 Field Reversible (Flush to Door) Stainless Solid 66 lb (30 kg)
ULN-SS1095FD-20A 220-240 / 50 Field Reversible (Flush to Door) Stainless Solid 66 lb (30 kg) $X,XXX $X,XXX $1,579 $1,759
ULN-SS1095FD-20A 220-240 / 50 Field Reversible (Flush to Door) Stainless Solid 66 lb (30 kg)
ULN-SS1095NF-03A 115 / 60 Field Reversible (No Flange) Stainless Solid 66 lb (30 kg) $X,XXX $X,XXX $1,389 $1,549
ULN-SS1095NF-03A 115 / 60 Field Reversible (No Flange) Stainless Solid 66 lb (30 kg)
ULN-SS1095NF-20A 220-240 / 50 Field Reversible (No Flange) Stainless Solid 66 lb (30 kg) $X,XXX $X,XXX $1,489 $1,659
ULN-SS1095NF-20A 220-240 / 50 Field Reversible (No Flange) Stainless Solid 66 lb (30 kg)
STAINLESS
SOLID
(FLUSH TO DO OR)
STAINLESS
SOLID
(NO FLANGE)
INTEGRATION
Shipping
Weight
Dealer UMRP MAP**
ACCESSORIES
Model Description Finish Shipping Weight
80-54674-00 Braided water supply line kit N/A
U-POWERCORD-2056 Power Cord 220 - 240 V Great Britain/Ireland N/A
U-POWERCORD-2256 Power Cord 220 - 240 V Australia/New Zealand N/A
U-POWERCORD-2667 Power Cord 220 - 240 V Continental Europe N/A
U-POWERCORD-3071 Power Cord 220 - 240 V China N/A
U-POWERCORD-3111 Power Cord 220 - 240 V India N/A
2 lb (0,9 kg)
N/A
N/A
N/A
N/A
N/A
Suggested
List
*Power cord type must be specifi ed with each U-Line order; no additional cost for power cord.
Page 2
Marine Series • 14” Marine Crescent Ice Maker • SS1095
DIMENSIONS SPECIFICATIONS
*Add 1-1/2" For Water Line Clearance
**Applies to SS1095FC
9" (229 mm)
14"
(356 mm)
CABINET CUT-OUT
Filler Panel (Not Provided by U-Line) –
Needed to Attach Mounting Flange on Unit
See Electrical
6SHFLɟFDWLRQV
for Power Supply
Preferred location
for water line and
HOHFWULFDORXWOHWLV
in adjacent
Cut-Out
Height
26-1/16"
(662 mm)
cabinet.
(178 mm)
(102 mm)
7"
4"
17" (432 mm)*
5/8"
(16 mm)
15 3/32”
(383 mm)**
26-1/16"
(662 mm)
18-1/2"
(470 mm)
Minimum
Model SS1095
Amps: Running (115v) 2.5 amps
Amps: Running (220-240v) 1.2 amps
Amps: Max Start Up (115v) 18 amps
Amps: Max Start Up (220-240v) 6 amps
Control Type On/Off Switch
Defrost Type Manual
Dimensions (NF): Product Depth 17” (432 mm)
Dimensions (NF): Product Height 25 1⁄16” (637 mm)
Dimensions (NF): Product Width 14” (356 mm)
Dimensions (FC): Product Depth 17” (432 mm)
Dimensions (FC): Product Height 25 1⁄8” (638 mm)*
Dimensions (FC): Product Width 15 1⁄8” (384 mm)*
Dimensions (FD): Product Depth 17" (432 mm)
Dimensions (FD): Product Height 26 1⁄16" (662 mm)*
Dimensions (FD): Product Width 15 15⁄16" (405 mm)*
ENERGY STAR N/A
Ice Production Per Day 23 lb (10,4 kg)
Ice Storage 12 lb (5,4 kg)
Product Weight: Max 60 lb (25 kg)
Refrigerant Type R134A
Sabbath (Star K Certifi ed) No
PRODUCT SPECIFICATIONS
3/4"
(19 mm)
Minimum Flange
Mounting Area
14-3/4"
(375 mm)
Cut Out Width
3/4"
(19 mm)
Minimum Flange
Mounting Area
*Includes fl ange
INSTALLATION NOTES
No additional clearance around sides, top or rear of
unit is needed for ventilation.
Do not obstruct front grille air fl ow.
UL listing only applies to 115 v models.
CE only applies to 220-240v models.
Please visit u-line.com to view this model’s User Guide & Service
Manual. All Specifi cations are subject to change without notice.
8900 North 55th Street • Milwaukee, Wisconsin 53223 USA • Phone +1.414.354.0300 • Fax +1.414.354.7905 • u-line.com
