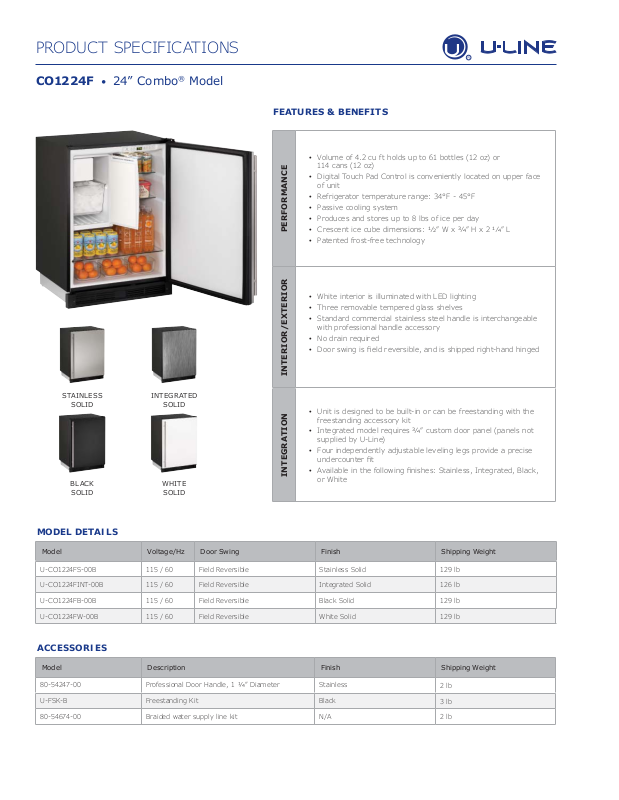

Page 1
PRODUCT SPECIFICATIONS
CO1224F • 24” Combo® Model
FEATURES & BENEFITS
• Volume of 4.2 cu ft holds up to 61 bottles (12 oz) or
114 cans (12 oz)
• Digital Touch Pad Control is conveniently located on upper face
of unit
• Refrigerator temperature range: 34°F - 45°F
• Passive cooling system
• Produces and stores up to 8 lbs of ice per day
• Crescent ice cube dimensions: 1⁄2” W x 3⁄4” H x 2 1⁄4” L
PERFORMANCE
• Patented frost-free technology
• White interior is illuminated with LED lighting
• Three removable tempered glass shelves
• Standard commercial stainless steel handle is interchangeable
with professional handle accessory
• No drain required
• Door swing is fi eld reversible, and is shipped right-hand hinged
INTERIOR/EXTERIOR
STAINLESS
SOLID
INTEGRATED
SOLID
• Unit is designed to be built-in or can be freestanding with the
freestanding accessor y kit
• Integrated model requires 3⁄4” custom door panel (panels not
supplied by U-Line)
• Four independently adjustable leveling legs provide a precise
undercounter fi t
• Available in the following fi nishes: Stainless, Integrated, Black,
INTEGRATION
BLACK
SOLID
WHITE
SOLID
or White
MODEL DETAILS
Model Voltage/Hz Door Swing Finish Shipping Weight
U-CO1224FS-00B 115 / 60 Field Reversible Stainless Solid 129 lb
U-CO1224FINT-00B 115 / 60 Field Reversible Integrated Solid 126 lb
U-CO1224FB-00B 115 / 60 Field Reversible Black Solid 129 lb
U-CO1224FW-00B 115 / 60 Field Reversible White Solid 129 lb
ACCESSORIES
Model Description Finish Shipping Weight
80-54247-00 Professional Door Handle, 1 1⁄4” Diameter Stainless
U-FSK-B Freestanding Kit Black
80-54674-00 Braided water supply line kit N/A
2 lb
3 lb
2 lb
Page 2
DIMENSIONS SPECIFICATIONS
PRODUCT SPECIFICATIONS
24” Combo® Model • CO1224F
Dimensions shown apply to all fi nishes, including Integrated
(INT) models with 3⁄4” integrated panel/frame installed.
Not Including Handle
"
(591 mm)
23-1/4
34-1/8
" to
35-1/8"
3-9/16
"
(91 mm)
"
(610 mm)
24
(867 mm to 892 mm)
CABINET CUT-OUT
Preferred location
for electrical outlet
and water line
34-1/4"
(870 mm)
to
35-1/8"
(892 mm)
is in adjacent
cabinet.
7"
(178 mm)
4"
(102 mm)
5/8"
(16 mm)
24"
(610 mm)
Model CO1224F
Amps: Running 2.4
Capacity: Bottle (12 oz) 61
Capacity: Can (12 oz) 114
Capacity: Refrigerator Volume (cu ft) 4.2
Control Type Digital Touch Pad
Defrost Type Frost Free
Dimensions: Product Depth 23 1⁄4" / 591 mm
Dimensions: Product Height 34 1⁄8 " / 867 mm
Dimensions: Product Width 24" / 610 mm
Energy Consumption: Avg. Per Year 579 kWh
ENERGY STAR No
Ice Production Per Day 8 lb
Ice Storage 8 lb
Panel Height 30 1⁄4" / 768 mm
Panel Thickness 3⁄4" / 20 mm
Panel Type Solid Panel
Panel Width 23 3⁄4" / 603 mm
Product Weight: Max 119 lb
Refrigerant Type R134A
Sabbath (Star K Certifi ed) Yes
Temperature Range 34°F - 45°F
24-1/4"
(616 mm)
INSTALLATION NOTES
When installing adjacent to wall, ensure 2 1⁄2”
clearance on hinged side for 90˚ door opening,
allowing ample room for door handle.
Cutout includes the additional 1⁄4” width overall to
ensure proper installation.
No additional clearance around sides, top or rear of
unit is needed for ventilation.
Do not obstruct front grille air fl ow.
Please visit u-line.com to view this model’s User Guide & Service
Manual. All Specifi cations are subject to change without notice.
8900 North 55th Street • Milwaukee, Wisconsin 53223 USA • Phone +1.414.354.0300 • Fax +1.414.354.7905 • u-line.com
ELECTRICAL REQUIREMENTS
This unit requires a grounded, polarized 115 VAC, 60 Hz, 15 A power
supply (normal household current).
