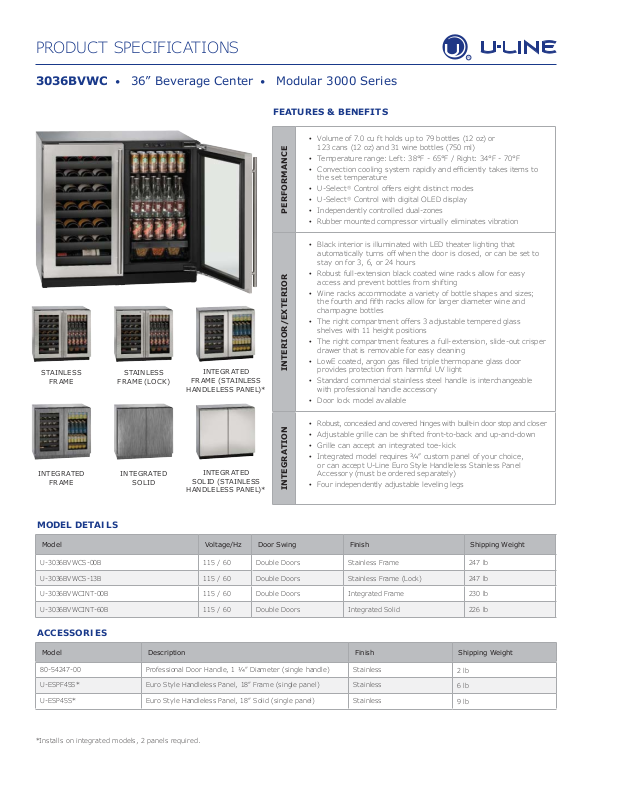

Page 1
PRODUCT SPECIFICATIONS
3036BVWC • 36” Beverage Center • Modular 3000 Series
FEATURES & BENEFITS
• Volume of 7.0 cu ft holds up to 79 bottles (12 oz) or
123 cans (12 oz) and 31 wine bottles (750 ml)
• Temperature range: Left: 38°F - 65°F / Right: 34°F - 70°F
• Convection cooling system rapidly and effi ciently takes items to
the set temperature
®
Control off ers eight distinct modes
®
Control with digital OLED display
automatically turns off when the door is closed, or can be set to
stay on for 3, 6, or 24 hour s
access and prevent bot tles from shif ting
the four th and fi fth racks allow for larger diameter wine and
champagne bottles
shelves with 11 height positions
drawer that is removable for easy cleaning
provides protec tion from harmful UV light
with professional handle accessory
STAINLESS
FRAME
STAINLESS
FRAME (LOCK)
INTEGRATED
FRAME (STAINLESS
HANDLELESS PANEL)*
• U-Select
• U-Select
• Independently controlled dual-zones
PERFORMANCE
• Rubber mounted compressor vir tually eliminates vibration
• Black interior is illuminated with LED theater lighting that
• Robust full-extension black coated wine racks allow for easy
• Wine racks accommodate a variet y of bottle shapes and sizes;
• The right compartment off ers 3 adjustable tempered glass
• The right compartment features a full-extension, slide-out crisper
• LowE coated, argon gas fi lled triple thermopane glass door
INTERIOR/EXTERIOR
• Standard commercial stainless steel handle is interchangeable
• Door lock model available
• Robust, concealed and covered hinges with built-in door stop and closer
• Adjustable grille can be shifted front-to-back and up-and-down
• Grille can accept an integrated toe-kick
• Integrated model requires 3⁄4” custom panel of your choice,
INTEGRATED
FRAME
INTEGRATED
SOLID
INTEGRATED
SOLID (STAINLESS
HANDLELESS PANEL)*
or can accept U-Line Euro St yle Handleless Stainless Panel
Accessory (must be ordered separately)
• Four independently adjustable leveling legs
INTEGRATION
MODEL DETAILS
Model Voltage/Hz Door Swing Finish Shipping Weight
U-3036BVWCS-00B 115 / 60 Double Doors Stainless Frame 247 lb
U-3036B
VWCS-13B 115 / 60 Double Doors Stainless Frame (Lock) 247 lb
U-3036BVWCINT-00B 115 / 60 Double Doors Integrated Frame 230 lb
U-3036BVWCINT-60B 115 / 60 Double Doors Integrated Solid 226 lb
ACCESSORIES
Model Description Finish Shipping Weight
80-54247-00 Professional Door Handle, 1 1⁄4” Diameter (single handle)
U-ESPF45S* Euro Style Handleless Panel, 18” Frame (single panel) Stainless
U-ESP45S* Euro Style Handleless Panel, 18” Solid (single panel) Stainless
Stainless
2 lb
6 lb
9 lb
*Installs on integrated models, 2 panels required.
Page 2
Modular 3000 Series • 36” Beverage Center • 3036BVWC
DIMENSIONS SPECIFICATIONS
PRODUCT SPECIFICATIONS
Dimensions shown apply to all fi nishes, including Integrated
(INT) models with 3⁄4” integrated panel/frame installed.
Not Including Handle
23-7/16" (590 mm)
33-11/16" to 34-11/16"
(856 to 881 mm)
3-5/8" to
4-5/8"
(92 to
118 mm)
35-7/16"
(900 mm)
CABINET CUT-OUT
Preferred location
for electrical outlet
33-7/8"
(860 mm)
to
34-7/8"
(886 mm)
is in adjacent
cabinet.
24"
(610 mm)
(178 mm)
(102 mm)
7"
4"
5/8"
(16 mm)
Model 3036BVWC
Amps: Running 1.2
Capacity: Bottle (12 oz) 79
Capacity: Can (12 oz) 123
Capacity: Volume (cu ft) 7.0
Capacity: Wine Bottle (750 ml) 31
Control Type U-Select
®
Dimensions: Product Depth 23 7⁄16" / 590 mm
Dimensions: Product Height 33 11⁄16" / 856 mm
Dimensions: Product Width 35 7⁄16" / 900 mm
Energy Consumption: Avg. Per Year 320 kWh
ENERGY STAR No
Panel Height 30" / 762 mm
Panel Thickness 3⁄4" / 20 mm
Panel Type
2 3⁄4" / 70 mm Frame Panel or
Solid Panel (-60 suffi x)
Panel Width 17 5⁄8” / 445 mm
Product Weight: Max 221 lb
Refrigerant Type R600a
Sabbath (Star K Certifi ed) Yes
Temperature Range (Left) Left Temp Range: 38°F - 65°F
Temperature Range (Right) Right Temp Range: 34°F - 70°F
35-5/8"
(905 mm)
Metric measurements rounded and optimized.
INSTALLATION NOTES
COOLING SYSTEM
When installing adjacent to wall, ensure 2 1⁄2”
clearance on hinged side for 90˚ door opening,
allowing ample room for door handle.
38°-65° 34°-70°
No additional clearance around sides, top or rear of
unit is needed for ventilation.
Do not obstruct front grille air fl ow.
ELECTRICAL REQUIREMENTS
This unit requires a grounded, polarized 115 VAC, 60 Hz, 15 A power
supply (normal household current).
plus
1
eligible
Please visit u-line.com to view this model’s User Guide & Service
Manual. All Specifi cations are subject to change without notice.
Warranty
8900 North 55th Street • Milwaukee, Wisconsin 53223 USA • Phone +1.414.354.0300 • Fax +1.414.354.7905 • U-Line.com
