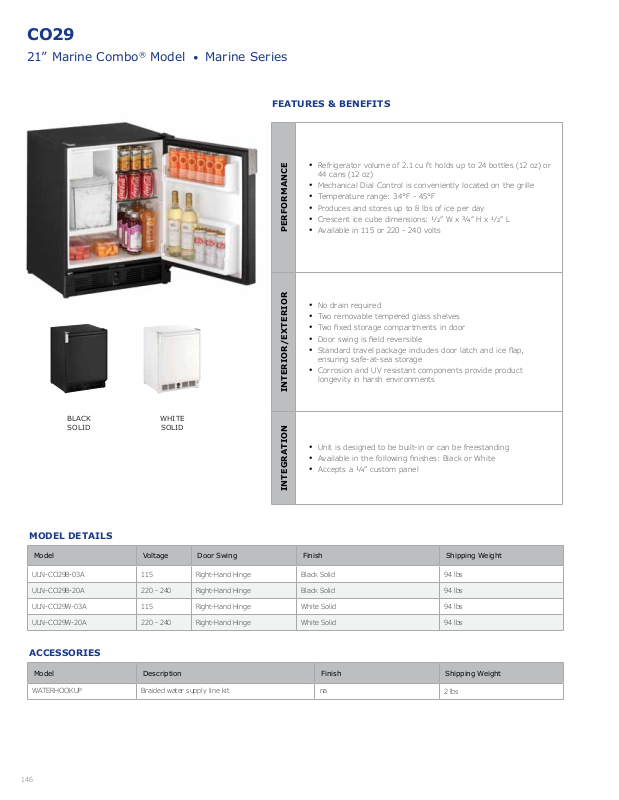

U-Line ULN-CO29B-20A, ULN-CO29W-03A Specification Sheet
co29
21” Marine Combo® Model • Marine Series
black |
white |
SOLID |
SOLID |
MODEL DETAILS
features & benefits
| <![if ! IE]> <![endif]>performance |
• |
Refrigerator volume of 2.1 cu ft holds up to 24 bottles (12 oz) or |
|
44 cans (12 oz) |
|
|
|
|
|
• |
Mechanical Dial Control is conveniently located on the grille |
|
• |
Temperature range: 34°F - 45°F |
|
• |
Produces and stores up to 8 lbs of ice per day |
|
• Crescent ice cube dimensions: 1/2” W x 3/4” H x 1/2” L |
|
|
• Available in 115 or 220 - 240 volts |
|
|
|
|
| <![if ! IE]> <![endif]>interior/exterior |
• |
No drain required |
|
||
|
• |
Two removable tempered glass shelves |
|
• |
Two fixed storage compartments in door |
|
• |
Door swing is field reversible |
|
• |
Standard travel package includes door latch and ice flap, |
|
|
ensuring safe-at-sea storage |
|
• |
Corrosion and UV resistant components provide product |
|
|
longevity in harsh environments |
|
|
|
| <![if ! IE]> <![endif]>integration |
• |
Unit is designed to be built-in or can be freestanding |
|
||
|
• |
Available in the following finishes: Black or White |
|
• |
Accepts a 1/4” custom panel |
|
|
|
Model |
Voltage |
Door Swing |
Finish |
Shipping Weight |
|
|
|
|
|
ULN-CO29B-03A |
115 |
Right-Hand Hinge |
Black Solid |
94 lbs |
|
|
|
|
|
ULN-CO29B-20A |
220 - 240 |
Right-Hand Hinge |
Black Solid |
94 lbs |
|
|
|
|
|
ULN-CO29W-03A |
115 |
Right-Hand Hinge |
White Solid |
94 lbs |
|
|
|
|
|
ULN-CO29W-20A |
220 - 240 |
Right-Hand Hinge |
White Solid |
94 lbs |
|
|
|
|
|
accessories
Model |
Description |
Finish |
Shipping Weight |
|
|
|
|
WATERHOOKUP |
Braided water supply line kit |
na |
2 lbs |
|
|
|
|
146
dimensions
Dimensions shown apply to all finishes.
Not Including Handle
23" (584 mm)
28 1/2"
(724 mm)
4 9/16" (116 mm) |
20 7/8" (530 mm) |
CABINET CUT-OUT
Filler Panel (Not Provided by U-Line) – May Be Added Above or Below Unit to Enclose for a Built-In Look
See Electrical
Specifications for Power Supply
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Typical |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
Counter |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
Height |
|
|
|
Preferred location |
|
|
|
24" |
|||||||||
34-1/4" |
|
|
|
|
for electrical outlet |
|
|
|
|||||||||
(870 mm) |
|
|
|
is in adjacent |
|
|
|
(610 mm) |
|||||||||
to |
|
|
|
cabinet. |
|
|
|
Minimum |
|||||||||
35-1/8" |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
(892 mm) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Cut-Out |
7" |
|
|
|
|
|
|
|
|
5/8" |
|
|||||
|
Height |
|
|
|
|
|
|
|
|
(16 mm) |
|||||||
|
28-5/8" |
|
(178 mm) |
|
|
|
|
|
|
|
|
|
|
||||
|
(727 mm) |
4" |
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
to |
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
28-7/8" |
|
(102 mm) |
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|||||||||||
|
(733 mm) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
21-1/16" |
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
(535 mm) |
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
INSTALLATION NOTES
Cutout includes the additional 1/4” width overall to ensure proper installation.
No additional clearance around sides, top or rear of unit is needed for ventilation.
Do not obstruct front grille air flow.
UL listing only applies to 115 v models.
Please visit u-line.com to view this model’s User Guide.
All specifications are subject to change without notice.
co29
Marine Series • 21” Marine Combo® Model
specifications
Model |
CO29 |
|
|
Amps: Running (115 v) |
2.5 |
|
|
Amps: Running (220 - 240 v) |
1.2 |
|
|
Amps: Max Start Up (115 v) |
18 |
|
|
Amps: Max Start Up (220 - 240 v) |
6 |
|
|
Capacity: Bottle (12 oz) |
24 |
|
|
Capacity: Can (12 oz) |
44 |
|
|
Capacity: Volume (cu ft) |
2.1 |
|
|
Control Type |
Mechanical Dial |
|
|
Defrost Type |
Manual |
|
|
Dimensions: Product Depth |
23" / 584 mm |
|
|
Dimensions: Product Height |
28 1/2" / 724 mm |
|
|
Dimensions: Product Width |
20 7/8" / 530 mm |
|
|
ENERGY STAR |
na |
|
|
Ice Production Per Day |
25 lbs |
|
|
Ice Storage |
13 lbs |
|
|
Product Weight: Max |
85 lbs |
|
|
Refrigerant Type |
R134A |
|
|
Sabbath (Star K Certified) |
No |
|
|
Temperature Range |
34°F - 45°F |
|
|
ELECTRICAL REQUIREMENTS
This unit requires a grounded a polarized 115 VAC, 60 Hz, 15 A power supply (normal household current).
Residential
