Produc t Guide
Installed: 2224RGLINT
Breadth of Line
Product Categories & Applications |
4 |
Product Collection by Series |
6 |
Temperature Management Systems |
9 |
Preservation: Beyond Refrigeration |
|
|
|
U-Select® Control Food & Beverage Modes |
12 |
U-Select® Control Wine Modes |
14 |
U-Select® Control Specialty Settings |
15 |
Integration: Built-In to Stand Out |
|
|
|
Integration Matrix |
19 |
Integrating U-Line Products into Cabinetry |
21 |
Integrated Panel/Frame Guide |
23 |
QUICK REFERENCE GUIDES |
|
|
|
Wine Captain® Models |
25 |
Beverage Centers |
43 |
Clear Ice Machines |
55 |
Crescent Ice Makers |
61 |
Glass Door Refrigerators |
65 |
Solid Door Refrigerators |
77 |
Drawer Models |
93 |
Freezers |
99 |
Combo® Models |
103 |
ADA Series |
109 |
Outdoor Series |
125 |
Marine Series |
135 |
TECHNICAL DATA |
|
|
|
Models at a Glance |
148 |
3
Product Categories
Wine Captain® |
Beverage |
Clear Ice |
Crescent Ice |
Models |
Centers |
Machines |
Makers |
Application Categories
Residential |
Marine |
Outdoor |
Office/Boardroom |
4
Glass & Solid Door |
Drawer Models |
Freezers |
Combo® Models |
Refrigerators |
|
|
|
Hospitality Arena/Stadium
5
Product Collection by Series
Modular 3000 Series
The Modular 3000 Series is comprised of our ultra-premium product offering and is designed to provide the ultimate in point-of-use flexibility.
These models are the most innovative, highly featured refrigeration and ice making products in the modular appliance industry. In addition to timeless design, the Modular 3000 Series models are equipped with our U-Select® Control, providing the ability to choose pre-programmed modes that properly preserve your food and beverages. Models seamlessly integrate into surrounding cabinetry and are available in the following finishes: Stainless or Integrated. The Modular 3000 Series spans seven product categories –
Wine Captain® Models, Beverage Centers, Clear Ice Machines, Glass Door
Refrigerators, Solid Door Refrigerators, Drawer Models, and Freezers.
Modular 3000 Series
2000 Series
The 2000 Series is comprised of our super-premium product offering and is designed to integrate beautifully into any application, while actively maintaining temperatures to ensure extended preservation of your food and beverages. Pristine lines, spacious interiors, and our Digital Touch Pad Control provide an elegant and universal aesthetic. The 2000 Series offers upscale features, advanced technology, and specialized product families.
Models fully integrate into surrounding cabinetry and are available in the following finishes: Stainless or Integrated. The 2000 Series spans four product categories – Wine Captain® Models, Beverage Centers, Glass Door
Refrigerators, and Solid Door Refrigerators.
2000 Series
1000 Series
The 1000 Series is comprised of our premium product offering, based on over fifty years of innovations, design patents, and world firsts. Now with a completely redesigned style including upgraded features and technology, it is the most diverse line in the industry. The 1000 Series features clean lines, elegant interior spaces, and offers either our Digital Touch Pad Control or Mechanical Dial Control. The 1000 Series offers more targeted priced products with impressive features. Models integrate into surrounding cabinetry and are available in the following finishes: Stainless, Integrated, Black, or White. The 1000 Series spans seven product categories – Wine
Captain® Models, Beverage Centers, Clear Ice Machines, Crescent Ice Makers, Solid Door Refrigerators, Drawer Models, and Combo® Models.
6 |
1000 Series |
ADA Series
The ADA Series is designed to install under the federally mandated requirement of a 34” high countertop. Controls are easily accessible and allow for singlehand operation. These models are a perfect solution where ADA height compliancy is required. Models are available in the following finishes: Stainless or Black. The ADA Series spans four product categories – Crescent Ice Makers,
Glass Door Refrigerators, Solid Door Refrigerators, and Combo® Models.
ADA Series
Outdoor Series
Today’s entertaining environments extend far beyond the boundaries of the traditional home. For over 50 years, our products have been used in outdoor applications and continue to be amongst our most popular models. Our outdoor models are fully wrapped in stainless steel to protect from harsh outdoor elements. These durable outdoor products are UL (Underwriters Laboratory) rated and deemed suitable for outdoor use. Models are available in the our Stainless finish. The Outdoor Series spans three product categories – Clear Ice Machines, Crescent Ice Makers, and Solid Door Refrigerators.
Outdoor Series
Marine Series
We take ice making and refrigeration to yet another environment, the sea.
Our Marine Series feature durability and aesthetics, as well as exceptional ice production and refrigeration capacity, for use above and below deck. Corrosiveresistant, stainless steel hinges and fasteners on the UV resistant cabinet and doors, combine maximum convenience with durability and good looks. Models are available in the following finishes: Stainless, Black, or White. The Marine Series spans two product categories – Crescent Ice Makers and Combo® Models.
Marine Series |
7 |
Installed: 2218RINT
Temperature Management Systems
U-Select® Control | Modular 3000 Series
Convection Cooling System
All Modular 3000 Series are equipped with our U-Select® Control, offering an OLED display which is ergonomically located on top of the door for convenient control. Equipped with 5 food & beverage modes, 3 wine modes, and 3 specialty settings, all preprogrammed to achieve optimal performance.
Digital Touch Pad Control | 2000 Series
Convection Cooling System
All 2000 Series are equipped with our color coordinated Digital Touch Pad
Control, which is conveniently located on the face of each model and offers an intuitive display, making it quick and simple to control your unit.
Digital Touch Pad Control | 1000 Series
Passive Cooling System
All 1000 Series are equipped with our color coordinated Digital Touch Pad
Control*, which is conveniently located on the face of each model and offers an intuitive display, making it quick and simple to control your unit.
* Few select 1000 Series models offer a mechanical control. |
9 |
Installed: 3036RRINT
Temperature Stability
Widest Temperature Settings
UV Protection
Preservation: Beyond
Refrigeration
We are committed to providing premium modular refrigeration and implement a variety of technologies to ensure extended preservation of your food and beverages.
Most models ensure temperature stability by maintaining temperature within 1°F of the set point. We offer the widest temperature offering in the industry. Our glass door models feature LowE coated, argon gas filled thermopane glass to protect contents from harmful UV light.
Most of our 1000 and 2000 Series models offer our Digital
Touch Pad control, which provides an intuitive display for quick and simple control. The Modular 3000 Series makes it easier than ever before to preserve your food
and beverages. Equipped with the U-Select® Control, our Modular 3000 Series puts the control in your hands, giving you the ability to choose settings that correspond to the types of foods and beverages you preserve. Foods stay fresher longer and taste better when kept at a stable and optimal temperature. Either select pre-programmed optimal preservation modes for specific types of food and beverages, or manually adjust temperatures based on your preference.
11
Preservation: Beyond Refrigeration
U-Select® Control Food & Beverage Modes
Modular 3000 Series
Deli
Mode Range: 34°F - 40°F
Set point: 36°F
Perfect for: Meat, fish, poultry, butter or other dairy items, garlic, oils, nuts, and condiments.
Recreate the ideal showcase conditions of a fine, neighborhood deli with the Deli Mode. Cheeses, condiments, lunchmeats and other delicacies stay fresh and last longer when preserved properly.
Market
Mode Range: 34°F - 40°F Set point: 38°F
Perfect for: Fruits, vegetables, berries, and leafy greens.
Whether you like to keep fresh-picked strawberries on hand, or an entire summer salad ready to serve at a moment’s notice, the Market Mode is the ideal choice for your fresh fruits and veggies.
Root Cellar
Mode Range: 45°F - 55°F Set point: 50°F
Perfect for: Root vegetables, potatoes, onions, lemons, limes, melons, peppers, and beans.
Rural homeowners in years past knew that farm-fresh produce was best kept in cool, dark root cellars. U-Line has recreated those ideal conditions with the Root Cellar Mode, a setting that maintains crispness and preserves freshness without getting too cool.
12
Pantry
Mode Range: 34°F - 70°F Set point: 42°F
Perfect for: Dry goods, baking ingredients, spices and seasonings.
Factors like unstable temperature, light, bugs, and moisture all affect the extended preservation of your dry goods. Many dry goods can be purchased in bulk, which makes
it that much more important to store them properly. Pantry mode extends the life of your dry goods like flour, seasonings, and grains by offering an environment that maintains a stable temperature and ideal moisture level.
Beverage
Mode Range: 34°F - 65°F
Set point: 38°F
Perfect for: Perfectly chilled for all types of beverages.
Soft drinks, juices, beer and wine are at their best when chilled, yet you may prefer some items colder than others.
Whatever your “perfect” temperature is, our Beverage Mode lets you set—and keep— your refreshments just right.
Polar
Mode Range: -5°F - 5°F
Set point: 0° F
Perfect for: Ice cream, popsicles, frozen meals, meats, desserts, fruits, vegetables.
Polar Mode quickly sets your freezer to the ideal temperature to ensure your everyday frozen goods, like ice cream, are preserved to perfection without a trace of freezer burn.
13
Preservation: Beyond Refrigeration
U-Select® Control Wine Modes
Modular 3000 Series
Sparkling Wine
Mode Range: 38°F - 50°F Set point: 45°F
Perfect for: Sparkling wines, sweet whites and dessert wines.
Champagne, Prosecco, Cuvée, and other sparkling wines
are best stored at a low temperature. Yet, chill wines too cold, and they lose their flavor and balance. Use our
Sparkling Wine mode to extend the preservation of the bottles you treasure.
White Wine
Mode Range: 45°F - 55°F Set point: 50°F
Perfect for: All white wine varietals.
You may choose to preserve fuller-bodied or oaked white wines at about 50°F degrees, whereas medium to light-bodied whites may be better kept at a slightly lower 45°F - 50°F. No matter your preference, the White Wine mode ensures your next glass of wine is perfectly cool and crisp.
Red Wine
Mode Range: 55°F - 65°F Set point: 55°F
Perfect for: All red wine varietals.
Whether your tastes skew in favor of full-bodied intense reds, medium-bodied reds, or more toward the lighter fruity red wines, use the Red Wine mode to ensure you retain the delicious fullness of these selections.
14
U-Select® Control Specialty Settings
Modular 3000 Series
Quick Chill
Just bought a room temperature pack of beer or soda and your guests are arriving soon?
No worries when your unit is equipped with the Quick Chill setting. The Quick Chill setting can be used to rapidly chill your contents to the lowest temperature in each mode for a designated period of time.
Sabbath
Various U-Line models are
Star-K certified and offer a Sabbath setting. The Sabbath setting disables system responses to user initiated activities and all external functions; including lighting, display and audible alarms. The unit will continue to maintain its internal set temperature while in Sabbath setting. View a full list of Star-K certified U-Line units at www.star-k.org.
Energy Saver
Energy efficiency is a priority when designing U-Line models.
The Energy Saver setting reduces the amount of energy the unit consumes. U-Line has the largest energy efficient undercounter offering in the industry.
15
Installed: 36” Custom Model (3018WCINT & 3018CLRINT with Ice Flange Kit)
Seamlessly Integrated
Modular 3000 Series
Fully Integrated
2000 Series
Integrated
1000 Series
Integration:
Built-In to Stand Out
Our modular refrigeration provides the best premium design aesthetic and the most function by offering varying levels of integration, lighting, and installation application options. Designed and engineered in America, but built for the world, our products integrate into a standard 24” cabinet depth and are offered in the following standard widths: 15”, 18”, 24”, and 36”.
Our front ventilation system is engineered to circumvent the need for additional airflow, providing the flexibility to integrate and install our products undercounter, in island
applications, or wherever you need them most. All integrated models maintain zero clearance, ensuring performance and hinge clearance with the panel/frame installed.
Integrated finishes are offered in most models through each of our series: 1000, 2000, and Modular 3000 Series, allowing for installation of a ¾”custom overlay panel/frame of your choice; no kits or accessories needed. All integrated models offer black interiors that essentially disappear into your cabinetry, ensuring an elegant installation. Our 2000
Series and Modular 3000 Series grilles can accept a custom overlay toe-kick; or can accept a continuous custom toekick that extends the full cabinet length to create a design that seamlessly integrates with your surrounding cabinetry.
17
Integration Matrix
Seamlessly Integrated
Modular 3000 Series
Seamlessly integrates into virtually any environment and are available in 18”, 24”, and 36” cabinet widths.
All integrated models maintain zero clearance, ensuring performance and hinge clearance from adjacent cabinets with the panel/frame installed.
Fully Integrated
2000 Series
Fully integrates into virtually any environment and are available in
18” and 24” cabinet widths. All integrated models maintain zero clearance, ensuring performance and hinge clearance from adjacent
cabinets with the panel/frame installed.
Integrated
1000 Series
Integrates into various environments and are available in 15” and 24” cabinet widths. All integrated models can be installed to ensure performance and hinge clearance with the panel/frame installed.
Doors
All models are offered in our integrated finish, allowing for installation of a 3/4" custom overlay panel/frame of your choice; no kits or accessories needed. Standard door opening is 115°. Door pin is included and offers a 90° stop, providing accessibility for models that need to be installed adjacent to cabinets or walls. Doors are
designed for fine tuning, ensuring a seamless installation.
All models are offered in our integrated finish, allowing for installation of a 3/4" custom overlay panel/frame of your choice; no kits or accessories needed. Standard door opening is 115°. Door pin is included and offers a 90° stop, providing accessibility for models that need to be installed adjacent to a wall. Doors are designed for fine tuning, ensuring a fully integrated installation.
Many models are offered in our integrated finish, allowing for installation of a 3/4" custom overlay panel/frame of your choice; no kits or accessories
needed. Door pin is included and offers a 90° stop, ensuring that models do not come in contact with adjacent cabinets or walls.
Hinges
Robust, concealed and covered articulating hinges provide a minimalist aesthetic. Built-in door stop and closer ensure doors always close. Models must be ordered hinge specific.
Robust, concealed and covered articulating hinges provide a minimalist aesthetic. Built-in door stop and closer ensure doors always close. Models must be ordered hinge specific.
Grille
Adjustable grille allows for front ventilation, ensuring your model can be installed in a variety of applications, including islands. Grilles can be shifted front-to-back and up-and-down to ensure alignment with adjacent cabinetry toe-kicks. Grilles can accept a custom overlay toe-kick; or run your
continuous custom overlay toe-kick that extends the full cabinet length to create a design that seamlessly integrates with your surrounding cabinetry.
Fixed grille allows for front ventilation, ensuring your model can be installed in a variety of applications, including islands. Grille can accept a custom overlay toe-kick, creating a design that fully integrates with your surrounding cabinetry. If your model’s toe-kick aligns with adjacent cabinetry toe-kicks, grilles can accept a continuous custom overlay toe-kick that extends the full cabinet length to create a design that fully integrates with your surrounding cabinetry.
Leveling Legs
Four independently adjustable leveling legs provide a precise undercounter fit. Rear legs
are accessible and adjustable from the front for ease of installation. Models offer a 1” range of height flexibility, reducing installation time and ensuring a seamlessly integrated fit.
Four independently adjustable leveling legs provide a precise undercounter fit. Models offer a 1” range of height flexibility, ensuring a fully integrated fit.
Low-profile, reversible pivot hinges provide flexibility during installation as the door can easily be reversed in the field.
Fixed grille allows for front ventilation, ensuring your model can be installed in a variety of applications, including islands.
Four independently adjustable leveling legs provide a precise undercounter fit. Models offer a 1” range of height flexibility, ensuring an integrated fit.
19
Cabinet Styles
Inset
24” deep base cabinet with doors and drawers that close within the frame structure and are flush with the face of the frame. The overall depth from the front of the cabinet door or drawer to the back of the base cabinet is 24” deep.
Overlay / Face Frame
24” deep base cabinet with a face frame structure that supports doors and drawers that close onto the face of the frame. The overall depth from the front of the cabinet door or drawer to the back of the base cabinet is approximately
24 3/4” deep.
European / Frameless
24” deep base cabinet with no visible frame structure on the outer face of the cabinet. Doors and drawers fully cover the face frame area of cabinet case and have minimal reveals or gaps between doors and drawers. The overall depth from the front of the cabinet door or drawer to the back of the base cabinet is 24 3/4” deep.
Inset
Overlay / Face Frame
European / Frameless
Integrating U-Line
Products into Cabinetry
Create the kitchen of your dreams by integrating your U-Line models into your cabinetry with custom overlay panels/frames. We provide the simplest and most effective way to create a clean integrated look, allowing you to effortlessly blend your appliance into
your surrounding cabinetry. We offer the widest selection of integrated models in the industry. All Modular 3000
Series and 2000 Series models, and most of our 1000
Series models, accept a ¾" integrated panel/frame. All integrated models are delivered ready for panel/frame installation, no kits or accessories needed.
Full ¾” custom overlay panels/frames apply to solid door, glass door, and drawer models. All integrated models maintain zero clearance installation, ensuring performance and hinge clearance with the panel/frame installed. Additionally, grilles on our Modular 3000 Series and 2000 Series can accept custom overlay toe-kicks.
The images to the left show samples of various cabinetry styles your U-Line models can be integrated into. For further integration details, view the Integrated Panel
Guide on the following page, or visit u-line.com and view the User Guides for all our models.
21
Installed: 3024BEVINT
Integrated Panel Guide
Product |
|
Series |
ModEl |
Overlay / |
Inset |
European / |
|
Category |
|
Face Frame |
Framless |
|
|||
|
|
|
|
|
|||
|
|
|
3018WCINT |
• |
• |
• |
|
|
|
|
|
|
|
|
|
|
|
Modular 3000 Series |
3024ZWCINT |
• |
• |
• |
|
|
|
|
|
|
|
|
|
|
|
|
3036WCWCINT |
• |
• |
• |
|
Wine Captain® |
|
|
|
|
|
|
|
|
2218WCINT |
• |
• |
• |
|
||
Models |
2000 Series |
|
|||||
|
|
|
|
|
|||
|
|
2224ZWCINT |
• |
• |
• |
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
1000 Series |
1215WCINT |
• |
• |
• |
|
|
|
|
|
|
|
|
|
|
|
1224WCINT |
• |
• |
• |
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
Modular 3000 Series |
3024BEVINT |
• |
• |
• |
|
|
|
|
|
|
|
|
|
Beverage Centers |
3036BVWCINT |
• |
• |
• |
|
||
|
|
||||||
|
|
|
|
|
|
||
2000 Series |
2224BEVINT |
• |
• |
• |
|
||
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
1000 Series |
1224BEVINT |
• |
• |
• |
|
|
|
|
|
|
|
|
|
Clear Ice Machines |
Modular 3000 Series |
3018CLRINT |
• |
• |
• |
|
|
|
|
|
|
|
|
||
1000 Series |
CLR1215INT |
• |
* |
• |
|
||
|
|
|
|||||
|
|
|
|
|
|||
Crescent Ice Makers |
1000 Series |
BI1215INT |
• |
* |
• |
|
|
|
|
|
|
|
|||
|
|
|
3018RGLINT |
• |
• |
• |
|
|
|
|
|
|
|
|
|
|
|
Modular 3000 Series |
3024RGLINT |
• |
• |
• |
|
Glass Door |
|
|
|
|
|
|
|
|
3036RRGLINT |
• |
• |
• |
|
||
Refrigerators |
|
|
|||||
|
|
|
|
|
|
||
|
|
2000 Series |
2218RGLINT |
• |
• |
• |
|
|
|
|
|
|
|
|
|
|
|
2224RGLINT |
• |
• |
• |
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
3018RINT |
• |
• |
• |
|
|
|
|
|
|
|
|
|
|
|
Modular 3000 Series |
3024RINT |
• |
• |
• |
|
|
|
|
|
|
|
|
|
|
|
|
3036RRINT |
• |
• |
• |
|
Solid Door |
|
|
|
|
|
|
|
|
2218RINT |
• |
• |
• |
|
||
Refrigerators |
2000 Series |
|
|||||
|
|
|
|
|
|||
|
|
2224RINT |
• |
• |
• |
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
1000 Series |
1215RINT |
• |
• |
• |
|
|
|
|
|
|
|
|
|
|
|
1224RINT |
• |
• |
• |
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
Drawer Models |
Modular 3000 Series |
3024DWRINT |
• |
• |
• |
|
|
|
|
|
|
|
|
||
1000 Series |
1224DWRINT |
• |
• |
• |
|
||
|
|
|
|||||
|
|
|
|
|
|
|
|
Freezers |
Modular 3000 Series |
3024FZRINT |
• |
• |
• |
|
|
|
|
|
|
|
|
|
|
Combo® Models |
1000 Series |
CO1224FINT |
• |
* |
• |
|
|
|
|
||||||
1224RFINT |
• |
• |
• |
|
|||
|
|
|
|
||||
|
|
|
|
|
|
|
|
These units require extra depth for water connections to install into a 24” deep inset cabinet. To accommodate, we recommend cabinet depth be |
23 |
||||||
* adjusted and furred out. View the User Guides for complete installation details at u-line.com. |
|
|
Installed: 3018WCINT

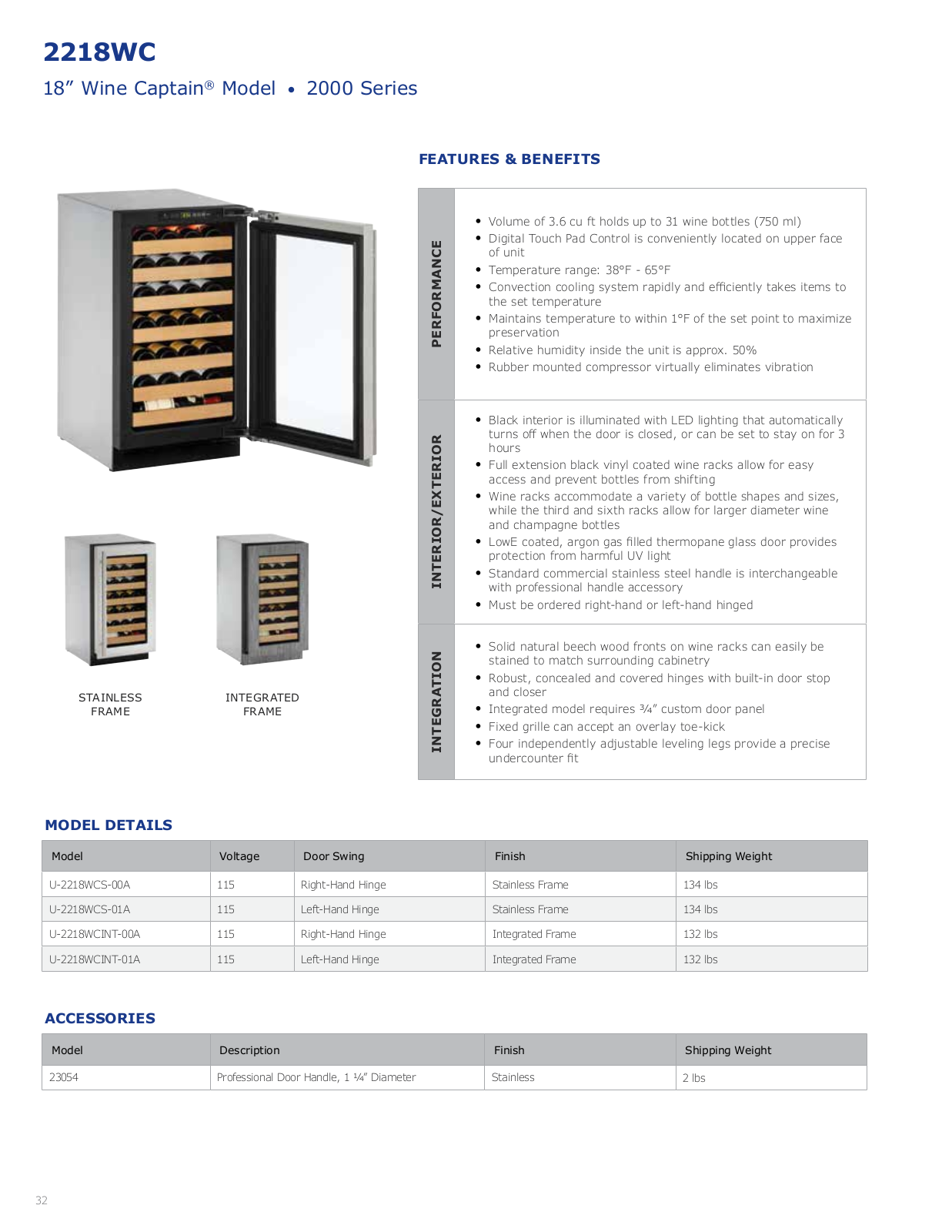

Wine Captain® Models
|
|
1024WC |
1215WC |
1224WC |
2218WC |
2224ZWC |
3018WC |
3024ZWC |
3036WCWC |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1000 Series |
|
2000 Series |
|
3000 Series |
|
||
Capacity: Wine Bottle |
|
|
|
|
|
|
|
|
||
48 |
24 |
48 |
31 |
43 |
31 |
43 |
62 |
|||
(750 ml) |
||||||||||
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
Capacity: Volume |
5.2 |
2.9 |
5.2 |
3.6 |
4.7 |
3.6 |
4.7 |
7.0 |
||
(cu ft) |
||||||||||
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
Control Type |
Mechanical |
Digital |
Digital |
Digital |
Digital |
U-Select® |
U-Select® |
U-Select® |
||
Dial |
Touch Pad |
Touch Pad |
Touch Pad |
Touch Pad |
||||||
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
Dimensions: |
23 1/4" / |
23 1/4" / |
23 1/4" / |
23 7/16" / |
23 7/16" / |
23 7/16" / |
23 7/16" / |
23 7/16" / |
||
Product Depth |
591 mm |
591 mm |
591 mm |
590 mm |
590 mm |
590 mm |
590 mm |
590 mm |
||
|
|
|
|
|
|
|
|
|
|
|
Dimensions: |
34 1/8" / |
34 1/8" / |
34 1/8" / |
33 11/16" / |
33 11/16" / |
33 11/16" / |
33 11/16" / |
33 11/16" / |
||
Product Height |
867 mm |
867 mm |
867 mm |
856 mm |
856 mm |
856 mm |
856 mm |
856 mm |
||
|
|
|
|
|
|
|
|
|
|
|
Dimensions: |
24" / |
14 15/16" / |
24" / |
17 3/4" / |
23 5/8" / |
17 3/4" / |
23 5/8" / |
35 7/16" / |
||
Product Width |
610 mm* |
379 mm* |
610 mm* |
450 mm |
600 mm |
450 mm |
600 mm |
900 mm |
||
|
|
|
|
|
|
|
|
|
|
|
Door Swing |
Field |
Field |
Field |
Right or Left |
Right or Left |
Right or Left |
Right or Left |
Double |
||
Reversible |
Reversible |
Reversible |
Doors |
|||||||
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
Energy Consumption: |
250 kWh |
250 kWh |
250 kWh |
250 kWh |
250 kWh |
250 kWh |
250 kWh |
250 kWh |
||
Avg. Per Year |
||||||||||
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
ENERGY STAR |
na |
na |
na |
na |
na |
na |
na |
na |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Stainless |
Stainless |
Stainless |
Stainless |
Stainless |
Stainless |
Stainless |
|
Finishes |
Stainless |
Integrated |
Integrated |
|||||||
Integrated |
Integrated |
Integrated |
Integrated |
Integrated |
||||||
|
|
|
Black |
Black |
||||||
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
Lock Model Available |
No |
No |
Yes |
No |
Yes |
Yes |
Yes |
Yes |
||
|
|
|
|
|
|
|
|
|
|
|
Sabbath (Star K Certified) |
No |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
||
|
|
|
|
|
|
|
|
|
|
|
Temperature Range |
40°F - 60°F |
38°F - 65°F |
38°F - 65°F |
38°F - 65°F |
34°F - 65°F |
38°F - 65°F |
34°F - 65°F |
38°F - 65°F |
||
|
|
|
|
|
|
|
|
|
|
|
UL Listing |
Residential |
Residential / |
Residential / |
Residential |
Residential |
Residential |
Residential |
Residential |
||
Commercial |
Commercial |
|||||||||
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
*The cutout requires an additional 1/4” width overall to ensure proper installation.
25
1024wc
24” Wine Captain® Model • 1000 Series
features & benefits
Stainless
FRAME
MODEL DETAILS
Model |
Voltage |
Door Swing |
||
U-1024WCS-00A |
|
115 |
|
Field Reversible |
|
|
|||
|
|
|
|
|
<![endif]>performance
<![if ! IE]><![endif]>interior/exterior
<![if ! IE]><![endif]>integration
•Volume of 5.2 cu ft holds up to 48 wine bottles (750 ml)
•Mechanical Dial Control is conveniently located on the grille
•Temperature range: 40°F - 60°F
•Mechanical passive cooling system
•Relative humidity inside the unit is approx. 50%
•Rubber mounted compressor virtually eliminates vibration
•White interior is illuminated with recessed incandescent lighting that automatically turns off when the door is closed
•Three-quarter extension zinc coated wine racks allow for easy access
•Wine racks accommodate a variety of bottle shapes and sizes, while the fourth and fifth racks allow for larger diameter wine and champagne bottles
•LowE coated, argon gas filled thermopane glass door provides protection from harmful UV light
•Standard commercial stainless steel handle is interchangeable with professional handle accessory
•Door swing is field reversible
•Unit is designed to be built-in or can be freestanding with the freestanding accessory kit
•Solid natural beech wood fronts on wine racks can easily be stained to match surrounding cabinetry
•Four independently adjustable leveling legs provide a precise undercounter fit
Finish |
Shipping Weight |
|
Stainless Frame |
|
133 lbs |
|
||
|
|
|
accessories
Model |
Description |
Finish |
Shipping Weight |
|
|
|
|
23054 |
Professional Door Handle, 1 1/4” Diameter |
Stainless |
2 lbs |
|
|
|
|
U-FSK-B |
Freestanding Kit |
Black |
3 lbs |
|
|
|
|
26
dimensions
Not Including Handle 23-1/4" (591 mm)
34-1/8" to
35-1/8"
(867 mm to
892 mm)
3-9/16" (91 mm) |
24" (610 mm) |
CABINET CUT-OUT
|
Preferred location |
|
|
|
for electrical outlet |
|
|
|
is in adjacent |
5/8" |
24" |
|
cabinet. |
||
|
|
(16 mm) |
(610 mm) |
34-1/4" |
|
|
|
(370 mm) |
|
|
|
to |
7" |
|
|
35-1/8" |
|
|
|
(392 mm) |
(178 mm) |
|
|
|
4" |
|
|
|
(102 mm) |
|
|
24-1/4"
(616 mm)
INSTALLATION NOTES
When installing adjacent to wall, ensure 2 1/2” clearance on hinged side for 90˚ door opening, allowing ample room for door handle.
Cutout includes the additional 1/4” width overall to ensure proper installation.
No additional clearance around sides, top or rear of unit is needed for ventilation.
Do not obstruct front grille air flow.
Please visit u-line.com to view this model’s User Guide.
All specifications are subject to change without notice.
1024wc
1000 Series • 24” Wine Captain® Model
specifications
Model |
1024WC |
|
|
Amps: Running |
2.4 |
|
|
Capacity: Volume (cu ft) |
5.2 |
|
|
Capacity: Wine Bottle (750 ml) |
48 |
|
|
Control Type |
Mechanical Dial |
|
|
Dimensions: Product Depth |
23 1/4" / 591 mm |
|
|
Dimensions: Product Height |
34 1/8" / 867 mm |
|
|
Dimensions: Product Width |
24" / 610 mm |
|
|
Energy Consumption: Avg. Per Year |
250 kWh |
|
|
ENERGY STAR |
na |
|
|
Product Weight: Max |
123 lbs |
|
|
Refrigerant Type |
R134a |
|
|
Sabbath (Star K Certified) |
No |
|
|
Temperature Range |
40°F - 60°F |
|
|
COOLING SYSTEM
ELECTRICAL REQUIREMENTS
This unit requires a grounded a polarized 115 VAC, 60 Hz, 15 A power supply (normal household current).
Residential
27
1215WC
15” Wine Captain® Model • 1000 Series
features & benefits
Stainless |
Integrated |
Black |
FRAME |
FRAME |
FRAME |
MODEL DETAILS
Model |
Voltage |
Door Swing |
||
U-1215WCS-00A |
|
115 |
|
Field Reversible |
|
|
|||
U-1215WCINT-00A |
|
115 |
|
Field Reversible |
U-1215WCB-00A |
|
115 |
|
Field Reversible |
|
|
|
|
|
|
• Volume of 2.9 cu ft holds up to 24 wine bottles (750 ml) |
|
<![if ! IE]> <![endif]>performance |
• Digital Touch Pad Control is conveniently located on upper face |
|
• Relative humidity inside the unit is approx. 50% |
||
|
of unit |
|
|
• Temperature range: 38°F - 65°F |
|
|
• Digital passive cooling system |
|
|
• Maintains temperature to within 1°F of the set point to maximize |
|
|
preservation |
|
|
• Rubber mounted compressor virtually eliminates vibration |
|
|
|
|
|
• Black interior is illuminated with LED lighting that automatically |
|
<![if ! IE]> <![endif]>interior/exterior |
turns off when the door is closed, or can be set to stay on for 3 |
|
hours |
||
• Standard commercial stainless steel handle is interchangeable |
||
|
• Three-quarter extension black vinyl wine racks with natural |
|
|
beech wood fronts allow for easy access and prevent bottles |
|
|
from shifting |
|
|
• Wine racks accommodate a variety of bottle shapes and sizes, |
|
|
while the fourth and fifth racks allow for larger diameter wine |
|
|
and champagne bottles |
|
|
• LowE coated, argon gas filled thermopane glass door provides |
|
|
protection from harmful UV light |
|
|
with professional handle accessory |
|
|
• Door swing is field reversible |
|
|
|
|
<![if ! IE]> <![endif]>integration |
• Unit is designed to be built-in or can be freestanding |
|
• Solid natural beech wood fronts on wine racks can easily be |
||
|
||
|
stained to match surrounding cabinetry |
|
|
• Integrated model requires 3/4” custom door panel |
|
|
• Four independently adjustable leveling legs provide a precise |
|
|
undercounter fit |
|
|
• Available in the following finishes: Stainless, Integrated, or Black |
|
|
|
Finish |
Shipping Weight |
|
Stainless Frame |
|
102 lbs |
|
||
Integrated Frame |
|
99 lbs |
Black Frame |
|
102 lbs |
|
|
|
accessories
Model |
Description |
Finish |
Shipping Weight |
|
|
|
|
23054 |
Professional Door Handle, 1 1/4” Diameter |
Stainless |
2 lbs |
|
|
|
|
28
dimensions
Dimensions shown apply to all finishes, including Integrated (INT) models with 3/4” overlay panel/frame installed.
Not Including Handle
23-1/4" (591 mm)
34-1/8" to
35-1/8"
(867 mm to
892 mm)
3-5/8" (92 mm) 14-15/16" (379 mm)
CABINET CUT-OUT
Preferred location |
|
|
for electrical |
|
|
outlet is in 5/8" |
|
|
adjacent |
(16 mm) |
24" |
cabinet. |
|
(610 mm) |
34-1/8" |
|
|
(370 mm) |
|
|
to |
|
|
35" |
7" |
|
(389 mm) |
(178 mm) |
|
1-1/2" (38 mm) |
|
|
15-1/4" |
|
|
(387 mm) |
|
INSTALLATION NOTES
1215WC
1000 Series 15” • Wine Captain® Model
specifications
Model |
1215WC |
|
|
|
|
Amps: Running |
1.2 |
|
|
|
|
Capacity: Volume (cu ft) |
2.9 |
|
|
|
|
Capacity: Wine Bottle (750 ml) |
24 |
|
|
|
|
Control Type |
Digital Touch Pad |
|
|
|
|
Dimensions: Product Depth |
23 |
1/4" / 591 mm |
|
|
|
Dimensions: Product Height |
34 |
1/8" / 867 mm |
|
|
|
Dimensions: Product Width |
14 |
15/16" / 379 mm |
|
|
|
Energy Consumption: Avg. Per Year |
250 kWh |
|
|
|
|
ENERGY STAR |
na |
|
|
|
|
Product Weight: Max |
95 lbs |
|
|
|
|
Refrigerant Type |
R600a |
|
|
|
|
Sabbath (Star K Certified) |
Yes |
|
|
|
|
Temperature Range |
38°F - 65°F |
|
|
|
|
COOLING SYSTEM
When installing adjacent to wall, ensure 2 1/2” clearance on hinged side for 90˚ door opening
Cutout includes the additional 1/4” width overall to ensure proper installation.
No additional clearance around sides, top or rear of unit is needed for ventilation.
Do not obstruct front grille air flow.
Please visit u-line.com to view this model’s User Guide.
All specifications are subject to change without notice.
ELECTRICAL REQUIREMENTS
This unit requires a grounded a polarized 115 VAC, 60 Hz, 15 A power supply (normal household current).
Residential &
Commercial
29
1224WC
24” Wine Captain® Model • 1000 Series
features & benefits
<![endif]>performance
|
|
<![if ! IE]> <![endif]>interior/exterior |
Stainless |
Stainless |
Integrated |
FRAME |
FRAME (lock) |
FRAME |
Integrated |
Black |
<![if ! IE]> <![endif]>integration |
|
||
solid |
FRAME |
|
MODEL DETAILS
Model |
Voltage |
Door Swing |
||
U-1224WCS-00A |
|
115 |
|
Field Reversible |
|
|
|||
U-1224WCS-13A |
|
115 |
|
Field Reversible |
U-1224WCINT-00A |
|
115 |
|
Field Reversible |
U-1224WCINT-60A |
|
115 |
|
Field Reversible |
U-1224WCB-00A |
|
115 |
|
Field Reversible |
|
|
|
|
|
•Volume of 5.2 cu ft holds up to 48 wine bottles (750 ml)
•Digital Touch Pad Control is conveniently located on upper face of unit
•Temperature range: 38°F - 65°F
•Digital passive cooling system
•Maintains temperature to within 1°F of the set point to maximize preservation
•Relative humidity inside the unit is approx. 50%
•Rubber mounted compressor virtually eliminates vibration
•Black interior is illuminated with LED lighting that automatically turns off when the door is closed, or can be set to stay on for 3 hours
•Three-quarter extension black vinyl coated wine racks allow for easy access and prevent bottles from shifting
•Wine racks accommodate a variety of bottle shapes and sizes, while the fourth and fifth racks allow for larger diameter wine and champagne bottles
•LowE coated, argon gas filled thermopane glass door provides protection from harmful UV light
•Standard commercial stainless steel handle is interchangeable with professional handle accessory
•Door swing is field reversible
•Unit is designed to be built-in or can be freestanding with additional accessory kit
•Solid natural beech wood fronts on wine racks can easily be stained to match surrounding cabinetry
•Integrated model requires 3/4” custom door panel
•Four independently adjustable leveling legs provide a precise undercounter fit
•Available in the following finishes: Stainless, Integrated, or Black
Finish |
Shipping Weight |
|
Stainless Frame |
|
133 lbs |
|
||
Stainless Frame (Lock) |
|
133 lbs |
Integrated Frame |
|
130 lbs |
Integrated Solid |
|
123 lbs |
Black Frame |
|
133 lbs |
|
|
|
accessories
Model |
Description |
Finish |
Shipping Weight |
|
|
|
|
23054 |
Professional Door Handle, 1 1/4” Diameter |
Stainless |
2 lbs |
|
|
|
|
U-FSK-B |
Freestanding Kit |
Black |
3 lbs |
|
|
|
|
30
