s Manual
s Manual
ICE-MAKERS,
COMBOS AND
REFRIGERATORS
User’
User’
U-LINE CORPORATION LIMITED WARRANTY
U-Line Corporation warrants each U-Line product to be free from defects in materials and
workmanship for a period of one year from the date of purchase; and warrants the sealed
system (consisting of the compressor, the condenser, the evaporator, the hot gas bypass
valve, the dryer and the connecting tubing) in each U-Line product to be free from defects
in materials and workmanship for a period of five years from the date of purchase. During
the initial one-year warranty period for all U-Line products U-Line shall: (1) at U-Line’s
option, repair any product or replace any part of a product that breaches this warranty;and
(2) for all Marine, R V and Domestic U-Line products sold and serviced in the United States
(including Alaska and Hawaii)and Canada, U-Line shall cover the labor costs incurred in
connection with the replacement of any defective part. During years two through fiv e of the
warranty period for the sealed system, U-Line shall:. (1) repair or replace any par t of the
sealed system that breaches this warranty;and (2) for all Marine, RV and Domestic U-Line
products sold and serviced in the United States (including Alaska and Hawaii)and Canada,
U-Line shall cover the labor costs incurred in connection with the replacement of any def ective part of the sealed system. All other charges, including transportation charges for
replacements under this warranty and labor costs not specifically covered by this warranty, shall be borne by you. This warranty is extended only to the original purchaser of
the U-Line product. The Registration Card included with the product should be promptly
completed by you and mailed back to U-Line or you can register on-line at
www.U-LineService.com.
The following are excluded from this limited warranty: installation charges; damages
caused by disasters or acts of God, such as fire, floods, wind and lightening; damages
incurred or resulting from shipping, improper installation, unauthorized modification, or misuse/abuse of the product; customer education calls; food loss/spoilage; door and water
level adjustments (e xcept during the first 90 days from the date of purchase);defrosting the
product; adjusting the controls; door reversal; or cleaning the condenser.
If a product defect is discovered during the applicable warranty period, you must promptly
notify either the dealer from whom you purchased the product or U-Line at P.O.Box 23220,
Milwaukee, Wisconsin 53223 or at 414-354-0300. In no event shall such notification be
received later than 30 days after the expiration of the applicable warranty period. U-Line
may require that defective parts be returned, at your expense, to U-Line’s factory in
Milwaukee, Wisconsin, for inspection. Any action by you for breach of warranty must be
commenced within one year after the expiration of the applicable warranty period.
This limited warranty is in lieu of any other warranty, express or implied, including,
but not limited to any implied warranty of merchantability or fitness for a particular
purpose; provided howe ver, that to the extent required by law,implied warranties are
included but do not extend beyond the duration of the express warranty first set
forth above. U-Line’s sole liability and your exclusive remedy under this warranty is
set forth in the initial paragraph above. U-Line shall have no liability whatsoever for
any incidental,consequential or special damages arising from the sale, use or installation of the product or from any other cause whatsoever, whether based on warranty (express or implied) or otherwise based on contract, tor t or any other theory
of liability.
Some states do not allow limitations on how long an implied warranty lasts or the e xclusion
or limitation of incidental or consequential damages, so the above limitations ma y not apply
to you. This warranty gives you specific legal rights, and you may also have other rights
which vary from state to state.
INTRODUCTION
Congratulations on your purchase of U-Line ice making or refrigeration
products. A pioneer in the field for more than 30 years, U-Line is the
world’s number one manufacturer of built-in, under-counter ice making
and specialty refrigeration products. U-Line dedicates 100% of its
research and development to these products. The result: U-Line technology leads the market with new ideas and superior craftsmanship.
U-Line also backs customers with a strong dealer network. U-Line’s
commitment to quality even extends to environmentally safe packaging.
U-Line products are making life more convenient in homes, business,
and hotels around the world.
PLEASE READ all instructions completely before attempting
to install or operate the unit. All models of Ice Makers and
Combos require a connection to the water supply and
improper hook-up can result in substantial property damage! If you are unsure of your ability to safely connect the
water supply to the unit, consult a licensed plumber for
assistance.
Once you have your unit installed, we suggest that you keep this manual in a safe place for future reference. Should any problems occur,
refer to the TROUBLESHOOTING section of this manual. This information will help you to quickly identify a problem and get it remedied. In the
event you require assistance, please contact the dealer where you purchased your unit.
PLEASE RECORD YOUR MODEL’S INFORMATION
Whenever you call to request information or service, you will need to
know your model number and serial number. You can find this information on the serial plate located on the inside wall of your unit.
Please also record the purchase date of your U-Line unit and your dealer’s name, address and telephone number.
Model Number: ________________________________________
Serial Number: ________________________________________
Puchase Date: ________________________________________
Dealer Name: ________________________________________
Dealer Address: ________________________________________
Dealer Telephone: ________________________________________
Keep this manual and the sales slip together in a safe place for further reference.
1
User’s Manual
TABLE OF CONTENTS
INTRODUCTION..........................................................................1
SAFETY PRECAUTIONS ...............................................................3
INSTALLATION ...........................................................................5
CONNECTING THE WATER SUPPLY..............................................7
LEVELING THE UNIT ...................................................................9
GRILLE INSTALLATION ................................................................9
GLASS SHELF INSTALLATION.....................................................12

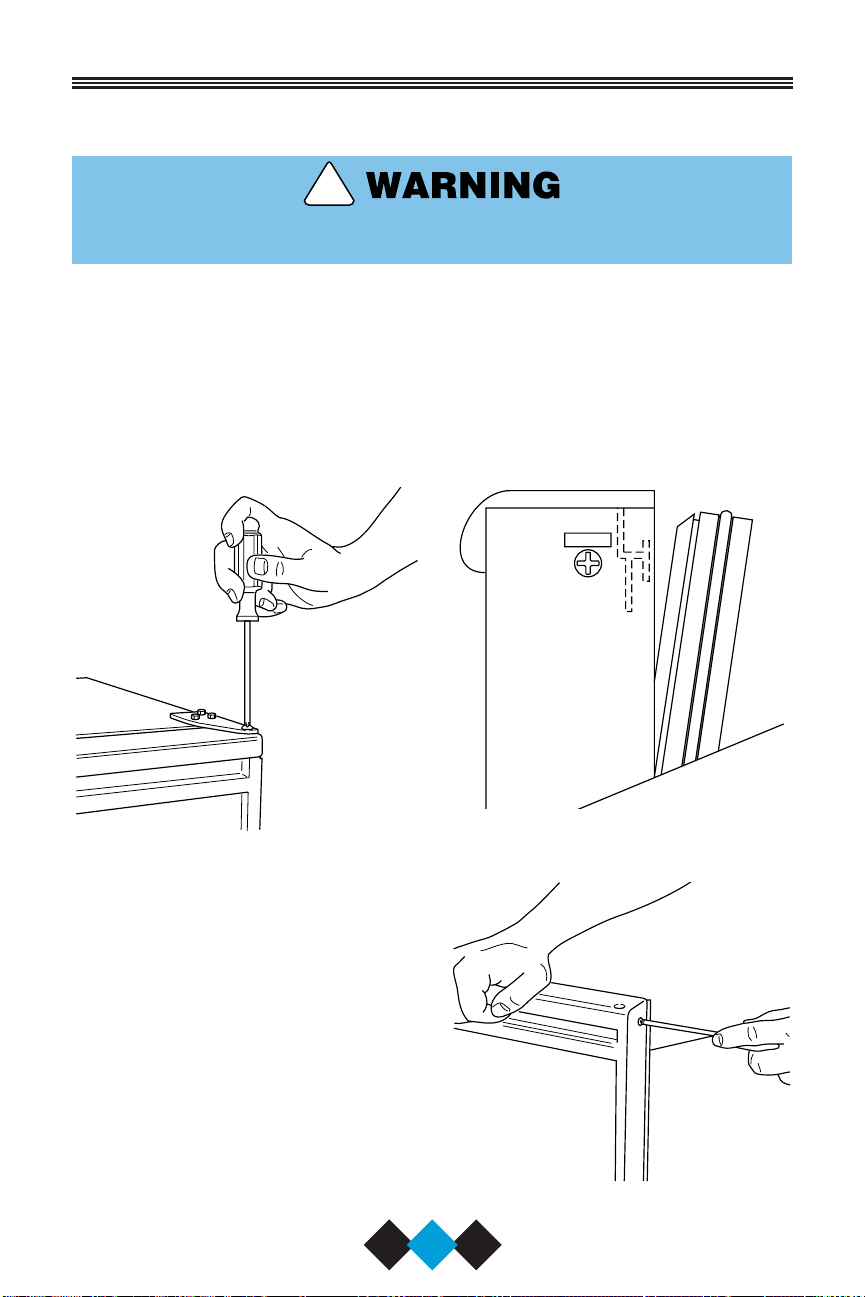

REVERSING THE DOOR .............................................................13
REVERSING A STAINLESS STEEL DOOR.......................................18
ALIGNING THE DOOR................................................................18
CUSTOM DOOR PANEL INSERT INSTALLATION ............................19

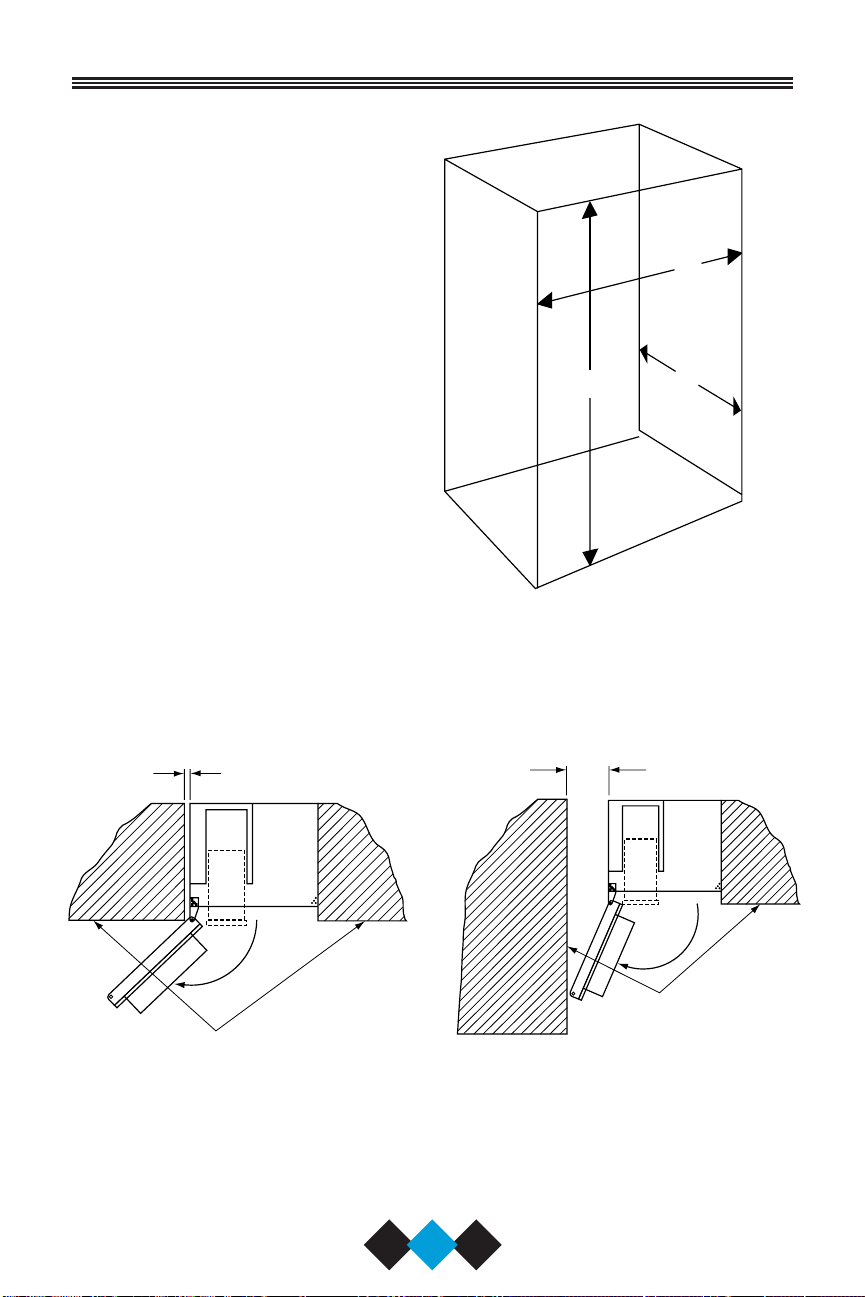

BUILT-IN INSTALLATION.............................................................21
INITIAL START-UP.....................................................................23
NORMAL OPERATION ...............................................................24
MARINE USE...........................................................................26
ADJUSTING THE TEMPERATURE CONTROL.................................26
ADJUSTING ICE CUBE SIZE .......................................................27
CARE AND CLEANING ..............................................................28
DEFROSTING ...........................................................................30
STORAGE................................................................................30
TROUBLESHOOTING .................................................................31
IF SERVICE IS REQUIRED...........................................................33
SPECIFICATIONS.......................................................................33
2
SAFETY PRECAUTIONS
!
!
DANGER
! !
!
Do not attempt to install or operate your unit until you have read the
safety precautions in this manual. Safety items throughout this manual
are labeled with a Danger, Warning or Caution based on the risk type.
DEFINITIONS
This is the safety alert symbol. It is used to alert you to
potential personal injury hazards. Obey all safety messages
that follow this symbol to avoid possible injury or death.
DANGER indicates an imminently hazardous situation
which, if not avoided, will result in death or serious injury.
WARNING indicates a potentially hazardous situation
which, if not avoided, could result in death or serious injury.
CAUTION indicates a potentially hazardous situation which,
if not avoided, may result in minor or moderate injury.
CAUTION
CAUTION used without the safety alert symbol indicates a
potentially hazardous situation which, if not avoided, may
result in property damage.
Indicates installation, operation or maintenance information
which is important but not hazard-related.
3
User’s Manual
!
!
DANGER
! !
GENERAL PRECAUTIONS
Risk of child entrapment. Before you throw away your old
refrigerator or freezer: Take off the doors, leave shelves in
place so that children may not easily climb inside.
•Never attempt to repair or perform maintenance on the
unit until the electricity has been disconnected.
• Altering, cutting of power cord, removal of power cord,
removal of power plug, or direct wiring can cause serious
injury, fire and/or loss of property and/or life and will
void the warranty.
• Do not lift unit by door handle.
• Use care when moving the unit. Some edges are sharp
and may cause personal injury. Wear gloves when moving or positioning the unit.
• Never install the unit behind closed doors. Be sure front
grille is free of obstruction. Obstructing free air flow can
cause the unit to malfunction, and may void the warranty.
• Allow unit temperature to stabilize for 24 hours before use.
•Never use an ice pick or other sharp instrument to help
speed up defrosting. These instruments can puncture
the inner lining or damage cooling unit.
• Failure to clean the condenser every three months can
cause the unit to malfunction. This could void the
warranty.
CAUTION
•Using a heater to speed up defrosting can damage the
inner lining. DO NOT use any type of electrical heater to
defrost.
• Use only genuine U-Line replacement parts. Imitation
parts can reduce ice rate, cause water to overflow from
ice maker mold, damage the unit, and may void the
warranty.
4
INSTALLATION
DANGER
! !
SITE PREPARATION
1. Position the unit on a flat, level surface, capable of supporting the
entire weight of the unit. Remember that the unit will be significantly heavier once it is fully loaded.
2. Connect the unit to a grounded and polarized 115 VAC, 60Hz,
15A circuit (normal household current).
ELECTROCUTION HAZARD!
Electrical Grounding Required. This appliance
is equipped with a three prong (grounding)
polarized plug for your protection against
possible shock hazards.
• NEVER remove the round grounding prong from the plug.
•NEVER use a two-prong grounding adapter.
•NEVER use an extension cord to connect power to the
unit.
Where a two-prong wall receptacle is encountered or a
longer power cord is required, contact a qualified electrician
to have it replaced in accordance with applicable electrical
codes.
5
User’s Manual
UL005A
NOTE
Keep in mind that the door of
the unit may be mounted on
either side of the cabinet (see
REVERSING THE DOOR). All
U-Line units have a zero clearance for the door to open
when the handle is on the
right (see Figure 1).
Additional clearance is need-
DOOR
SWING
ed for Combo Models 29A,
29FF, and 75A only, when the
door handle is on the left. See
BUILT-IN INSTALLATION for
additional clearance require-
Figure 1
ments for these models.
3. On Ice Maker models SP18, BI-95, BI-98 and Combo Series 29
and 75, install a 1/4 inch copper water line (not supplied with unit)
from the nearest COLD water pipe. When connecting the water
supply, follow these guidelines:
• Review the local plumbing codes before you install the unit.
• In most instances, the cold water supply will come from the
basement through a hole in the floor.
• The water pressure should be between 15 and 150 psi.
• Install a SHUT-OFF VALVE in the 1/4 inch supply line.
• Connect sufficient tubing to the unit to allow the unit to be
moved for cleaning and servicing. However, make certain that
the tubing is not pinched or damaged during installation.
• U-Line recommends the use of copper tubing for installation.
CABINET
OR WALL
0"
CLEARANCE
NEEDED
UL124
4. Position the unit to allow free
air flow through the front grille
(see Figure 2).
5. Wipe out inside of unit and ice
bucket with a damp cloth.
Figure 2
6
CONNECTING THE WATER SUPPLY
1. Install the 1/4 inch copper
water line from the main
water source. On ice maker
models BI-95 and BI-98, the
water line is inserted
through the hole in the rear
of the unit to connect to the
solenoid valve in the front
(see Figure 3).
POWER
CORD
WATER LINE
UL101
Figure 3
2. Locate the compression fitting and ferrule packed in the
unit. Slide the compression
fitting and ferrule over the
1/4 inch water supply line.
Do not use thread sealing
compound or tape. Using
two wrenches, tighten the
compression fitting on the
supply line (see Figure 4).
3. Carefully bend the water supply line into position and connect the line to the solenoid
valve (see Figures 5 and 6).
Avoid kinking the water supply line.
WATER
CONNECTION
UL103
Figure 5
Figure 4
UL134
WATER LINE
UL104
Figure 6
7
User’s Manual
UL002A
4. For recessed installations,
allow extra water supply line
length to provide slack for easy
removal from the recessed
area (see Figure 7). This will
also safeguard against kinking
the line.
UL100
Figure 7
NOTE
If you are not intending
to use the ice maker and
do not connect the water
supply (or turn the supply
valve off), it is imperative
to raise the bin arm of
the ice maker (see Figure
8).
Figure 8
NOTE
After completing the installation, turn on the water and
recheck water connection for leaks. Apply additional tightening if needed. Do not use thread sealing compound or
tape.
NOTE
On Models BI-95 and BI-98, route the water supply line
through the unit in such a way as to prevent the line from
coming in contact with any internal components other than
the solenoid valve (see Figure 6). Normal operation creates
some vibration. A water supply line contacting an internal
component or cabinet wall may cause excessive noise during operation or damage to the line.
5. Install the grille. See GRILLE INSTALLATION.
6. Plug in the power cord.
7. Gently push the unit into position. If desired the unit may be recessed
into cabinet or wall.
8
8. Allow at least 1-1/2 inches clearance behind the unit for electrical and water supply connections.
LEVELING THE UNIT
It is important that the unit, primarily the ice maker assembly, is level.
All 75 and 15 Series units are equipped with adjustable feet for leveling and height adjustment (see Figure 9). All other units have rubber
feet.
UL105TURN FOOT TO ADJUST
Figure 9
GRILLE INSTALLATION
NOTE
Model SP18 Icemakers come with the grille already
installed.
29 AND 75 MODELS
1. With a standard blade screwdriver (or 1/4” nutdriver), remove
the screw needed to attach the grille (see Figure 10).
2. Remove the control knob by pulling it toward you.
3. Carefully remove the grille from inside the unit. A small screw hole
is located toward the top of the middle recessed section of the
grille.
9
User’s Manual
GRILLE SCREW
UL106
Figure 10
4. Place the two hook-hinges (located on the rear bottom side of the
grille) on the front lip of the unit base. Swing the grille up into position, aligning the grille and cabinet screw holes (see Figure 11).
Figure 11
5. Insert the screw, being careful not to over tighten.
6. Reinstall control knob.
10
UL107
95 AND 98 MODELS
1. With a standard blade screwdriver (or 1/4" nutdriver), remove
the screw needed to attach the grille (see Figure 12).
2. Carefully remove the grille from inside the
unit. Locate the screw hole at the top,
middle recessed section of the grille.
3. Place the two hook-hinges (located on the
rear bottom side of the grille) on the front
lip of the unit base. Swing the grille up into
position, aligning the grille and cabinet
screw holes (see Figure 13).
UL501
Figure 12
GRILLE SCREW
UL502
Figure 13
4. Insert the screw, being careful not to over tighten.
11
User’s Manual
GLASS SHELF INSTALLATION
(FOR MODELS WITH GLASS SHELVES)
1. Carefully remove the shelves from inside the unit and remove the
packaging.
2. Slide the shelves onto desired ribs, making sure that the silver
edge strip is toward the front of the unit and the decorative graphics are on the underside of the shelves. Make sure the shelves are
inserted fully into the unit (see Figure 14). The white edge strip
towards the rear (Models 15R, 29R and 75R only) prevents cans
and bottles from freezing against the cold evaporator.
UL108
Figure 14
NOTE
Be sure to place shelves with the silver edge to the front
and decorative graphics on the underside.
12
REVERSING THE DOOR
Depending upon the location of the unit, it may be desirable to change
the side on which the door is mounted.
NOTE
On Combo Models 29A and 29FF (built-in installations only),
changing the door mounting to the left side may interfere
with ice bucket removal. See BUILT-IN INSTALLATION section for clearance requirements.
To reverse the door mounting on Models SP18, BI-95, BI-98, 15R,
29R, Combo 29A, and Combo 29FF (except Stainless Steel models),
perform the following:
1. Remove grille (1 screw). See
Figure 15.
2. Remove top hinge from cabinet
(3 screws). See Figure 16.
Hold door to keep it from
falling.
REMOVE SCREW
Figure 15
UL116
Figure 16
UL109
3. Lift the door off the bottom hinge.
4. Remove bottom hinge from cabinet (2 screws) (see Figure 17).
Remove screws on opposite side of cabinet (see Figure 18). Note
that there may be a nut behind one or both screws on either side.
5. Install hinge on opposite side, bottom of cabinet (see Figure 19).
Replace nut on back side where installed. Align hinge outer edge
with cabinet before tightening screws.
13
User’s Manual
Figure 17
UL111
UL112
Figure 19
BUSHING
UL113
UL110
Figure 18
Figure 20
6. Relocate plastic spacer/bushing on bottom of door to opposite
side, and place door on bottom hinge pin (see Figure 20). Clean
out bushing hole in door bottom with a screwdriver if needed.
7. Remove plastic hole plug from door handle and relocate on opposite side. See Figure 21.
14
8. Remove pivot screw from top hinge, invert screw and reinstall
pivot screw in top hinge. See Figure 19.
HINGE
RIGHT SIDE
DOOR SWING
PLASTIC
PLUG
HOLE
RIGHT SIDE
HINGE
SCREW
INVERT
SCREW
Figure 21
9. Remove three plastic screw
plugs in hinge holes, top of
cabinet, opposite side. Be
careful not to scratch cabinet (see Figure 22).
LEFT SIDE
DOOR SWING
PLASTIC
PLUG
HOLE
INVERT
HINGE
UL115
11. Fasten upper hinge to unit (3
screws). Partially tighten
screws until door is aligned.
See Figure 23.
UL114A
Figure 22
10. Place door on lower hinge
pin. Invert and install upper
hinge on door.
UL119
Figure 23
15
User’s Manual
12. Adjust door to assure proper seal. Tighten upper hinge screws
securely.
13. Replace three plastic plugs removed in step 8 into holes on top of
unit. Replace screws in holes in bottom of unit, opposite side.
14. Reinspect door seal and alignment. Adjust if needed.
15. Reinstall grille (1 screw).
NOTE
On Combo Model 75A (built-in installations only), changing
the door mounting to the left side may interfere with ice
bucket removal. See BUILT-IN INSTALLATION section for
clearance requirements.
To r everse the door mounting on Models Combo 75A and 75R
(except Stainless Steel models) perform the following:
1. Remove grille (1 screw). See Figure 15.
2. Remove top hinge from cabinet (4 screws). See Figure 16. Hold
door to keep it from falling.
3. Lift the door off the bottom hinge.
4. Remove four plastic plugs in hinge holes, top of cabinet, opposite
side (see Figure 22). Be careful not to scratch cabinet.
5. Remove pivot screw from top
hinge, invert screw and reinstall pivot screw in top hinge.
See Figure 21. Do not install
hinge on cabinet at this time.
6. Remove bottom hinge from
cabinet (4 screws) and
screws on opposite side of
cabinet (see Figure 24).
7. Remove pivot screw from
bottom hinge, invert screw
and reinstall pivot screw in
hinge (see Figure 21).
Figure 24
16
UL128
8. Install bottom hinge on cabinet, opposite side, aligning
flat edge of hinge with outer
edge of unit. Partially tighten
screws. See Figure 25.
9. Relocate plastic spacer/
bushing on bottom of door to
opposite side, and place door
on bottom hinge pin (see
Figure 20). Clean out bushing hole in door bottom with
a screwdriver if needed.
UL129
Figure 25
10. Place door on lower hinge pin. Align flat edge of top hinge with
outer edge of unit and fasten upper hinge to unit (4 screws).
Partially tighten screws until door is aligned. See Figure 23.
11. Adjust door to assure proper seal. Tighten upper and lower hinge
screws securely.
12. Replace four plastic plugs removed in step 5 into holes on top of
unit. Replace screws in holes in bottom of unit, opposite side.
13. Reinspect door seal and alignment. Adjust if needed.
14. Reinstall grille (1 screw).
17
User’s Manual
REVERSING A STAINLESS STEEL DOOR
Stainless Steel models are field
reversible for left or right hand
opening. The door opening is easily
reversed by moving the hinge hardware to the opposite side (see Figure
26) as follows:
1. Remove the bottom hinge (2
screws) from door.
2. Remove top hinge (2 screws)
from door.
3. Remove door.
4. Remove top hinge (4 screws)
from cabinet. Invert and install on
bottom, opposite side of cabinet.
5. Remove bottom hinge (4 screws)
from cabinet. Invert and install on
top, opposite side of cabinet.
Figure 26
6. Attach top hinge to door.
UL318C
7. Attach bottom hinge to door.
8. Align as required to assure proper door seal.
ALIGNING THE DOOR
For proper door alignment:
1. Loosen top and bottom hinge screws (see Figure 16).
2. Align door squarely with cabinet.
3. Assure gasket is firmly in contact with cabinet all the way around
the door (no gaps).
4. Tighten bottom hinge screws.
5. Tighten top hinge screws.
18
NOTE
When inspecting door alignment, make sure that the
light switch bracket (where
equipped) makes contact
with the light switch plunger
(see Figure 27). Also, make
sure that the door gasket is
not pinched too tightly on
the hinge side of the door.
UL130
Figure 27
CUSTOM DOOR PANEL INSERT
INSTALLATION
A custom door panel insert can be installed in most U-Line units. The
door will accept a flat or raised panel. The maximum panel thickness
where inserted into the door reveal (channel) is 1/4” thick. For raised
panels, the depth of the reveal is 1/4” on the sides and bottom, and
1/2” on the top. The size of the door panel insert is shown below:
The door panel insert must not weigh more than 20 lbs.
Custom Door Panel Dimensions
Model A B
BI-95 13–15/32” 12–15/16”
BI-98 15–15/16” 13–15/16”
75 Series 28–5/32” 22–15/16”
75 SS 29–13/32” 22–15/16”
29 Series 21–13/32” 19–13/16”
15 Series 28–5/32” 13–15/16”
15 SS 29–13/32” 13–15/16”
SS - Stainless steel units
A
NOTE
Model SP18 does not accept custom
door panels.
19
B
User’s Manual
!
Install the insert as follows:
Insert edges may be SHARP! Use care when installing.

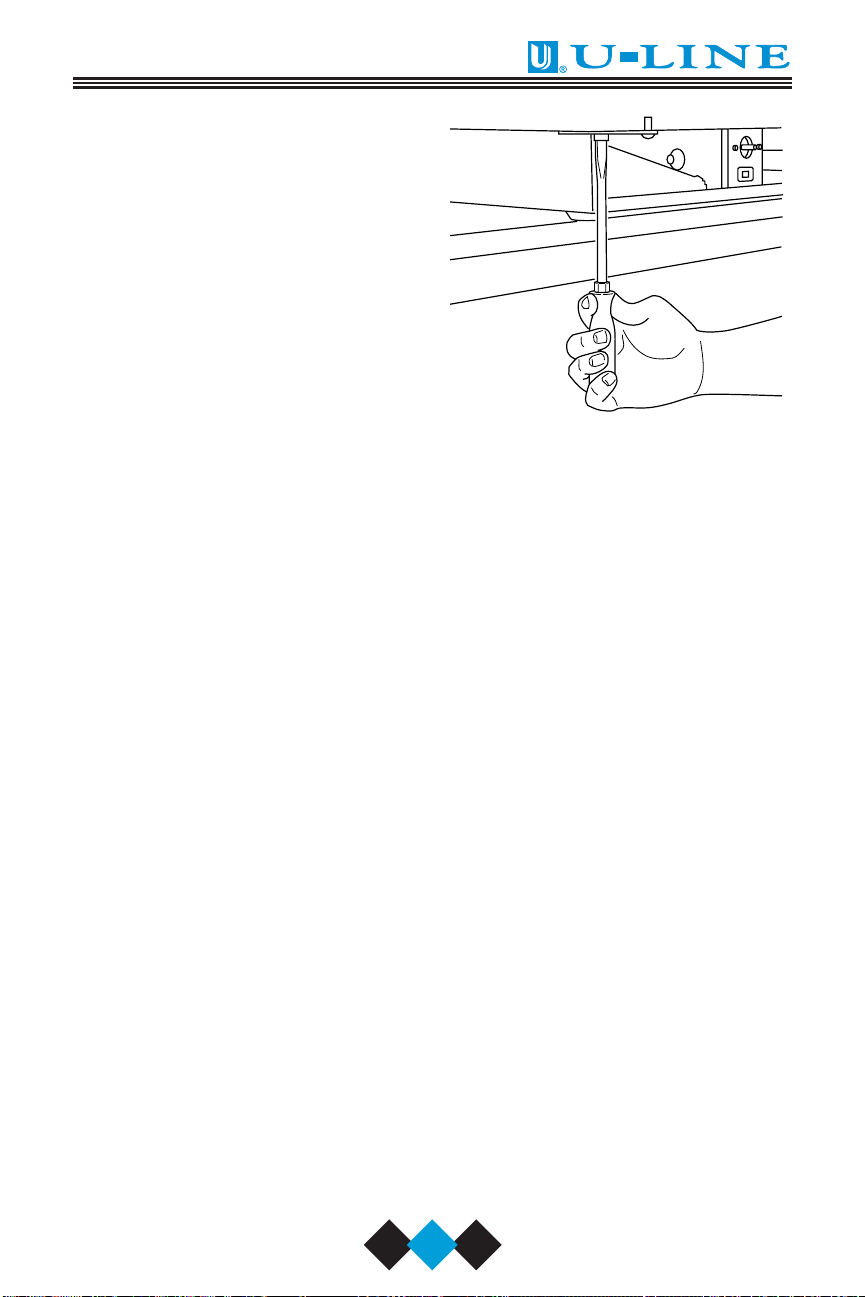

1. Remove top hinge screw pin (large Phillips head, see Figure 28).
Hold door to keep it from falling.
2. Remove door, being careful not to scratch top of door on hinge.
3. Pull door gasket out of groove (top edge of door only). Start in the
middle and pull outward, moving toward the edge (see Figure 29).
This may take some force.
UL131
Figure 28
4. Remove two small screws
holding door handle. Slightly
separate door handle from
door (see Figure 30).
5. Pull handle up and off.
UL117
Figure 29
UL132
Figure 30
20
NOTE
Use care not to bend light switch bracket (where installed),
located on door bottom when installing door insert. Do not
set door on bottom edge when pushing insert into place.
6. Slide custom door panel insert into 1/4 inch channel in door front.
7. Holding door gasket out of the way, replace handle on door making sure it is seated properly on insert and that screw holes line
up.
8. Install two small screws removed in step 4.
9 Starting at the center and working outward, push door gasket into
place on door.
10. Place door on bottom hinge pin and install upper hinge screw (see
Figure 28).
11. Reinspect door seal and alignment. Adjust if needed.
BUILT-IN INSTALLATION
Your U-Line product has been designed for either free-standing or builtin installation. When built-in, your U-Line product does not require additional air space for top, sides, or rear. However, the front grille must
NOT be obstructed.
NOTE
Combo Models 29A, 29FF, and 75A require additional
clearance when the door opens from the right (see Figures
32 and 33). This additional clearance allows for the ice
bucket to be removed from the unit.
Unit Dimensions
Model Width Height Depth
SP18 13-15/16" 18-1/2" 25-1/4"
95 13-13/16" 24-3/4" 17"
98 14-13/16" 27-3/8" 20"
15 Series 14-15/16" 34 - 35" 23-3/4"
29 Series 20-13/16" 28-1/2" 24"
75 Series 23-7/8" 34 - 35" 24"
21
User’s Manual
NOTE
To ease unit installation
and removal, increase the
Unit Dimension measurements. It is recommended
that the cabinet rough
opening dimensions be
increased by at least
1/4" over the dimensions
given for your unit.
W
AT LEAST 1" CLEARANCE REQUIRED IF
UNIT IS INSTALLED FLUSH WITH
CABINET OR WALL.
1.000
H
D
UL118
Figure 31
AT LEAST 9" REQUIRED IF UNIT IS
INSTALLED ADJACENT TO
CABINET OR WALL.
9.000
CABINET OR WALL
Figure 32
UL126
22
CABINET
OR WALL
Figure 33
UL125
INITIAL START-UP
Once installation is complete, the unit is ready for initial start-up and
operation.
NOTE

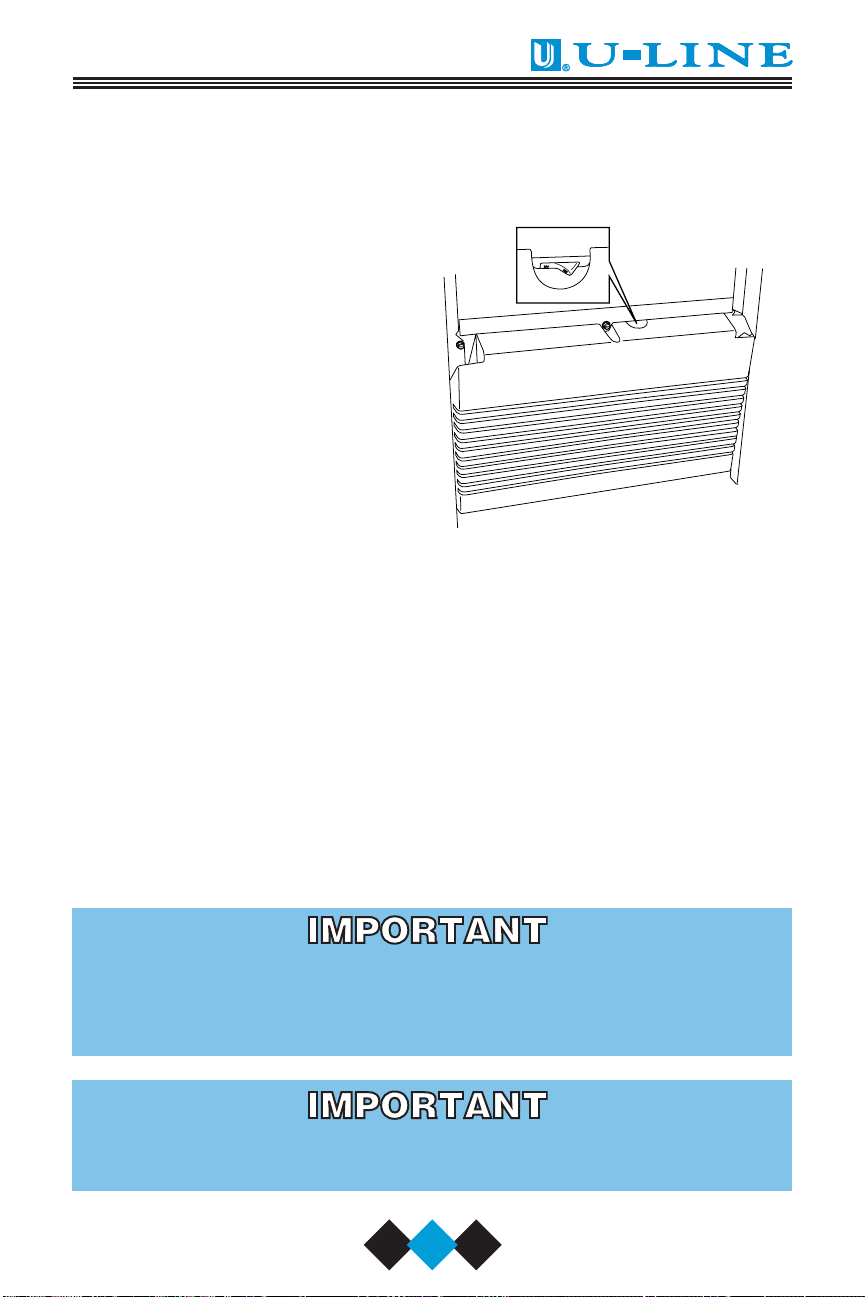

Models BI-95 and BI-98
have the ON-OFF switch
behind the front grille. A
small opening in the top
of the grille is provided
to access the switch
(see Figure 34).
Some models may also turn
off when the temperature control is turned all the way
towards warmer until it stops
(clicks).
1. Plug the appliance cord into a 115V polarized and grounded
electrical outlet.
2. Check that the ON-OFF switch in the ON position.
Figure 34
UL503
3. Open the water supply valve in the main water source. As soon as
the ice maker mold reaches the proper temperature, the ice
maker mechanism will fill the mold with water. The first cubes may
be small because of air in the water line. Subsequent cubes will be
of standard size. Approximate time for the first cycle is 45
minutes. Allow 2 hours for any Frostfree models.
It is possible that dirt or scale will dislodge in the water line.
Always throw away all ice cubes made during the first two
to three hours of operation.
Allow unit temperature to stabilize for 24 hours before use.
23
User’s Manual
NORMAL OPERATION
On units with refrigerator sections, the unit has been designed to
achieve a fresh food temperature of approximately 38°F (temperature
may vary due to ambient temperature).
On units with ice makers, when the ice bucket is full, the ice making
mechanism will shut off. However, the refrigeration system will continue to cool and maintain the cube supply. On frost free icemaker units,
ice production will be lower than on manual defrost units.
Ice production may be interrupted by raising
the bin arm into an upright and locked position (the unit will maintain temperature for
ice storage, see Figure 36).
On Combo units, the refrigerator fresh food
temperature may vary during the initial manufacture of ice. It is recommended that the
ice bucket be allowed to fill before placing
food in the refrigerator section. The temperature control may then be adjusted as
needed (allow 24 hours for temperature
stabilization).
Figure 36
UL002A
Certain sounds are normal during the unit’s operation. You may hear
the compressor or fan motor, the water valve, sounds of defrost, or
ice dropping into the ice bucket.
CAUTION
NEVER use an ice pick, knife, or other sharp instrument to
separate cubes. Shake the bucket instead.
The ice bucket MUST be in place to avoid freezing products in the
refrigerator section of the Combo Series 29 and 75.
During periods of limited usage or high ambient temperatures, it is
common for cubes to fuse together. Break apart cubes as necessary
by shaking bucket.
If ice maker is not used regularly, the ice bucket should be emptied periodically to ensure fresh cubes.
24
It is normal for cubes to appear cloudy. This is caused by air being
trapped in the water due to fast freezing. It has nothing to do with the
health, taste or chemical make-up of the water. It is the same air that
is in every glass of water you drink.
To provide for higher ice rate (production of more cubes), adjust the
temperature control to a warmer setting. If hollow cubes result, adjust
temperature somewhat colder. For less cube production, adjust to a
colder setting.
The ice bucket must be fully inserted in the freezer section.
The ice bin door must be fully closed.
For frost free models: Do not place any objects over air inlet or outlet
in freezer section.
For frost free models: Light frosting may occur in high humidity conditions or if the ice bucket is not pushed in completely.
CHECKING TEMPERATURE
To accurately check the temperature, insert an accurate thermometer into a plastic (non-breakable) bottle, partially filled with
water. Tighten the bottle cap
securely (see Figure 37).
Place the bottle in the desired area
for 24 hours. Refrain from opening
the unit during the testing period.
After 24 hours, check the temperature of the water. Adjust the control
knob if necessary and retest.
UL320
Figure 37
Make adjustments in small increments and allow unit to
stabilize for 24 hours before making further adjustments.
25
User’s Manual
MARINE USE
Many U-Line models are designed to operate in a harsh marine
environment. Special considerations include the following:
• For best performance, keep the unit out of direct sunlight.
• On Ice Maker models, turn the unit OFF and dispose of any ice cubes
if the unit will not be used for 5 days or more. Prop door open to
allow for air circulation and prevent mold and mildew. Do not use antifreeze in your icemaker.
• If the ambient temperature is expected to drop below 45°F, drain all
water from the unit to prevent freezing damage not covered by the
warranty.
• High ambient temperatures (110°F or higher) may reduce the unit’s
ability to reach low temperatures and may also reduce the ice production rate.
ADJUSTING THE TEMPERATURE
CONTROL
Models BI-95 and BI-98: Use a flat tip screwdriver to turn adjusting
screw, located behind front grille, clockwise for colder (slower ice production) or counterclockwise for warmer (faster ice production).
Series 15, 29 and 75: Adjust
control setting by turning the
numbered dial (see Figure 38).
Model SP18 temperature
control has been preset at the
factory for optimum ice
production. Do not attempt to
make adjustments.
26
CONTROL
4
5
3
6
2
7
1
Figure 38
UL504
ADJUSTING ICE CUBE SIZE
On models equipped with an ice maker, the cube size may be adjusted
by changing the amount of water injected into the ice maker assembly.
1. Remove the ice maker assembly cover (see Figure 39).
2. Locate the adjusting screw on the ice maker assembly control box.
The adjusting screw is just below the minus (–) and plus (+) signs
on the control box (see Figure 40).
+–
UL122
Figure 39
UL133
Figure 40
3. Turn the adjusting screw toward the minus (–) sign (clockwise) for
smaller cubes or toward the plus (+) sign (counterclockwise) for
larger cubes.
4. Install the ice maker assembly cover.
Some units are not frost free and must be defrosted periodically. Refer
to CARE AND CLEANING.
CAUTION
Use only genuine U-Line replacement parts. U-Line ice
maker parts are not the same as standard FSP Whirlpool
parts. Using non U-Line parts can reduce ice rate, cause
water to overflow from ice maker mold, damage the unit,
and may void the warranty.
27
User’s Manual
!
CARE AND CLEANING
Periodic cleaning and proper maintenance will ensure efficiency, top
performance, and long life. We suggest the following:
• The interior may be cleaned with a mild detergent and warm water.
•Avoid the use of solvent cleaning agents or abrasives on the interior.
These cleansers may transmit taste to the ice cubes and food, or
damage or discolor the interior.
• The exterior may be cleaned with a mild detergent and warm water.
• The front grille should be kept
free of dust and lint to permit free
air flow to the condenser (see
Figure 41). The condenser coil,
located behind the front grille,
should be cleaned three to four
times each year. Use a brush or
vacuum cleaner to remove dirt,
lint and other accumulations
from the condenser coil.
Figure 41
UL005A
The condenser fins are SHARP. DO NOT run hands over
condenser fins.
The solenoid valve inlet screen must be cleaned at least once each year
as follows:
1. Shut off the water at the water supply valve.
2. Remove the entire hose connector from the solenoid valve.
3. Use a tooth brush to clean
sediment from the inlet screen
(see Figure 42). DO NOT
remove the screen.
4. Attach the hose connector to
the solenoid valve. Tighten connector securely with a pliers.
UL123
Figure 42
28
Open the water supply valve
and check for leakage at the
hose connector.
LIGHT BULB REPLACEMENT
Light bulb replacement is simple.
1. Remove the light housing cover
by sliding the cover toward the
tab, swinging the end opposite
the tab down and pulling down
and away (see Figure 43).
2. Replace bulb with genuine U-Line
replacement.
3. Replace the light housing cover
by inserting the tab FIRST, sliding
the cover toward the tab and
pushing up the other end. You
should hear a snap/click.
1
TAB
2
UL305
3
Figure 43
29
User’s Manual
DEFROSTING
CAUTION
DO NOT use any type of electrical heating device, ice pick,
knife, or other sharp instrument to defrost, as this could
damage the inner lining or refrigeration system and void the
warranty.
Manual defrost models should be defrosted approximately every 8
weeks. However, this interval may not be adequate in periods of high
humidity or heavy usage. Defrost your unit whenever the frost thickness
is 1/4” or greater. To defrost, turn the unit OFF, remove cubes and
prop door open at least two inches.
NOTE
Frost free units will never
defrost models do not normally require manual defrosting.
However, in extremely high humidity or during periods of
unusually high usage, minimal manual defrosting may be
required.
need defrosting. Automatic
STORAGE
If the unit is to be stored or not used for extended periods, it will be
necessary to drain the system of water.
1. Shut off water supply at the main water source.
2. Disconnect the water supply line from the solenoid valve.
3. Disconnect the water line from the solenoid valve outlet.
4. Allow the unit to run for an hour or more until all remaining ice
cubes have been ejected from the ice maker assembly.
5. Dry out excess water from the ice maker assembly.
6. Prop the door open at least two inches.
7. Disconnect unit from main electrical power source.
8. Leave water supply line and power cord disconnected until ready
to reuse.
NOTE
The use of anti-freeze or other products of this nature is not
necessary and is not recommended.
30
TROUBLESHOOTING
DANGER
! !
BEFORE CALLING FOR SERVICE
If the unit appears to be malfunctioning, read through NORMAL OPERATION first. If the problem persists, check the TROUBLESHOOTING
GUIDE. Locate the problem in the guide and refer to the cause and its
remedy before calling for service. The problem could be something very
simple which can be solved without a service call.
TROUBLESHOOTING GUIDE
ELECTROCUTION HAZARD
NEVER attempt to repair or perform mainte-
nance on the unit until the main electrical
power has been disconnected.
Troubleshooting — What to check when problems occur
Problem Possible Cause Remedy
No interior light Loose or burned out Tighten or replace bulb.
bulb See LIGHT BULB
REPLACEMENT
The unit is not Light staying on Adjust door so light switch
cold enough bracket contacts switch
plunger. See ALIGNING
THE DOOR
Door gasket not Adjust door. See
sealing properly ALIGNING THE DOOR
Dirty condenser coils Clean condenser. See
CARE AND CLEANING
Airflow to front grille Airflow must not be
blocked obstructed to front grille.
See INSTALLATION
Temperature not set Turn control knob
cold enough CLOCKWISE to set
temperature colder.
Allow 24 hours for
temperature to stabilize
The unit is not cold The door was left open Turn off the unit to manually
enough (Frost free causing the evaporator defrost the evaporator.
units only) behind the back wall to See DEFROSTING.
fill with frost preventing
proper air flow and cooling.
31
User’s Manual
Problem Possible Cause Remedy
The unit frosts Unit is manual Models SP18, 95, 98,
up defrost model and Combo 29A and
75A are manual defrost.
Refer to DEFROSTING
Door gasket not Adjust door. See
sealing properly ALIGNING THE DOOR
High ambient Defrost unit manually.
temperatures or See DEFROSTING
humidity
Water is leaking Water supply Tighten fitting. See
out the back connection leaking CONNECTING THE
of the unit WATER SUPPLY
Ice cubes Door gasket not Adjust door. See
sticking together sealing properly ALIGNING THE DOOR
Infrequent use of cubes Break apart cubes
Noise during Copper water supply Carefully bend tubing
operation tubing contacting away from cabinet and
internal components components
Certain sounds are Soft sounds from the fan
normal. and water/dropping
sounds from the ice maker
will be heard.
Fan blade touching Remove obstruction
obstruction (wiring,
foam insulation, etc.)
No ice Bin arm locked in Lower bin arm
upright position
No water to unit. Turn on water or contact
plumber.
Not enough ice Control set too cold Adjust control to a
warmer setting
(COUNTER-CLOCKWISE)
Ice cube size too Set cube size smaller.
large See ADJUSTING ICE
CUBE SIZE
Dirty condenser coils. Clean condenser.
See MAINTENANCE.
Water leaks into Water level set too Set cube size smaller.
ice bucket high See ADJUSTING ICE
CUBE SIZE
Fresh food section Ice bucket not fully Push ice bucket
on Combo units inserted into place
too cold WATER SUPPLY
Flap door not closed Be sure Flap door is
correctly closed correctly.
Unit too cold Temperature control Set control to warmer setting
set too cold (COUNTERCLOCKWISE)
Inaccurate temperature Properly check temperature.
reading.
32
IF SERVICE IS REQUIRED
If the need for service arises, contact the dealer from whom the unit
was purchased. State the Model Number and Serial Number and
explain the problem. The Model and Serial Number plate is located
inside unit at upper right hand corner.
If you do not know the name of the selling dealer or local service company, you can check online at www.U-LineService.com.
SPECIFICATIONS
Ice Production Cube Fresh Food
Capacity Storage (refrigerator)
(per day) Capacity Capacity
Freezer Defrost
Capacity Technology
Unit Type
Model
Number
SP18 18 lbs. (8 kg) 12 lbs. (5 kg) Manual
Ice
Makers
Combos
Refrigerators
BI-95 23 lbs. (10 kg) 12 lbs. (5 kg) Manual
BI-98 25 lbs. (11 kg) 25 lbs. (11 kg) Manual
75A 22.5 lbs. (10 kg) 13 lbs. (6 kg)
29FF 8 lbs. (4 kg) 13 lbs. (6 kg)
29A 22 lbs. (10 kg) 13 lbs. (6 kg)
75R
29R
15R
4.2 cu. ft.
(119 L)
2.1 cu. ft.
(60 L)
2.1 cu. ft.
(60 L)
6 cu. ft. Automatic
(170 L) Defrost
3.5 cu. ft. Automatic
(99 L) Defrost
3.5 cu. ft. Automatic
(99 L) Defrost
Manual
Frost Free
Manual
33
User’s Manual
34
R
P.O. Box 245040
Milwaukee, WI 53224-9540
Phone 414.354.0300
FAX 414.354.7905
www.U-Line.com
Printed in U.S.A.
P/N 41923 (Rev. 08/03)
R
R
Loading...
