User’s Manual

ICE-MAKERS, COMBOS, REFRIGERATORS, 75 BEV BEVERAGE CENTER

U-LINE CORPORATION LIMITED WARRANTY

U-Line Corporation warrants each U-Line product to be free from defects in materials and workmanship for a period of one year from the date of purchase; and warrants the sealed system (consisting of the compressor, the condenser, the evaporator, the hot gas bypass valve, the dryer and the connecting tubing) in each U-Line product to be free from defects in materials and workmanship for a period of five years from the date of purchase. During the initial one-year warranty period for all U-Line products U-Line shall: (1) at U-Line’s option, repair any product or replace any part of a product that breaches this warranty; and

(2) for all Marine, RV and Domestic U-Line products sold and serviced in the United States (including Alaska and Hawaii)and Canada, U-Line shall cover the labor costs incurred in connection with the replacement of any defective part. During years two through five of the warranty period for the sealed system, U-Line shall:. (1) repair or replace any part of the sealed system that breaches this warranty; and (2) for all Marine, RV and Domestic U-Line products sold and serviced in the United States (including Alaska and Hawaii)and Canada, U-Line shall cover the labor costs incurred in connection with the replacement of any defective part of the sealed system. All other charges, including transportation charges for replacements under this warranty and labor costs not specifically covered by this warranty, shall be borne by you. This warranty is extended only to the original purchaser of the U-Line product. The Registration Card included with the product should be promptly completed by you and mailed back to U-Line or you can register on-line at www.U-LineService.com.

The following are excluded from this limited warranty: installation charges; damages caused by disasters or acts of God, such as fire, floods, wind and lightening; damages incurred or resulting from shipping, improper installation, unauthorized modification, or misuse/abuse of the product; customer education calls; food loss/spoilage; door and water level adjustments (except during the first 90 days from the date of purchase); defrosting the product; adjusting the controls; door reversal; or cleaning the condenser.

If a product defect is discovered during the applicable warranty period, you must promptly notify either the dealer from whom you purchased the product or U-Line at P.O. Box 23220, Milwaukee, Wisconsin 53223 or at 414-354-0300. In no event shall such notification be received later than 30 days after the expiration of the applicable warranty period. U-Line may require that defective parts be returned, at your expense, to U-Line’s factory in Milwaukee, Wisconsin, for inspection. Any action by you for breach of warranty must be commenced within one year after the expiration of the applicable warranty period.

This limited warranty is in lieu of any other warranty, express or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose; provided however, that to the extent required by law, implied warranties are included but do not extend beyond the duration of the express warranty first set forth above. U-Line’s sole liability and your exclusive remedy under this warranty is set forth in the initial paragraph above. U-Line shall have no liability whatsoever for any incidental, consequential or special damages arising from the sale, use or installation of the product or from any other cause whatsoever, whether based on warranty (express or implied) or otherwise based on contract, tort or any other theory of liability.

Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitations may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

INTRODUCTION

Congratulations on your purchase of your U-Line product. A pioneer in the field for more than 40 years, U-Line is the world’s number one manufacturer of built-in, under-counter ice making and specialty refrigeration products. U-Line dedicates 100% of its research and development to these products. The result: U-Line technology leads the market with innovation, design, depth of product line and performance.

U-Line also backs customers with a strong dealer network. U-Line’s commitment to quality even extends to environmentally safe packaging. U-Line products are making life more convenient in homes, businesses, and hotels around the world.

PLEASE READ all instructions completely before attempting to install or operate the unit. All models of Ice Makers and Combos require a connection to the water supply and improper hook-up can result in substantial property damage! If you are unsure of your ability to safely connect the water supply to the unit, consult a licensed plumber for assistance.

Once you have your unit installed, we suggest you keep this manual in a safe place for future reference. Should any problems occur, refer to the TROUBLESHOOTING section of this manual. This information will help you quickly identify a problem and get it remedied. In the event you require assistance, please contact the dealer where you purchased your unit.

1

User’s Manual

PLEASE RECORD YOUR MODEL’S INFORMATION

Whenever you call to request information or service, you will need to know your model number and serial number. You can find this information on the serial plate located on the inside wall of your unit and on the product registration card.

PRODUCT REGISTRATION CARD

The package containing this manual also includes your product registration information. Warranty coverage begins at the time your unit was purchased.

NOTE

Complete and mail the Product Registration Card as soon as possible to validate the registration date. You may also register the product online at www.U-LineService.com.

If you do not return your Product Registration Card, U-Line will use the date of sale to the U-Line distributor as the first date of warranty for your unit. Please also record the purchase date of your U-Line unit and your dealer’s name, address and telephone number.

Model Number: ______________________________________

Serial Number: ______________________________________

Purchase Date: ______________________________________

Dealer Name: ______________________________________

Dealer Address: ______________________________________

Dealer Telephone: ______________________________________

Keep this manual and the sales receipt together in a safe place for further reference.

2

TABLE OF CONTENTS



INTRODUCTION..........................................................................

1

SAFETY PRECAUTIONS ...............................................................

4

INSTALLATION ...........................................................................

7

LEVELING THE UNIT .................................................................

10

CONNECTING THE WATER SUPPLY – ICE MAKER MODELS ONLY ..

12

GRILLE INSTALLATION ..............................................................

15

GLASS SHELF INSTALLATION.....................................................

18

BUILT-IN INSTALLATION.............................................................

19

CUSTOM DOOR PANEL INSERT..................................................

20

WINE RACK REMOVAL/INSTALLATION.......................................

25

REVERSING THE DOOR .............................................................

26

REVERSING A STAINLESS STEEL DOOR.......................................

31

ALIGNING THE DOOR................................................................

32

WINE RACKS – 75 BEV............................................................

33

INITIAL START-UP AND ADJUSTING THE



TEMPERATURE CONTROL.......................................................

34

TEMPERATURE CONTROL .........................................................

35

NORMAL OPERATION ...............................................................

37

MARINE USE ...........................................................................

39

ADJUSTING ICE CUBE SIZE .......................................................

40

LIGHT SWITCH AND BULB........................................................

41

LIGHT BULB REPLACEMENT .....................................................

42

PROPER STORAGE AND STOCKING RECOMMENDATIONS.............

43

THE RIGHT TEMPERATURE FOR WINE........................................

43

CLEANING & MAINTENANCE.....................................................

44

DEFROSTING ...........................................................................

47

STORAGE ................................................................................

48

TROUBLESHOOTING .................................................................

49

IF SERVICE IS REQUIRED...........................................................

51

REPLACEMENT PARTS .............................................................

51

SPECIFICATIONS.......................................................................

52

3

User’s Manual

SAFETY PRECAUTIONS

Do not attempt to install or operate your unit until you have read the safety precautions in this manual. Safety items throughout this manual are labeled with a Danger, Warning or Caution based on the risk type.

DEFINITIONS

This is the safety alert symbol. It is used to alert you to

!potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

! DANGER !

DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

! WARNING

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

! CAUTION

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

CAUTION

CAUTION used without the safety alert symbol indicates a potentially hazardous situation which, if not avoided, may result in property damage.

Indicates installation, operation or mainenance information which is important but not hazard related.

4

GENERAL PRECAUTIONS

! DANGER !

Risk of child entrapment. Before you throw away your old refrigerator or freezer, take off the doors and leave shelves in place so that children may not easily climb inside.

!WARNING

Never attempt to repair or perform maintenance on the unit until the electricity has been disconnected.

Altering, cutting of power cord, removal of power cord, removal of power plug, or direct wiring can cause serious injury, fire and/or loss of property and/or life and will void the warranty.

The anti-tip kit must be installed on these units if they are built-in and before it is used. Never use the wine racks or shelves as steps or a shelf to support more than their content.

CAUTION

Do not lift unit by door handle.

Use care when moving the unit. Some edges are sharp and may cause personal injury. Wear gloves when moving or positioning the unit.

Never install the unit behind closed doors. Be sure front grille is free of obstruction. Obstructing free air flow can cause the unit to malfunction, and may void the warranty.

Allow unit temperature to stabilize for 24 hours before use.

Never use an ice pick or other sharp instrument to help speed up defrosting. These instruments can puncture the inner lining or damage cooling unit.

Failure to clean the condenser every three months can cause the unit to malfunction. This could void the warranty.

5

User’s Manual

GENERAL PRECAUTIONS (CONTINUED)

CAUTION

Using a heater to speed up defrosting can damage the inner lining. DO NOT use any type of electrical heater to defrost.

Use only genuine U-Line replacement parts. Imitation parts can reduce ice rate, cause water to overflow from ice maker mold, damage the unit, and may void the warranty.

6

INSTALLATION

SITE PREPARATION

Your U-Line product is designed to be installed in a wall or under a counter or freestanding.

NOTE

The 75 BEV must be ordered for right or left hand door. The 75 BEV doors are not reversible. Any reference to reversing the door, does not apply to the 75 BEV.

1.Position the unit on a flat, level surface, capable of supporting the entire weight of the unit. Remember the unit will be significantly heavier once it is fully loaded.

It is extremely important that the unit is level. If it is not level, the ice mold will not fill evenly. This can cause a reduction in ice rate, uneven sized cubes or water spilling into the storage area which will cause the ice in the bin to melt prematurely. Remember that floors near drains have a tendency to slope towards the drain.

2.The surrounding air temperature must be at least 50°F (10°C) but must not exceed 110°F (40°C).

3.The unit must not be located near heat-generating equipment or in direct sunlight.

4.The unit must be located to allow clearance for water, drain and electrical connections in the rear when applicable.

5.Connect the unit to its own grounded and polarized 115 VAC, 60 Hz, 15A circuit (normal household current).

6.Avoid connecting the unit to a Ground Fault Interruptor (GFI). GFIs are prone to nuisance tripping which will cause the unit to shut down. GFIs are generally not used on circuits which power equipment that must run unattended for long periods of time.

7.The unit must be installed according to your local codes and ordinances.

7

User’s Manual

! DANGER !

ELECTROCUTION HAZARD!

Electrical Grounding Required. This appliance is equipped with a three prong (grounding) polarized plug for your protection against possible shock hazards. It must be plugged into a properly grounded three-prong receptacle.

NEVER remove the round grounding prong from the plug.

NEVER use a two-prong grounding adapter.

NEVER use an extension cord to connect power to the unit.

Where a two-prong wall receptacle is encountered or a longer power cord is required, contact a qualified electrician to have it replaced in accordance with applicable electrical codes.

8.Connect the water supply line. See CONNECTING THE WATER SUPPLY for installation requirements.

These U-Line products are designed so they can be installed next to a wall on either side (Figure 1).

CABINET

OR WALL

DOOR

SWING

0" CLEARANCE NEEDED

UL124

Figure 1

8

NOTE

Keep in mind that the door of the unit may be mounted on either side of the cabinet (see REVERSING THE DOOR) except for the 75 BEV. All U-Line units have a zero clearance for the door to open when the hinge is on the right, except for Stainless Steel Doors.

Additional clearance is needed for the Combo Models 29A, 29FF, and 75A only when the door hinge is on the left. See built-in installation for additional clearance requirements for these models.

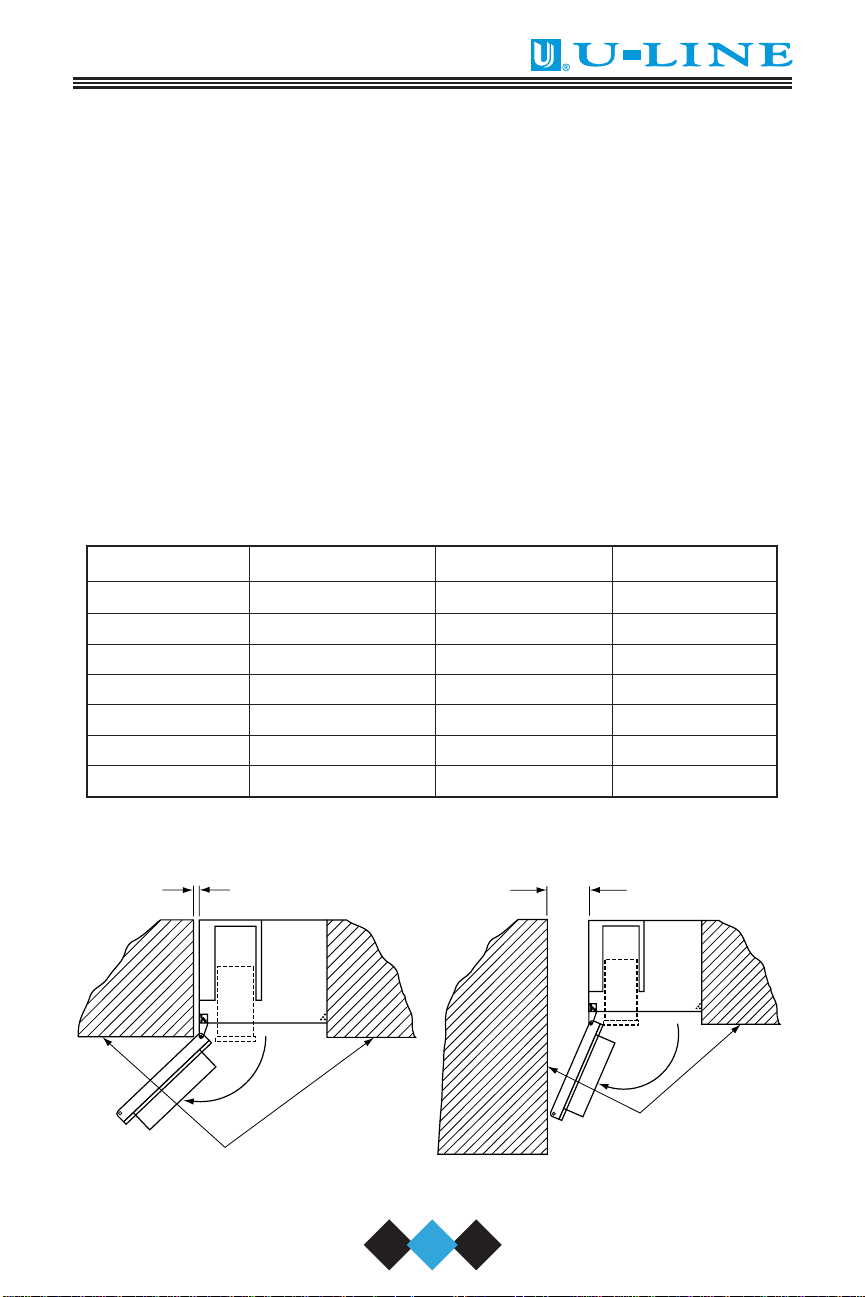

Allow extra clearance, on hinge side, for a 90° door opening when installed against a wall on all Stainless Steel models.

U-Line recommends you consider additional clearance in front of the open door for convenience.

9.Position the unit to allow free air flow through the front grille (Figure 2).

UL005A

Figure 2

10.Carefully remove the grille, the glass shelves and the wine racks from inside the unit and wipe inside of unit with a clean, water dampened cloth only.

9

User’s Manual

LEVELING THE UNIT

It is important that these units, primarily the ice maker assembly and 75 BEV are level. All 75 and 15 Series units are equipped with adjustable feet for leveling and height adjustment (Figure 3). All other units have rubber feet.

To level units with adjustable feet:

1.Adjust all four leveling feet evenly so that the top of the cabinet is at the desired installation height and level.

2.Using a level of at least two feet in length, measure the level of the floor where the unit is to be installed. Measure back-to-front and side-to-side and note the measurements.

3.With the unit on a level surface, adjust the feet, as appropriate, to compensate for the floor level measurements noted in Step 2.

10

U-Line ICE-MAKER, U-CO29FFB-00 User Manual

4.Place the unit in position where it is to be installed. Re-check cabinet height and levelness (Figure 4) and adjust if necessary.

TURN FOOT TO ADJUST

UL105

Figure 3

LEVEL

TWO PLACES

UL135

Figure 4

11

User’s Manual

CONNECTING THE WATER SUPPLY -

ICE MAKER MODELS ONLY

Install a 1/4" outside diameter copper water line (not supplied with unit) from the nearest COLD water pipe. When connecting the water supply, follow these guidelines:

Review the local plumbing codes before you install the unit.

In most instances, the cold water supply will come from the basement through a hole in the floor.

The water pressure should be between 15 and 150 psi.

Install a shut-off valve in the 1/4" outside diameter supply line (not supplied with unit).

Connect sufficient tubing to the unit to allow the unit to be moved for cleaning and servicing. However, make certain that the tubing is not pinched or damaged during installation.

U-Line recommends the use of copper tubing for installation.

On BI-95 and BI-98 models, the water line is inserted through the hole in the rear of the unit to connect to the solenoid valve in the front (Figure 5).

POWER

CORD

WATER LINE

UL101



Figure 5

12

1.Locate the compression fitting and ferrule packed in the unit. Slide the compression fitting and ferrule over the 1/4" outside diameter water supply line. Do not use thread sealing compound or tape. Using two wrenches, tighten the compression fitting on the supply line (see Figure 6). Do not overtighten.

2.Carefully bend the water supply line into position and connect the line to the solenoid valve (see Figure 7). Avoid kinking the water supply line.

3.For recessed installations, allow extra water supply line length to provide slack for easy removal from the recessed area (see Figure 8). This will also safeguard against kinking the line.

UL134_CO

Figure 6

WATER

CONNECTION

UL103_CO

Figure 7

DWR033

Figure 8

13

User’s Manual

WATER LINE

UL104

Figure 9

NOTE

On BI-95 and BI-98 models, route the water supply line through the unit so it does not come into contact with any internal components other than the solenoid valve (Figure 9). Normal operation creates some vibration. A water supply line contacting an internal component or cabinet wall can cause excessive noise during operation or damage to the line.

CAUTION

If you are not intending to use the ice maker and do not connect the water supply (or turn the supply valve off), it is imperative to raise the bucket arm of the ice maker (Figure 10). Failure to raise the bucket arm may result in damage to the water valve.

UL002A_CO

Figure 10

14

NOTE

After completing the installation, turn on the water and recheck water connection for leaks. Apply additional tightening if needed. Do not use thread sealing compound or tape.

4.Plug in the power cord.

5.Gently push the unit into position.

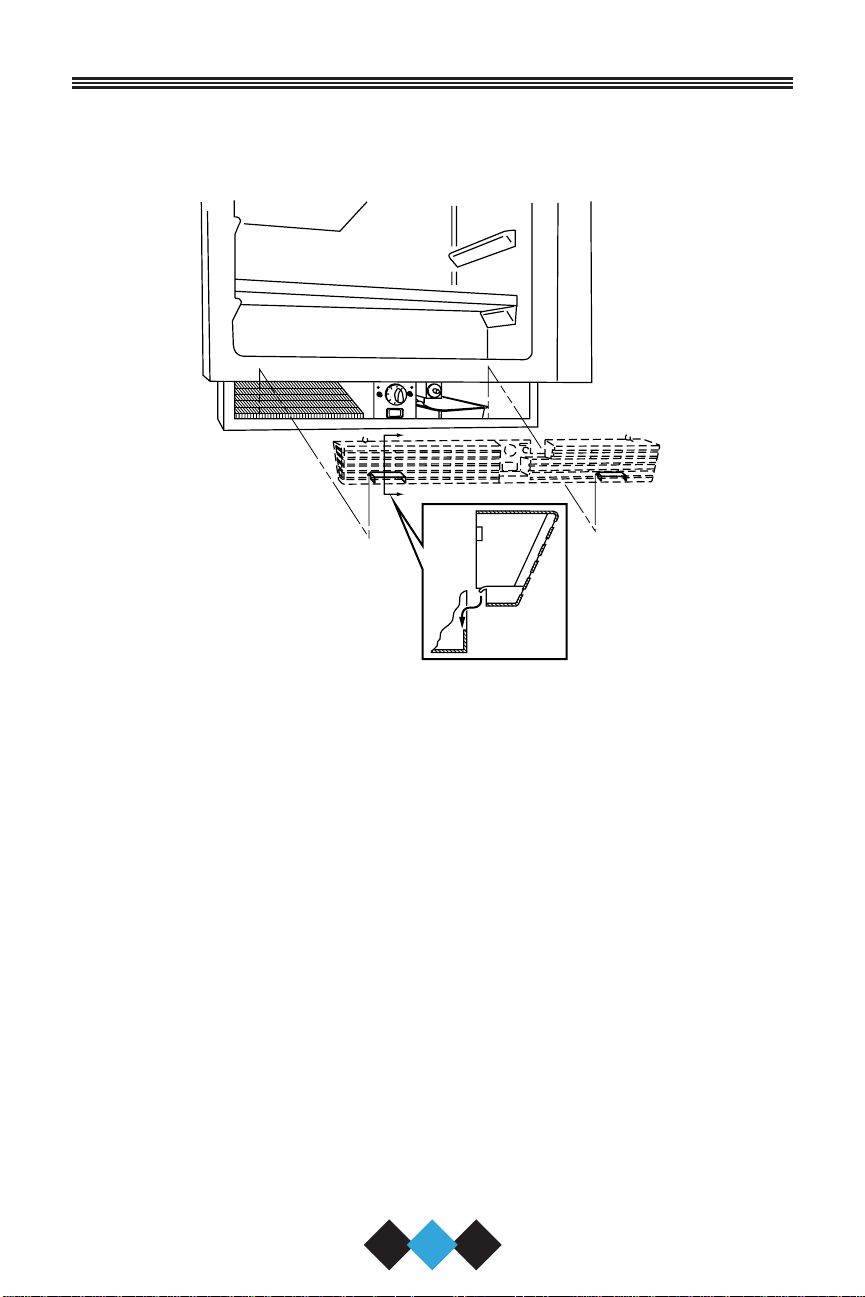

GRILLE INSTALLATION

1.With a standard blade screwdriver (or 1/4” nutdriver), remove the grille screw to attach the grille (Figure 11).

GRILLE SCREW

UL106

Figure 11

2.Remove the control knob by pulling it toward you.

3.Identify the small screw hole located toward the top of the middle recessed section of the grille.

15
