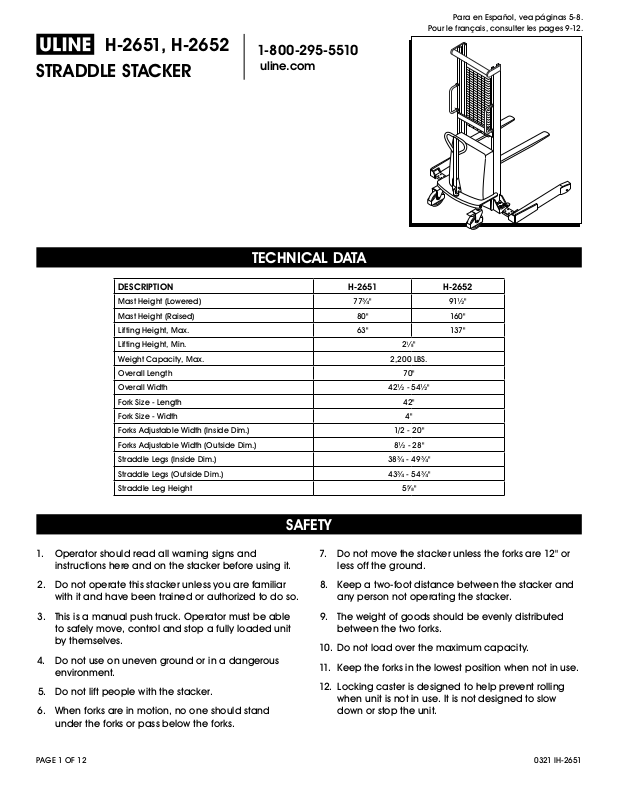

H-2651, H-2652 STRADDLE STACKER
1-800-295-5510 uline.com
Para en Español, vea páginas 5-8. |
Pour le français, consulter les pages 9-12. |
TECHNICAL DATA
DESCRIPTION |
H-2651 |
|
H-2652 |
|
|
|
|
Mast Height (Lowered) |
77¾" |
|
91½" |
|
|
|
|
Mast Height (Raised) |
80" |
|
160" |
|
|
|
|
Lifting Height, Max. |
63" |
|
137" |
|
|
|
|
Lifting Height, Min. |
|
21⁄8" |
|
Weight Capacity, Max. |
|
2,200 LBS. |
|
|
|
|
|
Overall Length |
|
70" |
|
|
|
|
|
Overall Width |
|
42½ - 54½" |
|
|
|
|
|
Fork Size - Length |
|
42" |
|
|
|
|
|
Fork Size - Width |
|
4" |
|
|
|
|
|
Forks Adjustable Width (Inside Dim.) |
|
1/2 - 20" |
|
|
|
|
|
Forks Adjustable Width (Outside Dim.) |
|
8½ - 28" |
|
|
|
|
|
Straddle Legs (Inside Dim.) |
|
38¾ - 49¾" |
|
|
|
|
|
Straddle Legs (Outside Dim.) |
|
43¾ - 54¾" |
|
|
|
|
|
Straddle Leg Height |
|
5 ⁄ " |
|
|
|
|
|
SAFETY
1.Operator should read all warning signs and instructions here and on the stacker before using it.
2.Do not operate this stacker unless you are familiar with it and have been trained or authorized to do so.
3.This is a manual push truck. Operator must be able to safely move, control and stop a fully loaded unit by themselves.
4.Do not use on uneven ground or in a dangerous environment.
5.Do not lift people with the stacker.
6.When forks are in motion, no one should stand under the forks or pass below the forks.
7.Do not move the stacker unless the forks are 12" or less off the ground.
8.Keep a two-foot distance between the stacker and any person not operating the stacker.
9.The weight of goods should be evenly distributed between the two forks.
10.Do not load over the maximum capacity.
11.Keep the forks in the lowest position when not in use.
12.Locking caster is designed to help prevent rolling when unit is not in use. It is not designed to slow down or stop the unit.
PAGE 1 OF 12 |
0321 IH-2651 |
LOAD CAPACITY
42" FORK |
|
23.6" |
|
27.6" |
|
Load Center |
Height |
<![endif]>HEIGHT
|
H-2651 |
H-2652 |
||
|
|
|
|
|
137.8" |
------- |
------- |
1,760 lbs. |
1,320 lbs. |
|
|
|
|
|
118.1" |
------- |
------- |
1,980 lbs. |
1,760 lbs. |
|
|
|
|
|
98.4" |
------- |
------- |
2,200 lbs. |
1,980 lbs. |
|
|
|
|
|
63.0" |
2,200 lbs. |
2,200 lbs. |
2,200 lbs. |
2,200 lbs. |
|
|
|
|
|
23.6" |
27.6" |
23.6" |
27.6" |
|
|
|
LOAD CENTER |
|
|
CONTROL PANEL
1.Emergency Shut-Off - Press to cut power to all electric control functions, preventing forks from raising and lowering.
NOTE: This will not lock wheels in place.
2.Battery Gauge - Indicates the voltage of the battery. When its voltage is less than 10 volts, do not use the stacker; you must charge it.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
CHARGER |
|
LIFT/LOWER LEVER |
BATTERY GAUGE |
|||
|
|
|
|
|
|
|
|
ON/OFF |
|
EMERGENCY SHUT-OFF |
|||
3.Lift/Lower Lever - The control stick controls the lowering and lifting of the forks.
CHARGING THE BATTERY
1.Charge battery when its voltage is less than 10 volts.
2.Please check the battery liquid before charging; if there is not enough left, add distilled water.
3.The charging location should be ventilated and away from anything combustible.
4.If the stacker is not in use for a long period of time, charge it no less than two hours every week.
5.The voltage of the indicator should not be over 15 volts when charging.
6.Do not use the stacker when charging.
PAGE 2 OF 12 |
0321 IH-2651 |
INSTRUCTIONS
ADJUSTING THE LEGS (SEE FIGURE 1)
1.Unscrew and remove the 4 bolts and washers (1 ⁄ ") in the base of the stacker.
2.Slide the leg to the desired position within the slot of the body.
3.Reinsert the bolts and washers. Tighten.
4.Repeat steps 1 through 3 for the second leg.
ADJUSTING THE FORKS (SEE FIGURE 2)
1.Lift the front of the fork up and slide to the desired position.
2.Gently lower the fork.
3.Repeat steps 1 and 2 for the other fork.
Figure 1 |
Figure 2 |
MAINTENANCE
1.Daily Check and Maintenance - It is necessary to check the stacker daily. Special attention should be paid to the wheels and axles. Material may block the wheels, forks, mast and chains. They should be checked for blockage.
2.Hydraulic Oil - Check the oil level every six months. The hydraulic oil can be ISO VG32, its viscosity should be 32cSt at 104˚F, total volume is about 4 L.
3.Lubrication - Use motor oil or grease to lubricate all movable parts.
PAGE 3 OF 12 |
0321 IH-2651 |
TROUBLESHOOTING
OPERATING ISSUE |
CAUSES |
RECOMMENDATIONS |
|
|
|
The forks do not go up to |
Not enough hydraulic oil. |
Pour in hydraulic oil. |
the maximum height. |
Oil has impurities. |
Change the oil. |
|
||
|
|
|
The motor does not turn |
Emergency Shut-Off is pressed |
Turn it clockwise, switch the power on. |
on. |
down, the power is cut off. |
|
|
The voltage is too low. |
Charge the stacker. |
|
Wire connections have come |
Check and reconnect any loose |
|
loose. |
wires. |
|
Connector to DC motor is bad. |
Replace with a new one. |
|
|
|
The forks do not go down. |
Piston rod or mast is damaged |
Replace with a new one. |
|
resulting from incorrect loading or |
|
|
overloading. |
|
|
Fork was kept in the up position |
Lubricate piston rod. Always keep the |
|
for a long time and the piston rod |
fork in the lowest position when not in |
|
rusted or is jammed. |
use. |
|
Release valve of the pump is not |
Check it. If damaged, replace with a |
|
opened. |
new one. |
|
|
|
Leaks. |
Seals are worn or damaged. |
Replace with a new one. |
|
Piston parts are cracked or worn |
Replace with a new one. |
|
too small. |
|
|
|
|
Forks descend without |
Impurities in the oil caused |
Change the oil. |
engaging the lower lever. |
release valve to not close tightly. |
|
|
Seals are worn out or damaged. |
Replace with a new one. |
|
Release valve is damaged. |
Replace with a new one. |
|
|
|
Battery does not charge. |
Battery is bad. |
Replace with a new one. |
|
Charging plug is loose. |
Check connection and reattach if |
|
|
necessary. |
|
|
|
1-800-295-5510
PAGE 4 OF 12 |
uline.com |
0321 IH-2651 |
