MM100
INSTRUCTION MANUAL
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com
LCD Display Functional Description
1. L o w battery symbol
2. Building material icon
3. Over range indication
4. Buidling material scale
5. Wood scale
6. Wood range icon
Operating Instructions
WARNING!
The electrode pins are very sharp. Keep the cap on the instrument
when not in use and use care when taking measurements.
The MM100 automatically switches on when the protective cap is
removed. To conserve battery life the meter will turn off after 15 minutes. To turn back on either briefly install the protective cap or press on
the yellow switch located between the measurement electrodes.
To measure:
1. Turn the instrument on by removing the protective cap.
2. Press the measurement pins into the material being measured.
• When measuring the moisture in wood, insert the pins across
the grain of the wood and not in line with the grain.
3. Take multiple readings to obtain the best indication of moisture in
the material.
4. Reinstall the protective cap to turn power off.
The display has two scales based on the material being measured. The
left scale is for wood based products such as timber, cardboard or paper,
and the right side is for hardened material such as plaster, concrete and
m o r t a r . The center of the display is the scale with both continuous lines
and dashed lines.
To read the display:
1. Read the wood range of 6 to 44%.
• Solid lines are even values: 6, 8, 10, 12 etc.
• Dashed lines are odd values: 7, 9, 11, 13 etc.
2. Read the building material range of 0.2 to 2.0%.
• Solid lines
are even values: 0.2, 0.4, 0.6, 0.8 etc.
• Dashed lines are odd values: 0.3, 0.5, 0.7, 0.9 etc.
Introduction
The MM100 is used to measure the moisture level in wood, cardboard
and paper as well as in hardened material such as plaster, concrete
and mortar.
Features include
• Range:
• Wood: 6~44%
• Material: 0.2~2.0%
• Accuracy:
• Wood: ±1%
• Material: ±0.05%
• Operating range temperature 32~104˚F (0~40˚C)
• Relative humidity 0~85%
• Replaceable electrodes
• Ruggedized design
• Auto power off
• Battery check test
• Built-in belt clip
Safety Notes
Before using this meter, read all safety information carefully. In
this manual the word "WARNING" is used to indicate conditions
or actions that may pose physical hazards to the user. The word
"CAUTION" is used to indicate conditions or actions that may
damage this instrument.
C o n t rols and Indicators
1. M e a s u r ement pins
2. Reset switch ( p ower off)
3. LCD display
4. Hand grip
5. Measurement test points
6. Battery test points
7. Removable cap ( p owers unit off and contains the test function)
MM100-MAN P. 1
5
7
6
1
2
3
4
6
1
2
3
45
S p e c i f i c a t i o n s

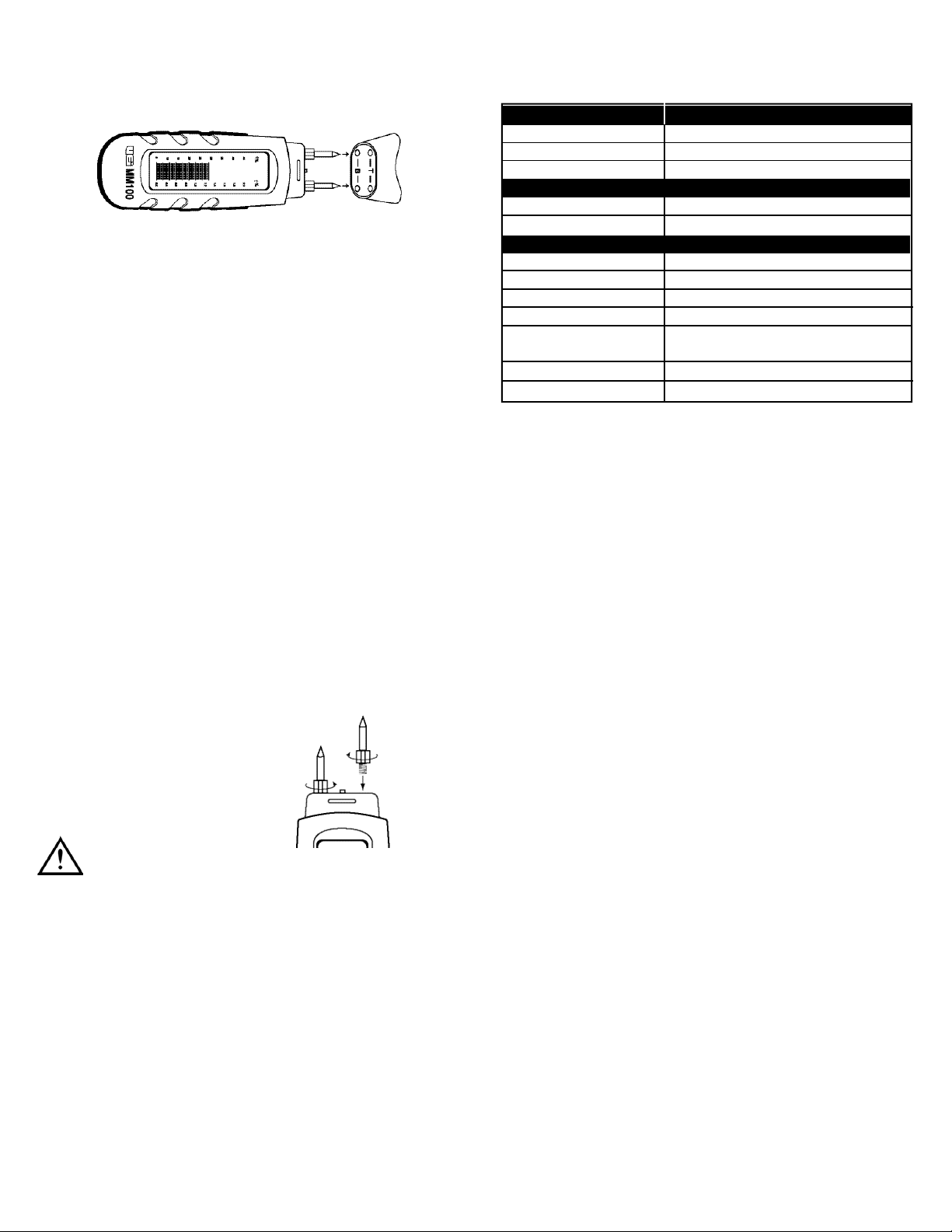

Function Test
The protective cap also includes a measurement and battery verification
test function.
Measurement test:
1. Touch the electrodes to the two test points indicated with
the “--T--”.
2. Verify the display reads 27% ±2% on the wood scale.
• If it is out of this range return for repair
.
Battery test:
1. Touch the electrodes to the two test points indicated with
the “--B--”.
2. Verify the display reads 44%.
• If the display is less than 44% replace the batteries.
M a i n t e n a n c e
These guidelines will help you attain long and reliable service from
your meter:
1. Keep instrument dry.
2. Keep measurement pins clean and protected.
Changing the Electrodes
One set of replacement electrodes are included in the event that the
original set is damaged or worn. To replace simply remove by hand or
use a 5mm open end wrench.
1. Remove protective cap.
2. Remove electrodes.
3. Install new electrodes.
4. Replace protective cap.
WARNING!
Do not over tighten when installing the electrodes.
MM100-MAN P. 2
Measuring principal Electrical resistance
Display LCD bar graph w/dual range for wood/materials
Electrodes Integrated and replaceable
Electrode length 5/16” (8mm)
Measuring range
Wood 6~44%
Material 0.2~2.0%
Accuracy
Wood ±1%
Material ±0.05%
Auto power off After approx 15 minutes
Battery (3) CR2032
Operating range 32˚~104˚F (0˚~40˚C)
0~85% RH
Dimensions 5.5” x 1.9” x 1.0” (139 x 47 x 25 mm)
Weight 0.22 lb (100g)
Limited Warranty
The MM 100 is warranted to be free from defects in materials and workmanship for a period
of one year from the date of purchase. If within the warra n ty period your instrument should
become inoperative from such defects, the unit will be repaired or replaced at UEi’s option.
This warra n ty covers normal use and does not cover damage which occurs in shipment or
failure which results from alteration, tampering, accident, misuse, abuse, neglect or improper
maintenance. Batteries and consequential damage resulting from failed batteries are not
covered by warra n ty.
Any implied warranties, including but not limited to implied warranties of merchantability
and fitness for a particular purpose, are limited to the express warranty. UEi shall not be
liable for loss of use of the instrument or other incidental or consequential damages,
expenses, or economic loss, or for any claim or claims for such damage, expenses or
economic loss. A purchase receipt or other pro
of of original purchase date will be required
before war
ra n ty repairs will be rendered. Instruments out of warra n ty will be repaired (when
r e p a i r able) for a service charge. Return the unit postage paid and insured to:
This warranty gives you specific legal rights. You may also have other rights which vary from
state to state.
MM100
Moisture Meter
Copyright © 2007 UEi MM100-MAN 2/07
