Datasheet

5 GHz airMAX® ac Bridge with RF Isolated Reector

Models: PBE-5AC-300-ISO, PBE-5AC-400-ISO, PBE-5AC-500-ISO

Uniform Beamwidth Maximizes Noise Immunity

Integrated Isolator Design Improves RF Isolation

High-Speed Processor for Superior Performance

Page 2

Overview

Application Examples

PtMP Client Links

Ubiquiti Networks launches the PowerBeam® ac ISO, an airMAX ac Bridge that is ideal for deployments requiring maximum performance and

Datasheet

RF isolation.

Improved Noise Immunity

The PowerBeam ac ISO directs RF energy in a tighter beamwidth, and its integrated isolator design improves

RF isolation to spatially lter out

interference. With its combination of focused beam directivity and RF

isolation, the PowerBeam acISO

blocks noise to improve noise immunity. This is especially important in an area crowded with other RF signals of the same or similar frequency.

Integrated Radio Design

Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses.

The PowerBeam ac ISO used as a CPE device for each client in an airMAX PtMP network.

Wireless Client

PtP Link

Software

Sporting an all-new design for improved usability, airOS® v7 is the revolutionary operating system for Ubiquiti® airMAX ac products.

Powerful Wireless Features

• airMAX ac Protocol Support

• Long-Range Point-to-Point (PtP)

Link Mode

• Selectable Channel Width

• PtP: 10/20/30/40/50/60/80 MHz

• PtMP: 10/20/30/40 MHz

• Automatic Channel Selection

• Transmit Power Control:

Automatic/Manual

• Automatic Distance Selection

(ACK Timing)

• Strongest WPA2 Security

Usability Enhancements

• Dynamic Conguration Changes

• Instant Input Validation

• HTML5 Technology

• Optimization for Mobile Devices

• Detailed Device Statistics

• Comprehensive Array of Diagnostic

Tools, including Ethernet Cabling Test, RF Diagnostics, and airView® Spectrum Analyzer

The PowerBeam ac ISO as a

powerful wirelessclient.

Use a PowerBeam ac ISO on each side of

a PtPlink.

Page 3

Advanced RF Analytics

airMAX ac devices feature a multi-radio architecture to power a revolutionary RF analytics engine.

An independent processor on the PCBA powers a second, dedicated radio, which persistently analyzes the full 5 GHz spectrum and every received symbol to provide you with the most advanced RF analytics in the industry.

Data from the spectrum analysis and RF performance monitoring is displayed on the Main tab and airView Spectrum Analyzer of airOS V7.

Real-Time Reporting

The Main tab displays the following RF information:

• Persistent RF Error Vector

Magnitude (EVM) constellation diagrams

• Carrier to Interference-plus-Noise

Ratio (CINR) histograms

• Signal-to-Noise Ratio (SNR) time

series plots

Multi-Radio Architecture

Datasheet

Constellation Diagrams and CINR Histograms

Spectral Analysis

airView allows you to identify noise signatures and plan your networks to minimize noise interference. airView performs the following functions:

• Constantly monitors environmental

noise

• Collects energy data points in

real-time spectral views

• Helps optimize channel selection,

network design, and wireless performance

airView runs in the background without disabling the wireless link, so there is no disruption to the network.

In airView, there are three spectral views, each of which represents different data.

• Waterfall Aggregate energy

collected for each frequency

• Waveform Aggregate energy

collected

• Ambient Noise Level Background

noise energy shown as a function of frequency

Available with a rmware upgrade to

airOS v7.1, airView provides powerful spectrum analyzer functionality, eliminating the need to rent or purchase additional equipment for conducting site surveys.

SNR Time Series Plots

Dedicated Spectral Analysis

Page 4

Technology

0 50 100 150 200 250 300 350 400 450 Mbps

Packet Prioritization

airMAX ac TDMA Technology

Datasheet

Ubiquiti’s Time Division Multiple Access (TDMA) airMAX protocol

Unlike standard Wi-Fi protocol,

allows each client to send and receive data using pre-designated time

Timeline

slots scheduled by an intelligent AP controller.

This time slot method eliminates

Time Slot 1

Time Slot 2

Time Slot 3

Time Slot 4

hidden node collisions and maximizes

airtime efciency, so airMAX

technology provides performance improvements in latency, noise

Time Slots

Data

VOIP

immunity, scalability, and throughput compared to other outdoor systems in its class.

Up to 100 airMAX ac stations can be connected to an airMAX ac Sector;

fourairMAX ac stations are shown to illustrate the general concept.

Intelligent QoS Priority assigned to voice/video for seamless streaming.

Scalability High capacity and

airMAX Network Scalability

scalability.

Long Distance Capable of high-speed, carrier-class links.

Superior Performance

The next-generation airMAXac

technology boosts the advantages of our proprietary TDMA protocol.

Ubiquiti’s airMAX engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.

Superior Throughput Performance

U-AME-G1-BR4A NKC966.001B 1412 TAIWAN

Throughput Breakthrough

airMAX ac supports high data rates, which require dense modulation:

256QAM – a signicant increase from

64QAM, which is used in airMAX.

With their use of proprietary

airMAXac technology, airMAX ac products supports up to 450+Mbps

real TCP/IP throughput – up to triple the throughput of standard airMAX products.

150+ Mbps

450+ Mbps

Page 5

Model Comparison

Frequency Band 5 GHz 5 GHz 5 GHz

PBE-5AC-300-ISO PBE-5AC-400-ISO PBE-5AC-500-ISO

Antenna Gain 22 dBi 25 dBi 27 dBi

Dish Reector 300 mm 400 mm 500 mm

Hardware Overview

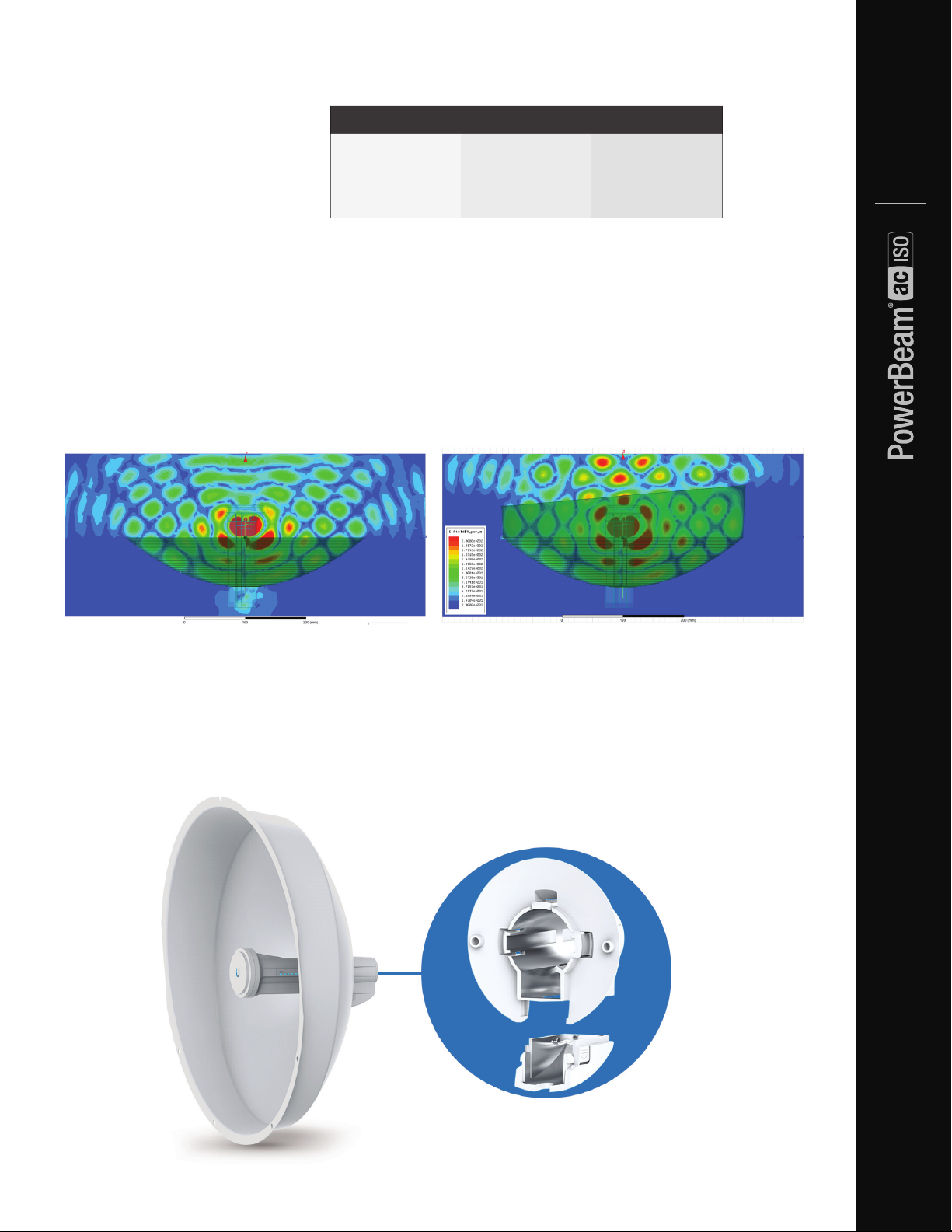

Breakthrough RF Isolation

The integrated isolator design spatially lters out

interference, so the PowerBeam ac ISO delivers improved noise immunity in co-location deployments.

Compare the two near-eld plots below, and note the

superior performance of the integrated RF isolator.

Without Integrated RF Isolator With Integrated RF Isolator

Datasheet

Both near-eld plots are displayed in watts and use a linear scale. The strength of the electromagnetic eld is color-coded:

• Red: Highest strength

• Green: Medium strength

• Indigo: Lowest strength

Innovative Mechanical Design

• Metal-plated interior of rear housing Enhances RF

shielding.

• Built-in mechanical tilt The mounting bracket offers

±20° of tilt.

• Convenient pole-mounting Only a single wrench is

needed to mount the PowerBeam ac ISO on apole.

Industrial-Strength Construction

• Fasteners GEOMET-coated for improved corrosion

resistance when compared with zinc-plated fasteners.

• Dish and brackets Made of galvanized steel that is

powder-coated for superior corrosion resistance.

• Protective radome Shields the radio from nature's

harshestelements.

Metal-Plated Interior of Rear Housing

RF Isolator Integrated into Reector

Page 6

Specications

PBE-5AC-300-ISO

Dimensions 364 x 364 x 276 mm (14.33 x 14.33 x 10.87")

Weight 2.55 kg (5.62 lb)

Datasheet

Power Supply 24V, 0.5A Gigabit PoE

Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)

Supported Voltage Range 20-26VDC

Max. Power Consumption 5.5W

Operating Frequency Worldwide USA: U-NII-1 USA: U-NII-2A USA: U-NII-2C USA: U-NII-3

5150 - 5875 MHz 5150 - 5250 MHz* 5250 - 5350 MHz* 5470 - 5725 MHz* 5725 - 5850 MHz*

Gain 22 dBi

Networking Interface (1) 10/100/1000 EthernetPort

Processor Specs Atheros MIPS 74Kc, 560 MHz

Memory 64 MB DDR2, 16 MB Flash

LEDs (1) Power, (1) LAN, (4) WLAN

Signal Strength LEDs Software-Adjustable to Correspond to Custom RSSI Levels

Channel Sizes PtP Mode PtMP Mode

10/20/30/40/50/60/80 MHz 10/20/30/40 MHz

Max. VSWR 1.5:1

Built-In Mechanical Downtilt ± 20°

Polarization Dual Linear

Enclosure Outdoor UV Stabilized Plastic

Mounting Pole-Mount Kit Included

Wind Loading 300 N @ 200 km/h (67.44 lbf @ 125 mph)

Wind Survivability 200 km/h (125 mph)

ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV

Operating Temperature -40 to 70° C (-40 to 158° F)

Operating Humidity 5 to 95% Noncondensing

Wireless Approvals FCC, IC, CE

RoHS Compliance Yes

Salt Fog Test IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5

Vibration Test IEC 68-2-6

Temperature Shock Test IEC 68-2-14

UV Test IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4

Wind-Driven Rain Test ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5

PBE-5AC-300-ISO Output Power: 25 dBm

TX Power Specications RX Power Specications

Modulation Data Rate Avg. TX Tolerance Modulation Data Rate Sensitivity Tolerance

airMAX ac

1x BPSK (½) 25 dBm ± 2 dB

2x QPSK (½) 25 dBm ± 2 dB 2x QPSK (½) -95 dBm ± 2 dB

2x QPSK (¾) 25 dBm ± 2 dB 2x QPSK (¾) -92 dBm ± 2 dB

4x 16QAM (½) 25 dBm ± 2 dB 4x 16QAM (½) -90 dBm ± 2 dB

4x 16QAM (¾) 25 dBm ± 2 dB 4x 16QAM (¾) -86 dBm ± 2 dB

6x 64QAM (2/3) 25 dBm ± 2 dB 6x 64QAM (2/3) -83 dBm ± 2 dB

6x 64QAM (¾) 24 dBm ± 2 dB 6x 64QAM (¾) -77 dBm ± 2 dB

6x 64QAM (5/6) 23 dBm ± 2 dB 6x 64QAM (5/6) -74 dBm ± 2 dB

8x 256QAM (¾) 21 dBm ± 2 dB 8x 256QAM (¾) -69 dBm ± 2 dB

8x 256QAM (5/6) 21 dBm ± 2 dB 8x 256QAM (5/6) -65 dBm ± 2 dB

* Some frequencies may require activation; visit: https://www.ubnt.com/fcclabelrequest/

airMAX ac

1x BPSK (½) -96 dBm Min. ± 2 dB

Page 7

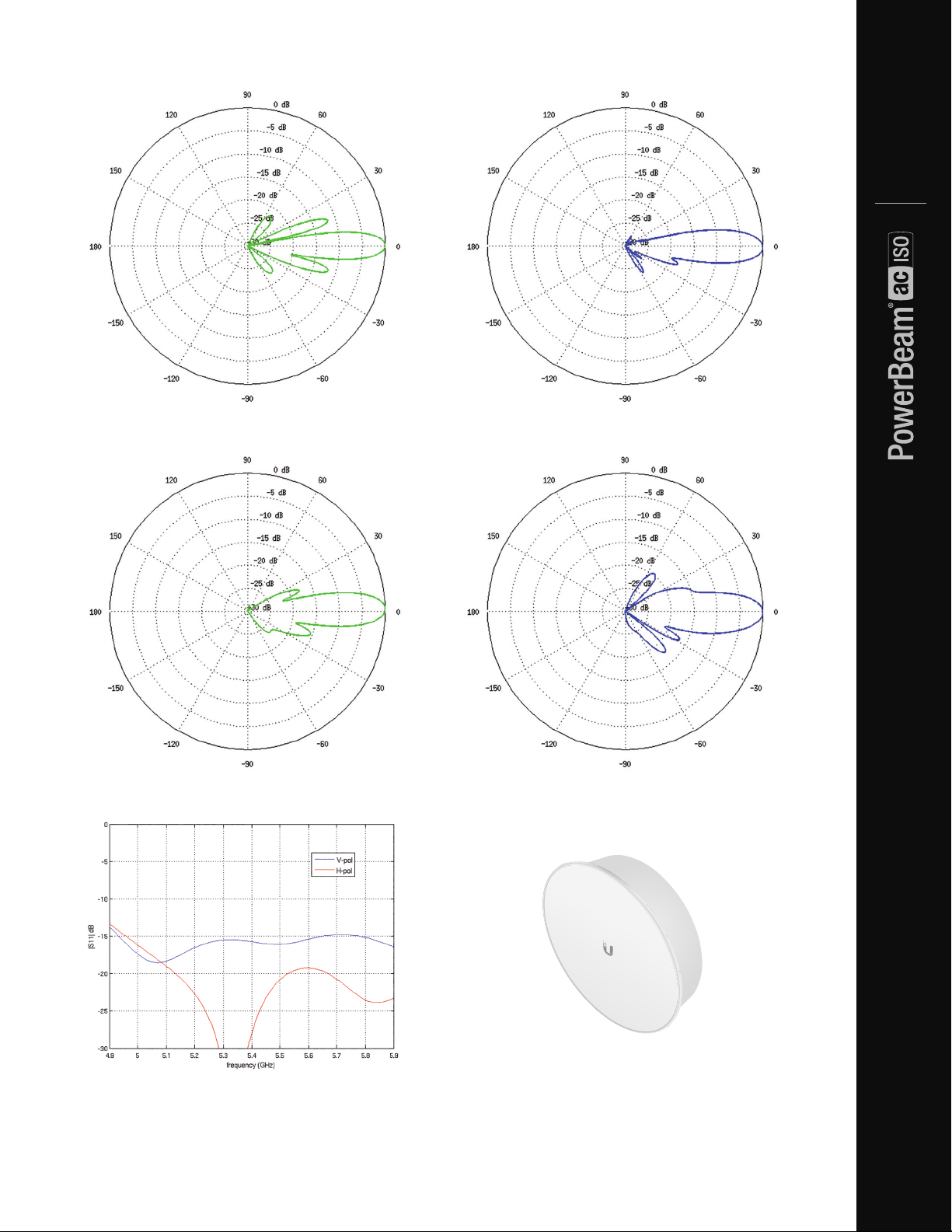

Vertical Azimuth Vertical Elevation

Horizontal Azimuth Horizontal Elevation

Datasheet

Return Loss

Page 8

Specications

PBE-5AC-400-ISO

Dimensions 459 x 459 x 261 mm (18.07 x 18.07 x 10.28")

Weight 3.22 kg (7.10 lb)

Datasheet

Power Supply 24V, 0.5A Gigabit PoE

Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)

Supported Voltage Range 20-26VDC

Max. Power Consumption 8.5W

Operating Frequency Worldwide USA: U-NII-1 USA: U-NII-2A USA: U-NII-2C USA: U-NII-3

5150 - 5875 MHz 5150 - 5250 MHz* 5250 - 5350 MHz* 5470 - 5725 MHz* 5725 - 5850 MHz*

Gain 25 dBi

Networking Interface (1) 10/100/1000 EthernetPort

Processor Specs Atheros MIPS 74Kc, 560 MHz

Memory 64 MB DDR2, 16 MB Flash

LEDs (1) Power, (1) LAN, (4) WLAN

Signal Strength LEDs Software-Adjustable to Correspond to Custom RSSI Levels

Channel Sizes PtP Mode PtMP Mode

10/20/30/40/50/60/80 MHz 10/20/30/40 MHz

Max. VSWR 1.5:1

Built-In Mechanical Downtilt ± 20°

Polarization Dual Linear

Enclosure Outdoor UV Stabilized Plastic

Mounting Pole-Mount Kit Included

Wind Loading 559 N @ 200 km/h (125.7 lbf @ 125 mph)

Wind Survivability 200 km/h (125 mph)

ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV

Operating Temperature -40 to 70° C (-40 to 158° F)

Operating Humidity 5 to 95% Noncondensing

Wireless Approvals FCC, IC, CE

RoHS Compliance Yes

Salt Fog Test IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5

Vibration Test IEC 68-2-6

Temperature Shock Test IEC 68-2-14

UV Test IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4

Wind-Driven Rain Test ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5

PBE-5AC-400-ISO Output Power: 25 dBm

TX Power Specications RX Power Specications

Modulation Data Rate Avg. TX Tolerance Modulation Data Rate Sensitivity Tolerance

airMAX ac

1x BPSK (½) 25 dBm ± 2 dB

2x QPSK (½) 25 dBm ± 2 dB 2x QPSK (½) -95 dBm ± 2 dB

2x QPSK (¾) 25 dBm ± 2 dB 2x QPSK (¾) -92 dBm ± 2 dB

4x 16QAM (½) 25 dBm ± 2 dB 4x 16QAM (½) -90 dBm ± 2 dB

4x 16QAM (¾) 25 dBm ± 2 dB 4x 16QAM (¾) -86 dBm ± 2 dB

6x 64QAM (2/3) 25 dBm ± 2 dB 6x 64QAM (2/3) -83 dBm ± 2 dB

6x 64QAM (¾) 24 dBm ± 2 dB 6x 64QAM (¾) -77 dBm ± 2 dB

6x 64QAM (5/6) 23 dBm ± 2 dB 6x 64QAM (5/6) -74 dBm ± 2 dB

8x 256QAM (¾) 21 dBm ± 2 dB 8x 256QAM (¾) -69 dBm ± 2 dB

8x 256QAM (5/6) 21 dBm ± 2 dB 8x 256QAM (5/6) -65 dBm ± 2 dB

* Some frequencies may require activation; visit: https://www.ubnt.com/fcclabelrequest/

airMAX ac

1x BPSK (½) -96 dBm Min. ± 2 dB

Page 9

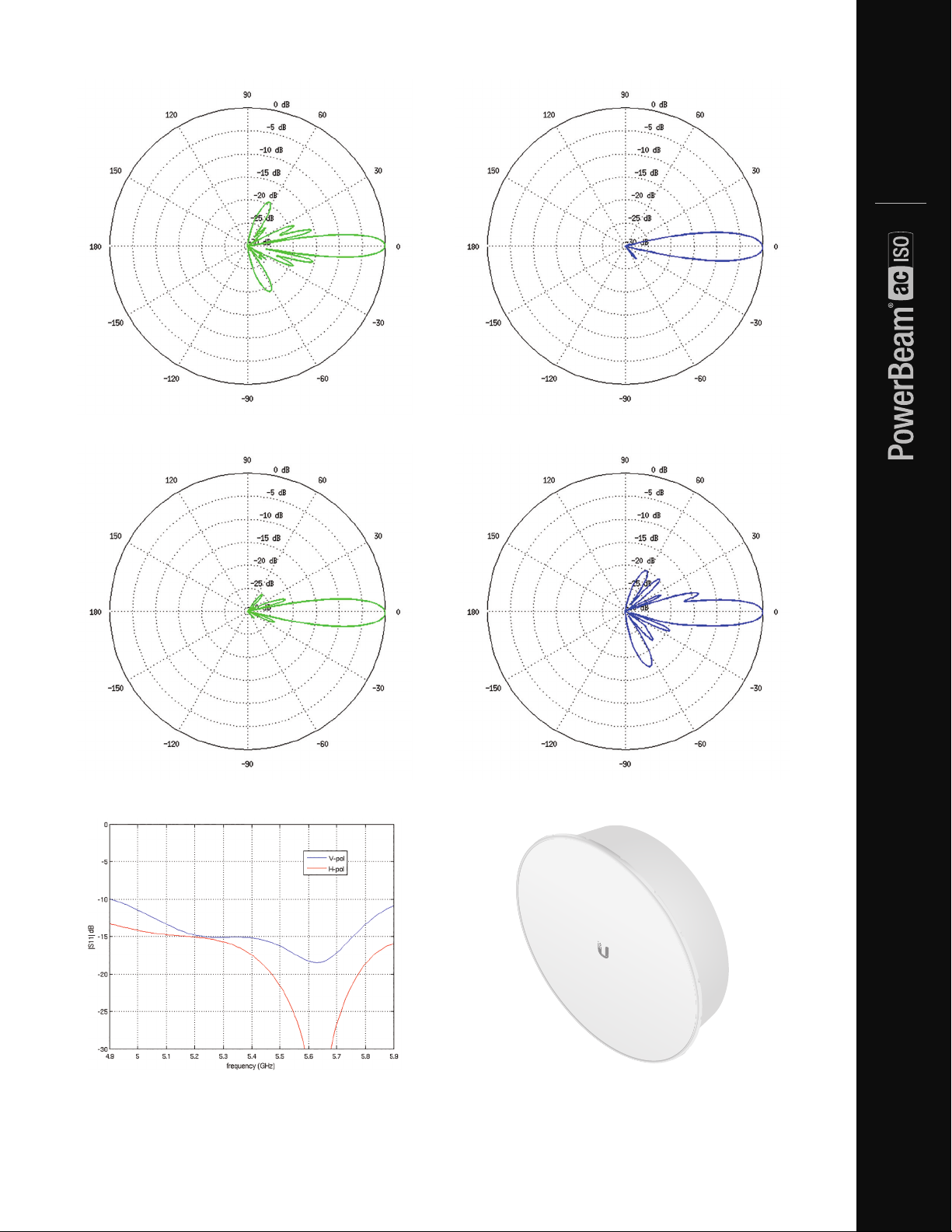

Vertical Azimuth Vertical Elevation

Horizontal Azimuth Horizontal Elevation

Datasheet

Return Loss

Page 10

Specications

PBE-5AC-500-ISO

Dimensions 564 x 564 x 308 mm (22.20 x 22.20 x 12.13")

Weight 5.2 kg (11.5 lb)

Datasheet

Power Supply 24V, 0.5A Gigabit PoE

Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)

Supported Voltage Range 20-26VDC

Max. Power Consumption 8W

Operating Frequency

Gain 27 dBi

Networking Interface (1) 10/100/1000 EthernetPort

Processor Specs Atheros MIPS 74Kc, 720 MHz

Memory 128 MB DDR2, 16 MB Flash

LEDs (1) Power, (1) LAN, (4) WLAN

Signal Strength LEDs Software-Adjustable to Correspond to Custom RSSI Levels

Channel Sizes PtP Mode PtMP Mode

Max. VSWR 1.5:1

Built-In Mechanical Downtilt ± 20°

Polarization Dual Linear

Enclosure Outdoor UV Stabilized Plastic

Mounting Pole-Mount Kit Included

Wind Loading 984 N @ 200 km/h (221.2 lbf @ 125 mph)

Wind Survivability 200 km/h (125 mph)

ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV

Operating Temperature -40 to 70° C (-40 to 158° F)

Operating Humidity 5 to 95% Noncondensing

Wireless Approvals FCC, IC, CE

RoHS Compliance Yes

Salt Fog Test IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5

Vibration Test IEC 68-2-6

Temperature Shock Test IEC 68-2-14

UV Test IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4

Wind-Driven Rain Test ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5

Worldwide USA: U-NII-1 USA: U-NII-2A USA: U-NII-2C USA: U-NII-3

5150 - 5875 MHz 5150 - 5250 MHz* 5250 - 5350 MHz* 5470 - 5725 MHz* 5725 - 5850 MHz*

10/20/30/40/50/60/80 MHz 10/20/30/40 MHz

PBE-5AC-500-ISO Output Power: 22 dBm

TX Power Specications RX Power Specications

Modulation Data Rate Avg. TX Tolerance Modulation Data Rate Sensitivity Tolerance

airMAX ac

1x BPSK (½) 22 dBm ± 2 dB

2x QPSK (½) 22 dBm ± 2 dB 2x QPSK (½) -95 dBm ± 2 dB

2x QPSK (¾) 22 dBm ± 2 dB 2x QPSK (¾) -92 dBm ± 2 dB

4x 16QAM (½) 22 dBm ± 2 dB 4x 16QAM (½) -90 dBm ± 2 dB

4x 16QAM (¾) 22 dBm ± 2 dB 4x 16QAM (¾) -86 dBm ± 2 dB

6x 64QAM (2/3) 22 dBm ± 2 dB 6x 64QAM (2/3) -83 dBm ± 2 dB

6x 64QAM (¾) 21 dBm ± 2 dB 6x 64QAM (¾) -77 dBm ± 2 dB

6x 64QAM (5/6) 20 dBm ± 2 dB 6x 64QAM (5/6) -74 dBm ± 2 dB

8x 256QAM (¾) 18 dBm ± 2 dB 8x 256QAM (¾) -69 dBm ± 2 dB

8x 256QAM (5/6) 18 dBm ± 2 dB 8x 256QAM (5/6) -65 dBm ± 2 dB

* Some frequencies may require activation; visit: https://www.ubnt.com/fcclabelrequest/

airMAX ac

1x BPSK (½) -96 dBm ± 2 dB

Page 11

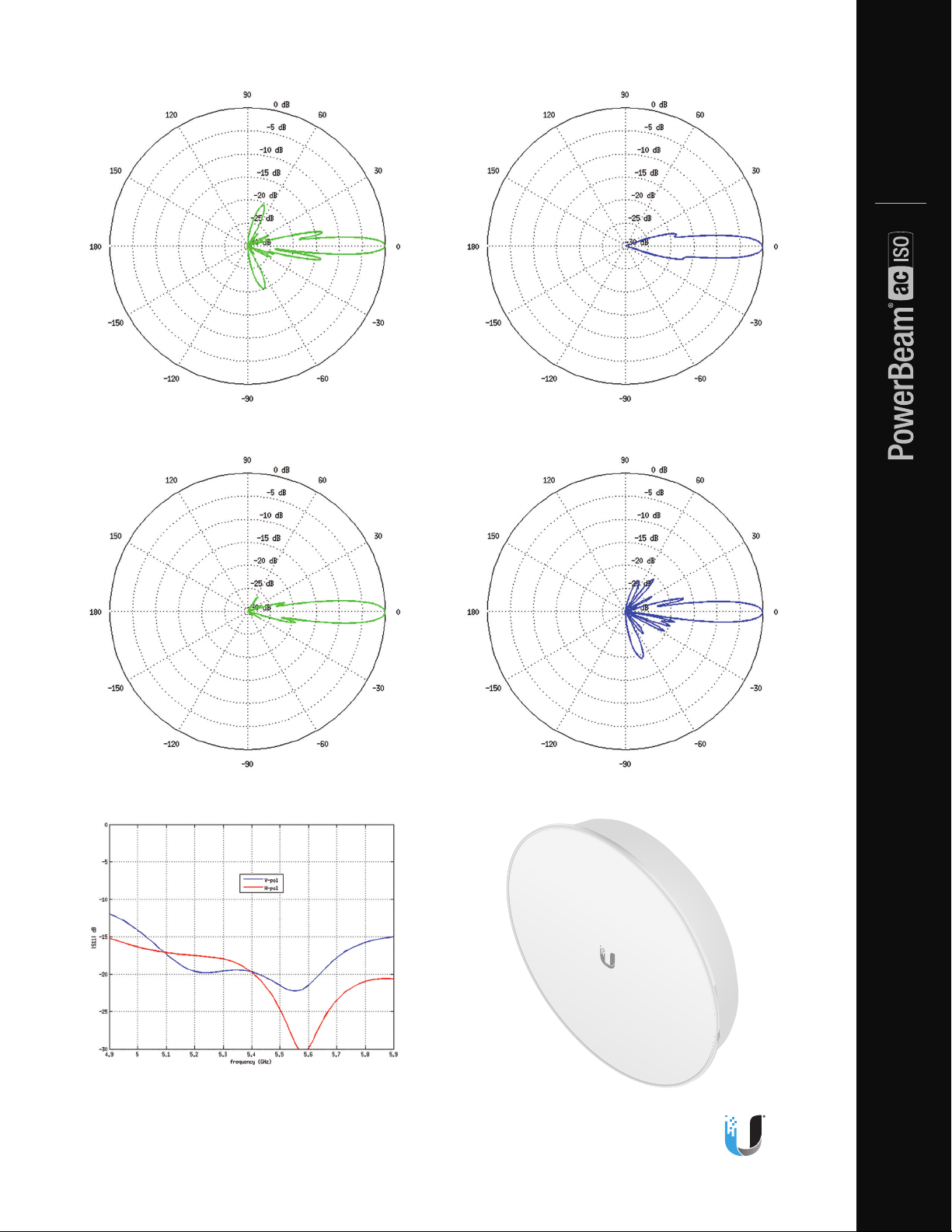

Vertical Azimuth Vertical Elevation

Horizontal Azimuth Horizontal Elevation

Datasheet

Return Loss

Specications are subject to change. Ubiquiti products are sold with a limited warranty described at: www.ubnt.com/support/warranty ©2015 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, UbiquitiNetworks, the Ubiquiti U logo, the Ubiquiti beam logo, airMAX, airOS, airView,

InnerFeed, and PowerBeam are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries. All other trademarks are the property of their respective owners.

www.ubnt.com

JL121715
