Page 1

Datasheet

5 GHz airMAX® AC Radio

Models: NS-5AC, Loco5AC

Ubiquiti® airMAX AC Processor

Up to 450+ Mbps Real TCP/IP Throughput

Dedicated Wi-Fi Radio for Management

Page 2

DATASHEET

Overview

Ubiquiti Networks set the bar

for the world's rst low-cost and efcient broadband Customer Premises Equipment (CPE) with the NanoStation® M.

The NanoStation AC and NanoStation AC loco take the same concept to the future with sleek form factors, along with integrated airMAX (MIMO TDMA protocol) technology and dedicated Wi-Fi management.

The radio and antenna are combined to create a more efcient and compact CPE. The NanoStation AC and NanoStation AC loco get maximum gain out of the smallest footprint.

The low cost, high performance, and small form factor of the NanoStation AC and NanoStation AC loco make them extremely versatile and economical todeploy.

Software

PtMP Client Links

NanoStation AC devices used as powerful clients in an airMAX PtMP

(Point-to-Multi-Point) network setup.

PtP Link

airOS® 8 is the revolutionary operating system for Ubiquiti airMAX ac products.

Powerful Wireless Features

• Access Point PtMP airMAX Mixed

Mode

• airMAX ac Protocol Support

• Long-Range Point-to-Point (PtP)

Link Mode

• Selectable Channel Width

• PtP: 10/20/30/40/50/60/80 MHz

• PtMP: 10/20/30/40 MHz

• Automatic Channel Selection

• Transmit Power Control:

Automatic/Manual

• Automatic Distance Selection

(ACK Timing)

• Strongest WPA2 Security

Usability Enhancements

• airMagic® Channel Selection Tool

• Dynamic Conguration Changes

• Instant Input Validation

• HTML5 Technology

• Optimization for Mobile Devices

• Detailed Device Statistics

• Comprehensive Array of Diagnostic

Tools, including RF Diagnostics and airView® Spectrum Analyzer

Use two NanoStation AC radios to create a PtP link.

Page 3

Advanced RF Analytics

airMAX ac devices feature a multi-radio architecture to power a revolutionary RF analytics engine.

An independent processor on the PCBA powers a second, dedicated radio, which persistently analyzes the full 5 GHz spectrum and every received symbol to provide you with the most advanced RF analytics in the industry.

Real-Time Reporting

airOS 8 displays the following RF information:

• Persistent RF Error Vector

Magnitude (EVM) constellation diagrams

• Signal, Noise, and Interference (SNI)

diagrams

• Carrier to Interference-plus-Noise

Ratio (CINR) histograms

Spectral Analysis

airView allows you to identify noise signatures and plan your networks to minimize noise interference. airView performs the following functions:

• Constantly monitors environmental

noise

• Collects energy data points in

real-time spectral views

• Helps optimize channel selection,

network design, and wireless performance

airView runs in the background without disabling the wireless link, so there is no disruption to the network.

Multi-Radio Architecture

DATASHEET

Constellation Diagrams

SNI Diagram and CINR Histogram

Dedicated Spectral Analysis

In airView, there are three spectral views, each of which represents different data: waveform, waterfall, and ambient noise level.

airView provides powerful spectrum analyzer functionality, eliminating the need to rent or purchase additional equipment for conducting site surveys.

UNMS App

The NanoStation AC and NanoStation AC loco both integrate a separate Wi-Fi radio for fast and easy setup using your mobile device.

Accessing airOS via Wi-Fi

The UNMS™ app provides instant accessibility to the airOS conguration interface and can be downloaded from the AppStore® (iOS) or Google Play™ (Android). UNMS allows you to set up, congure, and manage your device, and offers various conguration options once you're connected or logged in.

UNMS Conguration Screen

Page 4

Technology

Packet Prioritization

0 50 100 150 200 250 300 350 400 450 Mbps

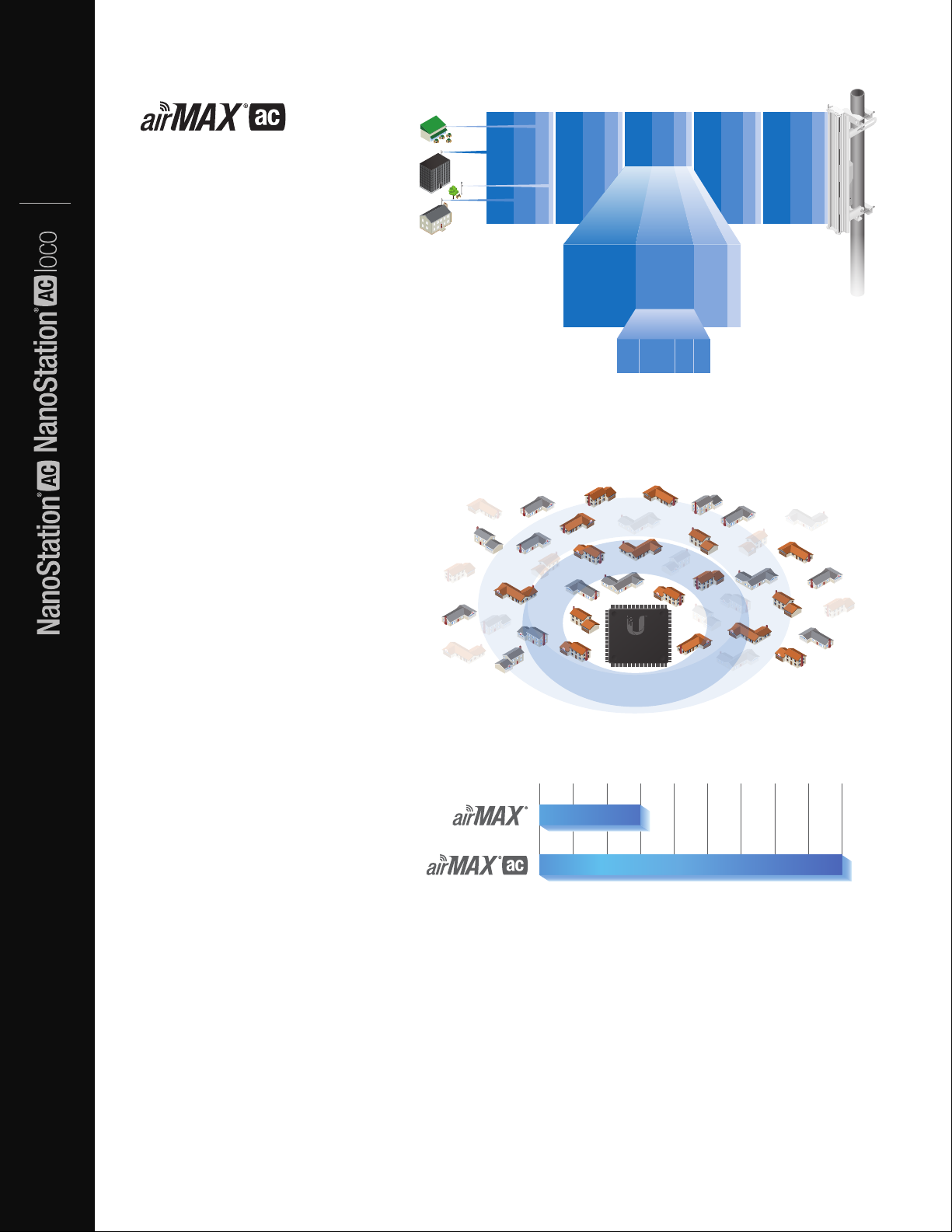

airMAX ac TDMA Technology

DATASHEET

Unlike standard Wi-Fi protocol, Ubiquiti’s Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.

This time slot method eliminates hidden node collisions and maximizes airtime efciency, so airMAX technology provides performance improvements in latency, noise immunity, scalability, and throughput compared to other outdoor systems in its class.

Intelligent QoS Priority assigned to voice/video for seamless streaming.

Scalability High capacity and scalability.

Long Distance Capable of high-speed, carrier-class links.

Superior Performance

The next-generation airMAXac technology boosts the advantages of our proprietary TDMA protocol.

Ubiquiti’s airMAX engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.

Timeline

Time Slot 1

Time Slots

VOIP

Time Slot 2

Data

VOIP

Time Slot 3

Time Slot 4

Up to 100 airMAX ac stations can be connected to an airMAX ac Sector; fourairMAX

ac stations are shown to illustrate the general concept.

airMAX Network Scalability

U-AME-G1-BR4A NKC966.001B 1412 TAIWAN

Superior Throughput Performance

Throughput Breakthrough

150+ Mbps

airMAX ac supports high data rates, which require dense modulation: 256QAM – a signicant increase from 64QAM, which is used in airMAX.

With their use of proprietary airMAXac technology, airMAX ac products supports up to 450+Mbps real TCP/IP throughput – up to triple the throughput of standard airMAX products.

150+ Mbps

450+ Mbps

Page 5

Hardware Overview

The NanoStation AC and NanoStation AC loco feature airMAX technology and a dedicated Wi-Fi radio for management.

• Versatile Mounting Both models are suitable for indoor

and outdoor installations

• Improved Surge Protection The NanoStation AC and

NanoStation AC loco utilize the latest ESD Protection to help protect against power surges.

• Efcient Footprint The radio and antenna are combined

into a single body that takes up minimal space.

• Quick Installation No fasteners are required for

pole-mounting, and a single wall fastener (not included) is required for wall-mounting (NS-5AC only).

DATASHEET

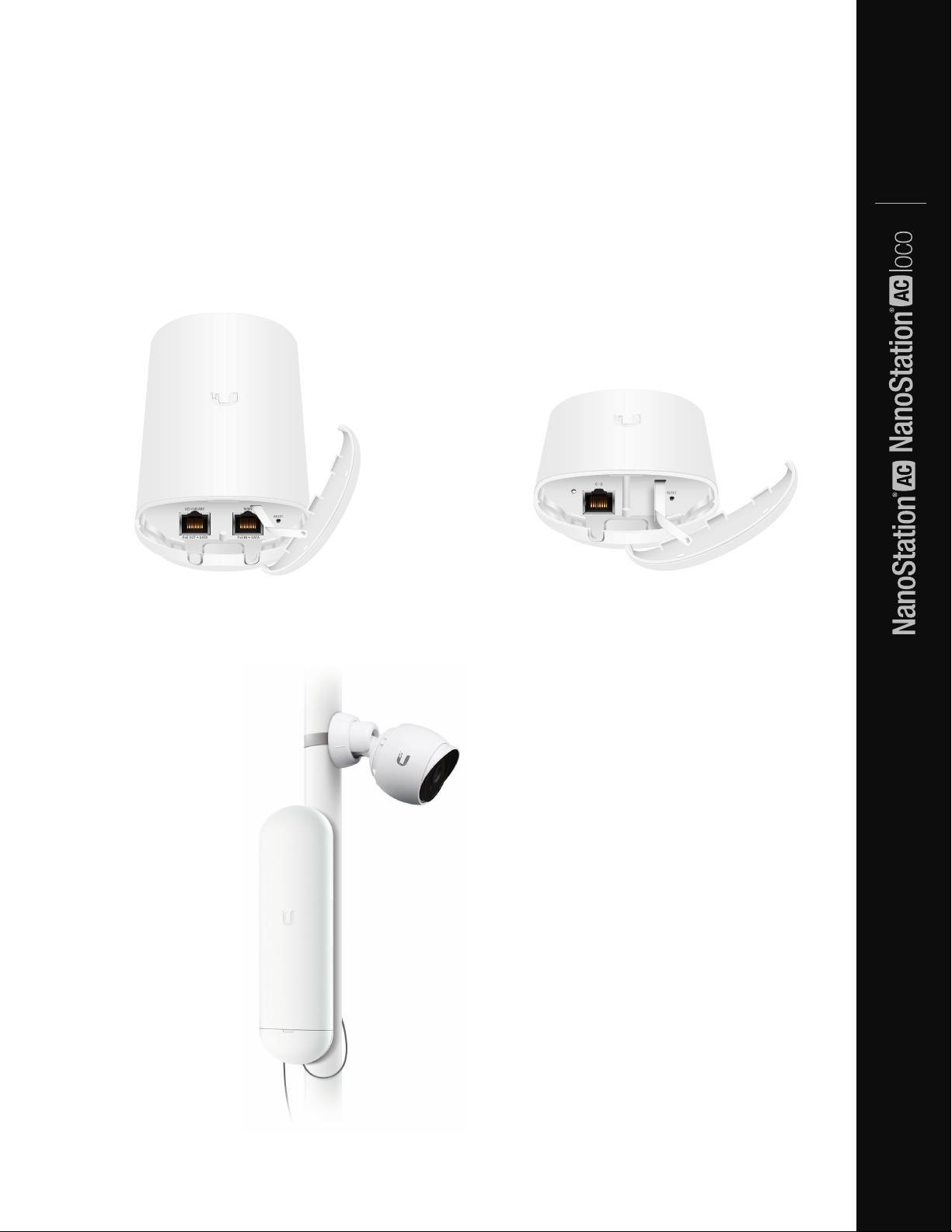

NS-5AC Port View Loco5AC Port View

The NanoStation AC (NS-5AC) provides a secondary Ethernet port with software-enabled PoE. Use this port to conveniently power an external device, such as a PoE security camera, for seamless IP video integration.

NS-5AC Powering a UVC-G3

Page 6

DATASHEET

Specications

NS-5AC

Dimensions

With Mount Without Mount

Weight 233 g (8.22) oz

Power Supply 24V, 0.5A Gigabit PoE Supply (Included)

Max. Power Consumption 9W

Power Method 802.3af Alternative A (Pairs 1, 2+; 3, 6 Return)

Gain 16 dBi

Networking Interface (2) 10/100/1000 Mbps Ethernet Ports

Channel Bandwidths 10/20/30/40/50/60/80 MHz

Processor Specs Atheros MIPS 74Kc, 560 MHz

Memory 64 MB DDR2

Cross-pol Isolation 20 dB Minimum

Max. VSWR 1.6:1

Beamwidth 45° (H-pol) / 45° (V-pol) / 45° (Elevation)

Polarization Dual Linear

Enclosure UV Resistant Polycarbonate

LEDs (1) Power, Eth1, Eth2; (1) Signal Strength

Mounting Pole-Mount (Kit Included)

Operating Temperature -40 to 70° C (-40 to 158° F)

Operating Humidity 5 to 95% Noncondensing

RoHS Compliance Yes

ESD/EMP Protection ±24kV Contact/Air

Shock & Vibration ETSI300-019-1.4

Certications CE, FCC, IC

257 x 84 x 41 mm (10.12 x 3.31 x 1.61") 257 x 84 x 30 mm (10.12 x 3.31 x 1.18")

24V Passive PoE (Pairs 4, 5+; 7, 8 Return)

Operating Frequency (MHz)

Worldwide 5150 - 5875

USA U-NII-1:

5150 - 5250

U-NII-2A:

5250 - 5350 MHz

U-NII-2C:

5470 - 5725 MHz

U-NII-3:

5725 - 5850

Management Radio (MHz)

Worldwide 2412 - 2472

USA 2412 - 2462

Output Power: 25 dBm

5 GHz TX Power Specications 5 GHz RX Power Specications

Modulation Data Rate Avg. TX Tolerance Modulation Data Rate Sensitivity Tolerance

airMAX ac

1x BPSK (½) 25 dBm ± 2 dB

2x QPSK (½) 25 dBm ± 2 dB 2x QPSK (½) -95 dBm ± 2 dB

2x QPSK (¾) 25 dBm ± 2 dB 2x QPSK (¾) -92 dBm ± 2 dB

4x 16QAM (½) 25 dBm ± 2 dB 4x 16QAM (½) -90 dBm ± 2 dB

4x 16QAM (¾) 25 dBm ± 2 dB 4x 16QAM (¾) -86 dBm ± 2 dB

6x 64QAM (2/3) 25 dBm ± 2 dB 6x 64QAM (2/3) -83 dBm ± 2 dB

6x 64QAM (¾) 24 dBm ± 2 dB 6x 64QAM (¾) -77 dBm ± 2 dB

6x 64QAM (5/6) 23 dBm ± 2 dB 6x 64QAM (5/6) -74 dBm ± 2 dB

8x 256QAM (¾) 21 dBm ± 2 dB 8x 256QAM (¾) -69 dBm ± 2 dB

8x 256QAM (5/6) 21 dBm ± 2 dB 8x 256QAM (5/6) -65 dBm ± 2 dB

airMAX ac

1x BPSK (½) -96 dBm ± 2 dB

Page 7

Vertical Azimuth Vertical Elevation

Horizontal Azimuth Horizontal Elevation

DATASHEET

Return Loss

Page 8

DATASHEET

Specications

Loco5AC

Dimensions 179 x 77.5 x 59.1 mm (7.05 x 3.05 x 2.33")

Weight 180 g (6.35 oz)

Power Supply 24V, 0.3A Gigabit PoE Supply*

Max. Power Consumption 7W

Power Method Passive PoE 2-Pair (Pairs 4, 5+; 7, 8 Return)

Gain 13 dBi

Networking Interface 10/100/1000 Mbps Ethernet Port

Channel Bandwidths 10/20/30/40/50/60/80 MHz

Processor Specs Atheros MIPS 74Kc, 560 MHz

Memory 64 MB DDR2

Cross-pol Isolation 20 dB Minimum

Max. VSWR 1.8:1

Beamwidth 45° (H-pol) / 45° (V-pol) / 45° (Elevation)

Polarization Dual Linear

Enclosure Outdoor UV Stabilized Plastic

LEDs (1) Power

Mounting Pole-Mount (Kit Included)

Operating Temperature -40 to 70° C (-40 to 158° F)

Operating Humidity 5 to 95% Noncondensing

RoHS Compliance Yes

ESD/EMP Protection ±24kV Contact/Air

Shock & Vibration ETSI300-019-1.4

Certications CE, FCC, IC

* Not included. Recommended PoE Adapter: POE-24-12W-G.

Operating Frequency (MHz)

Worldwide 5150 - 5875

USA U-NII-1:

5150 - 5250

U-NII-2A:

5250 - 5350 MHz

U-NII-2C:

5470 - 5725 MHz

U-NII-3:

5725 - 5850

Management Radio (MHz)

Worldwide 2412 - 2472

USA 2412 - 2462

Output Power: 25 dBm

5 GHz TX Power Specications 5 GHz RX Power Specications

Modulation Data Rate Avg. TX Tolerance Modulation Data Rate Sensitivity Tolerance

airMAX ac

1x BPSK (½) 25 dBm ± 2 dB

2x QPSK (½) 25 dBm ± 2 dB 2x QPSK (½) -95 dBm ± 2 dB

2x QPSK (¾) 25 dBm ± 2 dB 2x QPSK (¾) -92 dBm ± 2 dB

4x 16QAM (½) 25 dBm ± 2 dB 4x 16QAM (½) -90 dBm ± 2 dB

4x 16QAM (¾) 25 dBm ± 2 dB 4x 16QAM (¾) -86 dBm ± 2 dB

6x 64QAM (2/3) 25 dBm ± 2 dB 6x 64QAM (2/3) -83 dBm ± 2 dB

6x 64QAM (¾) 24 dBm ± 2 dB 6x 64QAM (¾) -77 dBm ± 2 dB

6x 64QAM (5/6) 23 dBm ± 2 dB 6x 64QAM (5/6) -74 dBm ± 2 dB

8x 256QAM (¾) 21 dBm ± 2 dB 8x 256QAM (¾) -69 dBm ± 2 dB

8x 256QAM (5/6) 21 dBm ± 2 dB 8x 256QAM (5/6) -65 dBm ± 2 dB

airMAX ac

1x BPSK (½) -96 dBm ± 2 dB

Page 9

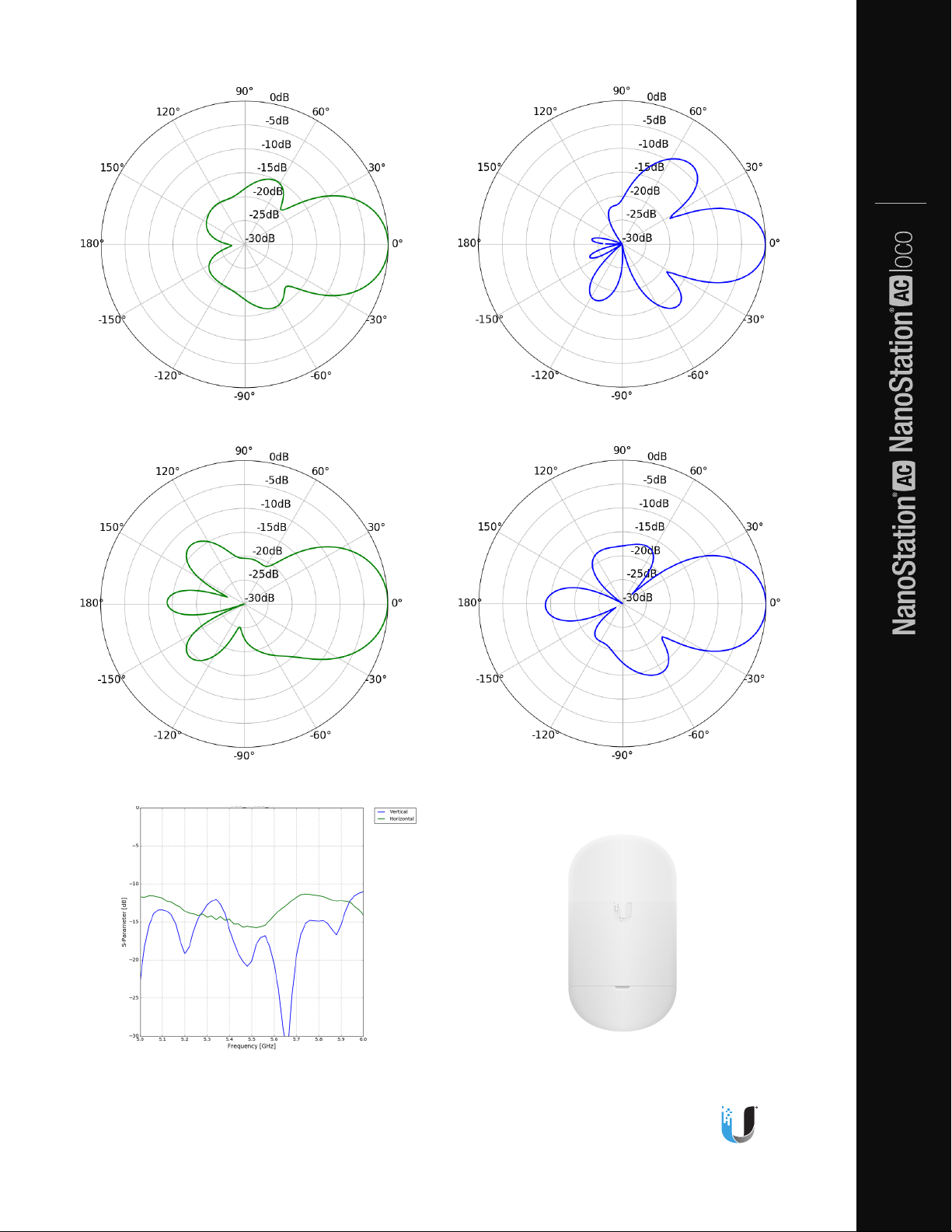

Vertical Azimuth Vertical Elevation

Horizontal Azimuth Horizontal Elevation

DATASHEET

Return Loss

Specications are subject to change. Ubiquiti products are sold with a limited warranty described at: www.ubnt.com/support/warranty The limited warranty requires the use of arbitration to resolve disputes on an individual basis, and, where applicable, specify arbitration instead of jur y trials or class actions. ©2017-2019 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, UbiquitiNetworks, the Ubiquiti U logo, airFiber, airMagic, airMAX, airOS, airView, NanoStation, and UNMS are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries. Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc. Android, Google, Google Play, the Google Play logo and other marks are trademarks of Google LLC. All other trademarks are the propert y of their respective owners. All other trademarks are the property of their respective owners.
