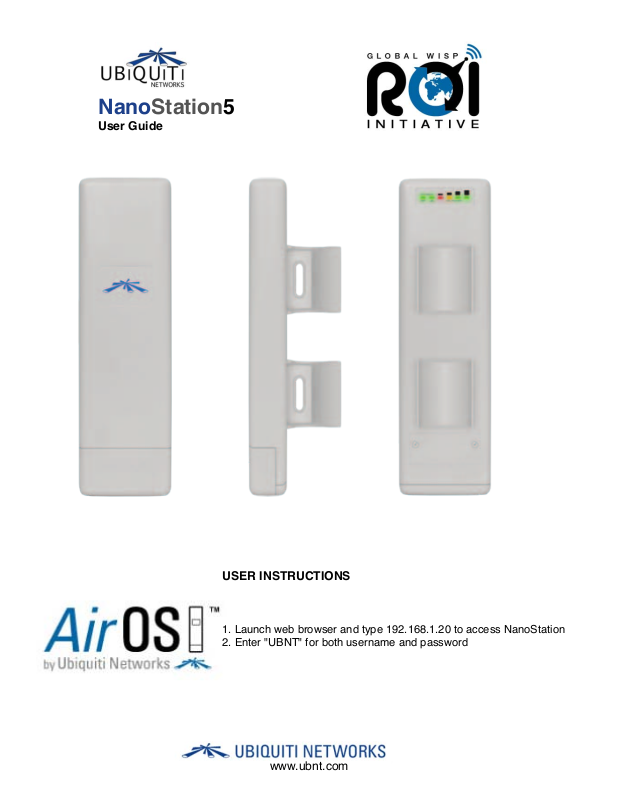

NanoStation5
User Guide
USER INSTRUCTIONS
1. Launch web browser and type 192.168.1.20 to access NanoStation
2. Enter "UBNT" for both username and password
Page 2
www.ubnt.com
TECHNICAL SPECIFICATIONS
DataRate Avg.Power Tolerance DataRate Sensitivity Tolerance
6Mbps 24 dBm +/-1.5dB 6Mbps -94 dBm +/-1.5dB
9Mbps 24 dBm +/-1.5dB 9Mbps -93 dBm +/-1.5dB
12Mbps 24 dBm +/-1.5dB 12Mbps -91 dBm +/-1.5dB
18Mbps 24 dBm +/-1.5dB 18Mbps -90 dBm +/-1.5dB
24Mbps 26 dBm +/-1.5dB 24Mbps -86 dBm +/-1.5dB
36Mbps 22 dBm +/-1.5dB 36Mbps -83 dBm +/-1.5dB
48Mbps 21 dBm +/-1.5dB 48Mbps -77 dBm +/-1.5dB
54Mbps 19 dBm +/-1.5dB 54Mbps -74 dBm +/-1.5dB
802.11a OFDM
802.11a OFDM
RANGE PERFORMANCE
TX SPECIFICATIONS
RX SPECIFICATIONS
ANTENNA
Outdoor (BaseStation Antenna Dependent):
Over 10km
Wireless Modular Approvals
FCC Part 15.247, IC RS210, CE
RADIO OPERATING FREQUENCY 5.475-5.825GHz
SYSTEM INFORMATION
Processor Specs
Atheros AR2313 SOC, MIPS 4KC, 180MHz
Memory Information
16MB SDRAM, 4MB Flash
Networking Interface
10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface
Gain
14dBi
RoHS Compliance
YES
REGULATORY / COMPLIANCE INFORMATION
Multi-Polarized
VSWR
1.4:1
Polarization Selection
Software Controlled
Front to Back Ratio
30dB+
Polarization
3dB Beamwidth Azimuth
55 degrees
3dB Beamwidth Elevation
18 degrees
12V, 1A (12 Watts). Supply and injector included
Operating Temperature
-20C to +70C
Operating Humidity
5 to 95% Condensing
Shock and Vibration
Power Supply
Azimuth
Elevation
PHYSICAL / ELECTRICAL / ENVIRONMENTAL
Enclosure Size
26.4 cm x 8 cm x 3cm
Weight
0.4kg
ETSI300-019-1.4
Enclosure Characteristics
Outdoor UV Stabalized Plastic
Mounting Kit
Pole Mounting Kit included
Power Method
Passive Power over Ethernet (pairs 4,5+; 7,8 return)
Max Power Consumption
5 Watts
Page 3
www.ubnt.com
NOTE: This equipment has been tested and found
to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules.
These limits are designed to pro-vide reasonable
protection against harmful interference when the
equipment is operated in a commercial
environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not
installed and used in accordance with the
instruction manual, may cause harmful
interference to radio communications. Operation
of this equipment in a residential area is likely to
cause harmful interference in which case the user
will be required to correct the interference at his
own expense.
!
Changes or modifications not expressly approved
by the party responsible for compliance could void
the user’s authority to operate the equipment.

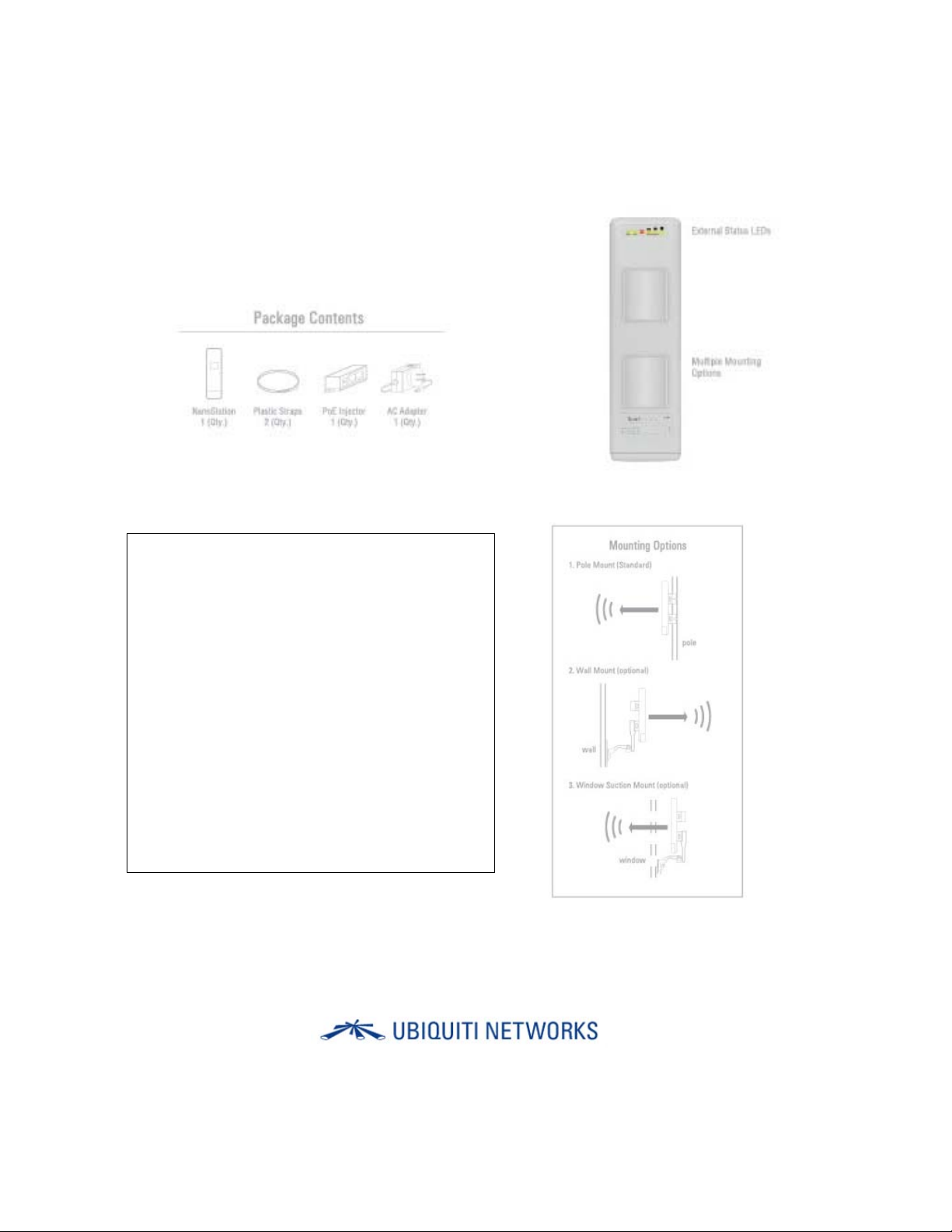

ADDITIONAL INFORMATION AND COMPLIANCE
This is a Point-to-Point CPE Wireless Device.
