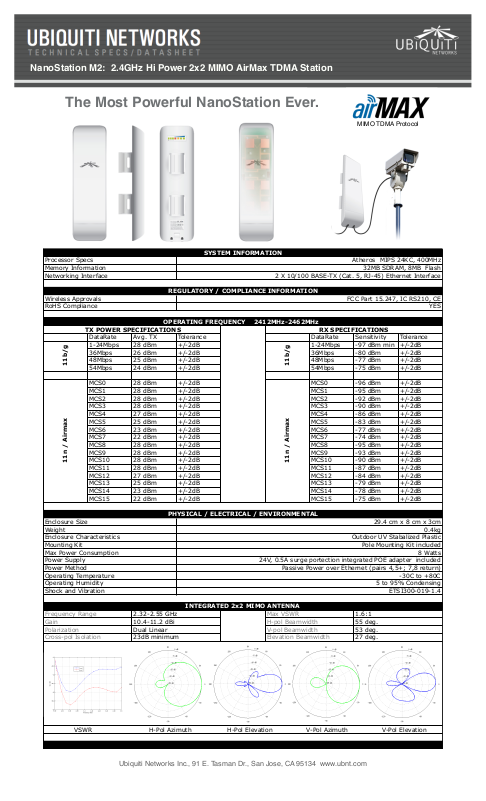

NanoStation M2: 2.4GHz Hi Power 2x2 MIMO AirMax TDMA Station
The Most Powerful NanoStation Ever.
MIMO TDMA Protocol
|
SYSTEM INFORMATION |
|
|
Processor Specs |
Atheros MIPS 24KC, 400MHz |
Memory Information |
32MB SDRAM, 8MB Flash |
Networking Interface |
2 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface |
REGULATORY / COMPLIANCE INFORMATION
Wireless Approvals |
|
|
|
|
|
|
FCC Part 15.247, IC RS210, CE |
|||||
RoHS Compliance |
|
|
|
|
|
|
|
|
|
YES |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
OPERATING FREQUENCY 2412MHz-2462MHz |
|
|
|
||||||
TX POWER SPECIFICATIONS |
|
|
|
RX SPECIFICATIONS |
|
|||||||
|
|
DataRate |
Avg. TX |
|
Tolerance |
|
|
|
DataRate |
|
Sensitivity |
Tolerance |
11b/g |
|
1-24Mbps |
28 dBm |
|
+/-2dB |
|
11b/g |
|
1-24Mbps |
|
-97 dBm min |
+/-2dB |
|
36Mbps |
26 dBm |
|
+/-2dB |
|
|
36Mbps |
|
-80 dBm |
+/-2dB |
||
|
48Mbps |
25 dBm |
|
+/-2dB |
|
|
48Mbps |
|
-77 dBm |
+/-2dB |
||
|
54Mbps |
24 dBm |
|
+/-2dB |
|
|
54Mbps |
|
-75 dBm |
+/-2dB |
||
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
MCS0 |
28 dBm |
|
+/-2dB |
|
|
|
MCS0 |
|
-96 dBm |
+/-2dB |
|
|
MCS1 |
28 dBm |
|
+/-2dB |
|
|
|
MCS1 |
|
-95 dBm |
+/-2dB |
|
|
MCS2 |
28 dBm |
|
+/-2dB |
|
|
|
MCS2 |
|
-92 dBm |
+/-2dB |
|
|
MCS3 |
28 dBm |
|
+/-2dB |
|
|
|
MCS3 |
|
-90 dBm |
+/-2dB |
/ Airmax |
|
MCS4 |
27 dBm |
|
+/-2dB |
|
/ Airmax |
|
MCS4 |
|
-86 dBm |
+/-2dB |
|
MCS5 |
25 dBm |
|
+/-2dB |
|
|
MCS5 |
|
-83 dBm |
+/-2dB |
||
|
MCS6 |
23 dBm |
|
+/-2dB |
|
|
MCS6 |
|
-77 dBm |
+/-2dB |
||
|
MCS7 |
22 dBm |
|
+/-2dB |
|
|
MCS7 |
|
-74 dBm |
+/-2dB |
||
|
MCS8 |
28 dBm |
|
+/-2dB |
|
|
MCS8 |
|
-95 dBm |
+/-2dB |
||
11n |
|
MCS9 |
28 dBm |
|
+/-2dB |
|
11n |
|
MCS9 |
|
-93 dBm |
+/-2dB |
|
MCS10 |
28 dBm |
|
+/-2dB |
|
|
MCS10 |
|
-90 dBm |
+/-2dB |
||
|
|
MCS11 |
28 dBm |
|
+/-2dB |
|
|
|
MCS11 |
|
-87 dBm |
+/-2dB |
|
|
MCS12 |
27 dBm |
|
+/-2dB |
|
|
|
MCS12 |
|
-84 dBm |
+/-2dB |
|
|
MCS13 |
25 dBm |
|
+/-2dB |
|
|
|
MCS13 |
|
-79 dBm |
+/-2dB |
|
|
MCS14 |
23 dBm |
|
+/-2dB |
|
|
|
MCS14 |
|
-78 dBm |
+/-2dB |
|
|
MCS15 |
22 dBm |
|
+/-2dB |
|
|
|
MCS15 |
|
-75 dBm |
+/-2dB |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
PHYSICAL / ELECTRICAL / ENVIRONMENTAL |
|
|
|
||||||
Enclosure Size |
|
|
|
|
|
|
|
|
|
29.4 cm x 8 cm x 3cm |
||
Weight |
|
|
|
|
|
|
|
|
|
|
0.4kg |
|
Enclosure Characteristics |
|
|
|
|
|
|
|
Outdoor UV Stabalized Plastic |
||||
Mounting Kit |
|
|
|
|
|
|
|
|
|
Pole Mounting Kit included |
||
Max Power Consumption |
|
|
|
|
|
|
|
|
|
8 Watts |
||
Power Supply |
|
|
|
|
24V, 0.5A surge portection integrated POE adapter included |
|||||||
Power Method |
|
|
|
|
|
Passive Power over Ethernet (pairs 4,5+; 7,8 return) |
||||||
Operating Temperature |
|
|
|
|
|
|
|
|
|
-30C to +80C |
||
Operating Humidity |
|
|
|
|
|
|
|
|
5 to 95% Condensing |
|||
Shock and Vibration |
|
|
|
|
|
|
|
|
ETSI300-019-1.4 |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
INTEGRATED 2x2 MIMO ANTENNA |
|
|
|
|
|
||
Frequency Range |
2.32-2.55 GHz |
|
|
Max VSWR |
|
|
|
1.6:1 |
|
|||
Gain |
|
10.4-11.2 dBi |
|
|
H-pol Beamwidth |
|
55 deg. |
|
||||
Polarization |
|
Dual Linear |
|
|
V-pol Beamwidth |
|
53 deg. |
|
||||
Cross-pol Isolation |
23dB minimum |
|
Elevation Beamwidth |
|
27 deg. |
|
||||||
|
|
|
|
|
|
|
|
|
||||
VSWR |
H-Pol Azimuth |
H-Pol Elevation |
V-Pol Azimuth |
|
V-Pol Elevation |
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Ubiquiti Networks Inc., 91 E. Tasman Dr., San Jose, CA 95134 www.ubnt.com
