Ubiquiti M5G Users Manual

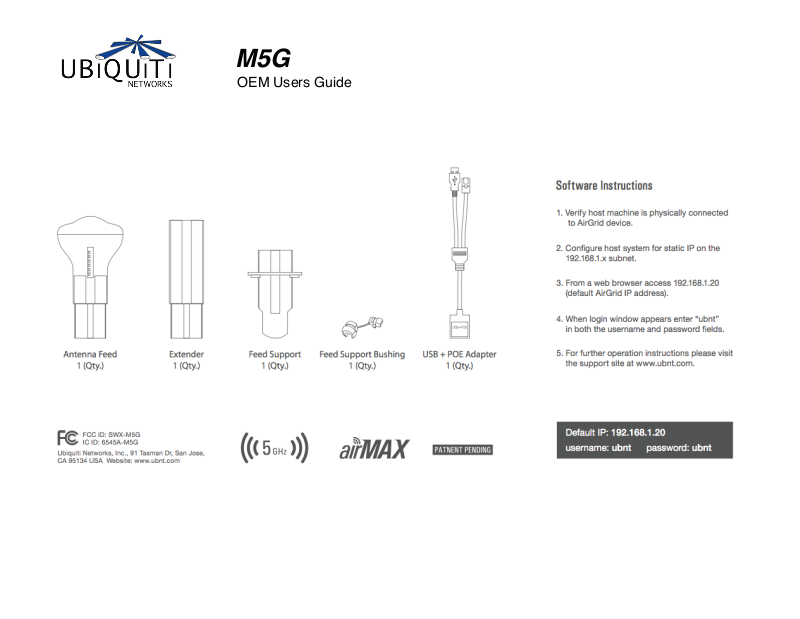

M5G

OEM Users Guide

TECH SPECS

DataRate Avg. TX Tolerance DataRate Sensitivity Tolerance
1-24Mbps 20 dBm +/-2dB 1-24Mbps -97 dBm min. +/-2dB
36Mbps 19 dBm +/-2dB 36Mbps -80 dBm +/-2dB
48Mbps 18 dBm +/-2dB 48Mbps -77 dBm +/-2dB
54Mbps 16 dBm +/-2dB 54Mbps -75 dBm +/-2dB

MCS0 20 dBm +/-2dB MCS0 -96 dBm +/-2dB
MCS1 20 dBm +/-2dB MCS1 -95 dBm +/-2dB
MCS2 20 dBm +/-2dB MCS2 -92 dBm +/-2dB
MCS3 20 dBm +/-2dB MCS3 -90 dBm +/-2dB
MCS4 19 dBm +/-2dB MCS4 -86 dBm +/-2dB
MCS5 17 dBm +/-2dB MCS5 -83 dBm +/-2dB
MCS6 16 dBm +/-2dB MCS6 -77 dBm +/-2dB
MCS7 15 dBm +/-2dB MCS7 -74 dBm +/-2dB

5GHz 11n

5GHz 11n

Shock and Vibration

ETSI300-019-1.4

Power Method

Passive Power over Ethernet (pairs 4,5+; 7,8 return)

Operating Temperature

-30C to 75C

Operating Humidity

5 to 95% Condensing

Mounting Kit

Pole Mounting Kit included

Max Power Consumption

3.5 Watts

Power Supply

5V USP+POE Adapter Included

Weight

0.5 kg

Enclosure Characteristics

Outdoor UV Stabalized Plastic

PHYSICAL / ELECTRICAL / ENVIRONMENTAL

Enclosure Size

16cm length x 8cm width x 3cm height

OPERATING FREQUENCY 5745MHz-5825MHz

5GHz TX POWER SPECIFICATIONS

5GHz RX SPECIFICATIONS

11a

11a

REGULATORY / COMPLIANCE INFORMATION

Wireless Approvals

FCC Part 15.247, IC RS210, CE

RoHS Compliance

YES

SYSTEM INFORMATION

Processor Specs

Atheros MIPS 24KC, 400MHz

Memory Information

32MB SDRAM, 8MB Flash

Networking Interface

1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface
