Ubiquiti M2LW Users Manual
High-Power 2x2 MIMO
airMAX® TDMA Station
Models: NSM2/NSM3/NSM365/
NSM5/locoM2/locoM5
Introduction
Thank you for purchasing the Ubiquiti Networks®
NanoStation®. This Quick Start Guide is designed to guide you
through installation and also includes warranty terms.
Package Contents
NanoStation
PoE Adapter (24V, 0.5A)
with Mounting Bracket
TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet
cable and earth grounding must be used as conditions of product warranty. TOUGHCable
designed for outdoor installations. It is the professional installer’s responsibility to follow local
country regulations, including operation within legal frequency channels, output power, and
Dynamic Frequency Selection (DFS) requirements.
Cable Tie
High-Power 2x2 MIMO
airMAX® TDMA Station
Models: NSM2/NSM3/NSM365/
NSM5/locoM2/locoM5
Power Cord Quick Start
Guide
™
is
Installation Requirements
• Shielded Category 5 (or above) cabling with drain wire
should be used for all wired Ethernet connections and
should be grounded through the AC ground of the PoE.
We recommend that you protect your networks from
harmful outdoor environments and destructive ESD events
with industrial‑grade, shielded Ethernet cable from Ubiquiti
Networks. For more details, visit
• Surge protection should be used for all outdoor installations.
We recommend that you use two Ethernet Surge Protectors,
model ETH‑SP, one near the NanoStation and the other
at the entry point to the building. The ETH‑SP will absorb
power surges and safely discharge them into the ground.
www.ubnt.com/toughcable
Hardware Overview
ES-8-150W
ETH-SP
locoM2
ETH-SP
To LAN
Back View
LED Panels
Mounting
Brackets
Port Cover Release Button
LED Panels
NanoStationlocoM2/M5NanoStationM2/M3/M5
LED Panel
Power The Power LED will light green when
the device is connected to a power source.
LAN1 Main Ethernet The LED will light steady green
when an active Ethernet connection is made
to the Main/LAN port and flash when there is
activity.
LAN2
Secondary Ethernet (NanoStation M2/M3/M5
only)
The LED will light steady green when
an active Ethernet connection is made to the
Secondary port and flash when there is activity.
Signal In airOS®, you can modify the wireless
signal strength threshold values for each
LED on the Advanced tab under Signal LED
Thresholds. The default values are shown below:
LED will light red when the wireless
signal strength is above ‑94 dBm.
LED will light amber when the wireless
signal strength is above ‑80 dBm.
LED will light green when the wireless
signal strength is above ‑73 dBm.
LED will light green when the wireless
signal strength is above ‑65 dBm.
Ports
Port
RESET
Switching Gigabit Power Supply / PoE
Main*
Port
Reset
Button
Secondary
Main/LAN 10/100 Ethernet port used to connect the power
and should be connected to the LAN and DHCP server.
Secondary (NanoStationM2/M3/M5 only) 10/100 Ethernet
port used for bridging and supports software‑configurable
PoE passthrough.
Note: In order to use PoE passthrough on the Secondary
port, a 24V, 1A PoE adapter is required.
Reset Button To reset to factory defaults, press and hold the
Reset button for more than 10 seconds while the NanoStation
is poweredon. Alternatively, a remote reset button is located
on the bottom of the PoE Adapter.
Reset
Button
* Main is labeled LAN on the NanoStationlocoM2/M5.
*640-00210-05*
640-00210-05
Hardware Installation
1. Press the Port Cover Release Button located on the back of
the NanoStation and slide the cover off.
2. Connect an Ethernet cable to the Main/LAN port.
3. Replace the port cover.

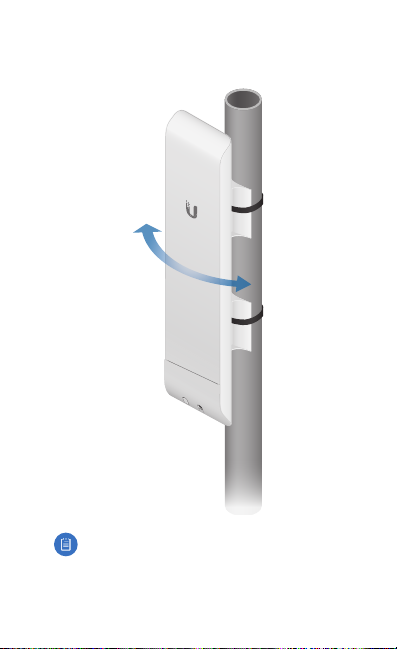

4. Position the NanoStation at the desired location on a pole
and insert a Cable Tie into the slot of the Mounting Bracket.
