Datasheet
5 GHz Beamwidth Horn Antenna
Models: Horn-5-30, Horn-5-45, Horn-5-60, and Horn-5-90
Isolation Antenna Horns for airFiber® LTU and airMAX®
Designed for Increased Co-Location Performance
Dual-Linear Polarization
Overview
Application Example
Ubiquiti Networks launches a new
family of beamwidth isolation horn
antennas.
Datasheet
Modular Design
With exible sectorization for optional
antenna beamwidths, the horn
antennas are interchangeable and
improve beam‑shaping for specic
deployment and environment needs.
Sector horn antennas are designed
to increase co‑location performance
without sacricing gain.
PtMP Client Links
Scalability
There are two symmetrical horn
antennas:
• Horn-5-30: 30° beamwidth
• Horn-5-45: 45° beamwidth
These models offer breakthrough
scalability options for wireless
systems. Unique beam performance
and great co-location characteristics
allow for a higher density of sectors
than traditional sector technology.
The PrismStation™ 5AC (with a horn antenna) is used as an AP to communicate with
the IsoStation™ 5AC for each client in an airMAX PtMP (Point-to-MultiPoint) network.
PtP Link
Enhanced Co-Location
There are two asymmetrical horn
antennas:
• Horn-5-60: 60° beamwidth
• Horn-5-90: 90° beamwidth
These models have naturally
attenuated side lobes and extremely
low back radiation. They offer best
front-to-back ratio in the industry and
the lowest side lobe radiation.
Asymmetrical horn antennas are ideal
for cluster sector installations with
high co-location requirements.
Versatility
The horn antennas can be used with
the following radios:
• airFiber LTU™ AF-LTU
• IsoStation IS-5AC
• IsoStation IS-M5
• PrismStation PS-5AC
Use an IsoStation 5AC on each side of a PtP (Point-to-Point)link.
Beam Performance Perfected
2
Modular Design
The horn antennas come with precise radiation angles for
specic beam shaping, ranging from 30° to 90°, making
them suitable for a wide range of installations.
• Horn designed for improved beam shaping
• Enhanced co‑location performance
• Single button release for ease of changing antennas
Model Comparison
Horn-5-30 Horn-5-45 Horn-5-60 Horn-5-90
Beamwidth 30° 45° 60° 90°
Gain 19 dBi 15.5 dBi 16 dBi 13 dBi
Datasheet
PS-5AC with Horn-5-45 Mounted on Pole
3
Specications
Datasheet
Dimensions Ø 221.4 x 184.2 mm (8.71 x 7.3")
Weight 1.1 kg (38.8 oz)
Supported Frequency Range 5.15 ‑ 5.85 GHz
Gain 19 dBi
HPOL Beamwidth 30°
VPOL Beamwidth 30°
Elevation Beamwidth 30°
Maximum VSWR 1.7:1
Wind Survivability 200 km/h (125 mph)
Wind Loading 56 N @ 200 km/h (12.6 lbf @ 125 mph)
Polarization Dual-Linear
Cross-Pol Isolation 17 dB
Horn-5-30
4

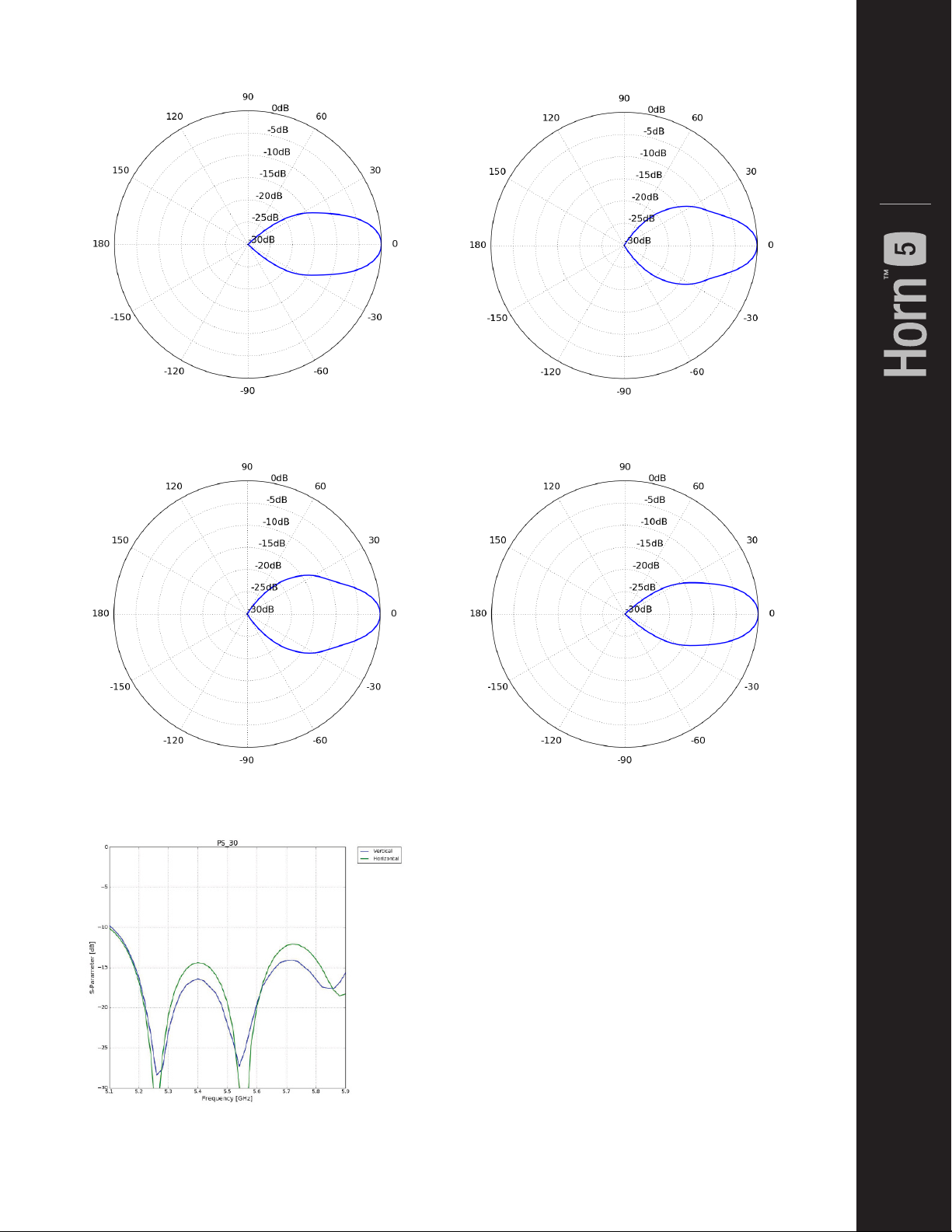

Vertical Azimuth Vertical Elevation
Horizontal Azimuth Horizontal Elevation
Datasheet
Return Loss
5
Specications
Datasheet
Dimensions Ø 175 x 96 mm (6.9 x 3.78")
Weight 1.34 kg (47.23 oz)
Supported Frequency Range 5.15 ‑ 5.85 GHz
Gain 15.5 dBi
HPOL Beamwidth 45°
VPOL Beamwidth 45°
Elevation Beamwidth 45°
Maximum VSWR 1.7:1
Wind Survivability 200 km/h (125 mph)
Wind Loading 56 N @ 200 km/h (12.6 lbf @ 125 mph)
Polarization Dual-Linear
Cross-Pol Isolation 17 dB
Horn-5-45
6
Vertical Azimuth Vertical Elevation
Horizontal Azimuth Horizontal Elevation
Datasheet
Return Loss
7
Specications
Datasheet
Dimensions 161.6 x 173.3 x 170.9 mm (6.4 x 6.82 x 6.73")
Weight 720g (25.39 oz)
Supported Frequency Range 5.15 ‑ 5.85 GHz
Gain 16 dBi
HPOL Beamwidth 60°
VPOL Beamwidth 60°
Elevation Beamwidth 30°
Maximum VSWR 2:1
Wind Survivability 200 km/h (125 mph)
Wind Loading 50 N @ 200 km/h (11.2 lbf @ 125 mph)
Polarization Dual-Linear
Cross-Pol Isolation 17 dB
Horn-5-60
8
Vertical Azimuth Vertical Elevation
Horizontal Azimuth Horizontal Elevation
Datasheet
Return Loss
9
Specications
Datasheet
Dimensions 152.1 x 186.8 x 113.2 mm (5.99 x 7.35 x 4.46")
Weight 920 g (32.45 oz)
Supported Frequency Range 5.15 ‑ 5.85 GHz
Gain 13 dBi
HPOL Beamwidth 90°
VPOL Beamwidth 90°
Elevation Beamwidth 45°
Maximum VSWR 2:1
Wind Survivability 200 km/h (125 mph)
Wind Loading 46 N @ 200 km/h (10.3 lbf @ 125 mph)
Polarization Dual-Linear
Cross-Pol Isolation 17 dB
Horn-5-90
10
Vertical Azimuth Vertical Elevation
Horizontal Azimuth Horizontal Elevation
Datasheet
Return Loss
Specications are subject to change. Ubiquiti products are sold with a limited warranty described at: www.ubnt.com/support/warranty
©2017‑2018 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, UbiquitiNetworks, the Ubiquiti U logo, the Ubiquiti beam logo, airFiber, airMAX, airOS,
airView, Horn, IsoStation, LTU, and PrismStation are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other
countries. All other trademarks are the property of their respective owners.
www.ubnt.com
JLAJ041818
11
