Ubiquiti EdgeSwitch ES-16-150W Quick Start Manual

Managed PoE+ Gigabit Switch
with SFP

Model: ES-16-150W

Introduction

Thank you for purchasing the Ubiquiti Networks® EdgeSwitch®.
This Quick Start Guide is designed to guide you through the
installation and also includes the warranty terms.

Package Contents

EdgeSwitch ES-16-150W

Power Cord Mount Brackets

(Qty. 2)

Bracket Screws

(Qty. 8)

Mounting Screws

(Qty. 4)

Cage Nuts

(Qty. 4)

Rubber Feet

(Qty. 4)

TERMS OF USE: All Ethernet cabling runs must use CAT5 (or above). It is the professional
installer’s responsibility to follow local country regulations, including operation within legal
frequency channels, output power, indoor cabling requirements, and Dynamic Frequency
Selection (DFS) requirements.

Installation Requirements

• Phillips screwdriver (for rack or wall mounting)

• Standard-sized, 19" wide rack with a minimum of 1U height
available (for rack mounting)

• For indoor applications, use Category 5 (or above) UTP
cabling approved for indoor use.

• For outdoor applications, shielded Category 5 (or above)
cabling should be used for all wired Ethernet connections
and should be grounded through the AC ground of the
power supply.

We recommend that you protect your networks from
harmful outdoor environments and destructive ESD events
with industrial-grade, shielded Ethernet cable from Ubiquiti
Networks. For more details, visit www.ubnt.com/toughcable

WARNING: To reduce the risk of fire or electric shock,

do not expose the switch to rain or moisture.

Note: Although the cabling can be located outdoors,

the EdgeSwitch itself should be housed inside a
protective enclosure.

Hardware Overview

Front Panel Ports

RJ45 1-16

SFP 1-2

Port Description

RJ45 1-16

RJ45 ports support 10/100/1000 Ethernet
connections.

SFP 1-2

Hot-swappable SFP ports support 1 Gbps
connections.

Front Panel LEDs

System

System LED

Note: The System LED functionality has been updated

with firmware v1.8.0. We recommend that you update
the EdgeSwitch to the latest firmware.

State Status

Flashing White Bootup in progress.

White

Ready for use, not connected to Ubiquiti®
Network Management System (UNMS™).

Blue Ready for use, connected to UNMS.

Steady Blue
with Occasional
Flashing

Ready for use, unable to connect to

UNMS, check connection to UNMSserver.

Quickly Flashing
Blue

Used to locate a device in UNMS.

Alternating
Blue/White

Firmware upgrade in progress.

You can use the EdgeSwitch Configuration Interface or UNMS
to manage your device. UNMS lets you configure, monitor,

upgrade, and back up your devices using a singleapplication.

Get started at www.unms.com

RJ45:
PoE

RJ45:
Speed/Link/Activity

SFP:
Speed/Link/Activity

RJ45 LEDs

LED

State Status

PoE

Off No PoE

Amber IEEE 802.3af/802.3at

Green 24V Passive

Speed/
Link/
Activity

Off No Link

Amber Link Established at 10/100 Mbps

Amber
Flashing

Link Activity at 10/100 Mbps

Green Link Established at 1000 Mbps (1 Gbps)

Green
Flashing

Link Activity at 1000 Mbps (1Gbps)

SFP LEDs

LED

State Status

Speed/
Link/
Activity

Off No Link

Green Link Established at 1 Gbps

Green
Flashing

Link Activity at 1Gbps

Front Panel Button

Reset

Button Description

Reset

There are two methods to reset the
EdgeSwitch to factory defaults:

Runtime Reset (Recommended)

The EdgeSwitch should be running after
bootup is complete, and the System LED
is white. Press and hold the Reset button.
The EdgeSwitch will reboot, and the System

LED becomesblue after three seconds.

Continue to hold the Reset button for
about 15seconds until the System LED
flashes blue for two seconds. This indicates
that the EdgeSwitch has reset to its

factorydefaults.

Power-on Reset

1. Disconnect the Power Cord from the
EdgeSwitch.

2. While connecting the Power Cord to
the EdgeSwitch, hold the Reset button
for about 15seconds until the System
LED flashes blue for two seconds. This
indicates that the EdgeSwitch has reset
to its factory defaults.

Back Panel Console Port

Console

Port Description

Console

RJ45 serial console port for Command
Line Interface (CLI) management. Use an
RJ45-to-DB9, serial console cable, also
known as a rollover cable, to connect
the Console port to your computer. Then
configure the following settings as needed:

• Baud rate 115200

• Data bits 8

• Parity NONE

• Stop bits 1

• Flow control NONE

Hardware Installation

The EdgeSwitch can be placed on a horizontal surface,
mounted in a rack, or mounted on a wall.

WARNING: FAILURE TO PROVIDE PROPER VENTILATION

MAY CAUSE FIRE HAZARD. KEEP AT LEAST 20 MM OF
CLEARANCE NEXT TO THE VENTILATION HOLES FOR
ADEQUATE AIRFLOW.

Place the Rubber Feet on the bottom of the EdgeSwitch if you
do not plan to mount it. For rack or wall mounting, follow the
appropriate steps:

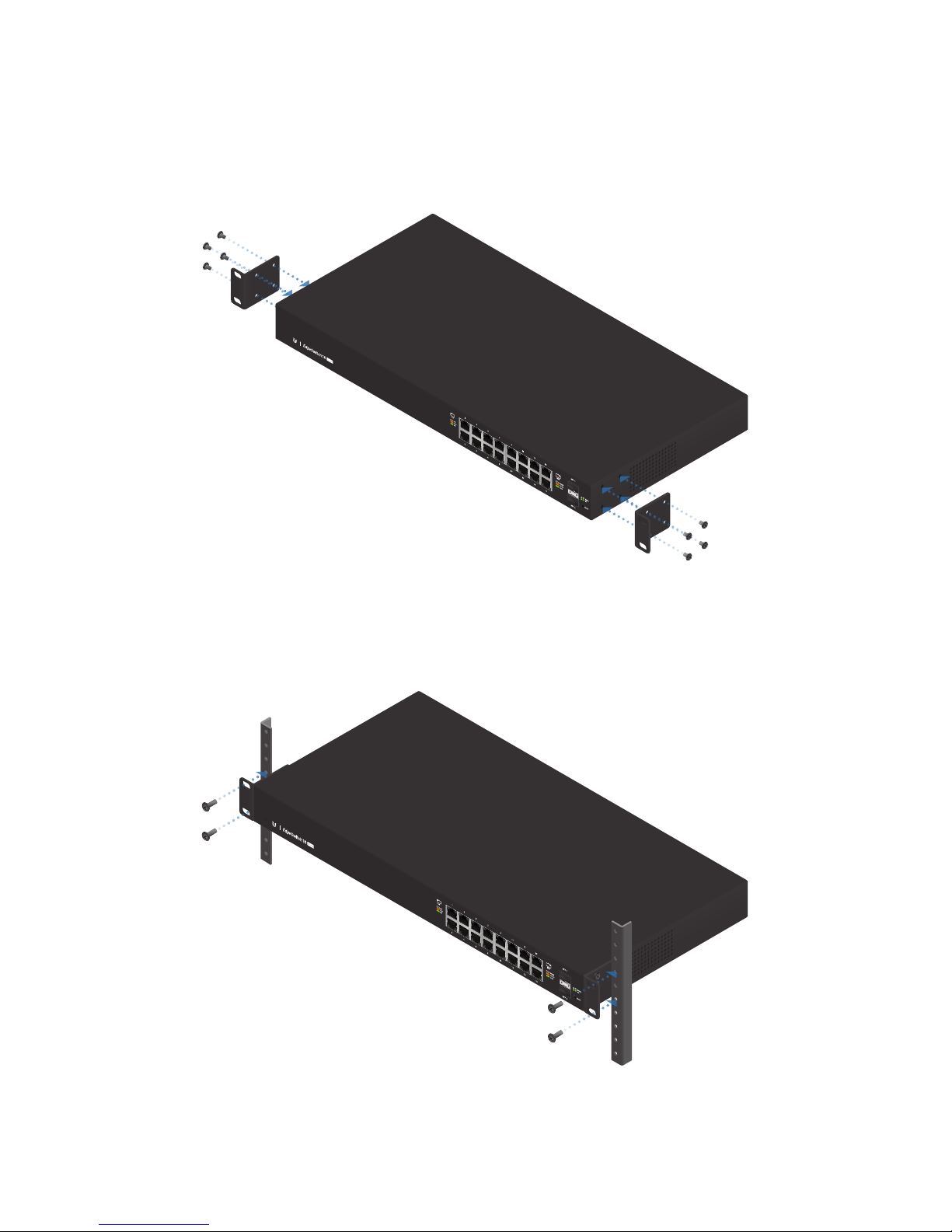

Rack Mounting

1. Attach the Mount Brackets to the EdgeSwitch using the
eight Bracket Screws, positioning the brackets as shown
below.

2. Attach the EdgeSwitch to the rack using the four Mounting
Screws. (If the rack has square slots, then use the Cage Nuts
with the Mounting Screws.)

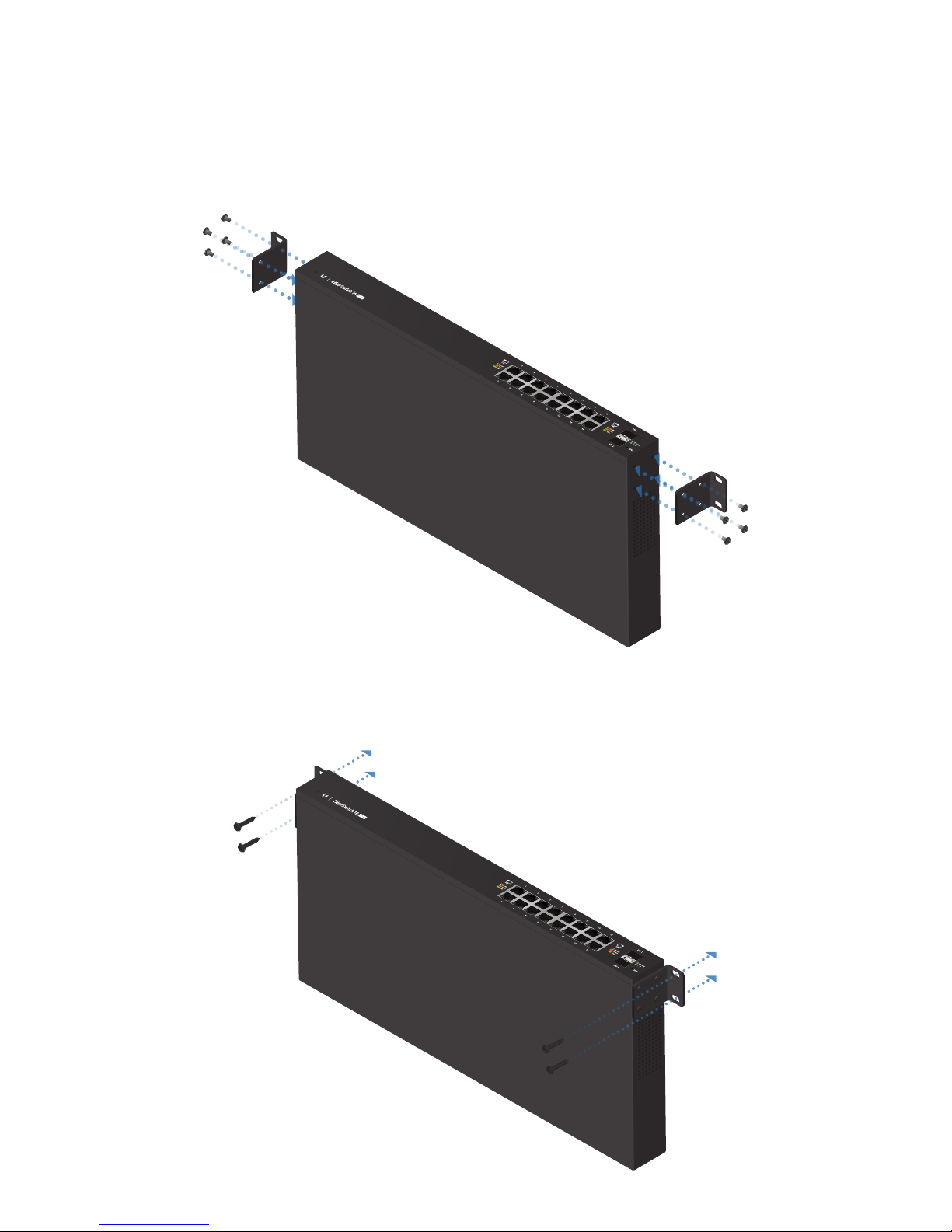

Wall Mounting

1. Attach the Mount Brackets to the EdgeSwitch using the
eight Bracket Screws, positioning the brackets as shown
below.

2. Secure the EdgePower to the wall using the appropriate
fasteners and anchors (not included) for the wall.

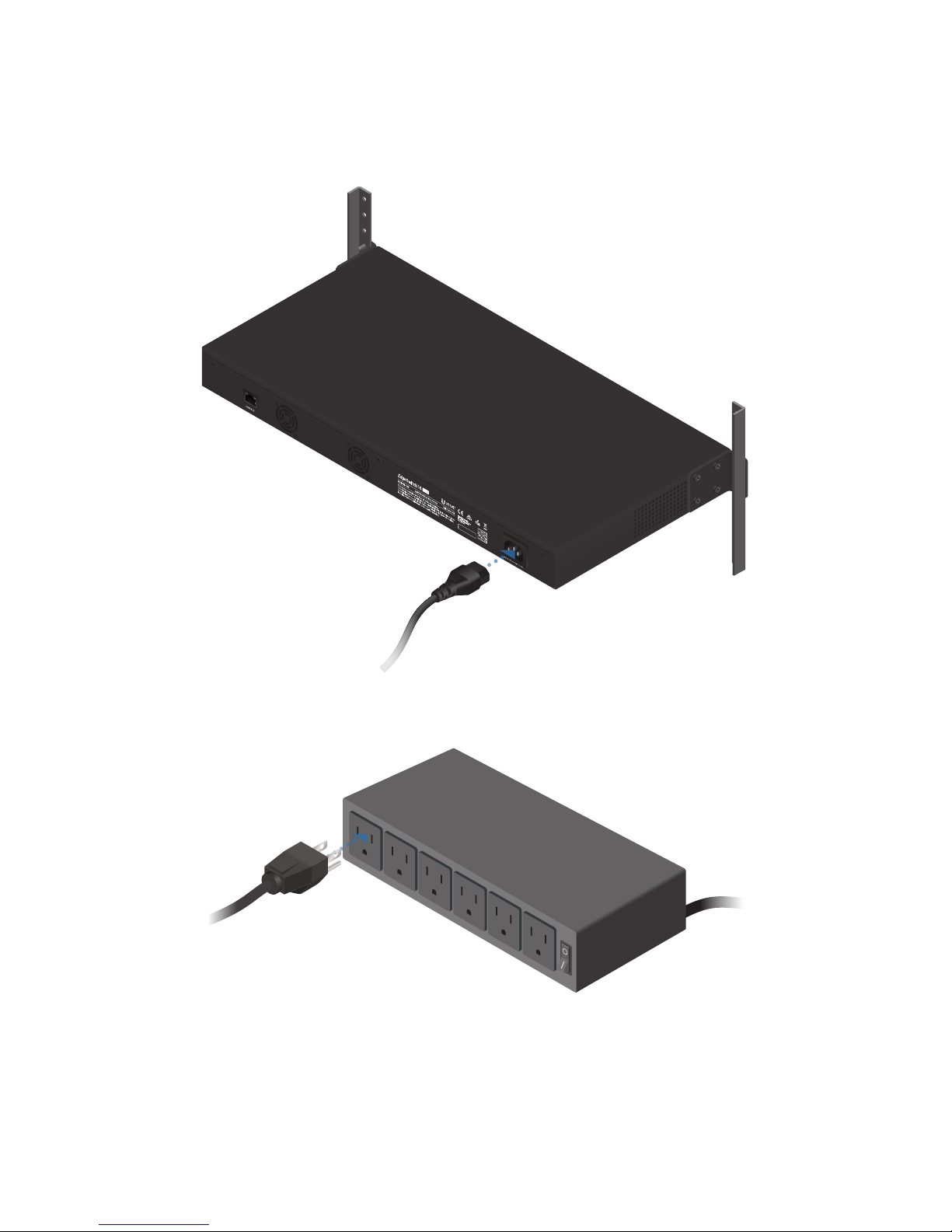

Connecting Power

1. Connect the Power Cord to the Power port of the
EdgeSwitch.

2. Plug the Power Cord into a power outlet.

Connecting Ethernet

1. Connect an Ethernet cable from your computer or host
system to any Ethernet port on the EdgeSwitch.

2. Connect Ethernet cables from your devices to the other
Ethernet ports on the EdgeSwitch.

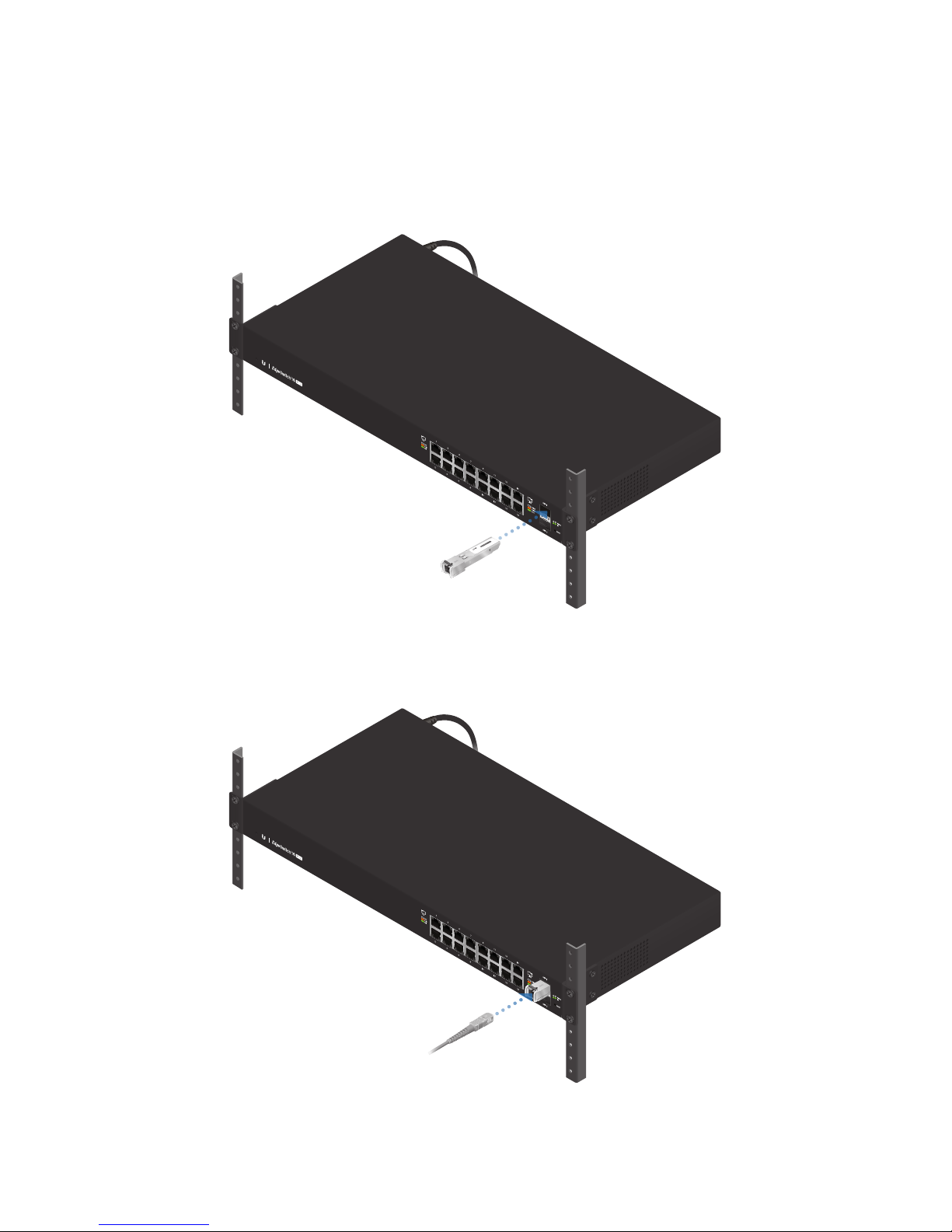

Using SFP Ports

To use an SFP port:

1. Remove the protective plug covering the SFP port.

2. Plug a compatible fiber module into the SFP port.

1000Mbps SM/SC 20KM DDM

Tx1550nm/Rx1310nm

3. Connect the fiber optic cable to the fiber module. Then
connect the other end of the cable to another fiber device.

For information about compatible fiber SFP modules, visit:

www.ubnt.com/download/edgemax

Accessing the Configuration Interface

By default, the EdgeSwitch will try to get its IP address
automatically using DHCP. If that fails, then it will use the
default fallback IP address, 192.168.1.2. Proceed to the
appropriate section, DHCP or “Fallback IP Address”:

DHCP

Use one of the following methods:

• Set up the DHCP server to provide a specific IP address to

the EdgeSwitch based on its MAC address (on the label).

• Let the EdgeSwitch obtain an IP address and then check the

DHCP server to see which IP address was assigned.

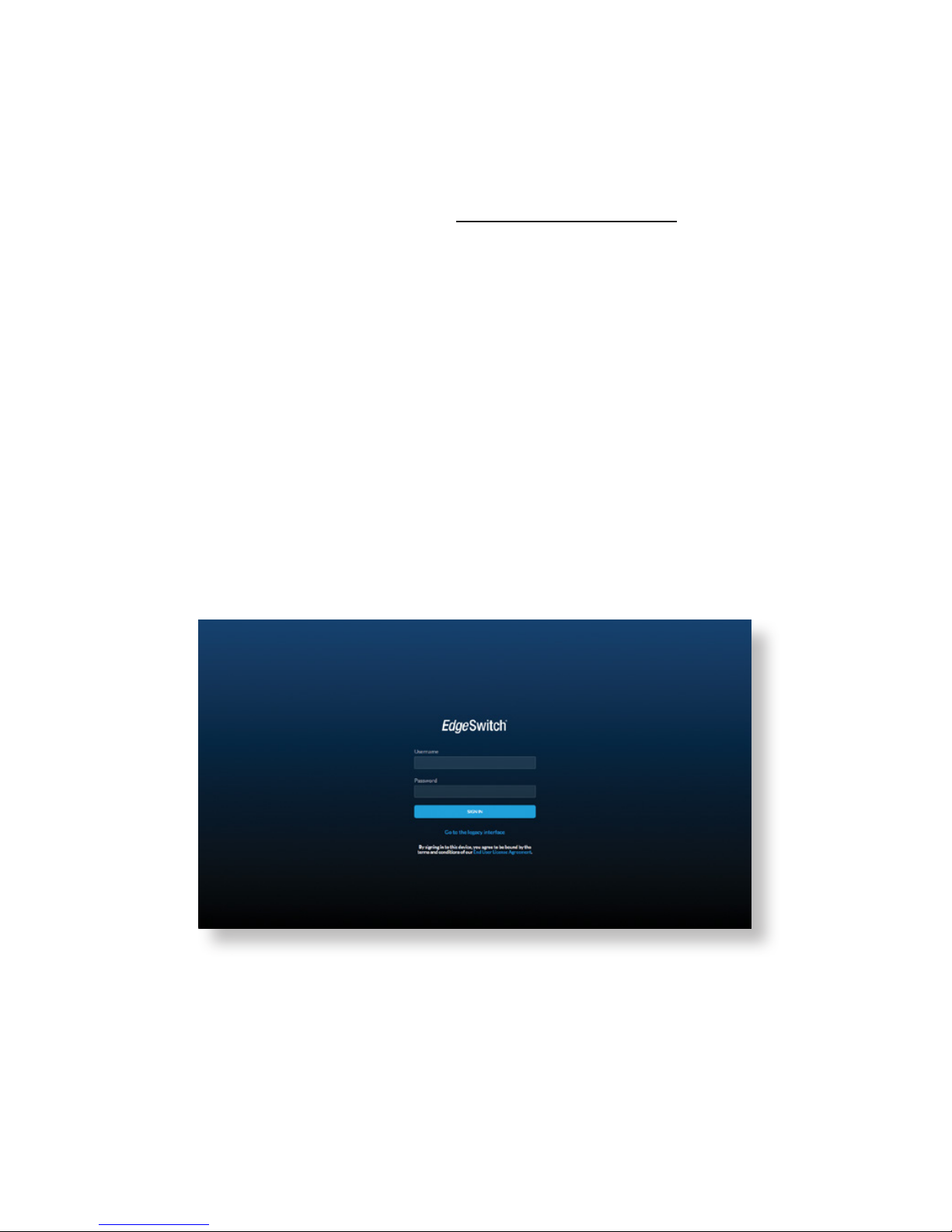

To log in, follow these steps:

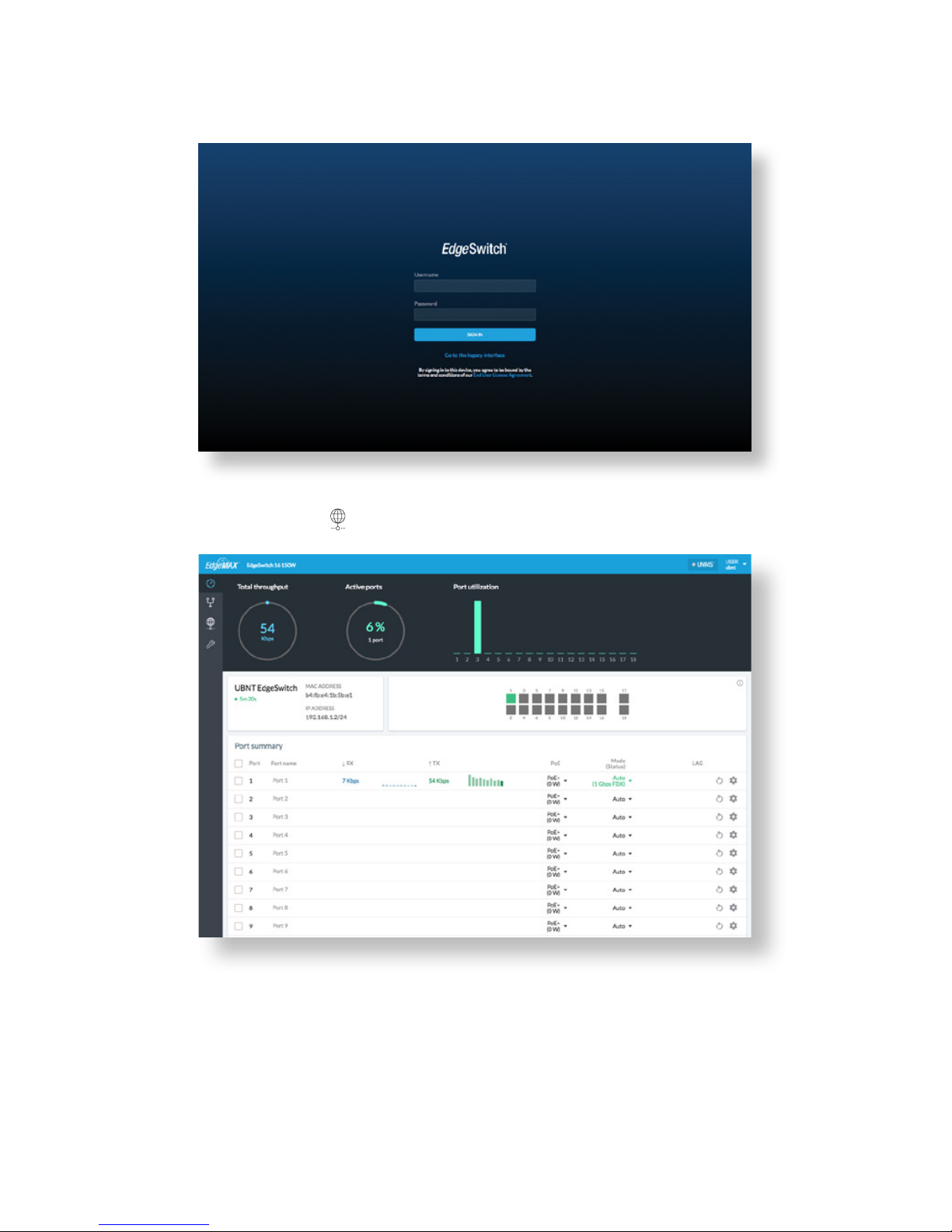

1. Launch your web browser. Type the appropriate IP address
in the address field. Press enter (PC) or return (Mac).

2. The login screen will appear. Enter ubnt in the Username
and Password fields. Click SignIn.

3. The EdgeSwitch Configuration Interface will appear.
Customize additional settings as needed.

For more information, refer to the EdgeSwitch documentation,
which is available at www.ubnt.com/download/edgemax

You can also manage your device using the Ubiquiti Network
Management System. UNMS lets you configure, monitor,
upgrade, and back up your devices using a single application.
Get started at www.unms.com

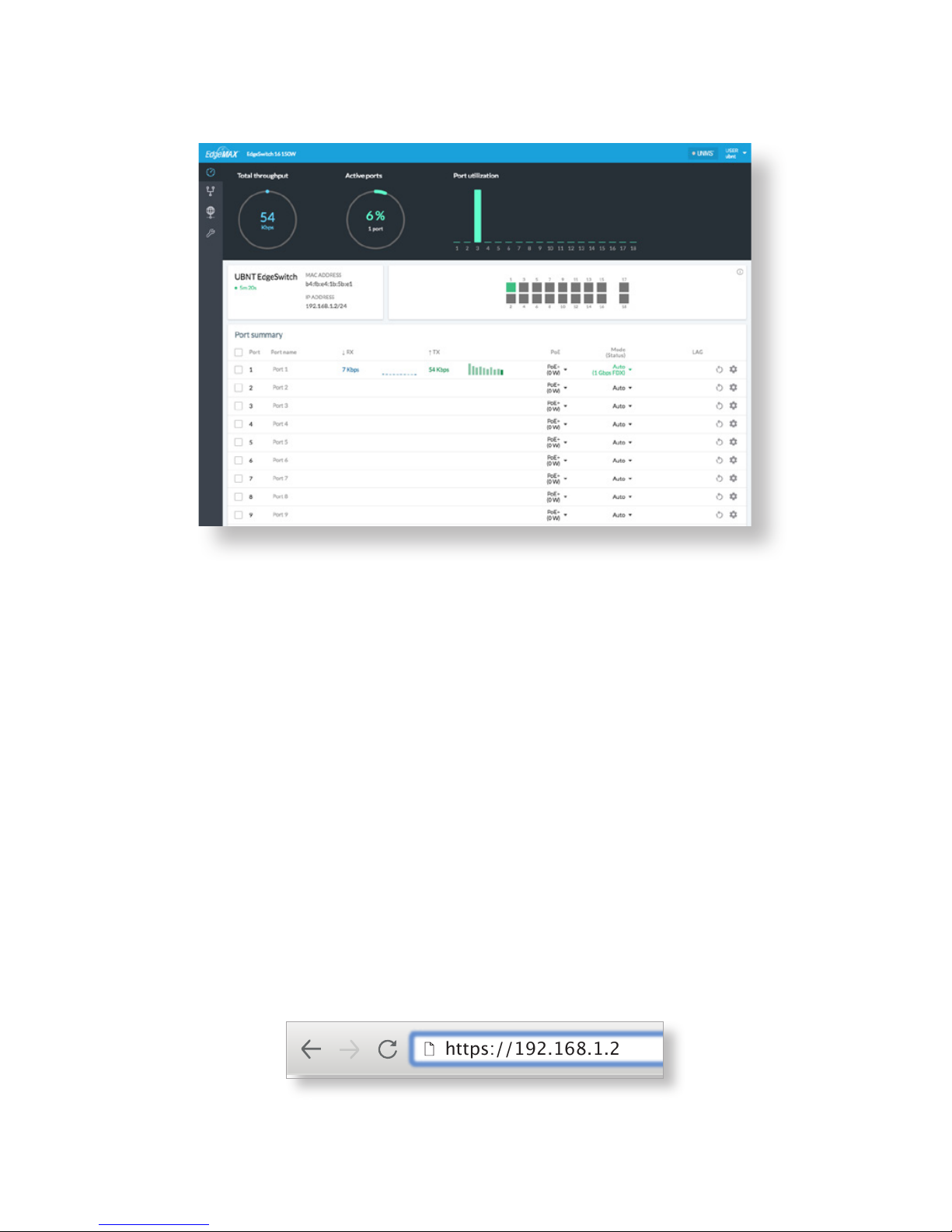

Fallback IP Address

1. Ensure that your computer (or other host machine) is
connected to the EdgeSwitch.

2. Configure the Ethernet adapter on your host system with a
static IP address on the 192.168.1.x subnet.

3. Launch your web browser. Type the appropriate IP address
in the address field (192.168.1.2 is the default fallback IP
address). Press enter (PC) or return (Mac).

https://192.168.1.2

4. The login screen will appear. Enter ubnt in the Username
and Password fields. Click SignIn.

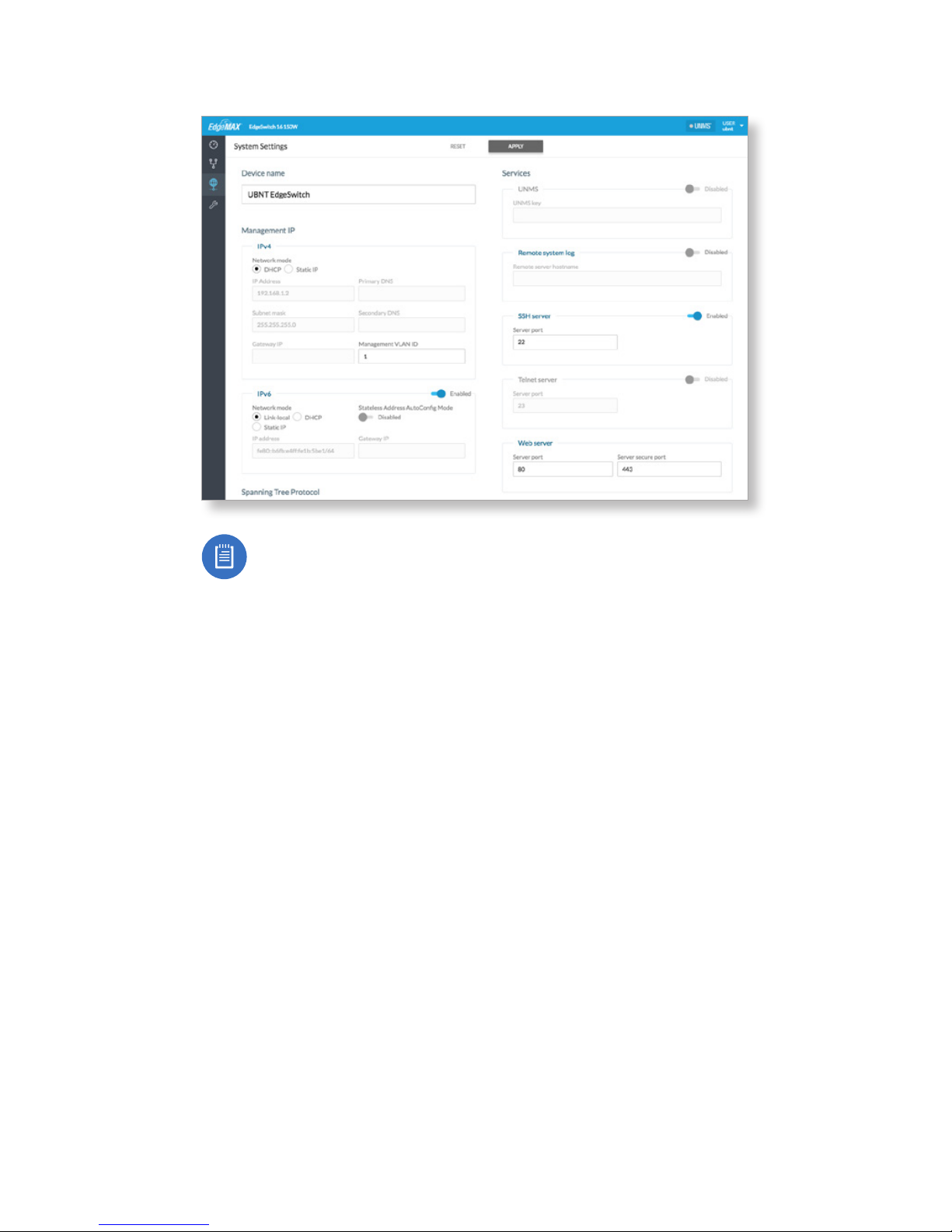

5. The EdgeSwitch Configuration Interface will appear. Click
the Settings icon.

6. Change the IP Address to a unique IP address. Click Apply.

Note: If you change the IP settings, then the session

will be cut off, and you will need to reconnect to the
EdgeSwitch using the new IP address.

Customize additional settings as needed. For more information,
refer to the EdgeSwitch documentation, which is available at:

www.ubnt.com/download/edgemax

Specifications

ES-16-150W

Dimensions

443 x 43 x 221 mm (17.44 x 1.69 x 8.70")

Weight

With Mount Brackets

2.80 kg (6.17 lb)

2.89 kg (6.37 lb)

Total Non-Blocking Line Rate 18 Gbps

Max. Power Consumption 150W

Power Method 100-240VAC/50-60 Hz, Universal Input

Power Supply AC/DC, Internal, 150W DC

Shock and Vibration ETSI300-019-1.4 Standard

LEDs Per Port

RJ45 Data Ports
SFP Data Ports

PoE, Speed/Link/Activity

Speed/Link/Activity

Networking Interfaces (16) 10/100/1000 Mbps RJ45 Ports

(2) 1 Gbps SFP Ports

Management Interface UART Console Out-of-Band,

Ethernet In-Band

PoE Interfaces PoE+ IEEE 802.3af/at (pins 1, 2+; 3, 6-)

24VDC Passive PoE (pins 4, 5+; 7, 8-)

Voltage Range

802.3at Mode
24V Passive PoE

50-57V
20-27V

Max. Wattage per Port

PoE+
Passive PoE

34.2W
17W

Rack-Mount Yes, 1U High

Operating Temperature -5 to 40° C (23 to 104° F)

Operating Humidity 5 to 95% Noncondensing

Certications CE, FCC, IC

Safety Notices

1. Read, follow, and keep these instructions.

2. Heed all warnings.

3. Only use attachments/accessories specified by the manufacturer.

WARNING: Failure to provide proper ventilation may

cause fire hazard. Keep at least 20mm of clearance next
to the ventilation holes for adequate airflow.

WARNING: To reduce the risk of fire or electric shock, do

not expose this product to rain or moisture.

WARNING: Do not use this product in location that can

be submerged by water.

WARNING: Avoid using this product during an electrical

storm. There may be a remote risk of electric shock from
lightning.

Electrical Safety Information

1. Compliance is required with respect to voltage, frequency, and current
requirements indicated on the manufacturer’s label. Connection to a
different power source than those specified may result in improper
operation, damage to the equipment or pose a fire hazard if the
limitations are not followed.

2. There are no operator serviceable parts inside this equipment. Service
should be provided only by a qualified service technician.

3. This equipment is provided with a detachable power cord which has
an integral safety ground wire intended for connection to a grounded
safety outlet.

a. Do not substitute the power cord with one that is not the provided

approved type. Never use an adapter plug to connect to a 2-wire
outlet as this will defeat the continuity of the grounding wire.

b. The equipment requires the use of the ground wire as a part of the

safety certification, modification or misuse can provide a shock
hazard that can result in serious injury or death.

c. Contact a qualified electrician or the manufacturer if there

are questions about the installation prior to connecting the
equipment.

d. Protective earthing is provided by Listed AC adapter. Building

installation shall provide appropriate short-circuit backup
protection.

e. Protective bonding must be installed in accordance with local

national wiring rules and regulations.

Limited Warranty

www.ubnt.com/support/warranty/

The limited warranty requires the use of arbitration to resolve disputes on
an individual basis, and, where applicable, specify arbitration instead of
jury trials or class actions.

Compliance

FCC

Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including
interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. Operations of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to
correct the interference at his own expense.

ISED Canada

CAN ICES-3(A)/NMB-3(A)

This Class A digital apparatus complies with Canadian CAN ICES-3(A).

CAN ICES-3(A)/NMB-3(A)

Cet appareil numérique de la classe A est conforme à la norme NMB-3(A)
Canada.

Australia and New Zealand

Warning: This is a Class A product. In a domestic environment this
product may cause radio interference in which case the user may
be required to take adequate measures.

CE Marking

CE marking on this product represents the product is in compliance with all
directives that are applicable to it.

RoHS/WEEE Compliance Statement

English

European Directive 2012/19/EU requires that the equipment bearing
this symbol on the product and/or its packaging must not be disposed
of with unsorted municipal waste. The symbol indicates that this
product should be disposed of separately from regular household waste
streams. It is your responsibility to dispose of this and other electric and
electronic equipment via designated collection facilities appointed by the
government or local authorities. Correct disposal and recycling will help
prevent potential negative consequences to the environment and human
health. For more detailed information about the disposal of your old
equipment, please contact your local authorities, waste disposal service, or
the shop where you purchased the product.

Deutsch

Die Europäische Richtlinie 2012/19/EU verlangt, dass technische
Ausrüstung, die direkt am Gerät und/oder an der Verpackung mit diesem
Symbol versehen ist, nicht zusammen mit unsortiertem Gemeindeabfall
entsorgt werden darf. Das Symbol weist darauf hin, dass das Produkt
von regulärem Haushaltmüll getrennt entsorgt werden sollte. Es
liegt in Ihrer Verantwortung, dieses Gerät und andere elektrische
und elektronische Geräte über die dafür zuständigen und von der
Regierung oder örtlichen Behörden dazu bestimmten Sammelstellen zu
entsorgen. Ordnungsgemäßes Entsorgen und Recyceln trägt dazu bei,
potentielle negative Folgen für Umwelt und die menschliche Gesundheit
zu vermeiden. Wenn Sie weitere Informationen zur Entsorgung Ihrer
Altgeräte benötigen, wenden Sie sich bitte an die örtlichen Behörden oder
städtischen Entsorgungsdienste oder an den Händler, bei dem Sie das
Produkt erworben haben.

Español

La Directiva 2012/19/UE exige que los equipos que lleven este símbolo en
el propio aparato y/o en su embalaje no deben eliminarse junto con otros
residuos urbanos no seleccionados. El símbolo indica que el producto
en cuestión debe separarse de los residuos domésticos convencionales
con vistas a su eliminación. Es responsabilidad suya desechar este y
cualesquiera otros aparatos eléctricos y electrónicos a través de los puntos
de recogida que ponen a su disposición el gobierno y las autoridades
locales. Al desechar y reciclar correctamente estos aparatos estará
contribuyendo a evitar posibles consecuencias negativas para el medio
ambiente y la salud de las personas. Si desea obtener información más
detallada sobre la eliminación segura de su aparato usado, consulte a las
autoridades locales, al servicio de recogida y eliminación de residuos de su
zona o pregunte en la tienda donde adquirió el producto.

Français

La directive européenne 2012/19/UE exige que l’équipement sur lequel
est apposé ce symbole sur le produit et/ou son emballage ne soit pas jeté
avec les autres ordures ménagères. Ce symbole indique que le produit
doit être éliminé dans un circuit distinct de celui pour les déchets des
ménages. Il est de votre responsabilité de jeter ce matériel ainsi que tout
autre matériel électrique ou électronique par les moyens de collecte
indiqués par le gouvernement et les pouvoirs publics des collectivités
territoriales. L’élimination et le recyclage en bonne et due forme ont pour
but de lutter contre l’impact néfaste potentiel de ce type de produits
sur l’environnement et la santé publique. Pour plus d’informations sur le
mode d’élimination de votre ancien équipement, veuillez prendre contact
avec les pouvoirs publics locaux, le service de traitement des déchets, ou
l’endroit où vous avez acheté le produit.

Italiano

La direttiva europea 2012/19/UE richiede che le apparecchiature
contrassegnate con questo simbolo sul prodotto e/o sull’imballaggio non
siano smaltite insieme ai rifiuti urbani non differenziati. Il simbolo indica
che questo prodotto non deve essere smaltito insieme ai normali rifiuti
domestici. È responsabilità del proprietario smaltire sia questi prodotti sia
le altre apparecchiature elettriche ed elettroniche mediante le specifiche
strutture di raccolta indicate dal governo o dagli enti pubblici locali. Il
corretto smaltimento ed il riciclaggio aiuteranno a prevenire conseguenze
potenzialmente negative per l’ambiente e per la salute dell’essere umano.
Per ricevere informazioni più dettagliate circa lo smaltimento delle vecchie
apparecchiature in Vostro possesso, Vi invitiamo a contattare gli enti
pubblici di competenza, il servizio di smaltimento rifiuti o il negozio nel
quale avete acquistato il prodotto.

Declaration of Conformity

български [Bulgarian] С настоящото UBIQUITI NETWORKS декларира, че това устройство

ES-16-150W е в съответствие със съществените изисквания и други приложими разпоредби
на Директиви 2014/30/ЕС, 2014/35/ЕС. Цялостният текст на ЕС декларацията за съответствие
може да се намери на следния интернет адрес:

www.ubnt.com/compliance

Hrvatski [Croatian] UBIQUITI NETWORKS ovim putem izjavljuje da je ovaj uređaj ES-16-150W

sukladan osnovnim zahtjevima i ostalim bitnim odredbama Direktiva 2014/30/EU,
2014/35/EU. Cjeloviti tekst EU izjave o sukladnosti dostupan je na sljedećoj internetskoj adresi:

www.ubnt.com/compliance

Čeština [Czech] UBIQUITI NETWORKS tímto prohlašuje, že toto ES-16-150W zařízení, je ve

shodě se základními požadavky a dalšími příslušnými ustanoveními směrnic 2014/30/EU,
2014/35/EU. Úplné znění EU prohlášení o shodě je k dispozici na této internetové adrese:

www.ubnt.com/compliance

Dansk [Danish] Hermed, UBIQUITI NETWORKS, erklærer at denne ES-16-150W enhed,

er i overensstemmelse med de væsentlige krav og øvrige relevante krav i direktiver
2014/30/EU, 2014/35/EU. EU-overensstemmelseserklæringens fulde tekst kan findes på følgende
internetadresse:

www.ubnt.com/compliance

Nederlands [Dutch] Hierbij verklaart UBIQUITI NETWORKS, dat deze ES-16-150W apparaat, in

overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijnen
2014/30/EU, 2014/35/EU. De volledige tekst van de EU-conformiteitsverklaring kan worden
geraadpleegd op het volgende internetadres:

www.ubnt.com/compliance

English

Hereby, UBIQUITI NETWORKS, declares that this ES-16-150W device, is in compliance

with the essential requirements and other relevant provisions of Directives

2014/30/EU,

2014/35/EU

. The full text of the EU declaration of conformity is available at the following internet

address: www.ubnt.com/compliance

Eesti keel [Estonian] Käesolevaga UBIQUITI NETWORKS kinnitab, et antud ES-16-150W seade,

on vastavus olulistele nõuetele ja teistele asjakohastele sätetele direktiivide 2014/30/EL,
2014/35/EL. ELi vastavusdeklaratsiooni täielik tekst on kättesaadav järgmisel internetiaadressil:

www.ubnt.com/compliance

Suomi [Finnish] Täten UBIQUITI NETWORKS vakuuttaa, että tämä ES-16-150W laite, on

yhdenmukainen olennaisten vaatimusten ja muiden sitä koskevien direktiivien 2014/30/EU,
2014/35/EU. EU-vaatimustenmukaisuusvakuutuksen täysimittainen teksti on saatavilla
seuraavassa internetosoitteessa:

www.ubnt.com/compliance

Français [French] Par la présente UBIQUITI NETWORKS déclare que l’appareil ES-16-150W,

est conforme aux exigences essentielles et aux autres dispositions pertinentes des directives
2014/30/UE, 2014/35/UE. Le texte complet de la déclaration UE de conformité est disponible à
l’adresse internet suivante:

www.ubnt.com/compliance

Deutsch [German] Hiermit erklärt UBIQUITI NETWORKS, dass sich dieses ES-16-150W

Gerät, in Übereinstimmung mit den grundlegenden Anforderungen und den anderen
relevanten Vorschriften der Richtlinien 2014/30/EU, 2014/35/EU befindet. Der vollständige
Text der EU-Konformitätserklärung ist unter der folgenden Internetadresse verfügbar:

www.ubnt.com/compliance

Ελληνικά [Greek] Δια του παρόντος, UBIQUITI NETWORKS, δηλώνει ότι αυτή η συσκευή

ES-16-150W, είναι σε συμμόρφωση με τις βασικές απαιτήσεις και τις λοιπές σχετικές διατάξεις
των οδηγιών 2014/30/EE, 2014/35/EE. Το πλήρες κείμενο της δήλωσης συμμόρφωσης ΕΕ
διατίθεται στην ακόλουθη ιστοσελίδα στο διαδίκτυο:

www.ubnt.com/compliance

Magyar [Hungarian] Ezennel UBIQUITI NETWORKS kijelenti, hogy ez a ES-16-150W készülék

megfelel az alapvető követelményeknek és más vonatkozó 2014/30/EU, 2014/35/EU irányelvek
rendelkezéseit. Az EU-megfelelőségi nyilatkozat teljes szövege elérhető a következő internetes
címen:

www.ubnt.com/compliance

Íslenska [Icelandic] Hér, UBIQUITI NETWORKS, því yfir að þetta ES-16-150W tæki er í samræmi við

grunnkröfur og önnur viðeigandi ákvæði tilskipana 2014/30/ESB, 2014/35/ESB. Fullur texti ESB
samræmisyfirlýsing er að finna á eftirfarandi netfangi:

www.ubnt.com/compliance

Italiano [Italian] Con la presente, UBIQUITI NETWORKS, dichiara che questo dispositivo

ES-16-150W, è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti delle direttive
2014/30/UE, 2014/35/UE. Il testo completo della dichiarazione di conformità UE è disponibile al
seguente indirizzo Internet:

www.ubnt.com/compliance

Latviešu valoda [Latvian] Ar šo, UBIQUITI NETWORKS, deklarē, ka ES-16-150W ierīce, ir saskaņā ar

būtiskajām prasībām un citiem attiecīgiem noteikumiem Direktīvās 2014/30/ES, 2014/35/ES. Pilns
ES atbilstības deklarācijas teksts ir pieejams šādā interneta vietnē:

www.ubnt.com/compliance

Lietuvių kalba [Lithuanian] UBIQUITI NETWORKS deklaruoja, kad šis ES-16-150W įrenginys

atitinka esminius reikalavimus ir kitas 2014/30/ES, 2014/35/ES Direktyvų nuostatas. Visas ES
atitikties deklaracijos tekstas prieinamas šiuo interneto adresu:

www.ubnt.com/compliance

Malti [Maltese]

Hawnhekk, UBIQUITI NETWORKS, tiddikjara li dan il-mezz ES-16-150W
huwa konformi mar-rekwiżiti essenzjali u dispożizzjonijiet rilevanti oħrajn ta ‘Direttivi
2014/30/UE, 2014/35/UE. Id-dikjarazzjoni tal-konformità tista’ tiġi kkonsultata minn

www.ubnt.com/compliance

Norsk [Norwegian]

Herved UBIQUITI NETWORKS, erklærer at denne ES-16-150W enheten,
er i samsvar med de grunnleggende kravene og andre relevante bestemmelser i direktivene
2014/30/EU, 2014/35/EU. Den fulle teksten til EU-samsvarserklæringen er tilgjengelig på
følgende internettadresse: www.ubnt.com/compliance

Polski [Polish] Niniejszym, Ubiquiti Networks, oświadcza, że urządzenie ES-16-150W, jest

zgodny z zasadniczymi wymaganiami oraz pozostałymi stosownymi postanowieniami Dyrektyw
2014/30/UE, 2014/35/UE

. Pełny tekst deklaracji zgodności UE jest dostępny pod następującym

adresem internetowym:

www.ubnt.com/compliance

Português [Portuguese] UBIQUITI NETWORKS declara que este dispositivo ES-16-150W,

está conforme com os requisitos essenciais e outras disposições das Directivas

2014/30/UE,

2014/35/UE

. O texto integral da declaração de conformidade está disponível no seguinte

endereço de Internet:

www.ubnt.com/compliance

Română [Romanian] Prin prezenta, UBIQUITI NETWORKS declară că acest dispozitiv ES-16-150W

este în conformitate cu cerințele esențiale și alte prevederi relevante ale Directivelor

2014/30/UE,

2014/35/UE

. Textul integral al declarației UE de conformitate este disponibil la următoarea adresă

internet:

www.ubnt.com/compliance

Slovenčina [Slovak]

Týmto UBIQUITI NETWORKS, prehlasuje, že toto ES-16-150W zariadenie,
je v súlade so základnými požiadavkami a ďalšími relevantnými ustanoveniami smernice
2014/30/EÚ, 2014/35/EÚ

. Úplné EÚ vyhlásenie o zhode je k dispozícii na tejto internetovej adrese:

www.ubnt.com/compliance

Slovenščina [Slovenian]

Družba UBIQUITI NETWORKS izjavlja, da je naprava ES-16-150W
v skladu z obveznimi zahtevami in drugimi ustreznimi določbami direktiv 2014/30/EU in
2014/35/EU. Celotno besedilo izjave EU o skladnosti je na voljo na naslednjem spletnem naslovu:

www.ubnt.com/compliance

Español [Spanish] Por medio de la presente UBIQUITI NETWORKS declara que este dispositivo

ES-16-150W, cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables
o exigibles de las Directivas

2014/30/UE, 2014/35/UE

. El texto completo de la declaración UE de

conformidad está disponible en la dirección Internet siguiente:

www.ubnt.com/compliance

Svenska [Swedish] Härmed UBIQUITI NETWORKS, intygar att denna ES-16-150W enhet är i

överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som
framgår av direktiven

2014/30/EU, 2014/35/EU

. Den fullständiga texten till EU-försäkran om

överensstämmelse finns på följande webbadress:

www.ubnt.com/compliance

Online Resources

Support help.ubnt.com
Community community.ubnt.com
Downloads downloads.ubnt.com

www.ubnt.com

Ubiquiti Networks, Inc.

685 Third Avenue, 27th Floor

New York, NY 10017

USA

©2015-2018 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti
Networks, the Ubiquiti U logo, the Ubiquiti beam logo, EdgeMAX, EdgeOS,
EdgeSwitch, TOUGHCable, and UNMS are trademarks or registered trademarks

of UbiquitiNetworks,Inc. in the United States and in other countries. All other

trademarks are the property of their respective owners. NBPH100418
