TYM T330, T300 Operator's Manual

TYM

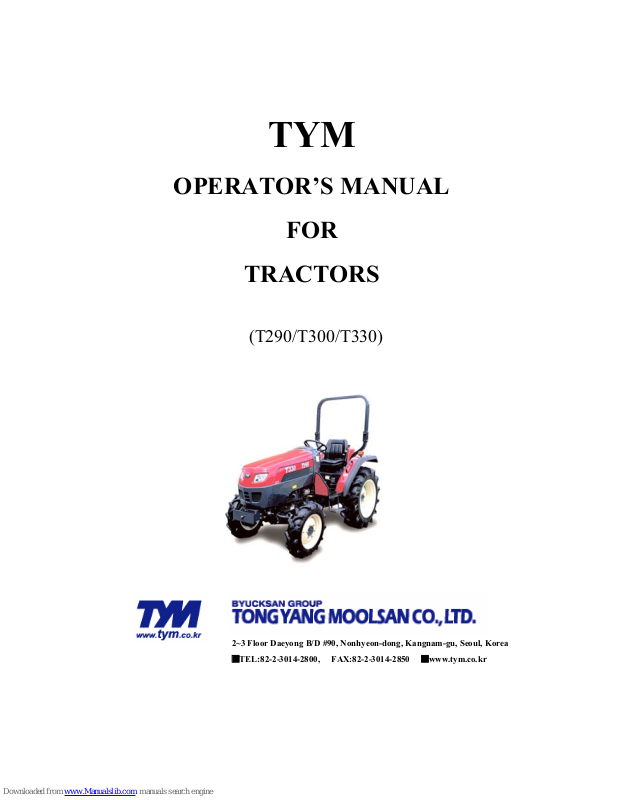

OPERATOR’S MANUAL

FOR

TRACTORS

(T290/T300/T330)

2~3 Floor Daeyong B/D #90, Nonhyeon-dong, Kangnam-gu, Seoul, Korea

■TEL:[phone], FAX:[phone] ■www.tym.co.kr

KUBOTA

FEDERAL AND CALIFORNIA

EMISSION CONTROL SYSTEMS

LIMITED WARRANTY

NON-ROAD ENGINES (CI)

The U.S. Environmental Protection Agency (EPA), the California Air Resources Board (CARB), And
KUBOTA Corporation are pleased to explain the Federal and California Emission Control System
Warranty on your non-road engine.
In California, new 1995 and later small off-road engines must be designed, built and equipped to meet
California’s stringent anti-smog standards. In other states of the U.S.A., new non-road engines subject to
the provisions of 40 CFR 89 subpart A must be designed, built and equipped, at the time of sale, to meet
the U.S. EPA regulations for non-road engines. KUBOTA must warranty the emission control system on
your engine for the period of time listed below provided there has been no abuse, neglect or improper
maintenance of your engine. This emission warranty is applicable in all states of the U.S.A. and all
provinces and territories of CANADA.

Where a warrantable condition exists, KUBOTA will repair your engine at no cost to you, including
diagnosis (if the diagnostic work is performed at an authorized dealer), parts and labors.

In an emergency, repairs may be performed at any engine repair facility or by the owner.

EMISSION DESIGN AND DEFECT WARRANTY COVERAGE

The warranty period for the engine begins on the date of sale to the ultimate purchaser and continues for
the period mentioned below.
The warranty period for all engines rated under 19kW, and for constant speed engines rated under 37kW
with rated speeds greater than or equal to 3000 rpm, is 1500 hours of operation or two (2) years of use,
whichever first occurs. For all other engines, the warranty periods are 3000 hours of operation or five (5)
years of use, whichever first occurs.

If any emission related part on your engine is defective, the part will be repaired or replaced by
KUBOTA free of charge.

OWNER’S WARRANTY RESPONSIBILITIES

(a) As the engine owner, you are responsible for the performance of the required maintenance listed

in your KUBOTA operator’s manual. KUBOTA recommends that you retain all receipts
covering maintenance on your engine, but KUBOTA cannot deny a warranty claim solely for the
lack of receipts or for your failure to ensure the performance of all scheduled maintenance.

(b) As the engine owner, you should be aware, however, that KUBOTA may deny your warranty

coverage if your engine or a part has failed due to abuse, neglect, improper maintenance or
unapproved modifications.

(c) You are responsible for presenting your engine to the nearest dealer or service station

authorized by KUBOTA when a problem exists. The warranty repairs should be completed

in a reasonable amount of time, not to exceed 30 days. If you have any questions regarding

your warranty rights and responsibilities or the location of the nearest authorized dealer or

distributor, you should contact KUBOTA ENGINE AMERICA CORPORATION, Service

Department at [phone], KUBOTA TRACTOR CORPORATION, National Service

Department at [phone] or KUBOTA CANADA LTD at [phone].

COVERAGE

KUBOTA warrants to the ultimate purchaser and each subsequent purchaser that your engine will
be designed, built and equipped, at the time of sale, to meet all applicable regulations. KUBOTA also
warrants to the initial purchaser and each subsequent purchaser that your engine shall be free from
defects in materials and workmanship which cause the engine to fail to conform with applicable
regulations for the period mentioned above from the date of original sale.

KUBOTA shall remedy warranty defects at any authorized KUBOTA engine dealer or warranty
station. Any authorized work done at an authorized dealer or warranty station shall be free of charge
to the owner if such work determines that a warranted part is defective. Any manufacturer approved or
equivalent replacement part may be used for any warranty maintenance or repairs on emission related
parts, and must be provided free of charge to the owner if the part is still under warranty. KUBOTA is
liable for damages to other engine components caused by the failure of a warranted part still under
warranty.

Listed below are the parts covered by the Federal and California Emission Control Systems
Warranty. Some parts listed below may require scheduled maintenance and are warranted up to the
first scheduled replacement point for that part. The warranted parts are:

1) Fuel Injection Pump 7) Inlet Pipe

2) Nozzle Assembly 8) Inlet Pipe Band

3) Injection Pipe 9) Air Cleaner Element *

4) Connector of Fuel Line 10) Fuel Filter Element *

5) Fuel Pipe Assembly 11) Turbocharger

6) Inlet Manifold 12) Exhaust Manifold

MAINTENANCE REQUIREMENTS

The owner is responsible for the performance of the required maintenance as defined by KUBOTA in

the operator’s manual.

LIMITATIONS

This Emission Control System Warranty shall not cover any of the following;

(a) Repair or replacement required because of misuse or neglect, improper maintenance, repairs

improperly performed or replacements not conforming to KUBOTA specifications that

adversely affect performance and/or durability, and alteration or modifications not

recommended or approved in writing by KUBOTA.

(b) Replacement of parts and other services and adjustments necessary for required maintenance at

and after the first scheduled replacement point.

FOREWARD

Thank you very much for purchasing our tractor, which, we feel sure, will give you many years of
troubling the service.

The introduction in this manual set out the correct manner of operating, maintaining and checking the
tractor to ensure long-term durability.

Please ensure correct operation of the tractor as incorrect operation can cause substantial mechanical
damage as well as cause accidents with the associated injuries.

Please note that in some cases differences can exist between this manual and your tractor due to the
manufacture’s policy of constant product improvement.

In the event that you strike a problem not covered by this manual please contact your nearest dealer who
will assist you in resolving your problem.

CALIFORNIA Proposition 65 Warning

The Engine Exhaust from this product contains chemicals known to the state
of California to cause cancer,birth defects or other reproductive harm

WARNING

WARNING SIGNS IN THIS MANUAL

The following warning signs in this manual draw additional attention to items of importance for the
safe and correct operation of the tractor.

MEANING OF THE SIGN SIGN

Serious hazard with a very high level of risk of either serious injury or

Danger

Warning

Caution

Important

death

Hazard or unsafe practice that can lead to severe injury or death.

Hazard or unsafe practice that can lead in injury or death.

Instructions for the correct operation of the machine which, if

followed, will ensure that it performs at it’s best

1

CONTENTS

Sr. No. Description Page No.

1. Tractor Identification

2. About this manual

3. Introduction & description

4. Owner assistance

5. ROPS (Roll over protection structures)

6. Safety instructions, Do’s & Don’ts

7. Safety signs

8. Universal symbols

Section A

9. Controls, Instruments & Operations

Section B

10. Lubrication & maintenance

Section C

11. Specifications

12. Fuel saving Tips

13. Fault tracing

14. Wiring Diagram

15. Power Train

16. Tractor history card

3

4

5~7

8

9~11

12~25

26~28

29

31~51

53~74

75~77

78~79

80~84

85~88

89

90

17. Service record

18. Daily operating Log

19. Part replacement record

All information, illustrations and specifications in this manual are based on latest information available at
the time of publication. The right is reserved to make changes at any time without notice.

91

92

93

2

TRACTOR IDENTIFICATION

The engine number is stamped on the left hand side of the engine block.

The chassis number is shown on the left hand side of the tractor as shown in the drawing.

Engine type and number on the R.H.S of Engine body

Manufacturer’s tractor Sr. No.

punched on plate on the L.H.S of Axle bracket

Illustration A

WARRANTY OF THE PRODUCT.

The manufacturer warrants this product and full details of the warranty are provided on a separate
warranty schedule.

SERVICE.

Service is available from any TYM dealer in the country.

PARTS.

To obtain spare parts please contact your nearest dealer and give him the details listed below.

Tractor model

Tractor serial number

Tractor engine number

Part number and description

Quantity required.

3

ABOUT THIS MANUAL

This manual has been prepared to assist you in following/adopting the correct procedure for running-in
operation and maintenance of your new TYM Tractor.

Your Tractor has been designed and built to give maximum performance, with good fuel economy and
ease of operation under a wide variety of operating conditions. Prior to delivery, The tractor was
carefully inspected, both at the factory and by your TYM Dealer/Distributor, to ensure that it reaches
you in optimum conditions .To maintain this condition and ensure trouble free performance. it is
important that the routine services, as specified in this manual, are carried out at the recommended
intervals.

Read this Manual carefully and keep it in a convenient place for future reference. If at any time you
require advice concerning your Tractor, do not hesitate to contact your Authorized TYM
dealer/Distributor. He has trained personnel, genuine parts and necessary equipments to undertake all
your service requirements.

TYM.CO.,LTD. policy is one of continuous improvement,and the right to change prices, specifications
or equipments at any time without notice is reserved.

All data given in this book is subject to production variations. Dimensions & weight are approximate
only and the illustrations do not necessarily show Tractors in standard condition. For exact information
about any particular Tractor, please consult your TYM dealer/Distributor.

4

Introduction & Description

TRACTOR AN INTRODUCTION

The word, ’Tractor’ has been derived from ‘Traction’ which means pulling.

A Tractor is required to pull or haul an equipment, implement or trolley which are coupled to the Tractor
body through suitable linkage. A Tractor can also be used as a prime mover as it has a power outlet
source which is also called Power Take or PTO shaft.

In this book the operating, maintenance and storage instructions for all models of TYM Diesel Tractors
has been complied. This material has been prepared in detail to help you in the better understanding of
maintenance and efficient operation of the machine.

If you need any information not given in this manual, or require the services of a trained mechanic,
please get in touch with the TYM Dealer/Distributor in your locality. Dealer/Distributors are kept
informed of the latest methods of servicing Tractors. They stock genuine spare parts and are backed by
the Company’s full support.

Through this manual. The use of the terms LEFT,
RIGHT, FRONT and REAR must be understood,
to avoid any confusion when following the
introductions. The LEFT and RIGHT means left
and right sides of the Tractor when facing
forward in the driver’s seat, Reference to the
FRONT indicates the radiator end of the Tractor,
while the REAR, indicates the drawbar end
(illustration E)

When spare parts are required, always specify
the Tractor and engine serial number when
ordering these parts.(See illustration A).This will
facilitate faster delivery and help ensure that the
correct parts for your particular Tractor is
received. The tractor serial number is punched
on a plate attached to the left hand side of the
engine body (illust. A), For easy reference, we
suggest you to write the number in the space
provided in the owner’s personal data.

illustration E

( Front, Rear,Left,Right Portion)

5

DESCRIPTION

■ General construction

The transmission case, Clutch, Clutch housing, Engine and Front Axle Support are bolted together to form
a rigid unit

■ Front Axle & Wheels

The 4WD front axle is a center-pivot, reverse Eliot type. The front wheel drive mechanism is incorporated
as a part of the axle.

The front wheel drive power is taken off the rear transmission and transmitted to the differential in the
front axle where the power is divided into right and left and to the respective final cases.

In the final cases, the transmitted revolution is reduced by the level gears to drive the front wheel. The
4WD mechanism with level gears provides wider steering and greater durability.

■ Engine

The tractors are fitted with vertical, Water-cooled 4-cycle and spherical chamber type KUBOTA
ENGINES (T290/T300/T330)

■ Clutch and Transmission

A single plate dry clutch(8.86″diameter) is used on these tractors. Tractor with IPTO(Independent Power
Take Off) are fitted with hydraulic Clutch Assy. The transmission Gear box has twelve forward speeds &
twelve reverse speeds of T290/T300/T330 with high-low selector lever, Presently, TYM Tractors are
fitted with partial synchro mesh type gears.

■ Brakes

TYM tractors are provided with independent disc brakes operated by two road travel. A foot brake lever is
fitted for parking.

■ Rear axle & Wheels

This is mounted on ball bearings and is enclosed in removable housing which are bolted to the
transmission case. The rim & Disc fitted with Rear tires are bolted to the outer flange of Rear Axle.

■ Hydraulic system & Linkages.

TYM Tractors are fitted with Live (i.e. system is in operation even when clutch is disengaged.)
independent, very touch of hydraulic System. Three point Linkages can be used for category 1 type of
implements.

6

■ Steering

It consists of Hydrostatic Power steering system, which has a hydraulic cylinder and tandem type
hydraulic pump

■ Electrical System

A 12 Volt Lead Acid Propylene Battery is used to activate the Engine through the Starter Motor and the
Electrical system comprising Horn, Head Lamp, Side indicator Lamps, Plough Lamp, Brake Light,
Gauge lamp, Hazard Lamp. Generator or Alternator, Fuse box also from part of the Electrical system.

7

OWNER ASSISTANCE

We at TYM.CO.,LTD.and TYM Dealer/Distributor wants you to be completely satisfied with your
investment. Normally any problems with your equipment will be handled by your Dealer/Distributor’s
Service Departments, however, misunderstanding can occur. If you feel that your problem has not been
handled to your satisfaction, we suggest the following.

Contact the owner or General Manager of the Dealership, explain the problem, and request assistance.
When additional assistance is needed, Your Dealer/Distributor has direct access to your office. If you
cannot obtain satisfaction by doing this, contact the TYM CO.,LTD. Office and provide them with;

• Your name, address and telephone number

• Model and Tractor serial number

• Dealer/Distributor Name & Address

• Machine purchase date and Hours used

• Nature of problem

Before contacting TYM.CO.,LTD. office, be aware that your problem will likely to be resolved in the
Dealership using the Dealer’s/Distributor’s facilities, equipment and personnel.

So it is important that your initial contact be with the Dealer/Distributor.

8

(ROPS) Roll Over Protective Structures

Roll Over Protective Structures (ROPS)

TYM CO.,LTD Tractors are fitted with a frame for the protection of Operators of Tractors to
minimize the possibility of serious operator injury result from accidental upset. These are called as
ROPS and are characterized by providing space for the clearance zone inside the envelope of the
structure or within a space bounded by a series of straight lines from the outer edge of the tractor to
any part of the Tractor that might come in contact with flat ground and is capable of supporting the
Tractor in that position if the Tractor overturns.

The mounting structure and fasteners forming the mounting connection with the Tractor are part of the
ROPS.

Loosen and release the knob slowly and cautiously to fold down the ROPS. If Tractor is
operated with ROPS folded (E.g. to enter a low building) Drive with extreme caution
and do not use seat belt. Fold the ROPS up again before the Tractor is operated under
normal conditions.

Please note that in no condition. The tractor is to be operated without ROPS. Operating

Caution

the tractor without ROPS, with folded

ROPS with damaged ROPS or hardware can lead to fatal injuries

(ROPS) Maintenance and inspection

The ROPS has been certified to industry and/or government standards. Any damage or alteration to the
ROPS, mounting hardware or seat belt voids the certification and will reduce or eliminate protection for
the operator, in the event of a roll-over.

The ROPS, mounting hardware and seat belt should be checked after the first 100 hrs. of machine
operation and every 500 hrs thereafter for any evidence of damage wear or cracks. In the event of damage
or alteration the ROPS must be replaced prior to further operation of the machine. The seat belt must be
worn during machine operation when it is equipped with a certified ROPS. Failure to do so will reduce or
eliminate protection of the operate in the event of a roll-over. Substitution of mounting hardware, seat belt
etc. with components not equal to or superior to the original certified components will void the
certification and will reduce or eliminate protection for the operator in the event of a roll-over.

9

Damage of the ROPS

If the tractor has rolled over or the ROPS has damaged (such as striking an overhead object during transport),
It must be replaced to provide the original protection. After an accident, check for damages to the

1.ROPS.2.Seat 3.seat belt & seat mountings. Before you operate a Tractor, replace all damaged parts.

DO NOT WELD, DRILL OR STRAIGHTEN THE ROPS

Never attach chains, ropes to the ROPS for pulling purposes; this will cause

the Tractor to tip backwards. Always pull from the Tractor drawbar. Be

careful when driving through door opening or under low overhead objects.

Warning

Make sure there is sufficient overhead clearance for the ROPS fatal injuries

If the ROPS is removed or replaced, make certain that the proper hardware is

used to replace the ROPS and the recommended torque values are applied to

Warning

the attaching bolts

Always wear your seat belt if the tractor is equipped with ROPS

Warning

10

Seat Adjusting
Lever

Figure 1

NOTE: Do not use solvents to clean the seat. Use warm water with a little detergent added.

Before operating a Tractor it is important to adjust the seat to the most comfortable position & check whether

it is properly locked in its position. Figure 1 identifies the seat fitted to your Tractor.

FOR Sliding seat

To select Seat position, move Adjusting lever and slide Seat closer to or away from Dash panel and controls.

Check whether the seat properly locked in its position before driving the tractor

Danger

Always use the seat belt when the ROPS is installed.Do not use the seat belt if a

foldable ROPS is down or there is no ROPS.Check the seat belt regularly and replace if

Danger

frayed or damaged

11

SAFETY INSTRUCTIONS

RECOGNIZE SAFETY INFORMATION

This symbol means ATTENTION! YOUR SAFETY IS
INVOLVED. The message that follows the symbol contains
important information about safety. Carefully read the message

SIGNAL WORDS.

A signal word―DANGER, WARNING OR CAUTION―is used
with safety alert symbol. DANGER identifies the most serious
hazards. Safety signs with signal Word ―DANGER OR
WARNING―are typically near specific hazards. General
precautions are listed on CAUTION safety signs.

READ SAFETY INSTRUCTION

Carefully read all safety instructions given in this manual for your
safety. Tempering with any of the safety devices can cause serious
injuries or death. Keep all safety signs in good condition. Replace
missing or damaged safety signs.

Keep your tractor in proper condition and do not allow any
unauthorized modifications to be carried out on the Tractor, which
may impair the function/safety and affect Tractor life.

DANGER

WARNING

CAUTION

PROTECTION CHILDREN

Keep children and others away from the Tractor while operating.

BEFORE YOU REVERSE

- Look behind Tractor for children.

- Do not let children to ride on Tractor or any implement.

12

USE OF ROPS AND SEAT BELT

The Roll Over Protective Structure(ROPS) has been certified to industry
and/or government standards. Any damage or alternation to the ROPS,
mounting hard-ware, or seat belt voids the certification and will reduce
or eliminate protection for the operator in the event of a roll-over. The
ROPS, mounting hardware, and seat belt should be checked after the
first 100 hours of Tractor and every 500 hours thereafter for any
evidence of damage, wear or cracks. In the event of damage or
alteration, the ROPS must be replaced prior to further operation of the
Tractor.

The seat belt must be worn during machine operation when the machine
is equipped with a certified ROPS.

Failure to do so will reduce or eliminate protection for the operator in
the event of a roll over.

PRECAUTION TO AVOID TIPPING

Do not drive where the Tractor could slip or tip.

Stay alert for holes and rocks in the terrain, and other hidden hazards.

Slow down before you make a sharp turn.

Driving forward out of a ditch or mired condition could cause Tractor to
tip over backward. Back out of these situations if possible

PARK TRACTOR SAFELY

Before working on the Tractor ;

Lower all equipment to the ground.

Stop the engine and remove the key

KEEP RIDERS OFF TRACTOR

Do not allow riders on the Tractor.

Riders on Tractor are subject to injury such as being stuck by foreign
objects and being thrown off of the Tractor

13

HANDLE FUEL SAFELY-AVOID FIRES

Handle fuel with care; it is highly flammable. Do not refuel the Tractor
while smoking or near open flame or sparks.

Always stop engine before refueling Tractors.

Always keep your tractor clean of accumulated grease, and debris.
Always clean up spilled fuel.

STAY CLEAR OF ROTATING SHAFTS

Entanglement in rotating shaft can cause serious injury or death.

Keep PTO shield in place at all times.

Wear close fitting clothing. Stop the engine and be sure PTO drive is
stopped before making adjustments, connections, or cleaning out PTO
driven equipment.

ALWAYS USE SAFETY LIGHTS AND DEVICES

Use of hazard warning lights and turn signals are recommended when
towing equipment on public roads unless prohibited by state or local
regulations.

Use slow moving vehicle (SMV) sign when driving on public road
during both day & night time, unless prohibited by law

PRACTICE SAFE MAINTENANCE

Understand service procedure before doing work.

Keep the surrounding area of the Tractor clean and dry.

Do not attempt to service Tractor when it is in motion.

Keep body and clothing away from rotating shafts.

Always lower equipment to the ground. Stop the engine.

Remove the key. Allow Tractor to cool before any work repair is

caused on it.

Securely support any Tractor elements that must be raised for

service work.

Keep all parts in good condition and properly installed.

Replace worn or broken parts. Replace damage/missing decals.

Remove any buildup of grease or oil from the Tractor.

Disconnect battery ground cable(−) before making adjustments on

electrical systems or welding on Tractor

14

AVOID HIGH-PRESSURE FLUIDS

Escaping fluid under pressure can penetrate the skin causing serious injury.
Keep hands and body away from pinholes and nozzles, which eject fluids
under high pressure. If ANY fluid is injected into the skin. Consult your
doctor immediately.

PREVENT BATTERY EXPLOSIONS

Keep sparks, lighted matches, and open flame away from the top of battery.
Battery gas can explode.

Never check battery charge by placing a metal object across the poles.

Sulfuric acid in battery electrolyte is poisonous. It is strong enough to

PREVENT ACID BURNS

burn skin, cause holes in clothing and cause blindness if found entry

into eyes.

For adequate safety always;

1.Fill batteries in a well-ventilated area.

2.Wear eye protection and acid proof hand gloves

3. Avoid breathing direct fumes when electrolyte is added.

4. Do not add water to electrolyte as it may splash off causing severe

burns.

If you spill acid on yourself;

1.Flush your skin with water.

2.Flush your eyes with water for 10-15 minutes.

Get medical attention immediately.

SERVICE TRACTOR SAFELY

Do not wear a necktie, scarf or loose clothing when you work near moving
parts. If these items were to get caught, severe injury could result.

Remove rings and other jeweler to prevent electrical shorts and entanglement
in moving parts.

15

WORK IN VENTILATED AREA

Do not start the Tractor in an enclosed building unless the doors & windows
are open for proper ventilation, as tractor fumes can cause sickness or death. If
it is necessary to run an engine in an enclosed area remove the exhaust fumes
by connecting exhaust pipe extension.

TRACTOR RUNAWAY

1. The tractor can start even if the transmission is engaged position causing Tractor to runaway and
serious injury to the people standing nearby the tractor.

For additional safety keep the pull to stop knob (fuel shut off control) in fully pulled out position.
Transmission in neutral position, Foot brake engaged and PTO lever in disengaged position while
attending to Safety Starter Switch or any other work on Tractor.

SAFETY STARTER SWITCH

1. Clutch operated safety switch is provided on all Tractors which allow the starting system to

become operational only when the Clutch pedal is fully pressed.

2. Do not By-pass this safety starter switch or work on it. Only Authorized Dealers are

recommended to work on safety starter switch.

3. On some models Safety Starter switch is provided on transmission High-low shifter lever and in

PTO shifter lever.The tractor can be started only if High-low shifter lever is in neutral position.

Safety Starter Switch is to be replaced after every 2000 hours/4 years, whichever is

earlier

16

SAFE OPERATION OF YOUR TRACTOR

The manufacturer of your tractor has made every effort to make it as safe as is humanly possible.

Beyond this point it is the responsibility of the operator to avoid accidents and we ask that you read and
implement our suggestions for your safety.

Ensure that only trained and competent operators use this tractor and ensure that they are fully
conversant with the machine and aware of all it’s control and safety features.

Operators should not operate the tractor or associated machinery while tired or untrained.

To avoid accidents, please ensure that the operator wears clothing which will not get entangled in the
moving parts of the tractor or machine and protect him or her from the elements.

When spraying or using chemicals, please ensure that clothing and protective equipment is worn which
prevents respiratory or skin problems.

For full details consult the manufacturer of the chemicals.

To avoid lengthy exposure to noise ensure that ear protection is worn.

If adjustment to the tractor or machinery need to be made ensure the tractor or machine are turned off
beforehand.

Use of certified Roll Over Protection Structure (ROPS) is a must while operating a tractor.

Use of seat belt is a must while operating a tractor.

In summary, ensure at all times that the safety of the operator and any other worker is paramount.

17

SAFETY TIPS DURING MAINTENANCE

1. At least on a daily basis check all oil levels. Water level in the radiator and electrolyte level in the

battery and perform services according to the service schedule.

2. Ensure tire pressure are even and the correct pressure for the job being done is maintained.

3. Check to ensure that the all controls and preventative mechanisms of the Tractor and implement

work correctly and effectively.

4. Ensure that an adequate set of the correct tools is available for maintenance and minor repairs.

5. Ensure that all service work and repairs are carried out on a flat area with a concrete or similar

floor.

Do not carry out service work on a tractor until it is switched off, and the parking brake applied

and wheels choked.

Where a tractor is started in a confined area, ensure that the area is well ventilated as exhaust

gases are very harmful, and can cause death.

6. Do not work under raised implements.

7. When changing wheels or tires ensure that a suitable wheel stand is placed under the axle prior

to removing the wheel and the wheels are chocked.

8. Where guards or shields need to be removed to perform a service or repair, ensure that the guard

or shield is correctly reinstalled before starting the Tractor.

9. Never refuel near a naked flame or with an overheated engine. Ensure to turn off Engine before

refueling.

10. The cooling system operates under pressure, take care when removing the Radiator cap on a hot

engine to prevent being scalded by steam or hot water. Do not add water in the radiator when the

engine is hot. Add water to the radiator only after the engine cools down completely.

11.To prevent fires keep the tractor including the engine clean and free from inflammable material

and well away from fuels and other inflammable material.

18

► MOUNTING AND DEMOUNTING IMPLEMENTS

(1)Ensure that all mounting and removal of implements is done on safe flat ground. Ensure no one

is between the Tractor and implement and do not get under the implement to avoid accidental

injuries.

(2) After mounting the implement, ensure that all sway chains are correctly adjusted and, where

PTO shafts are used that the shaft is fitted and secured correctly.

(3) Where heavy implements are used, ensure that the combination is well balanced or use proper

ballast to achieve balance.

(4) Before leaving the tractor at any time, lower the implement, stop the PTO shaft where

applicable, set the parking brake and switch off the engine.

(5) While operating the implements with the PTO, keep all bystanders away from any moving parts

and do not attempt to make adjustments while the machine is running.

(6) Only the driver should ride on the Tractor with the ROPS frame fitted and with the seat belt

properly fastened.

(7) Where young children are present, particular care should be taken and the tractor should not be

moved until the whereabouts of all children is known.

(8) Only trained operators should operate the Tractor and so taking care to ensure that other

workers are not injured. In particular they should take care during dusty operations, which will
reduce visibility substantially.

(9) Never start the tractor unless the transmission is out of gear, the operator is in the seat and all

round safety has been checked.

(10) Only operate the tractor seated in the drivers seat and never turn or brake suddenly at high

speed as this can cause a roll-over and serious injury or death.

(11) When traveling on a public road ensure that the tractor and driver both meet all laws relating to

safety and licensing. When traveling with wide implements use red flags on the extremities and
observe all legal including escort requirements.

(12) When operating under adverse conditions, hilly terrain or on bad ground adjust the speed of the

tractor to suit the conditions, safety comes first. Never drive down hill at high speed or with the
transmission in neutral. Use of the braking capacity of the engine as well as the service brakes.

Do not try to change gear going up or down a steep slope, select the correct gear before
starting.

(13) Take care when traveling uphill with a heavy implement to ensure that it does not overbalance

and tip up the front end.

(14) Never remove or modify the seat belt.
(15) Never remove, modify or repair the ROPS frame.

PLEASE REMEMBER THAT A LITTLE BIT OF EXTRA CARE CAN PREVENT SERIOUS
INJURY OR DEATH AND AVOID DAMAGE TO YOUR TRACTOR.

19

The following precautions are suggested to help prevent accidents.

A careful operator is the best operator. Most accidents can be avoided by observing certain
precautions. Read and take the following precautions before operating the Tractor to prevent
accidents. Tractor should be operated only by those who are responsible and properly trained to
do so.

■ The Tractor

1. Read the operator’s manual carefully before using the tractor. Lack of operating knowledge can
lead to accidents.

2. Use an approved rollover bar and seat belt for safe operation. Overturning of a tractor without a
rollover bar can result in death or injury.

3. Do not remove ROPS (Roll Over Protective Structure). Always use the seat belt.

4. Fiberglass canopy does not give any protection.

5. To prevent falls, keep steps and platform clear of mud and oil.

6. Do not permit anyone but the operator to ride on the Tractor. There is no safety place for extra riders.

7. Replace all missing, illegible or damaged safety signs.

8. Keep safety signs clean of dirt and grease

■ Servicing the Tractor

1.keep the tractor in good operating condition for your safety. An improperly maintained Tractor can

be hazardous.

2. Stop the engine before performing any service on the tractor.

3. The cooling system operates under pressure, which is controlled by the radiator cap. It is
dangerous to remove the cap while the system is hot. First turn the cap slowly to stop and

allow the pressure to escape before removing the cap entirely.

4. Do not smoke while the refueling the tractor. Keep away any type of open flame.

5. The fuel in the injection system is under high pressure and can penetrate the skin. Unqualified

persons should not remove or attempt to adjust a pump, injector, nozzle or any part of the fuel
injection system.
Failure to follow these instructions can result in serious injury.

6. Keep open flame away from battery or cold weather starting aids to prevent fire or
explosions.

7. Do not modify or alter or permit anyone else to modify or alter this tractor or any of its

components or any tractor functions

20

■ Operating the tractor

1. Before starting the tractor apply the parking brake, place the PTO (Power Take Off) lever in the
“OFF” position, the hydraulic control levers in the downward position, the remote control valve

levers in the neutral position( if fitted) and the transmission in neutral.

2. Do not start the engine or controls while standing besides the tractor. Always sit on the tractor
seat when the engine operating controls.

3. Safety starter switch.

In order to prevent the accidental starting of the tractor, a safety switch has been provided. The
starting system of the tractor is connected through this switch, which becomes operative only when
the clutch pedal is depressed. On some models shuttle shifter lever and PTO button should also be in
neutral position for completing the starting circuit. Do not bypass the safety starter switch. Consult
your TYM Tractor Dealer/Distributor if safety- starting switch malfunctions.

4. Avoid accidental contact with the gear shifter lever while the engine is running. Unexpected

Tractor movement can result from such contact.

5. Do not get off or climb the tractor while it is in motion.

6. Shut off the engine, remove the key and apply the parking brake before getting off the tractor.

7. Do not operate the tractor in an enclosed building without adequate ventilation. Exhaust fumes can

cause death.

8. Do not park the tractor on a steep slope.

9. If power steering or Engine seizes to operate, stop the tractor immediately.

10. Pull only from the swinging draw bar or the lower link drawbar in the down position. Use only a

drawbar pin that locks in place. Pulling from the tractor rear axle carriers or any point above the
rear axle may cause the Tractor’s front end to lift.

11. If the front end of the tractor tends to rise when heavy implements are attached to the three-point

linkage, install front end or front wheel weights. Do not operate the tractor with a light front end.

12.Always use hydraulic position control lever when attaching equipments/implement and when
transporting equipment. Be sure that the hydraulic couplers are properly mounted and will disconnect

safely in case of accidental detachment of implement.

13.Do not leave equipment/implement in the raised position.

14.Use the flasher/ Turn signal lights and Slow Moving Vehicle (SMV) signs when driving on public

roads during both day and night time, unless prohibited by law.

15. Dim tractor lights when meeting a vehicle at night. Be sure the lights are adjusted to prevent the

blinding on the eyes of coming vehicle operator.

16.Emergency stopping instruction; If tractor fails to stop even after application of brakes, Pull the

knob of fuel shut off control rod.

21

■ Driving the tractor

1. Watch where you are going especially at row ends, on roads, around trees and low hanging obstacles.

2. To avoid upsets, drive the tractor with care and at speeds compatible with safety, especially
when operating over rough ground, crossing ditches or slopes, and when turning at corners.

3. Lock the tractor brake pedals together when transporting on roads to provide proper wheel braking.

4. Keep the tractor in the same gear when going downhill as used when going uphill. Do not coast

or free wheel down hills.

5. Any towed vehicle and/or trailer whose total weight exceeds that of the towing Tractor, must be
equipped with its own brakes for safe operation.

6. When the tractor is stuck or tires are frozen to the ground, back out to prevent upset.

7. Always check overhead clearance, especially when transporting the tractor.

■ Operating the PTO (Power Take Off)

1. When operating PTO driven equipment, shut off the engine and wait until the PTO stops before
getting off the tractor and disconnecting the equipment.

2. Do not wear loose clothing when operating the power take-off or near rotating equipment.

3. When operating stationery PTO driven equipment, always apply the tractor parking brake and
block the rear wheels from front and rear side.

4. To avoid injury, always move down flip part of PTO. Do not clean, adjust or service PTO
driven equipment when the tractor engine is running.

5. Make sure the PTO master shield is installed at all times and always replace the PTO shield cap

When the PTO is not in use.

■ Diesel fuel

1.Keep the equipment clean and properly maintained.

2. Under no circumstances should gasoline, alcohol or blended fuels be added to diesel fire or

explosive hazard. Such blends are more explosive than pure gasoline. In a closed container,

such as a fuel tank. DO NOT USE THESE BLENDS.

3. Never remove the fuel cap or refuel the tractor with the engine running.

4. Do not smoke while refueling or when standing near fuel.

5. Maintain control of the fuel filler pipe when filling the tank.

6. Do not fill the fuel tank to capacity. Allow room for expansion.

22

7.Wipe up spilled fuel immediately.

8.Always tighten the fuel cap securely.

9.If the original fuel tank cap is lost, replace it with genuine cap. A none approved cap may not

be safe.

10.Do not drive equipment near open fire.

11.Never use fuel for cleaning purpose.

12.Arrange fuel purchases so that winter grade fuel are not held over and used in the spring.

N.B: It is suggested that after repairs if any of the Safety Decal/sign is peeled/defaced, the

same may be replaced immediately in interest of your safety.

23

DO’S AND DON’T’S

DO’S-For Better performance

DO-Ensure that safety shields are in place and in good condition.

DO-Read all operating instructions before commencing to operate Tractor.

DO-Carry out all maintenance tasks without fail.

DO-Keep the air cleaner clean.

DO -Ensure that the correct grade of lubricating oils is used and that they are replenished and

changed at the recommended intervals.

DO-Fit new sealing rings when the filter elements are changed.

DO-Watch the oil pressure gauge or warning light and investigate any abnormality immediately.

DO-Keep the radiator filled with clean water and in cold weather use anti-freeze mixture. Drain

the system only in an emergency and fill before starting the engine.

DO-Ensure that the transmission is in neutral before starting the engine.

DO-Keep all fuel in clean storage and use a filter when filling the tank.

DO-Attend to minor adjustments and repairs as soon as necessity is apparent.

DO-Allow the engine to cool before removing the radiator filler cap and adding water, remove the

radiator cap slowly.

DO-Shift into low gear when driving down steeps hills.

DO-Latch the brake pedals together when driving on a highway.

DO-Keep draft control lever fully down when not in use.

Don’ts-For safe operation

DON’T-Run the engine with the air cleaner disconnected.

DON’T-Start the tractor in an enclosed building unless the doors and windows are open for proper

ventilation.

DON’T-Operate the tractor or engine while lubricating or cleaning.

DON’T-Allow the tractor to run out of diesel fuel otherwise it will be necessary to vent the system.

DON’T-Temper the fuel injection pump, If seal is broken the warranty becomes void.

DON’T-Allow the engine to run idle for a long period.

24

DON’T-Run the engine if it is not firing on all cylinders.

DON’T-Ride the brake or clutch pedal. This will result in excessive wear of the brake lining,

clutch driven member and clutch release bearing.

DON’T-Use the independent brakes for making turns on the highway or at high speeds.

DON’T-Refuel the tractor with the engine running.

DON’T-Mount or dismount from the right side of the tractor.

DON’T-Temper the hydraulic control levers’ upper limit stops.

DON’T-Use draft control lever for lifting of implements.

DON’T-Start the engine with the PTO engaged.

DON’T-Use the governor Control Lever (Hand throttle) while driving on roads.

DON’T-Move the hydraulic levers rearward.

25

SAFETY SIGNS

(Replace all missing, damaged or illegible signs)

GENERAL SAFETY INFORMATION

IMPORTANT: This “General safety Information” should be kept with the machine at all times as
reference data.

This symbol means ATTENTION! YOUR SAFETY IS INVOLVED.

The message that follows the symbol contains important information about safety. Follow
recommended precautions and safe operating practice.

WARNING

• Before starting and operating know the operating

and safety instructions in the operators Manual

and on the tractor

• Clear the area of bystanders.

• Locate and know operation of the controls.

• Start the engine only from Operator’s seat with

depressed clutch pedal, transmission in the
neutral, PTO disengaged and hydraulic control in
lower position

• Slow down on turns, rough ground and slopes to

avoid rollovers.

FAILURE TO FOLLOW ANY OF THE INSTRUCTIONS ABOVE CAN CAUSE SERIOUS INJURY
TO THE OPERATOR.

• Do not permit anyone but the operator to
ride on the tractor. There is no safe place
for rider.

• Lock brakes together, use warning lights
and SMV emblem while driving on roads.

• Lower equipment, place gear shift levers
in neutral, stop engine, remove the key
and apply parking brake before leaving
the tractor seat.

• Air pressures are specified by the

manufacturer in the tires

26

Location: On Radiator shroud

side LH&RH

Part No.: 1200-910-012-0

CAUTION

Location: On Radiator
Part No.: 1200-910-015-0

Location: On Dash cover Side RH
Part No.: 1200-910-023-0

TO PROTECT ENGINE AND
HYDRAULIC COMPONENTS.

● Idle engine for 1 minute

before shut down for full load

operation.

● Do not exceed 1/2 throttle for

first 5 minutes of operation.

Location: On Dash cover side RH

Part No.: 1260-904-064-0

DANGER

Rotating driveline contact can cause
Death

KEEP AWAY !

Keep all drive line.

Tractor and equipment shields in
place during operation

Location: On PTO Guard
Part No.: 1200-910-013-0

27

DANGER

WARNING

BLINDNESS CAN RESULT

FROM BATTERY EXPLOSION.

KEEP SPARKS OR OPEN

FRAMES AWAY FROM

BATTERY.

DO NOT JUMP START.

BURNS CAN RESULT

FROM BATTERY ACID.

IN CASE OF CONTACT

FLUSH IMMEDIATELY WITH

WATER .

Location: On the front view of battery
part No.: 1260-904-066-0

WARNING

● Start engine only from operators seat.

If safety start switch is bypassed engine can

start with transmission in gear.

● Do not connect or short across terminal on

starter solenoid.

●Attach booster cables as shown on battery

decal and operators manual.

Starting in gear causing runaway can result in
serious injury.

● Pull only from drawbar. Pulling from any

other point can cause rear overturn.

● Do not operate with unshielded PTO.

● Disengage PTO and stop engine before

servicing tractor or attaching and detaching

implements.

● When towing equipment use a Safety chain

FAILURE TO FOLLOW ANY OF THE
INSTRUCTIONS ABOVE CAN CAUSE
SERIOUS INJURY TO THE OPERATOR OR
OTHER PERSONS.

Location: On rear frame

Part No.: 1260-904-065-0A

FRONT TYRE (7-16) PRESSURE

Air pressure: 25.6 p.s.i

Location: On Front Rims.
Part No.:1260-904-074-0

REAR TYRE (12.4-24) PRESSURE

Air pressure: 17 p.s.i

Location: : On rear rims.
Part No.:1260-904-076-0

Location: On dash cover side LH
Part no: 1260- 904-062-0A

Location: On dash panel near clutch pedal

Part No.: 1260-904-068-0

WARNING

DO NOT REST FOOT ON

CLUTCH PEDAL.

MAY RESULT IN DAMAGE

TO CLUTCH ASSEMBLY.

28

UNIVERSAL SYMBOLS

Some of the universal symbols have been shown below with an indication of their meaning

Engine speed

rev/minX100)

Hours,

recorded

Engine

coolant

temperature

Engine

Stop

control

Pressured-

open slowly

Continuous

variable

Warning

Hazard

warningFuel level

Corrosive

substance

”Tortoise”

Slow or

minimum Setting

”Hare” fast or

maximum

setting

Transmission

oil pressure

Turn signalNeutral

Transmission

oil temperatureFanLights

Engine oil

pressure

Power take

off engagedHorn

Power

take off

Disengaged

Lift arm/raiseAir filter

Lift arm/lowerBattery charge

29

parking brake

Work lamps

Differential

lock

See

operator’s

manual

Section - A

Controls,

Instruments

And

Operations

The following pages in this section detail the location and function of various instruments, switches and
controls on your Tractor. Even if you operate other Tractors, you should read through this section of the
manual and ensure that you are thoroughly familiar with the location and function of all the features of
your New Tractor.

Do not start the engine or attempt to drive or operate the Tractor until you are fully accustomed to all the
controls. It is too late to learn once the Tractor is moving. If in doubt about any aspect of the operation of
the tractor consult your TYM Co., LTD Tractor Dealer/Distributor.

Particular attention should be paid to the recommendations for running-in to ensure that your tractor will
give long life and dependable service for which it was intended.

31

DESCRIPTION OF TRACTOR CONTROLS

INSTRUMENT AND SWITCHES

►Main switch

[OFF]-The key can be inserted or removed

[ON]- The electric circuit is on.

[Glow]-Glow plugs preheat the combustion chamber

[START]-The starter motor is engaged.

When the key is released it will return to

the ON position

32

►LIGHT SWITCH, INDICATORS AND HORN

High and low beam are operated

On the main switch

Position 1. High beam

Position 2. Low beam

►TACHOMETER

This meter shows the revolutions of the engine and the

PTO shafts as well as the travel speed in top gear.

(1) Right needle

Indicates speed in top gear.

(2) Left needle

Indicates engine revolutions

►HOUR METER

The hour meter consists of digits with the last digit
indicating 1/10

th

of an hour

►FUEL GAUGE

Shows the amount of fuel in the tank when the ignition switch is

ON

►WATER TEMPERATURE GAUGE

Shows the water temperature with the ignition switch

ON

C is low to normal temperature

H is high temperature

If the pointer is in the red H segment the engine is
overheating.

Refer this book to rectify the problem

33

►WARNING LIGHTS

Charge lamp

This light will go off as soon as the engine starts to run to indicate that the
alternator is changing.

(Please note, as broken fan belt can cause the light to come on, please stop the
engine as overheating can occur if not rectified immediately)

Oil pressure lamp

Will go out as soon as the engine starts if the oil pressure is correct.

If it comes on while the engine is running, stop the engine and get expert advice.

PTO monitor Lamp

Shows the revolution of PTO

Refer to monitor lamp on Page 35

High beam lamp is operated on the combination switch.

Low beam lamp is operated on the combination switch

Glow signal Lamp indicates preheating

If it comes on while the engine is running.Fill the tank with fuel

34

►Independent PTO

■ The PTO monitor lamp on the dash panel indicates the state of the PTO shaft.

1. If the monitor glows: The PTO is rotating

2. If the monitor is off: The PTO is off

3. If the monitor blinks: The PTO is presently stationary but will instantly start
rotating of the clutch pedal is released or the implement is lowered

PTO monitor Lamp

Two switches operate the independent PTO.

1.PTO ON/OFF switch: PTO ON/OFF switch is situated on the LHS. on
the steering column and can be identified easily with its built in red
colored indicator. When the switch is pushed down to start the PTO
indicator glows to indicate that the switch and the PTO are in ON position,
If the switch is pushed down again the indicator goes off signaling that the
PTO is OFF.

2. PTO Control switch: This switch is situated near the starting key location
on the dash panel. There are three positions marked for this switch.

■ Off at the center

■ Manual at the left

■ Auto at the right.

The PTO shaft will not rotate if either of the two switches is in OFF position.

The following table explains how the PTO operates at the two different (Manual &
Auto) positions of the PTO control switch with the PTO ON/OFF switch in the on
position.

35

PTO ON,Off switch

PTO control switch

First select the specified speed for the PTO by using the PTO shifter on the LHS, below the driver seat.

PTO

ON/OFF

Switch

On

On

On

On

Control

Switch

Manual

Mode

Mode

Auto

Mode

Clutch Pedal.PTO

Either pressed
or released

PressedAuto

or released

Position

Control Lever.

or lowered

or lowered

PTO Monitor

Lamp on the
dash panel

Glows

Blinks

Blinks

Glows

PTO SHAFTHydraulic

RotatesEither raised

StationaryEither raised

StationaryRaisedEither pressed

RotatesLoweredReleasedAuto

Mode

■ From the table above we learn about the safety features of the PTO. When the monitor on the dash

panel is blinking, it indicates to the operator that the PTO is in the on position but temporarily not
rotating either because the clutch pedal is pressed or the implement is lifted off the ground or both.
The PTO will start rotating instantaneously when either the clutch pedal is released and/or the
implement is lowered to the ground.

■ The operator must use this blinking signal to clear the area around the tractor off

bystanders/onlookers as the rotating blades of certain implements can accidentally cause injuries to
the persons standing near the tractor.

■ The stopping of the PTO when the implement is lifted off the ground with the position control

prevents the damage to the implement or the PTO shaft.

1.When the PTO control switch is in manual position the PTO does

not stop rotating even if the clutch pedal is pressed. If working on

hard soils,pavements with a rotary implement, the PTO ON/OFF

switch must be put to the OFF position to stop the PTO from

Warning

rotating, If this is not done the rotating blades of the implement

will push on the hard ground below and in turn push the tractor toward causing accident which can

lead to serious injuries or death.

2. Extra precaution must be taken to clear the area of bystanders/onlookers when using PTO driven

implements. The rotating blades of the implements can cause serious injuries on contact. The

warning that is indicated by the blinking PTO monitor is to make the operator aware that the

PTO is in on position and will instantly start rotating if the clutch pedal is released or implement

is lowered or both.

3.In no case the specified rotating speeds indicated by the implement manufacturer be crossed as the

same can lead to serious damage to the tractor/equipment and can lead to serious injuries to

persons around.

36

TRACTOR CONTROLS

►Hand Throttle

Pulling the hand throttle towards the driver
increases revolutions.

Pushing it away from the driver decreases
revolution.

►Clutch disconnecting arm

For long term storage of the Tractor it is
possible to latch the clutch in the disengaged
position.

Push the clutch down and engage the latch to
hold it there.

Do not attempt to start engine

when this arm is being used.

warning

37

► BRAKE PEDAL

Right and left brake pedals are provided to assist in turning the tractor in the field.

A connecting latch is provided to connect the right and left brake pedals for high

speed or road use.

In the interest of safety always use it on the road or at high speed as using one side

Caution

only can cause rollovers.

When servicing the tractor ensure that the adjustment on both sides in the same.

► Foot operated accelerator

This pedal can override a fixed hand throttle setting

► Park brake

Connect the brake pedals , push them down while pulling
the park brake up to engage. Press the parking brake pedal
and push the Brake pedal to release.

Traveling with the park brake on will damage the brakes.

important

►Shuttle shift lever

This control allows shifting from forward to reverse & reverse to forward. When stationary set the lever
to N for neutral

① Push the lever away from the driver engages forward.

② Pulling the lever towards the driver engages reverse.

Press clutch pedal fully before operating
shuttle shift lever.

important

38

When changing from toward to reverse or back to forward again while in high
range make sure the tractor comes to a stop before changing direction. Failure to
do so is likely to result in damage to the mechanism and place the driver at risk of

important

injury.

Operate the shuttle shift only while seated on the tractor.

Do not use the shuttle shift lever to start the tractor for towing or traveling uphill,
use the clutch instead.

Caution

Always stop the tractor before getting off.

▶Main gear lever

This lever can be shifted by using the clutch, both when the
tractor is stationary or mobile.

It is located on the R.H.S of the driver seat.

▶ Sub gear lever

Operate the sub gear lever using clutch to select the
appropriate speed for different applications.

It is located on the LHS of driver seat.

Do not operate gear levers without stopping the tractor & without using the clutch.

important

▶ Diff-lock pedal

In case of wheel slippage use the diff-lock by pushing down on the diff lock pedal.

To release it remove the foot from the pedal.

Tractor will be difficult to turn if the Diff­lock is engaged, ensure the lock is
disengaged before turning the steering

Danger

wheel.

39

Do not use high engine RPM when engaging Diff lock If the diff lock does not
release after removing the foot from the diff lock pedal alternatively brake with
the left and right brake until it gets released.

important

Never use the diff lock at high speed or on the road as this can cause roll over and
injury.

Caution

▶Front wheel drive lever

In the ON position the front wheels are engaged and
in the OFF position they are disengaged.

Engage & disengage the front wheel drive with the
front wheels in the straight position and at low Engine
RPM.

Always use the clutch when
using the front wheel drive lever.

important

important

Use of front wheel drive improves traction performance.

▶Driver’s seat

To adjust the seat backwards and forwards lift the
lever at the front of the seat and set it to the
desired position

▶ Tilt pedal

To adjust the inclination of the steering wheel with a 3 stages and
set it to the desired position.

Ensure that the tilt pedal has locked before
moving the tractor.

Danger

Do not use front wheel drive at
high speed or on the road as
premature wear of components
will result.

40

PTO GEAR SELECTION LEVER

Your tractor is equipped with 1 speeds PTO to suit range of applications and conditions.

(T290/T300/T330) PTO : 540 rpm @ E/G 2541 rpm

Always use the clutch when engaging or disengaging the PTO or changing PTO
speed. Let the PTO driven implement come to a complete stop before changing

important

Do not operate any implement at a high speed than is specified for it.

When making adjustments to the implement stop the engine to avoid serious
injury.

Caution

When leaving the tractor stop the engine, and remove the key. Set the parking
brake.

Operating the hydraulics.

The hydraulics are powered with an engine driven hydraulic pump and controlled with a position control
lever mounted beside the driver.

Position control

▶ implements can be raised and lowered with the hydraulic position control lever and can be stopped at
any position by stopping the lever.

To ensure a consistent working depth the adjustable stop can be set to ensure that the implement returns to
the same depth every time.

41

To raise the implement: Pull the lever back

To lower the implement: Push the lever forward.

After finishing the work, always lower the implement to the ground and switch off
the engine, Set the parking brake to avoid injuries and accidents .

Warning

▶Lowering speed control knob for the 3 point hitch

This knob controls the downward speed of the hydraulics three point linkage and is positioned at the front of
the driver’s seat.

To slow the downward speed- Turn the knob clockwise.

Adjust knob of hydraulic
descent speed

To increase the downward speed, turn the knob anticlockwise.

To lock the knob clockwise.

Do not over tighten the knob.

Always set the knob to lock when

1.Traveling on the road

2.Replacing tires or blades on an implement.

Caution

3.Making adjustments to an implement. Sudden dropping of an implement due to
hydraulic problems can cause serious injury or death.

42

OPERATING THE 3 POINT LINKAGE (TPL)

43

▶ADJUSTING THE CHECK CHAIN

To adjust the check chain turn the turnbuckle to
lengthen or shorten the chain and tighten the lock nut
when the correct adjustment is achieved.

▶ADJUSTMENT OF THE TOP LINK

Lengthening or shortening the top link will
change the angle of the implement.

The locating hole of the top link varies with the
type of implement used.

The most common locations are the 2

nd

and 3

rd

hole from the top

▶ADJUSTMENT OF LOWER LINK

The adjustment is done with the adjusting handle on the
Right hand yoke rod and leveling box.

To shorten it, wind the handle clockwise and to lengthen it,
wind it anti-clockwise.

When adjusted correctly hold the adjusting handle with the
stopper provided.

▶ADJUSTMENT OF THE YOKE ROD ON

THE LOWER LINK

For different applications change the position of the
yoke rod on the lower links as shown and insert the
pin in the direction of the arrow.

44

▶ USE OF THE RETENTION SPRING

When not using implements on the three point
linkage use the rubber as shown to prevent tire
damage.

Only use drawbar to tow and keep the 3 point linkage in raised position when
towing with the drawbar.

Position can create unbalance causing the Tractor to roll-over & Result the death

Danger

or serious injury.

▶ MOUNTING IMPLEMENT

If the PTO is used, remove the safety cover off the PTO shaft.
Adjust the yoke rod on the lower links to suit the implement in use.
Attach the left lower link, then attach the right lower link using the

adjusting handle on the leveling box if required.
Attach the top link.
Attach the PTO shaft to the tractor if used, making sure that it is
locked in place.
Adjust the check chains to suit the implement and tighten the
locknuts.

To remove an implement reverses the procedure.

Caution

Do not attach a PTO shaft with the engine running and ensure all safety shields are
in place.

45

DRIVING THE TRACTOR

STARTING THE ENGINE

Before starting the engine carry out the pre-operational checks as set out on page 16.
(1) Sit on the driver seat
(2) Apply the footbrake.
(3) Put the hydraulic lever in the down position.
(4) Push down the clutch to activate the safety-starting switch.
(5) Put the main gear lever in neutral
(6) Insert the ignition key and turn it on
(7) Ensure that the warning lights are working
(8) Always turn the ignition key to left for a moment & release it.

The automatic heater will start working as will be indicated by a light on the instrument
panel .As the lamp goes off turn the key to the start position to start the engine.

(9) Ensure that all the warning lights are off with the engine running.

Never turn the key to the start position while the engine is running as this can

cause serious damage to the starter and engine flywheel.

Only engage the starter for a period of not more than 10 seconds.

If Engine does not start, rest the starter for about 20 seconds and try again for a

important

maximum of 10 seconds.If the engine does not start after repeated attempts,

refer to the fault tracing guide on page 80

Especially in cold weather, always allow the tractor to idle for a while to warm up &
build up sufficient oil pressure to ensure normal operating temperature for longer
engine life.

important

STOPPING THE ENGINE

-After light work let the engine idle for a while and turn
the key off.

-The engine stops when the key is turned off,If the engine
does not stop .Pull the engine stop cable back and hold it
until the engine stops.After the engine has stopped,be
sure to push the engine stop cable back in,or the engine
will not start next time.

After long or heavy work allow the engine to
idle for 5- 10 minutes and turn the key off.

important

46

WARMING UP

When starting the engine allow it to warm up to operating temperature by allowing it to idle 5-10 minutes to
ensure full lubrication and operating temperature.

Failure to do so can shorten engine life substantially.

▶WARMING UP IN COLD WEATHER

Cold weather will change the viscosity of the oil, resulting in a reduced oil pumping capacity, which can
cause damage to the engine if it is not warmed up correctly.

It also causes problems with the hydraulic system and the synchromesh in the transmission.

Correct times for warming up are:

Time for warming upTemperature

5~10 min.Above 50°F

10~20 min.50°F~ 32°F

20~30 min.32°F~14°F

30~40 min.14°F~-4°F

Over 40 min.Below –4°F

Ensure the Foot brake(handbrake) is on during the warming period.

important

When the engine is warm push down the clutch and engage the main and auxiliary gear levers to the
required position.

Push down on the brake pedals and release the handbrake.

Increase the engine revolutions and let out the clutch smoothly.

Only change gears with main gear lever while moving and ensure that this is done with fully use of the
clutch.

47

Do not ”ride” the clutch to control speed, use a lower gear.

Do not travel with your foot on the clutch pedal.

Caution

Always connect the brake pedals when traveling on the road.

Never tow anything except with the drawbar.

Do not tow loads which are too large for the tractor’s capacity to brake effectively
especially in hilly terrain.

Take special care when towing large or wide implements.

Danger

Do not carry passengers.

At all times observe local legislation and road rules.

TIGHT TURNS IN THE FIELD

Disconnect the latch connecting left and right brake pedals
to allow the use of individual pedals.
To make a tight turn use both the steering wheel and the
brake pedal at the same time.
For a left turns use the left pedal and a right turn the right
pedal.

Perform tight turns only at a slow safe speed.

Doing so at a high speed can cause rollovers and very serious injury or death.

Caution

NORMAL BRAKING AND PARKING

Let the engine come back to idle and at the same time push in the clutch
and brake simultaneously.

When the tractor has come to a halt, lower any implement to the ground,
and put the main gear in neutral.

Apply the park brake, stop the engine, and remove the key.

Always apply the park brake when parking.

Failure to do so can cause accidents and damage.

Caution

As an extra precaution when parking on a slope, chock the rear wheels.

48

Illustration

UPHILL STARTS ON A STEEP SLOPE

With the pedals connected together push down on the brake
pedals and push down the clutch.
Set all gear levers to low and the throttle to medium engine speed.
Release the clutch and as it engages release the brake pedals.
Adjust the throttle to the required speed.

▶ Driving downhill

Use the engine’s ability to brake when traveling downhill.

Never rely on the brakes only and never travel downhill with the gears in neutral.

When operating in hilly terrain the risk of the rollover is increased substantially,
please drive with extra care.

When towing trailers in hilly terrain ensure that they are equipped with brakes, use

Caution

a lower gear to get maximum engine braking and do not change gears on a down
hill run

OPERATION OF THE DIFF LOCK

While the diff lock is a very useful feature, care should be taken in its use as misuse can lead to dangerous
situations.

The diff lock would only be used in situations where traction is lost on one of the rear wheels.

Use low engine revolutions when using the diff lock.

If the diff lock does not release after removing the foot from the pedal use the left
and right brake pedals in turn to release it.

Warning

Do not try to engage or use the diff lock on tight turns as serious damage can
result.

CHECK DURING DRIVING

Constantly monitor the warning lights on the dash and if any
comes on stop the tractor to determine the cause.
If the oil pressure light comes on check the oil level first of all.
If the oil level is OK ask a qualified dealer to check the
reason for the light coming on.
If the alternator warning light comes on check all
connections and ensure that the fan belt is not broken.
If all connections and the fan belt are intact consult your
dealer to determine the cause of the problem.

49

▶Fuel gauge.

To avoid excessive condensation in the fuel tank refill at the end of each
day’s work and ensure during the day that it does not drop to a low level
where the fuel system will require bleeding to expel air in the system after
refilling the tank.

▶ Engine cooling water.

If the gauge indicates that the engine is running hot, stop the tractor and
check the coolant in the radiator.

Allow the engine to cool down before opening radiator cap as serious burns may
result due to hot steam & boiling water.

Danger

Also check to ensure that the fins in the radiator core are not clogged or that the tractor has a broken or
stretched fan belt.

When traveling on public or farm roads connect both brake pedals and allow for

the weight of any mounted implement to ensure that the unit is not unbalanced.

Also allow for the width when passing other road users.

Caution

Where fitted use the hazard lights provided.

Strictly follow the local traffic regulations.

Caution

When operating near others with an implement attached take particular care to
allow for the width of the implement and avoid accidents.

50

▶ Track adjustment

As some models of TYM are front wheel assist the front track can be set in 2 position.

The rear track can be set in 5 positions as illustrated.

51

Section-B

Lubrication

&

Maintenance

This section gives full details of the service procedures necessary to maintain your Tractor at peak
efficiency while the lubrication and maintenance chart provides a ready reference to these
requirements.

53

CHECKS AND SERVICE

PRE-START CHECKS

To avoid problems it is recommended that a range of checks be carried out daily before starting the
tractor.

For full details of the items and frequency please refer to the tables on page 57, 58 and 59.

▶Engine coolant

Remove the radiator cap and ensure that the coolant is up to the
filler neck and that it is clean with the correct anti-freeze or anti
corrosion inhibitor in it.

If the coolant is a rusty color, drain the system completely and
refill with the correct mixture of water and anti-freeze or
corrosion inhibitor.

▶Engine oil

Pull out the stick, wipe it and dip in the oil sump.

Ensure that oil level is between the upper and lower mark
near the upper mark. If too low add oil, but never excess
100hrs.

Do not overfill the crankcase with oil.

important

▶Transmission oil

Check the level with the dipstick on top of the transmission in rear of the seat.

If the level is low add oil through the filler hole.

Always ensure that you use the correct oil for topping up or oil changes

Caution

54

▶ Fuel

Use the fuel gauge to check the fuel level and top up
if too low.

It is a good practice to refill the tank immediately
after use to avoid condensation

▶ Tire pressure

The air pressure used in the tires has a direct bearing on the life of
the tire and its performance in the field.

Ensure that the tire pressures are correct and in accordance with
the table on page 59.

To make a visual judgment see the drawing on the right.

It is strongly recommended that tire pressures are checked with a proper gauge only &
visual inspections are relied upon.

important

Excess tire pressure can cause accidents!

Danger

55

▶ Steering

Ensure that the steering wheel does not have excessive free play.

▶ Brake

Ensure that the left and right brakes are adjusted correctly so they operate simultaneously.

The correct free play on the brake is 1.18-1.57 in.

▶ Clutch

Ensure that the clutch is adjusted correctly.

Correct free play on the clutch pedal is 0.78-1.18 in.

Incorrect clutch adjustment can cause excessive wear and reduced tractor

performance.

Caution

▶ Electrical

Check the operation of all gauge, switches, horn, lights and indicators.

▶ Installing loader

1.connect P port of loader control valve to the line on the tractor marked P(from the PTO valve)

2.Connect the T port on the loader control valve to the line on the tractor marked T

(to the TPL at the rear of the tractor)

3.Connect the remaining line from the control valve to the line on the tractor marked P1

( to the transmission housing)

▶ Detaching the loader

1.Detach the hydraulic hoses of loader

2.Assemble the cap (PF1/2) with pipe comp.(PF1/2)

56

MAINTENANCE AND ADJUSTMENT SCHEDULE

Periodical check and service table

Division

Item

Daily

Service interval(hour meter,mark)

○ Check, Top-up or adjust ● Replace

△ Clean or wash ★ Consult the service Dealer

Frequency

Comment

Engine

Engine
oil

Air
cleaner

Radiator
coolant

Radiator

Fuel

Fuel
filter

Fan belt

Battery

Oil
filter

○

○

○

○

5
0

1

2

1

5

0

0

0

2

0

5

0

0

3

4

3

5

0

0

0

4

0

5

0

0

5

5
0
0

6

5

0

0

0

●●●●●●○

Change every
100 hours

●△△△△△

Clean every

To correct level on
the dipstick

100 hours

See page 54Check daily top

up if required

Check daily for
damages
leakage

Fill tank

●△○△○○●△○△○

See page 70.Check daily

○○○○○○

Check daily

★★

Change every
400 hours

Loose
nuts and
bolts

Radiator
hose
clamp

○

○

These intervals are for operation under normal conditions and need to be reviewed under

severe conditions to a greater frequency

Caution

TightenCheck daily

Tighten if required

57

Division

Item

Daily

Service interval(hour meter,mark)

Frequency Comment

Chassis

Trans

mission oil

Free play
of clutch
pedal

Free play
of brake
pedal

State of
both brake
pedals

Operation
of each
lever

Free play
of steering
wheel

○

○

○

○

○

5
0

1

2

1

5

0

0

0

2

0

5

0

0

3

4

3

5

0

0

0

●●○

4

0

5

0

0

5

5
0
0

6

5

0

0

0

Change every
300 hours after
first 50 hours

(0.78-1.18in)Check daily

(1.18-1.57)Check daily

Check daily

Adjust so that both
operate
simultaneously and
brake at the same
time

Smooth operationCheck daily

Check daily

About 50mm

(1.97 in) of wheel
circumference

Toe-in

Grease in
front
wheel hub

Check the
steering
wheel joint

Wheel nut
fastening
torque

Operation
of the
instrument

○

○

○

58

★★

300 hours

Grease every
900 hours

Adjust every
300 hours

Check daily

Check daily

(0.08-0.24in)Check every

Tighten if loose

Front:116-130(ft-lbs)

Rear:268-282(ft-lbs)

Division

Item

Daily

Service interval(hour meter,mark)

Frequency Comment

Chassis

Adjustmen
t of the
throttle
pedal

Grease
each
nipple

Loose
bolts and
nuts

Check the
leakage of
oil at the
clutch
chamber

Hydrauli
c oil filter

Oil of the
4WD front
axle

Check the
electric
wiring

○

○

5
0

1

2

1

5

0

0

0

2

0

5

0

0

3

4

4

3

5

0
0

0

0

0

5

5

5

0

0

0

6

5

0

0

0

Check every 300
hours

Replenish every 50

○○○○○○○○○○○○

hours (everyday in
dusty conditions)

Check daily

Tighten to proper
torque

Check once a
year with the
lower plug pulled
out

●●

Change every
300 hours

○○○○○○●

Replace if leakingCheck every 100
hours. Change
every 600 hours

Check every year

Without loose or

broken terminals.

Without damaged or

missing wiring.

Correctly clamped

SIZE

7~16

11.2~24

Air pressure (PSI)DIVISION

25.6 psiFront

17 psiRear

MODEL

T290

T300

T330

59

FILLING DIAGRAM & CAPACITY TABLE

FillingsFilling pointNo.

MODEL

Fresh clean Water(L.L.C)RADIATOR1

ENGINE2

CENTER PIVOT5

6

CLUTCH PEDAL SHAFT,

BRAKE PEDAL SHAFT

API : CD/CE grades
Above:25°C(77°F)…SAE30 or 10W-30
0°C to 25°C(32°F to 77°F)…SAE20 or

10W30
Below 0°C(32°F)…SAE 10W or 10W-30

See next page *TRANSMISSION CASE3

Gear oil #80 or #90FRONT AXLE4

Grease

GreaseBALL JOINT7

Diesel fuelFUEL TANK8

Quantity Liter (gal.)

T290/T300/T330

7ℓ (1.85 US gal)

5.7ℓ (1.51 US gal)

32ℓ(8.453 US gal)

8.2ℓ(2.166US gal)

As requiredGrease

As required

As required

33ℓ(8.717 US gal)

60

▶ Recommended Transmission oil

① RPM Tractor Hydraulic Fluid or Textron TDH Premium (CALTEX)

② TDH Oil or TDH Oil special (TEXACO)

③ Chevron 1000THF (CHEVRON)

Opening method of each cover

▶ Opening method of fan cover

Pull the Handle lock of the front grille, pull the lower edges of hood panel upward, and pull the whole
side panel forward.

▶Opening the front grille

To open, Pull the Handle lock , which located
bottom front bracket on right side , Pulling the
grille upward at the same time.

▶ Fuel

Use clean diesel fuel only

As diesel fuel equipment is susceptible to contamination by dust or water,

important

Ensure that all dust and water is kept well away from the fuel tank

61

BLEEDING THE FUEL SYSTEM

1) Fuel filter cock 「 ON 」

2) Open the cock on the fuel injection pump

3) Fill the tank with fuel and turn the ignition key to on.

4) Start the engine and allow it to run for a while

5) Close the fuel injection pump cock.

6) The bleeding of the system is now finished.

CHANGING THE OILS IN THE TRACTOR

Always use quality oils as engine or transmission oil (refer to the page 60)

Refer to the table on page 57, 58 and 59 for the change frequency.

▶ Changing engine oil.

Park tractor on level surface, shut-off engine
Remove sump plug & drain oil.
Replace and check the sump plug and refill the engine with oil

to the correct level on the dipstick (approx 2.38 gal)
The grade of oil to be used will depend on the ambient
temperature.
The tractor is shipped from the factory with 10W/30
For summer use over 77℉ use SAE 30
For temperatures from 32℉-77℉ use SAE20 or 10W/30
For temperatures below 32℉ use SAE 10W

62

When changing the oil always change the filter.

Always use the same oil, as using different oils or specifications can cause damage.

important

Dispose off the old oil as per local regulations.

▶ Changing the transmission oil

Remove the drain plug from bottom of the transmission and
drain the oil.

Replace and check the drain plug.

Refill the transmission to the correct level on the
dipstick with new oil (qty 8.46gal)

Always use the same grade and specified oil as replacements

important

Dispose off the old oil as per local regulations.

▶Changing the front axle oil

Drain the oil from the left and right drain plugs.

Replace and check the drain plugs.

Fill with new oil to the correct level in the filler hole

(qty 2.17 gal)

63

CLEANING AND CHANGING FILTERS

■ OIL FILTER

Using a filter wrench turn the filter anti clockwise to
remove it. Lightly smear the rubber seal on the new
filter with oil to ensure, turn it clockwise until the seal
contacts the base and then turn it another 2/3 turn to
tighten it.

■ FUEL FILTER

This is the primary filter and removes water and coarse
dirt from the fuel. To clean it first close the tap then
remove the filter and wash it.

After replacing it bleed the air from the filter

Engine Oil Filter cartridge

Never use petrol (gasoline) thinner or similar inflammable material to wash the primary
fuel filter.

important

After replacing the filter always bleed the system (see page 62)

64

▶ HYDRAULIC OIL FILTER

Remove the filter with a filter wrench.

To replace, apply oil or grease on the seal, fit by hand until seal contacts bare, then turn it 2/3
to tighten it check for leaks.

rd

turn further

65

CHANGING THE COOLANT

(1) Open the tap in front of the gear pump to drain the coolant.

(2) Open the radiator cap at the same time.

(3) To give a thorough clean run a hose into the radiator and

flush it out.

(4) Close the tap and refill the radiator with a coolant

mixture of water and corrosion inhibitor or anti freeze.

(5) Start the engine and allow it to run for approx 5 minutes,

check the water level again and top up if required

Do not remove the radiator cap on a hot engine.

Allow the engine to cool down and then turn the cap slowly to ensure, that there is

Caution

no excessive pressure in the radiator.

Serious burns, can result from the contents of pressurized, hot radiators.

Caution

Allow the engine to cool down completely before opening radiator cap.

▶ Anti freeze.

Frozen cooling water can damage the engine.
Before replacing the anti freeze solution flush the radiator.
Mix the anti freeze solution in accordance with the instructions applicable to the brand of anti
freeze and the locals climate.
Replace the solution in the radiator.
In case of loss of solution due to evaporation or overflow, replace with the original mixture ratio.

▶ CLEANING THE RADIATOR AND COVER

Insects, grass straw and dust can all block the radiator and
reduce its efficiency.

Remove the radiator cover to clean it and the radiator.

Release the wing bolt and pull to remove the cover.

Then clean the radiator between the fins and tube by
using clean water.

66

Water or air under high pressure can distort the cooling fins on the radiator and reduce its

important

efficiency.

GREASING THE TRACTOR

Grease the tractor according to the service schedule (page 60)

Ensure that grease nipples are cleaned well before any attempt is made to grease them.

67

Grease nipple

GAP ADJUSTMENT ON THE FRONT AXLE

Lift the front with a hydraulic jack to get the wheels of
the ground.

Then loosen the nut and tighten the bolt fully and turn the
bolt ½ to loosen again in order to roll the center pivot
metal freely and tighten the nut again.

Bolt

While the wheels arte still off the ground, move the axle
on the center pivot as a final check that the gap is set
correctly on the top of the pivot metal

ADJUSTING THE CLUTCH

Using the clutch over a period of time will increase the
free play.

The correct free play of the pedal is 0.78~1.18 in

To adjust, loosen the locknut on the turnbuckle and adjust.

Check the adjustment and tighten the locknut if the free
play is correct.

Nut

Front axle

Backward Forward

ADJUSTING THE BRAKES

As is the case with the clutch, use of the brakes
will change the pedal free play and the balance
between the right and left pedal.

The correct pedal free play is 1.18~ 1.57 in

68

▶Adjustment method.

Loosen the locknuts at each end and turn the rod to adjust the brake.
Turning it anticlockwise increases the free play, clockwise decreases it.
Tighten the locknuts.
Check that the free play is correct and the same on both pedals to ensure even braking

Uneven adjustment of the left and right pedal will result in one sided braking when the
pedals are connected and can cause serious accidents, especially at high speeds.

Caution

Double check to ensure free play is the same on both pedals

ADJUSTING THE THROTTLE LEVER

If this lever is either loose or difficult to move please consult your dealer for rectification of the problem.

ADJUSTING TOE-IN

If the toe-in adjustment is incorrect it can cause severe shaking of both the steering wheel and the entire
tractor.

The correct toe-in is 0.08~0.24in. We recommend that this adjustment is made by the dealer.

CHECKING THE BATTERY

The electrolyte level of the battery can evaporate during use
thus lowering the level.

Where it does so replace it with distilled water.

Where a spillage has reduced the level, replace it with
electrolyte.

Low electrolyte levels can cause premature battery failure and corrosion.

important

Electrolyte contains acid and can cause serious burns.

Caution

Any spillage on skin should be washed off by running water immediately.

69

▶BATTERY MAINTENANCE

Low temperatures will affect the performance of batteries so take particular care of it in winter.
For long-term storage of the tractor remove the battery and keep it in a cool dry room.
If it is on the tractor while stored, disconnect the negative terminal.
Batteries will self discharge if left for a period of without use time.
To keep them in good condition charge them once a month in summer and every second month in
winter.
When replacing the original battery, ensure that the replacement battery is the same size.
Failure to do so can cause problems with the electrical circuit.

Always disconnect the negative terminal first when removing the battery and
always connect the positive terminal first when fitting the battery.

When connecting the battery leads make sure not to reverse the polarity.

Quick charging will reduce battery life.

Caution

Disconnect the terminals prior to charging the battery to avoid damage to the
circuit and electrical instruments.

FAN BELT ADJUSTMENT

Check the fan belt tension regularly and adjust if
required.

The correct tension is if the center of the belt is
pushed with a finger it moves in approx. 7 to 9 mm
(0.28 to 0.35 in) as shown in the picture.

To adjust the fan belt loosen the top bolt on the
alternator,

Move the alternator to the desired position and
tighten the bolt.

Also ensure that the bolts at the bottom of the
alternator are tight.

70

SERVICING THE AIR CLEANER

To remove the dust from the evacuator valve squeeze it
between thumb and fingers to let excess dust out and
wipe around the valve to keep it clean from outside.

To clean the main element, remove the right fan
cover.

Remove the element by unloading the wing nut.

Remove dust by blowing it out of the element with
compressed air.

Check the element to ensure it is not damaged.

Reassemble the element.

Vacuity valve

Never beat the element on a stone or concrete floor/wall to clean it Check all connections
and hoses especially on the clean side of the air cleaner to ensure no dusty air can enter
the engine.

Check the element for flaws by putting a light inside the element.

When reassembling make sure all surfaces seal correctly to keep dust out.

important

When working in dusty conditions increase the service frequency.

▶Replace the element after cleaning it 5 times or it is damaged.

CHECKING HOSES AND LINES

.

The fuel lines, radiator hoses, hydraulic and rubber hoses are consumables, which deteriorate by age and
use.

Check them regularly and replace if faulty.

Damaged fuel lines leak and cause fires.

Damaged radiator hoses can cause hot water burns and in severe cases seize the

Caution

engine.

71

CHECKING THE WIRING HARNESS AND FUSES

Loose wires make inferior connections and damaged wires can cause short circuits, fires burnt wiring or
reduce efficiency of components.

Replace or repair any faulty wiring or insulation.

If a fuse burns out again after it has been replaced, do not replace it with wire or a high capacity fuse, find
the cause and rectify it or get an auto electrician to do so.

Where insulation is chafed or peeled off, recover the area with a good quality insulation tape. Where
wiring comes out of it’s fitting replace it correctly with the standard fitting.

Incorrect wiring or fuses can cause fires to both the tractor and surrounding area so get
the dealer to check it annually.

Likewise fuel pipes and wiring age with use.

important

Ask your dealer to check it at least once every 2 years and replace as required

▶ MAIN FUSES

The wiring harness is equipped with 3 main fusible links who’s
function is to preserve the wiring.

However when a main fuse blows the entire circuit is dead.

Always check the reason & rectify before replacing the fuse of
the same value.

To indicate that the fuse is blown it will be discolored.

▶ REPLACING FUSES

The circuit has 8 blade type fuses in its wiring circuit

(See diagram on page 86)

When a fuse has blown replace it with one of the same value.

Using a large capacity fuse or wire burn out the wiring system.

Use fuse tongs to replace fuses

Always check the reason for a blown fuse otherwise the new fuse is also likely to blow.

NEVER EVER USE WIRE in place of correct grade fuse.

important

SERVICE PRIOR TO DAILY AND SHORT TERMS STORAGE.

Wash the tractor and keep it clean.
Fill the tank to avoid condensation and rust.
Lower any attached implement to the ground before parking the tractor.
For long-term storage consult your dealer

72

3.MAINTENANCE

For daily or short term storage

Clean the tractor and remove all dirt from field work.

Fill the fuel tank to avoid condensation and rust.

Lower the implement to the ground..

Keep it in a machinery shed or, if not available cover the unit if left outside.

In very cold conditions it is advisable to remove the battery and keep it inside in a warm environment.

This will ensure effective starting when the tractor is required.

When the outside temperature is below 32℉, replace the Antifreeze completely or drain the coolant to
protect the engine from damage from frozen coolant.

When washing the tractor ensure that the water does not get near electrical components or
the oil filter points.

To prevent short circuits remove the ignition key.

important

Do not wash the tractor when the engine is running.

73

Long-term storage.

When the tractor will not be used for a long time carry out the cleaning as for short term storage.

Drain the oil and replace with new oil.

Run the engine for approx. 5 min. to ensure that it has new oil throughout the engine.

Drain the coolant from the radiator and remove the ignition key.

Attach a tag both the key and the steering wheel saying” No coolant”.

Lubricate all grease and oil points on the tractor.

Check the pressures and add a small amount of extra pressure.

Lower any implement to the ground or store in a shady dry place.

Disconnect the clutch by using the clutch disconnecting arm.

Place a piece of wood under each tire to preserve the tire.

After refilling the engine with the coolant run the engine for approx. 5-10 min. at 1500­2000rpm every month as a corrosion prevention measure.

Either removes the battery or the negative terminal as mouse damage to wiring can cause
short circuits and fires.

important

Remove the ignition key and store in a safe place.

Re-use after long term storage.

Carry out a full check of all oils and coolant.

Refit the battery and run the engine at idle for 30 min. to ensure optimum engine life.

74

Section - C

Specifications

The specifications on the following pages are given for your information and guidance. For further
information concerning your Tractor and equipment, consult your Authorized TYM CO., LTD
Dealer/Distributor.

TYM CO., LTD policy is one of continuous improvement and the right to change prices, specifications
or equipment at any time without notice is reserved.

All date given in this book is subject to production variations. Dimensions and weights are approximate
only and the illustrations do not necessary show Tractors in standard condition. For exact information
about any particular Tractor, please consult your TYM CO., LTD Authorized Dealer/Distributor.

75

T290/T300/T330

SPECIFICATIONS

ENGINE
Four strokes, Direct injection, water-cooled
Diesel Engine.

Model : D1503-M
No. of cylinders :3
Swept Volume : 91.47 in³
Bore :3.26 in
Stroke :3.64 in
Compression Ratio :23:1
Horse Power (PS) :31
(Manufacturing rating)
Rated Speed :2,800 rpm
High idle rpm :3,000 rpm
Low idle rpm :850 to 950
Fuel injection pump : Bosch type mini pump
Cylinder sleeve :Dry
Air Cleaner : Dry Filter element,

paper element filtering type.
Exhaust Muffler : Horizontal Round.
Firing order : 1-2-3
Accelerator : Hand & Foot Accelerator

ELECTRICAL STARTING AND LIGHTING

Battery Capacity : 12 Volt 110AH
Starter : Solenoid Engaged.

Key Start with Safety ,

starter switch
Alternator :12V 50A
Instrumentation :Water Temperature Gauge,

Taco meter, Hour meter,

Electrical fuel level gauge.

Lighting: Head lights, side indicators,

Rear parking,, brake &

indicator light, Front

parking & indicator light,

On dash board indicators

for battery charging, turn

signal, PTO signal, Engine

oil pressure, Preheat signal.

CLUTCH

Type : Dry single plate

Outer dia. X Inner dia. : 8.86 X 5.9″

TRANSMISSION

Type : synchro mesh

No. of gears :12 forward,

12 reverse gears

with high and low

selection lever with

Differential Lock

STEERING : Hydraulic power

(Power steering)

POWER TAKE OFF

Rear mounted : 6 splines

Diameter : 1⅜ in.

Standard PTO : ①540/2,541 engine RPM

BRAKES

Foot operated, independent with provision of
inter lock for simultaneous operation. A foot
brake is fitted for parking.

Disc Diameter :6.22 in

Number of lining : 4 each side

Total brake thickness : 2.299 in

3 point linkage : category 1

adjustable outside

check chains.

76

▶ MAIN SPECIFICATIONS

Dimensions

Engine

Tread(mm)

Type

Rear

T290/T300/T330Model

3290 (129")Overall length (mm)

1320 (52")Overall width(mm)

2360 (92")Overall height(mm)

1640(64")Distance between shafts(mm)

1067 (42")Front

1029~1345
(40.5”~52.9”)

330 (13")Least ground clearance (mm)

1390(3064 lbs)Weight (kg)

D1503-MName

Water cooled 4 cycle
diesel engine

1499Displacement (CC)

31/2800Output/speed(PS/rpm)

Diesel fuelFuel

33L(8.7US gal)Fuel tank capacity

(R)

Linear

shift

Traveling Speed

Sub

Main

shift

Forward

(mile/h)

0.55

0.75

0.96

1.33

1.72

2.37

7.55

9.71

13.41

Reverse

(mile/h
)

0.531LF

0.732

0.943

1.304

1.681M

2.302

2.963.043

4.084.204

5.355.501H

7.342

9.443

13.034

Starting system

Diff system

Starting with motor

7-16-4 PRFrontTire

11.2--24-4PRRear

Dry single type Clutch systemBody

Wet disc typeBraking system

HydraulicSteering system

Bevel gear

lock)

(Diff-

SynchromeshShift method

2.5(98")Minimum turning radius(m)

12 stagesForwardShifting stages

12 stagesReverse

Ø35, 6splinesShaft (mm)PTO

Position controlControlLifter

CAT 1 typeMounting

77

FUEL SAVING TIPS

To save fuel & oil in your tractor, following things should always be kept in mind.

A) Air cleaning system

1) Clean the air cleaner regularly so that dust does not settle down.

2) For every 50 hours & everyday in sandy/dusty conditions.

(a) Clean the air cleaner filter element with compressed air.
(b) If the rubber ring is cut or expanded then change it with an appropriate one.

Fix the rubber at the proper location & check for leakages if any.

(c) If air is leaking through the hose connection, check & rectify other leakages, too.

Note: If air cleaning system is not properly maintained, it will lead to early wear of piston rings

& sleeves. This will lead to problems like loss of engine power,, excessive oil consumption
fuel consumption.

B) Engine

1) put the engine oil on load after the engine is heated & the water temperature gauge indicates
the needle to be in the green zone.

2) If excessive black smoke is visible, then the paper element of air cleaner, Fuel injection
Pump or nozzles should be checked.

3) Do not run the engine without load for more than 2 minutes. It is better to stop the engine
rather than run it idle. This will help in saving of fuel.

C) Clutch & Brakes.

1) Do not reduce the power of the power of the engine by depressing the clutch halfway. Instead
use low gear.

2) If the Tractor has to be stopped for a long period, it is advisable to bring the transmission in

neutral position & release the clutch pedal.

3) Do not over ride the clutch & brake pedals.

4) While coming down from a slope, reduce the engine throttle & use low gear. Do not depend

only on the brakes for stoppage.

D) Fuel system

1) Always use filtered diesel for the fuel system

2) At the end of the day’s working, it is preferable to fill the diesel tank so that it may prevent
condensation.

3) Change the filter, if the system gets choked. Do not change both the filters at the same time.
If the above directives are not adhered to, the fuel injection pump & injection nozzle will lose
its life early. Also, it will lead to excessive black smoke & excessive diesel consumption.

78

E) Engine Oil

1) Always use recommended grade of oil.

2) Everyday before starting the engine, check the oil level with a dipstick & refill between the

minimum & maximum level.

3) Charge the engine oil, Replace filter & “O” ring, as & when required.

F) Cooling system

1) Check the fan belt tension regularly. Adjust, If required.

2) Check the coolant level in the radiator fins always clean.

3) Replace the radiator cap with a genuine cap only, if required.

4) Do not remove the thermostat but replace with a new one, if required.

5) Do not change the radiator water often.

Note:

1) Always stop any fuel or oil leakages.

2) Carry out the regular maintenance failure to do so might increase the fuel consumption by 25%.

3) Carry out the torque of cylinder head bolt & adjustment of valve clearance regularly. Consult

your dealer for this.

4) Check the tire pressure & inflate, as recommended.

5) Always buy genuine spares from the authorized Dealer/Distributor.

6) Always carry out the service of the Tractor by your authorized Dealer/Distributor.

For any other information, contact your nearest Authorized Dealer/Distributor.

79

FAULT TRACING

REMEDYCAUSESYMPTOM

Turning the main switch
will not operate the starter

Starter operates but not
enough to turn the engine

Starter operates OK but

Engine

does not start the engine

Engine revolutions are
irregular

The engine stops at low
revolution

Clutch not pushed in

Battery flat

Switch faulty

Low battery

Bad earth

Thick oil

Air in fuel system

Clogged fuel filter

No fuel being supplied

Glow plug disconnected or
not working

Air in the fuel system

Faulty injector

Fuel pipe leak

Poor fuel injection

Faulty injection pump

Wrong valve clearance

Wrong idle setting

Faulty injector

Push the clutch in

Charge or replace the battery

Dealer to repair or replace

Contact dealer for repair or
replace

Charge the battery

Clean the earth lead and tighten

Drain and replace with correct oil

Bleed the system

Clean or replace both filters

Fill tank or turn tap on

Contact dealer for repair.

Bleed the system

Contact dealer for repair.

Contact dealer for repair

Contact dealer for repair

Contact dealer for repair

Contact dealer for repair

Contact dealer for repair

The engine stops suddenly

The engine overheats

Lack of fuel

Faulty injectors

Seized engine due to lack
of oil, the wrong oil or lack
of coolant

Lack of coolant

Broken or misadjusted fan
belt

Clogged air filter element

Clogged radiator

Low oil

80

Fill the tank and bleed the fuel
system

Contact dealer for repair

Refill with coolant

Adjust or replace

Clean or replace air filter

Clean the core

Replace the oil to correct grade

REMEDYCAUSESYMPTOM

White smoking from the
exhaust

Engine

Reduced performance of
the engine

Oil warning light comes on
with the engine running

Alternator light comes on
with the engine running

Oil level too high

Shortage of or faulty fuel

The injectors are clogged,
carbon coated and sticking

Low compression

Leaking valve seat

Incorrect valve gap

Faulty timing

Fuel shortage

Clogged air cleaner

Low oil level

Wrong oil

Faulty light or switch

Clogged oil filter

Wiring fault

Faulty alternator

Low water level or faulty
battery

Broken or loose fan belt

Reduce to correct quantity

Contact dealer for repair

Contact dealer for repair

Contact dealer for repair

Contact dealer for repair

Contact dealer for repair

Contact dealer for repair

Fill the tank and check fuel
quality

Clean the element

Fill to correct level

Change to correct oil

Replace faulty part

Contact dealer for repair

Contact dealer for repair

Contact dealer for repair

Top up or replace

Replace or adjust

81

REMEDYCAUSESYMPTOM

Clutch

Adjust to correct free playIncorrect adjustmentThe clutch slips

Contact dealer for repairWorm or burnt lining

The clutch does not
disengage

Brake

Brake not working

Incorrect adjustment
Rusty clutch lining

Incorrect free play Worm
or burnt lining Left and

Adjust to correct free play Contact
dealer for repair

Adjust to correct free play Contact
dealer for repair Equalize

right gap different

Brake pedal not returning

Faulty return spring Lack
of grease on the joints

Replace spring

Remove rust and lubricate with
grease

Hydraulic

system

Hydraulics are not lifting

Engine revs. too low

Lack of transmission

Increase engine revs.

Top up the oil to the correct level

Oil

Air leaking in from a pipe

Repair or replace pipe or replace O
ring on joint and tighten

Clogged suction filter

Faulty pump

Faulty hydraulic valve

Faulty cylinder

Clean and change oil

Contact dealer for repair

Contact dealer for repair

Contact dealer for repair

Oil leak from pipe

When lifting the relief
valve whistles

Loose pipe joint

Cracked pipe

down

Tighten joint

Replace or repair pipe

Adjust the stopperThe stopper has slipped

For any other hydraulic problems please consult your dealer who has the correct equipment to

diagnose and repair the system

82

REMEDYCAUSESYMPTOM

Steering

wheel

Electric instruments

Steering wheel shaking

Excessive play in the
steering

Flat battery

Wrong toe-in

Unequal tire pressure

Loose component

Worn steering shaft

Worn components

Faulty wiring

Adjust toe-in

Inflate both to correct pressure

Tighten or replace if worn

Contact dealer for repair

Contact dealer for repair

Repair,reconnect or tighten as
needed

Faulty alternator

Faulty regulator

Broken or loose fan belt

Contact dealer for repair

Contact dealer for repair

Replace or adjust

Before anything else,check the electrolyte level of the battery and the connections.Top up it
required and clean and retighten the terminal

Dim head lights

Headlights not working

Low battery

Faulty wiring

Blown bulb

Blown fuse

Faulty contact

Charge or replace

Repair or replace as needed

Replace bulb

Replace fuse

Repair or replace and check the
earth

Horn not working

Faulty horn button

Faulty wiring

Faulty horn

Replace button

Repair or replace

Replace

Indicator not working

Blown bulb

Faulty flasher unit

Faulty wiring

83

Replace bulb

Replace unit

Repair or replace

T290/T300/T330 WIRING DIAGRAM

▶Drawing for fixing position of the fuse

▶Wiring diagram of the electric instrument

Fuse box1

3 pieces of fuse blinks2

Power for the working3

5

Units for direction

Signal relay for the power

6

PTO monitor

PTO safety relay

7

Coupler for the power

Max rated ampere

Coupler for the trailer8

87

Head lamp

Direction signal lamp

Stop lamp back light

Meta panel light

Working lamp

Direction signal lamp

Side lamp

Back lamp

12V45/45WA

12V21WB

21/5W

12V3.4WC

12V35WD

12V21WE

21V5W

12V20WF

Wiring diagram of Independent PTO

88

◎ T290 /T300/T330 POWER TRAIN

85

89

TRACTOR HISTORY CARD

DATE

JOB CARD

NO.

DEFECT

PARTS REPLACEMENTNATURE OF

AND DATE

REMARKSW/CLAIM NO.

90

SERVICE RECORD

NATURE/TYPE OF REPAIR/SERVICE CARRIED OUT TRACTOR HOURSDATE

91

DAILY OPERATION LOG

MACHINE HOURSJOB DONEDATE

ENDSTART

FUEL

CONSUMPTION

ENGINE OIL

TOPPED UP

REMARKS

92

PART REPLACEMENT RECORD

DATE COSTQTYPART

DESCRIPTION

COSTQTYPART

DATE

DESCRIPTION

93

T290/T300/T330

OPERATOR’S MANUAL FOR TRACTORS

CODE NO.

1350 – 912 – 002 – 0

Printed on Dec. 2005

4th EDITION
