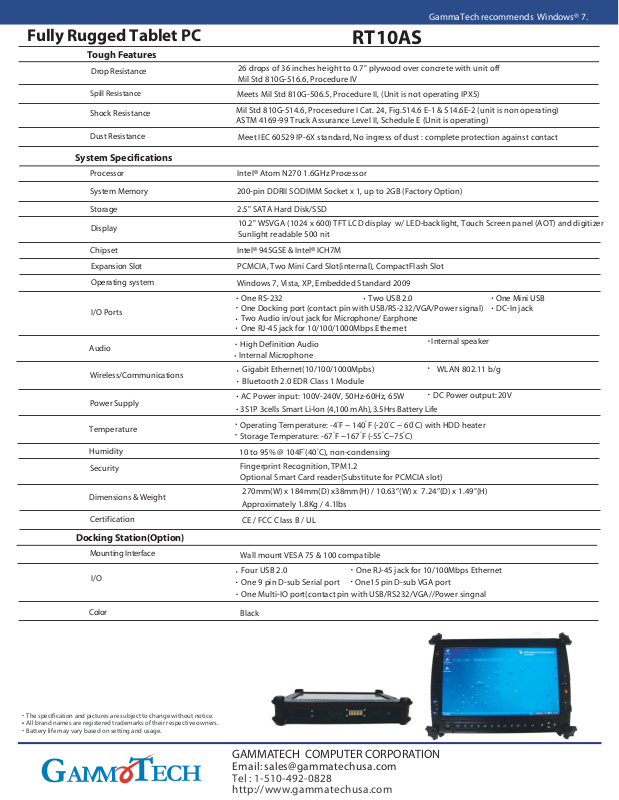

Twinhead RT10AS User Manual
GammaTech recommends Windows® 7.
Fully Rugged Tablet PC
Tough Features
Drop Resistance
Spill Resistance
Shock Resistance
Dust Resistance
System Specifications
Processor
System Memory
Storage
Display
Chipset
Expansion Slot
Operating system
I/O Ports
Audio
Wireless/Communications
Power Supply
Temperature
Humidity
Security
Dimensions & Weight
Certification
RT10AS
26 drops of 36 inches height to 0.7" plywood over concrete with unit off
Mil Std 810G-516.6, Procedure IV
Meets Mil Std 810G-506.5, Procedure II, (Unit is not operating IPX5)
Mil Std 810G-514.6, Procesedure I Cat. 24, Fig.514.6 E-1 & 514.6E-2 (unit is non operating)
ASTM 4169-99 Truck Assurance Level II, Schedule E (Unit is operating)
Meet IEC 60529 IP-6X standard, No ingress of dust : complete protection against contact
Intel® Atom N270 1.6GHz Processor
200-pin DDRII SODIMM Socket x 1, up to 2GB (Factory Option)
2.5" SATA Hard Disk/SSD
10.2" WSVGA (1024 x 600) TFT LCD display w/ LED-backlight, Touch Screen panel (AOT) and digitizer
Sunlight readable 500 nit
Intel® 945GSE & Intel® ICH7M
PCMCIA, Two Mini Card Slot(internal), CompactFlash Slot
Windows 7, Vista, XP, Embedded Standard 2009
One RS-232
One Docking port (contact pin with USB/RS-232/VGA/Power signal) DC-In jack
Two Audio in/out jack for Microphone/ Earphone
One RJ-45 jack for 10/100/1000Mbps Ethernet
High Definition Audio
Internal Microphone
Gigabit Ethernet(10/100/1000Mpbs) WLAN 802.11 b/g
Bluetooth 2.0 EDR Class 1 Module
AC Power input: 100V-240V, 50Hz-60Hz, 65W
3S1P 3cells Smart Li-lon (4,100 mAh), 3.5Hrs Battery Life
Operating Temperature: -4 F ~ 140 F (-20 C ~ 60 C) with HDD heater
Storage Temperature: -67 F ~167 F (-55 C~75 C)
10 to 95% @ 104F (40 C), non-condensing
Fingerprint Recognition, TPM1.2
Optional Smart Card reader(Substitute for PCMCIA slot)
270mm(W) x 184mm(D) x38mm(H) / 10.63”(W) x 7.24”(D) x 1.49”(H)
Approximately 1.8Kg / 4.1lbs
CE / FCC Class B / UL
o
o
o
o
Two USB 2.0
o
o
o
o
Internal speaker
DC Power output: 20V
o
o
One Mini USB
Docking Station(Option)
Mounting Interface
I/O
Color
The specification and pictures are subject to change without notice.
All brand names are registered trademarks of their respective owners.
Battery life may vary based on setting and usage.
T
MGA
M
ECH
Wall mount VESA 75 & 100 compatible
Four USB 2.0 One RJ-45 jack for 10/100Mbps Ethernet
One 9 pin D-sub Serial port
One Multi-IO port(contact pin with USB/RS232/VGA//Power singnal
Black
One15 pin D-sub VGA port
GAMMATECH COMPUTER CORPORATION
Email: sales@gammatechusa.com
Tel : 1-510-492-0828
http://www.gammatechusa.com
