Before You Start
Before You Start
Congratulations on your purchase of this tablet PC. This rugged tablet PC is portable and provides users with maximum mobile computing experience in a wide range of working environments. Before you begin using your tablet PC, read this chapter to familiarize yourself with the main components installed in the system.
Package Contents
If any of following item is damaged, please contact your retailer.
Tablet PC Power cord Power adapter
Stylus Pen Hand-strap
NOTE
The pictures are for reference only, actual items may slightly differ.
8
Page 9
Components

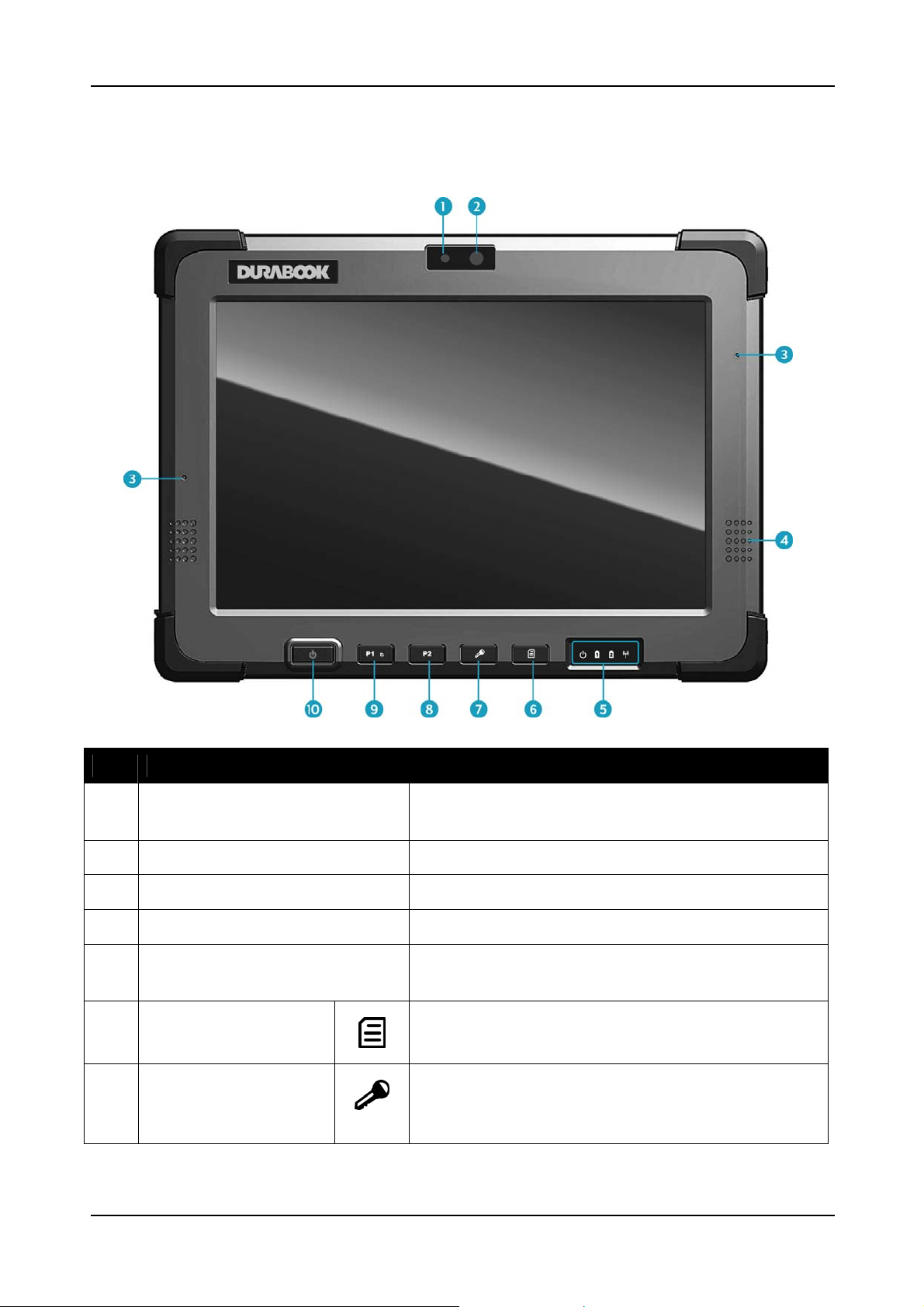

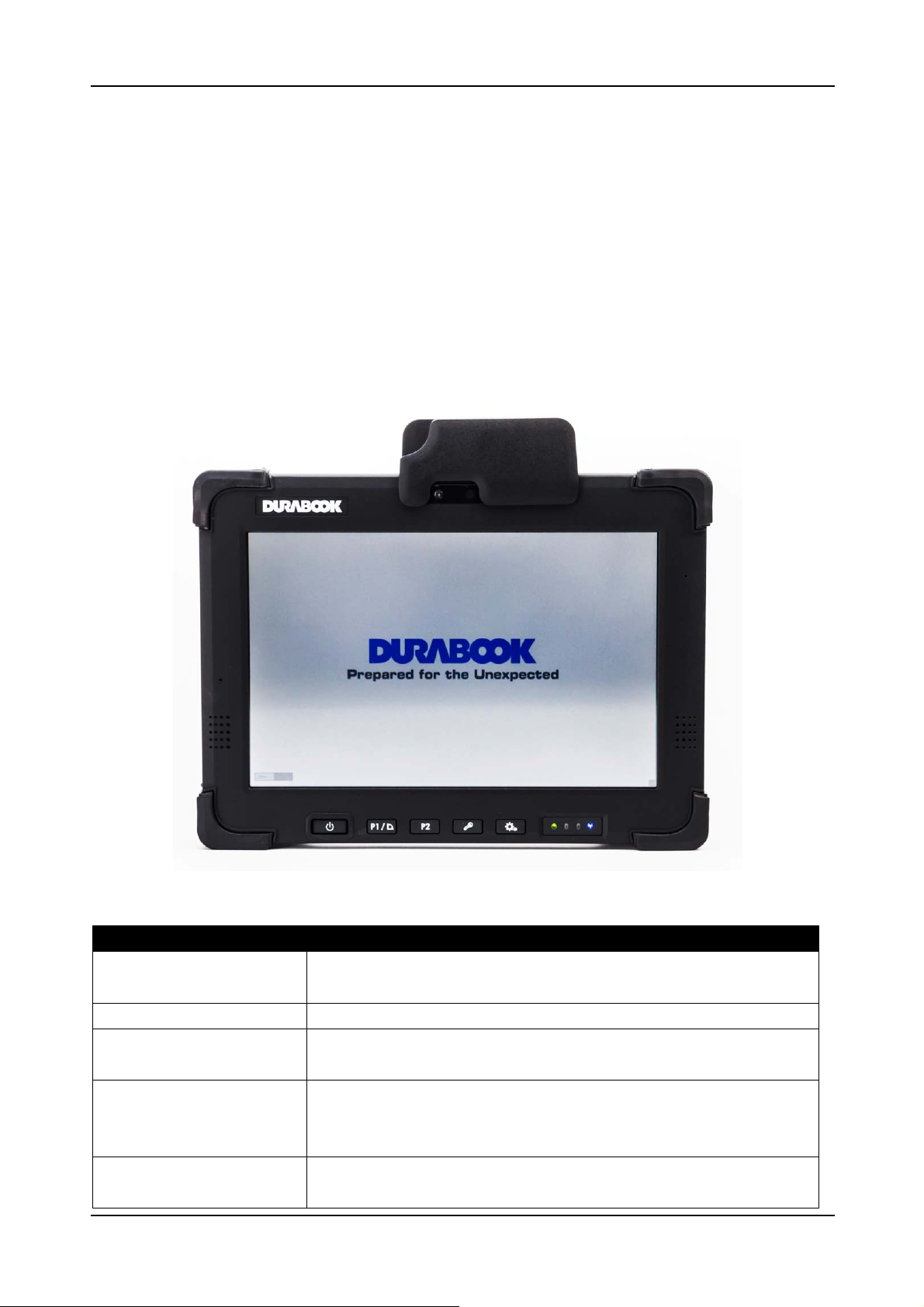

Front View
Before You Start
No. Item Description
1 Light Sensor Sense the ambient light condition for auto
backlight setting function. 2 Webcam Use for video conference. 3 Microphone Receive audio input. 4 Speaker Emit sound. 5 Status Indicators (Power,
Battery, Wireless)
Indicate the corresponding function status.
See “Status Indicators” on page 14. 6 Quick Menu button
Press to launch the Quick Menu.
7 Lock button
Press to launch the log in menu, similar as
pressing <Ctrl> + <Alt> + <Del> on a
PC.
9
Page 10
Before You Start
No. Item Description
8 Function button
(P2)
9 Function (P1) /
Rotate button
10 Power button
Press to launch an application assigned to
the button. See “錯誤! 找不到參照來源。 on
page 錯誤! 尚未定義書籤。” to program the
function button.
By default, press this button to rotate the
display 90° clockwise. Or, press this button
to launch an assigned application. See “錯
誤! 找不到參照來源。 on page 錯誤! 尚未定義
書籤。” to program the function button.
Press to power on and off the tablet PC.
10
Page 11

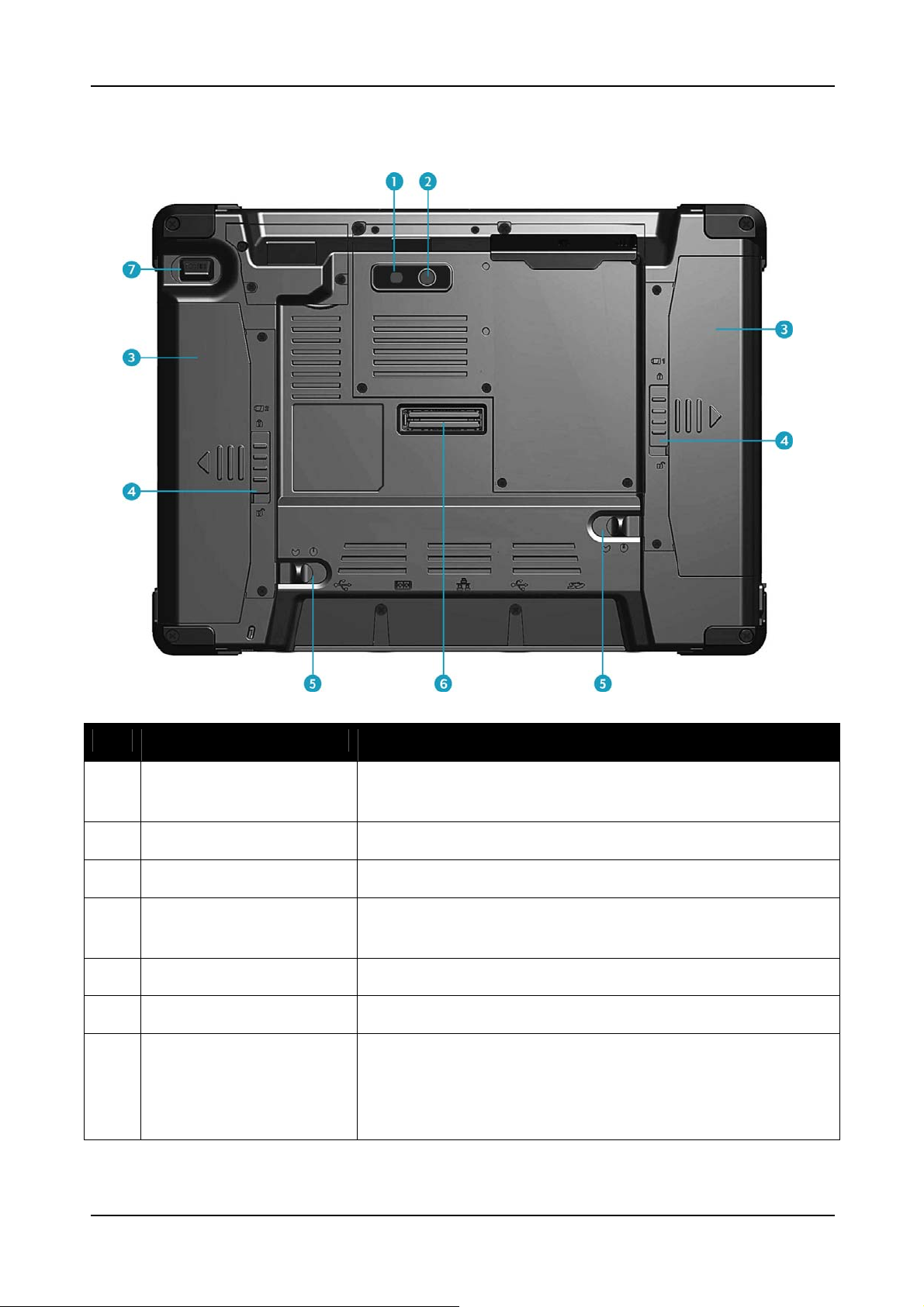

Back View
Before You Start
No. Item Description
1 Camera LED flash Provide additional lighting when taking pictures
under low light environment. 2 Camera Use to take pictures. 3 Battery pack Supply battery power to your tablet PC. 4 Battery latch Slide down the latch to release the battery pack
from the compartment. 5 Battery lock Lock the battery latch. 6 Docking connector Connect the tablet PC to a docking station. 7 Scanner button Press to trigger the Barcode scan function if the
barcode scanner is on. It can also be assigned as
the camera button in
Quick Menu.
11
Page 12
Before You Start

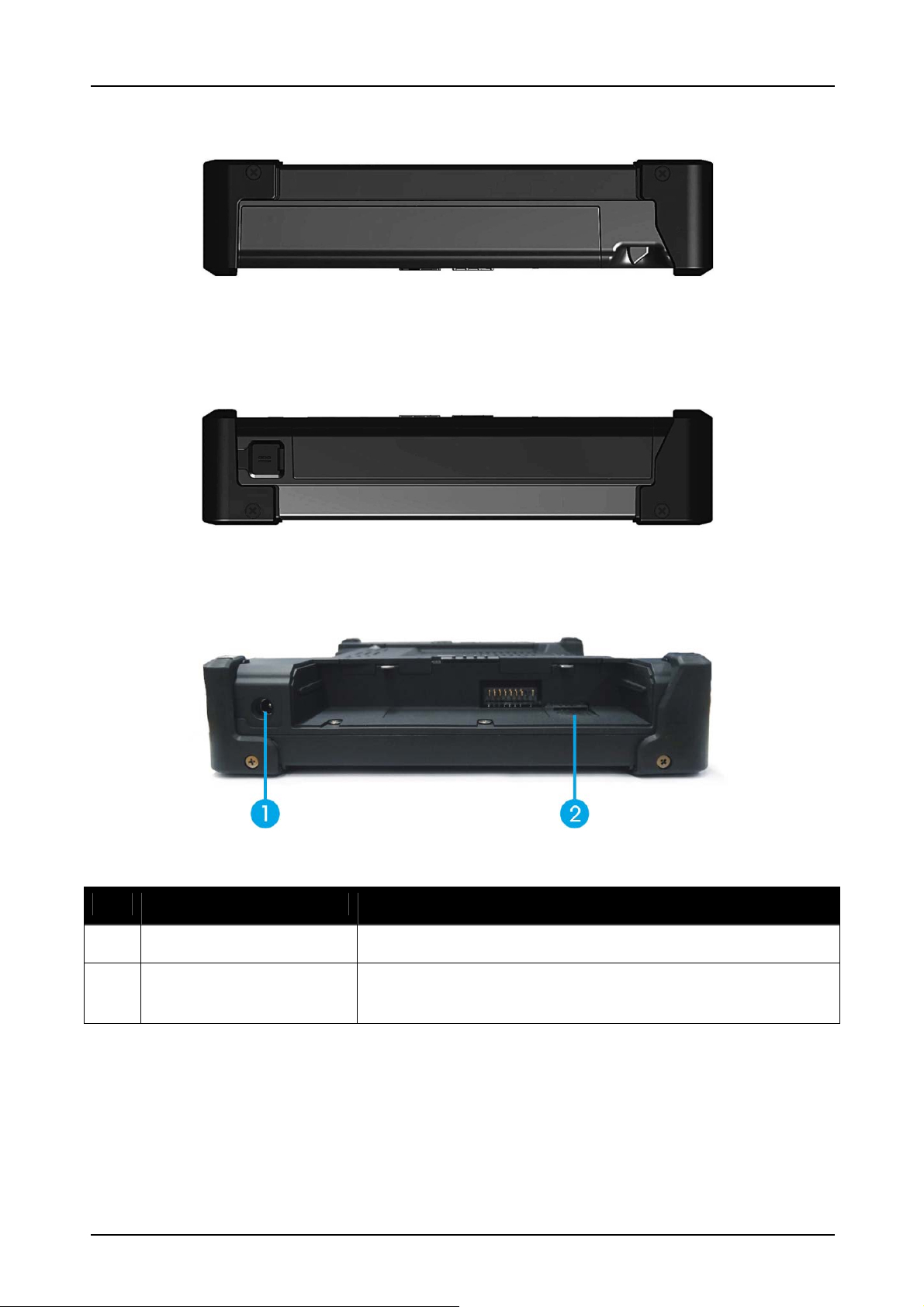

Right View
Left View
With battery pack
Without battery pack
No. Item Description
1 DC-in jack Connect the power adapter. 2 SIM card slot Use to insert a SIM card for WWAN, Gobi 3000, or
LTE module connection.
12
Page 13

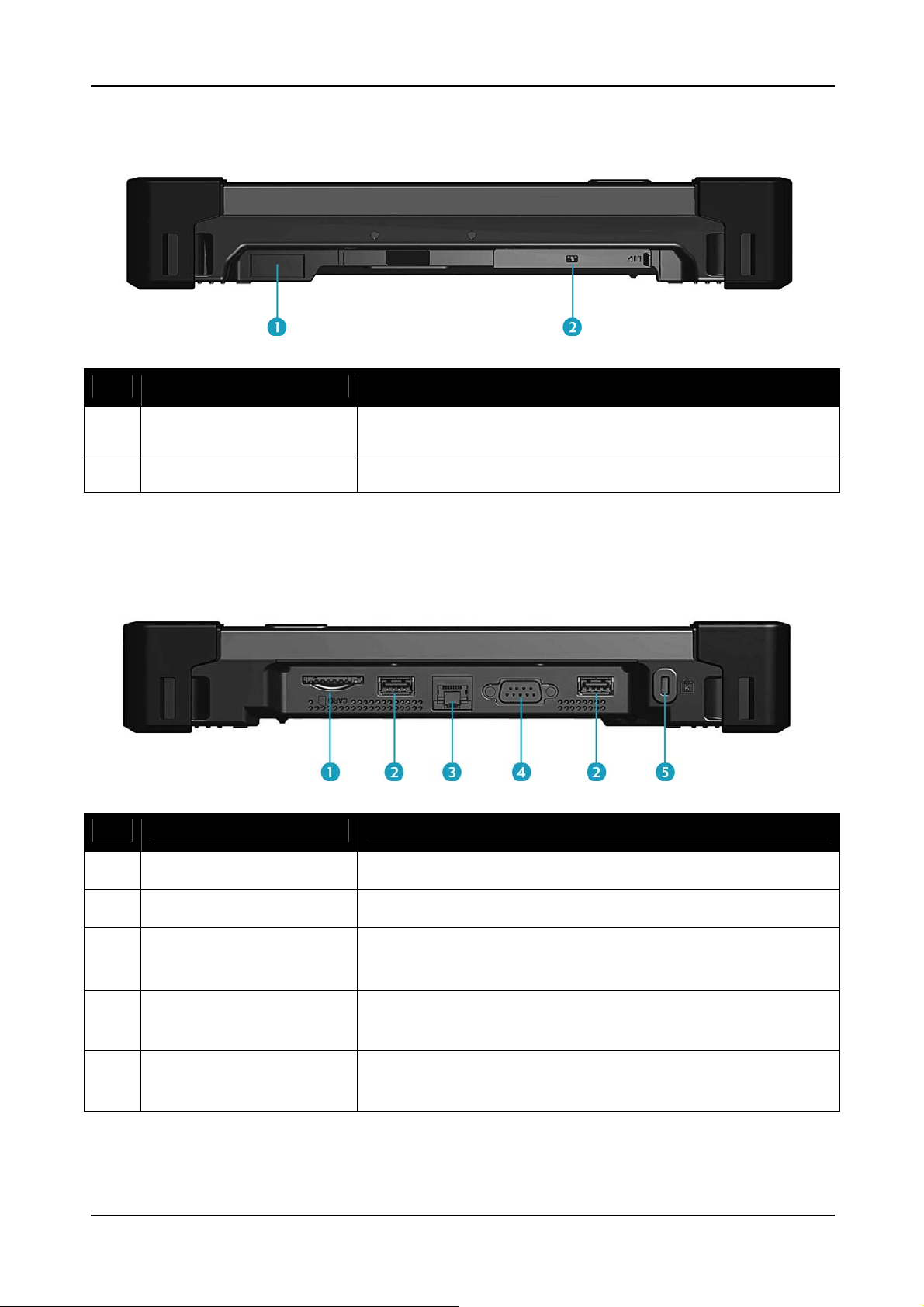

Top View
No. Item Description
1 Barcode scanner Use to scan for barcodes.
2 Smart card reader Use to insert smart cards.
Before You Start
Bottom View
No. Item Description
1 SD card slot Use to insert an SD card for external storage. 2 USB port Connect USB peripheral devices. 3 LAN (RJ-45) port
Connect to a local area network (LAN) using an
Ethernet cable. 4 Serial port (RS-232) Connect a peripheral device, such as a printer or
other device with serial port. 5 Kensington lock slot Connect to a Kensington-compatible tablet PC
security lock.
13
Page 14
Before You Start
Status Indicators

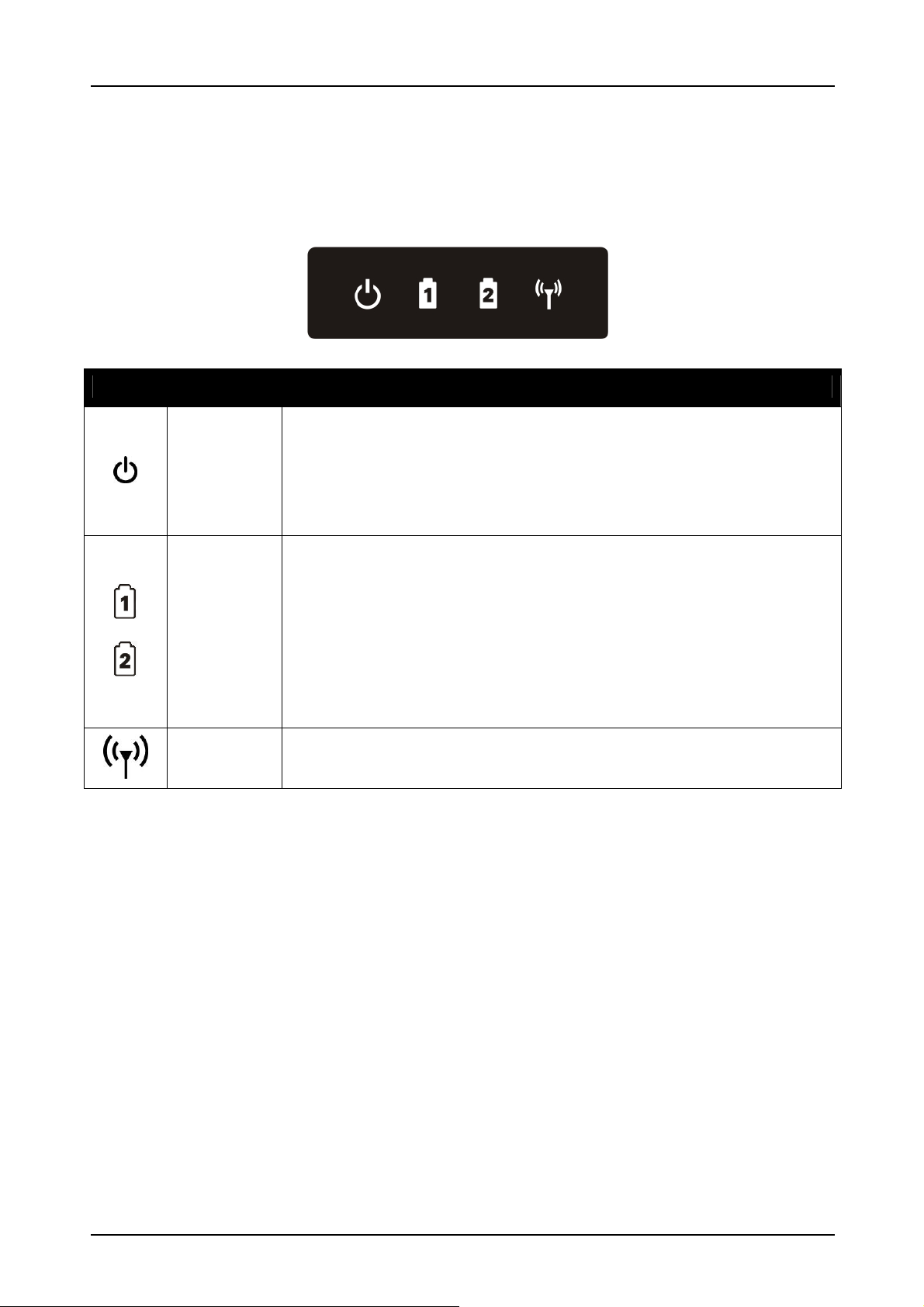

The status indicators in the lower right corner of the tablet PC light up when a particular function of the tablet PC is active. Each indicator is marked with a symbol.
Icon Item Description
Indicate the power status: Off: Power is off or the tablet PC is in hibernate mode.
Power
Green: Power is on. Blinking Green: The tablet PC is in standby or sleep
mode.
Indicate the status of battery 1 and battery 2: Green: The battery is fully charged with 95% power or
Battery
RF
above.
Orange: The battery is charging. Flashing Orange: Charging error. Red: The battery is low with less than 10% power. Off: The battery is discharged.
The RF LED lights blue when the wireless (WLAN) and/or Bluetooth function is enabled.
14
Page 15
Getting Started
Getting Started
This chapter will guide you on how to use your tablet PC.
Powering Up Your Tablet PC
Your tablet PC can be powered up using the AC adapter or the Lithium-ion battery.
Using Battery Power
1. Install a charged battery in the battery compartment.
2. Remove the AC adapter (if plugged). Your tablet PC will automatically use the battery power.
NOTE
If your tablet PC is connected to an electrical outlet and the battery is
installed, your tablet PC uses power from the electrical outlet.
Installing the Batteries

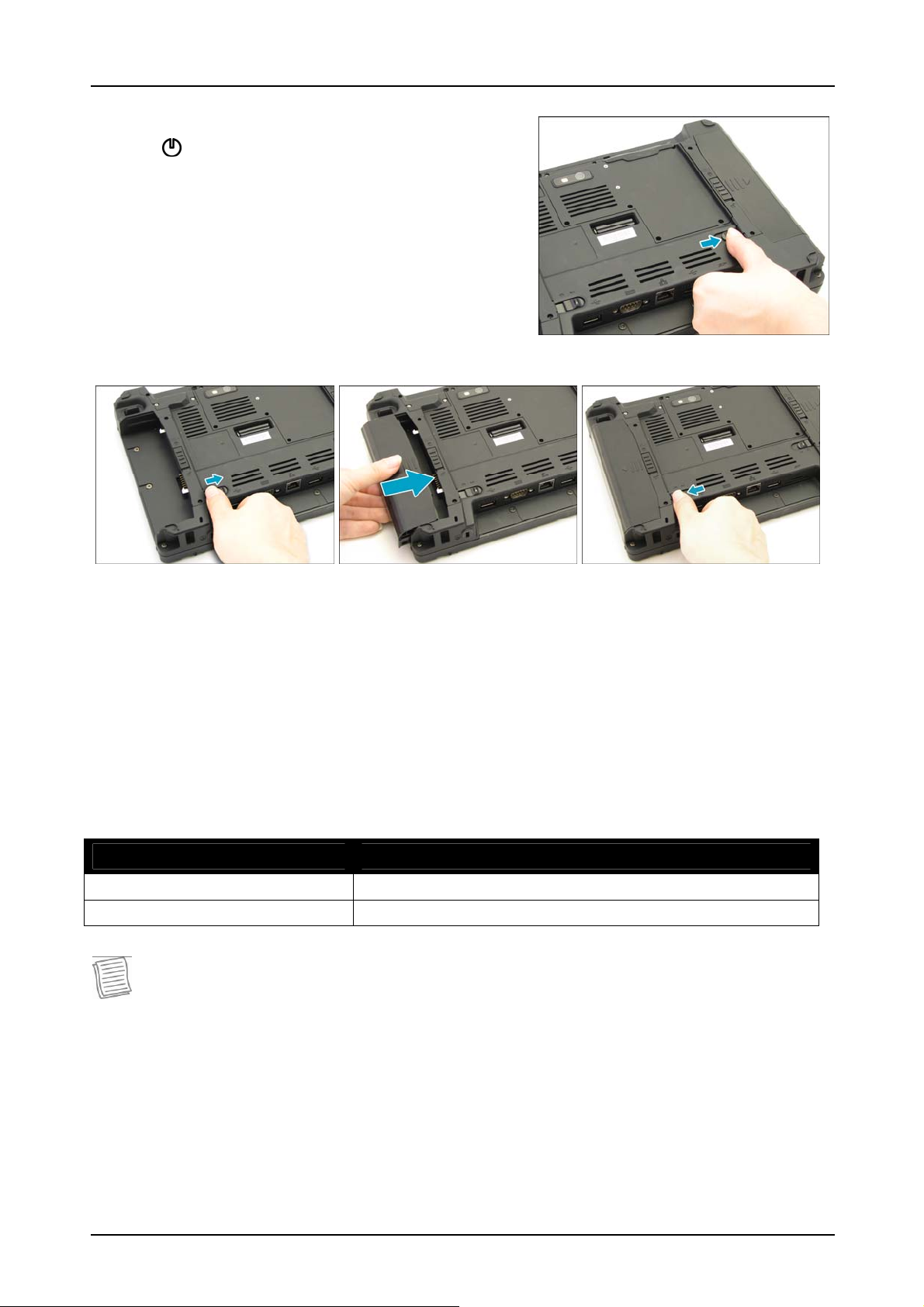

To install the batteries, follow the steps below:

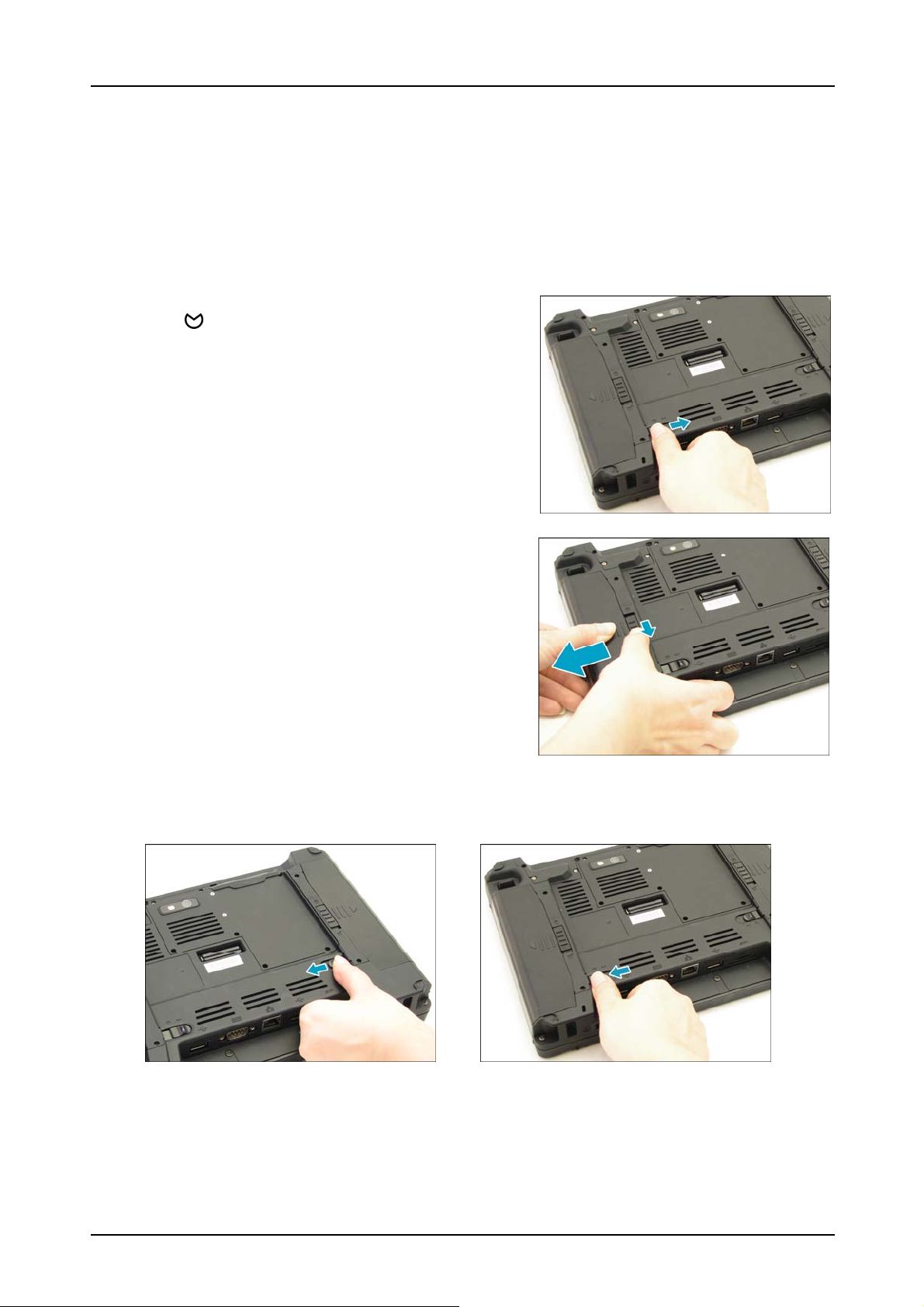

1. Make sure the battery lock is in the unlock position.
2. Slide the battery pack into the compartment and push completely until the battery locks into place.
15
Page 16
Getting Started
3. Slide the battery lock to the lock position.
4. Repeat steps 1 to 3 to insert the second battery.
Charging the Battery
The Lithium-ion battery is not fully-charged upon purchase. To charge the battery, follow the steps below:
1. Install the battery to your tablet PC.
2. Connect the AC adapter to the DC-in jack of your tablet PC.
3. Connect the AC adapter to the power cord.
4. Plug the power cord to an electrical outlet.
Charging Time
Number of battery pack Charging duration (at 25ºC)
1 3.5 hours 2 6.5 hours
NOTE
The charging time may be longer if you are using your tablet PC while
charging the battery.
CAUTION
DO NOT charge the battery if the temperature is below 0ºC or higher than
60ºC.
Use only the supplied AC adapter. Using other AC adapters may damage the
battery or your tablet PC.
16
Page 17
Getting Started
Checking the Battery Level
It is important that you monitor the battery status regularly to ensure you do not run out of power at a critical moment.

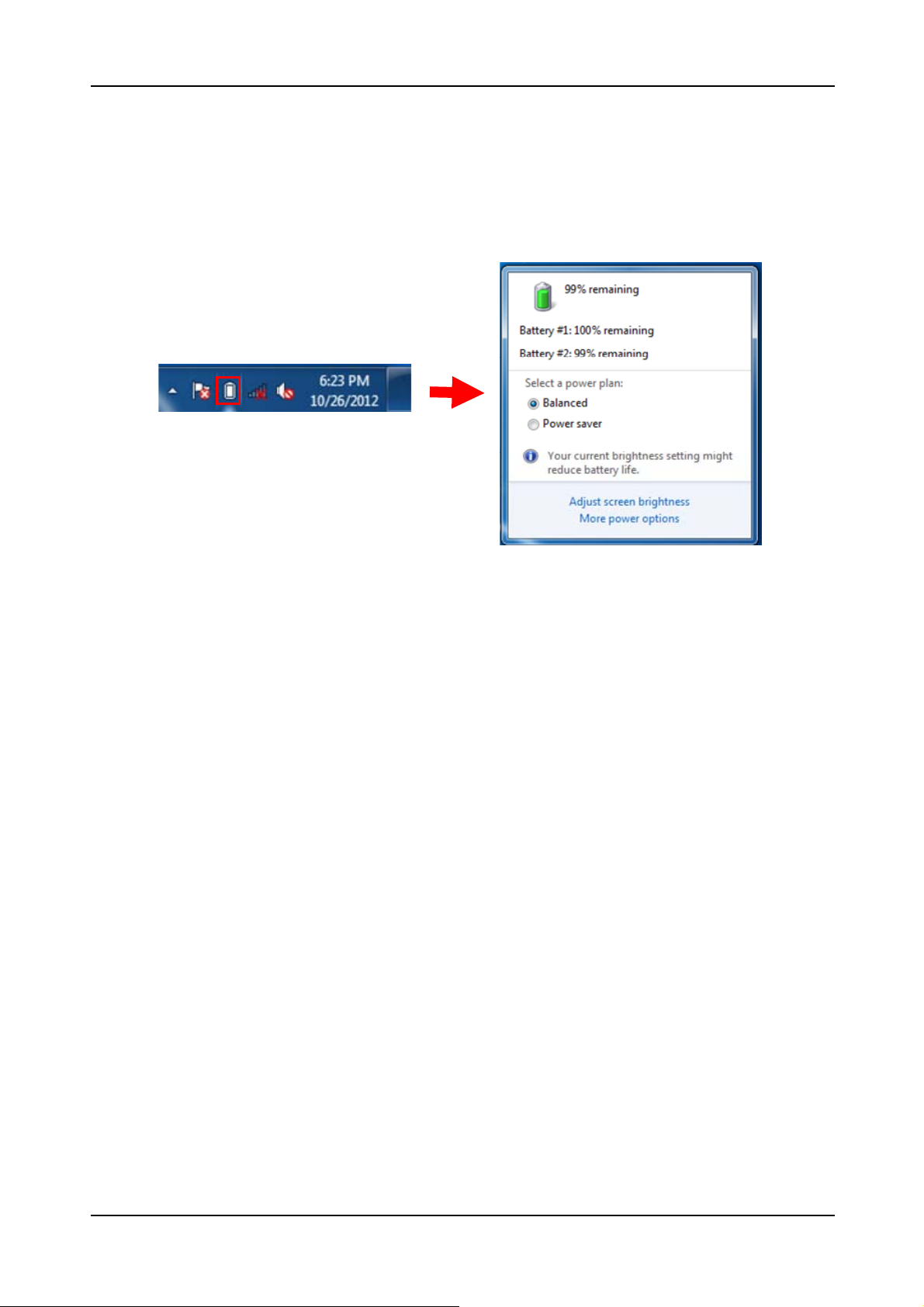

To check the remaining battery power, double tap the battery icon in the system tray. The battery screen appears:
17
Page 18
Getting Started
When to replace the Battery Pack
The battery performance gradually decreases over time and usage. We recommend you to replace your battery pack after 18 to 24 months of usage.
Removing the Batteries

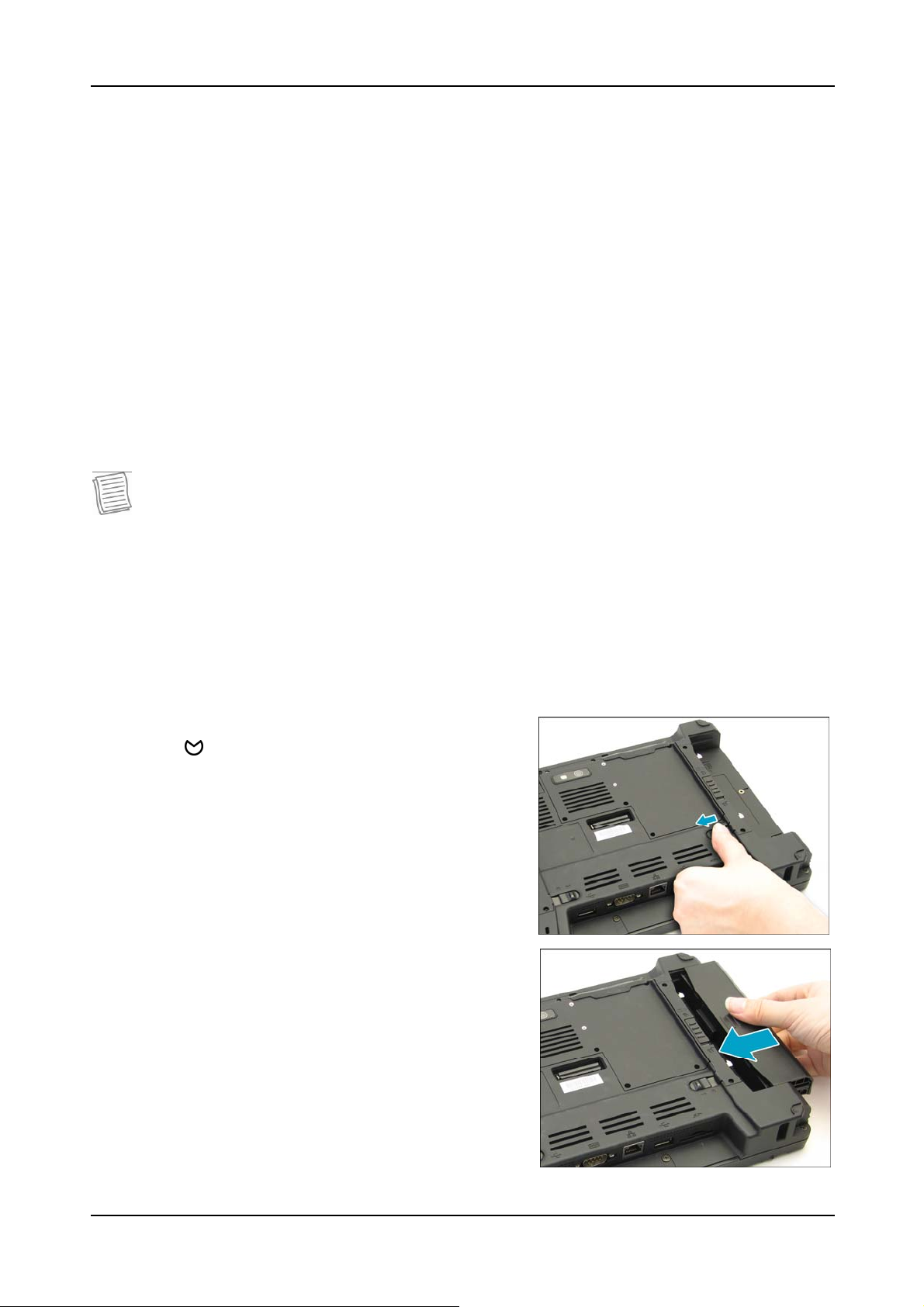

To remove the batteries, follow the steps below:
1. Slide the battery lock to the unlock position.
2. Press and hold down the battery latch and slide the battery to remove it from the compartment.
3. Repeat steps 1 and 2 to remove another battery.
18
Page 19
Getting Started
Starting Your Tablet PC
Turning On Your Tablet PC
Press the button until the Power LED lights up.

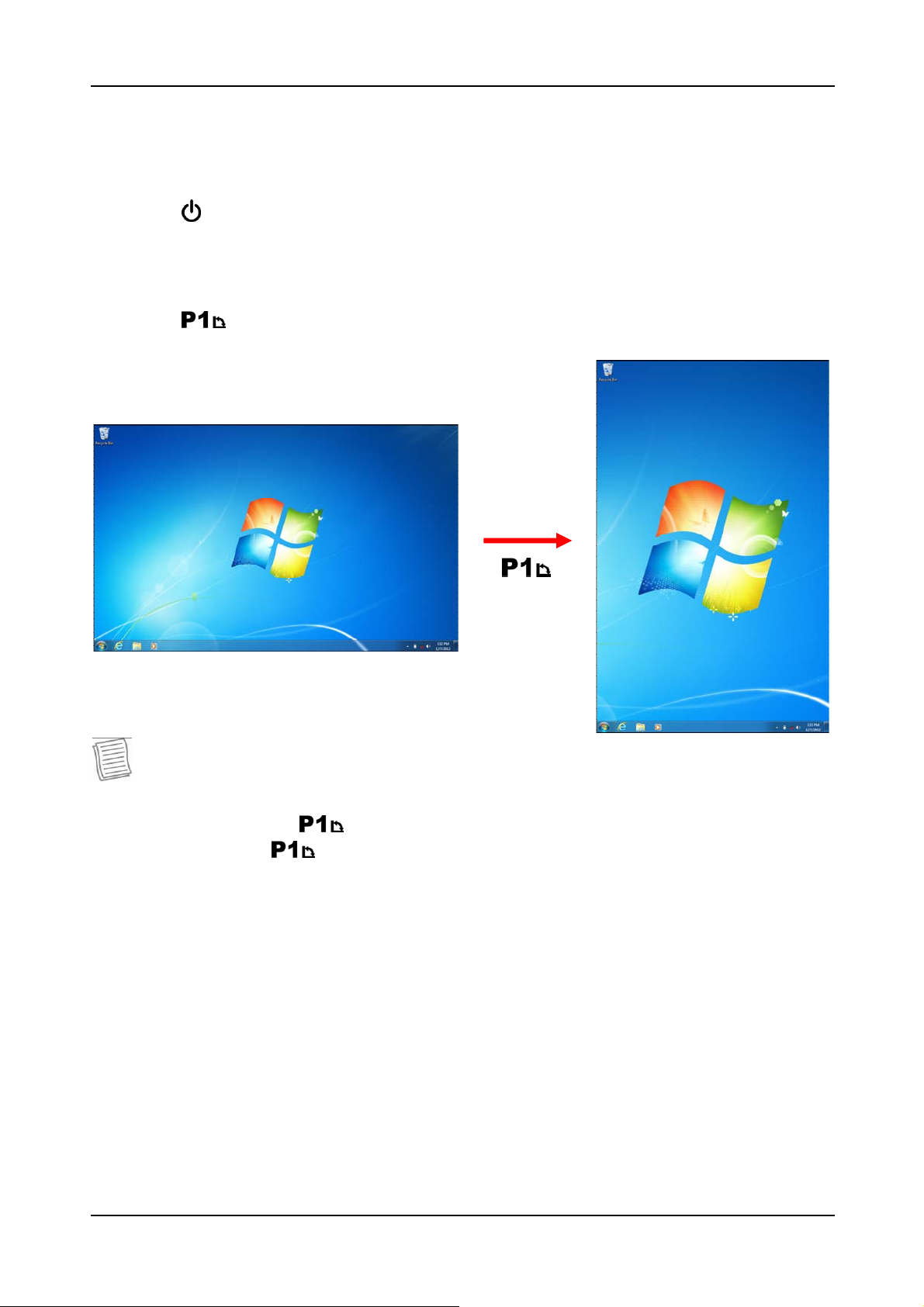

Changing the Display Orientation
Y ou can rotate the displa y orientation to suit y our preference. Press the button to rotate the display 90°, 180°, and 270° clockwise.
NOTE
Y ou need to disable the Auto Rotate option in the Quick menu before pressing
the shortcut button ( ) to rotate the display.
Repeatedly press to rotate the displa y 180° and 270° clockwise.
Using the Stylus
This tablet PC may come with an integrated stylus for accurate control input to the LCD touch panel. You can use the stylus to point, select, or drag items or objects on the screen.
Calibrate the Screen
To ensure touch accuracy, calibrate the screen.

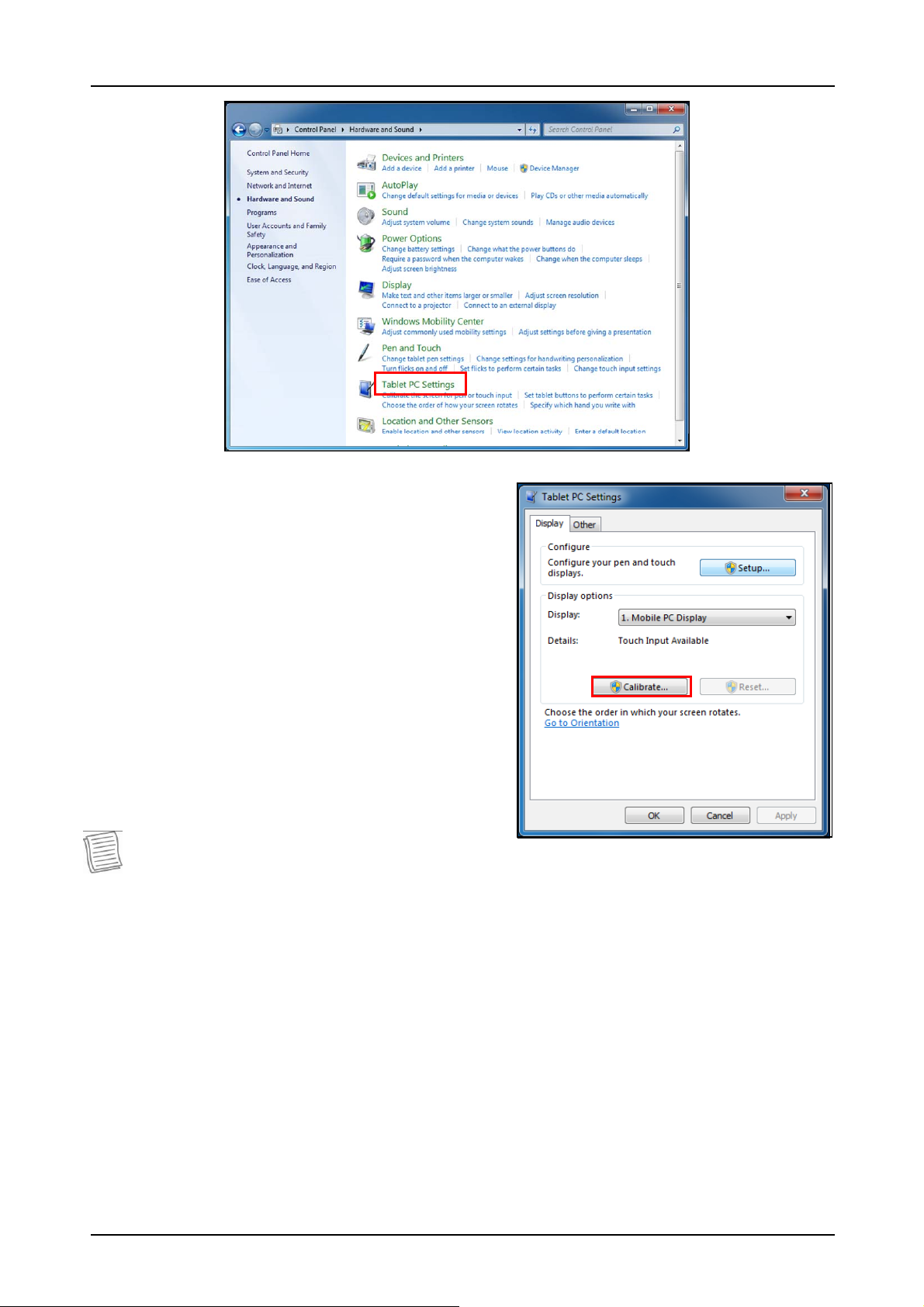

1. Tap Start > Control Panel.
2. Select Hardware and Sound > Tablet PC Settings.
19
Page 20
Specifications
3. Tap Calibrate.
4. Follow the on-screen instructions to complete screen calibration.
NOTE:
If the optional digitizer is enabled, use a pencil to do the touch panel
calibration instead of using the digitizer pen.
20
Page 21
Specifications
Using the BIOS Setup Utility
Your tablet PC has a BIOS setup utility which allows you to configure important system settings, including settings for various optional functions of the tablet PC. This chapter explains how to use the BIOS setup utility.
BIOS Setup Menu
The BIOS Setup Utility allows you to configure your tablet PC basic settings. When you turn your tablet PC on, the system reads this information to initialize the hardware so that it can operate correctly. Use the BIOS setup utility to change your tablet PC start-up configuration. For example, you can change the security and power management routines of your system.
Starting the BIOS Setup Utility
You can only enter the BIO S setup utility as the tablet PC is booting, that is between the time you turn on the tablet PC and before the Windows interface appears.

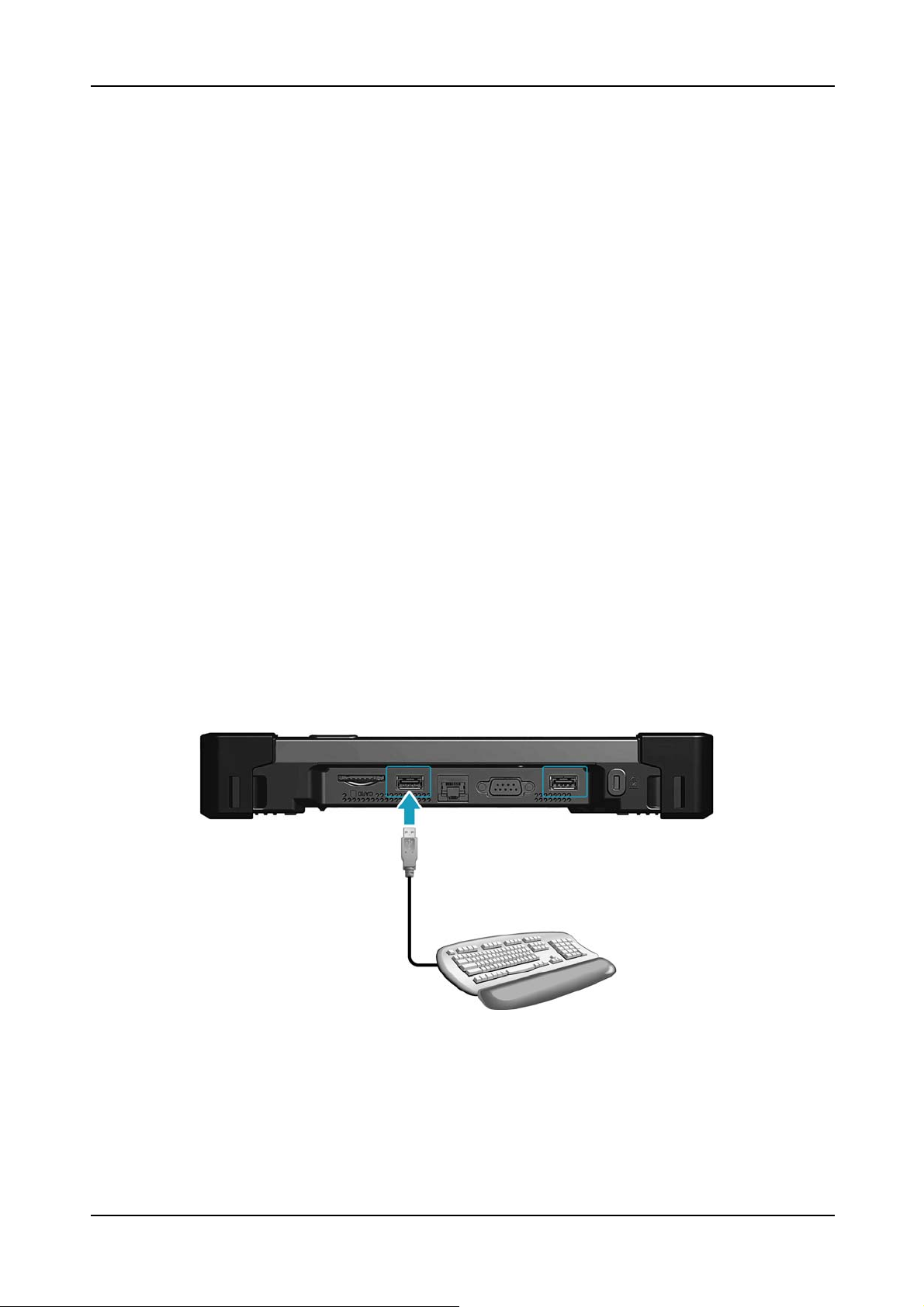

1. Connect a USB keyboard to one of the USB ports of your tablet PC.
2. If your tablet PC is already on, restart your tablet PC.
3. When the start up logo appears, press the <Enter> key on the USB keyboard to enter the setup utility.
21
Page 22
Specifications
Navigating and Entering Information in BIOS
Use the following keys to move between fields and to enter information:
External
Keyboard
Moves up/down to select items.
Enter Confirms the selection and enters the selected menu screen.
+ / - Changes an option for the selected items.
F1 Displays the Help screen. F2 Invokes the previous values. F3 Loads optimized default values. F4 Saves the changes and exits Setup.
Esc
Users are allowed to enter new values to replace the default settings in certain fields and some fields are specified by system default parameters and cannot be modified by users. Reverse the attribute of the main options and press the
Selects screen.
Exits any section. If you wish to exit the BIOS utility without saving changes or go to the main menu, then press this key.
Description
<Enter> or button to enter a submenu. Press the <Esc> button to return to the previous configuration page.
22
Page 23
Specifications
Optional Devices
The functionality of your Tablet PC can be expanded with the use of devices, such as the Magnetic Stripe Reader (MSR), Pin Pad, and others. These devices are optional items and may be purchased separately.
Magnetic Stripe Reader (MSR)
The integrated Magnetic Stripe Reader (MSR) can be installed on y our Tablet PC as shown below.
MSR Specification
MSR Specification
Supported Protocol Frequency ISO
Reading and Encryption
Speed
23
ANSI/ISO 7810, ISO 7811-1/6, 7813, JIS X6301, X6302, AAMVA Two-frequency coherent phase (F2F) recording methods ISO Track1 - IATA , Track2 - ABA and Track3 - THRIFT decoding methods Bi-directional card reading Supplies 54 byte value Encrypts all track data and the value Card speed through the unit may vary from 3 ips to 100 ips (7 cm/s to 250 cm/s)
Page 24
Specifications
Pin Pad

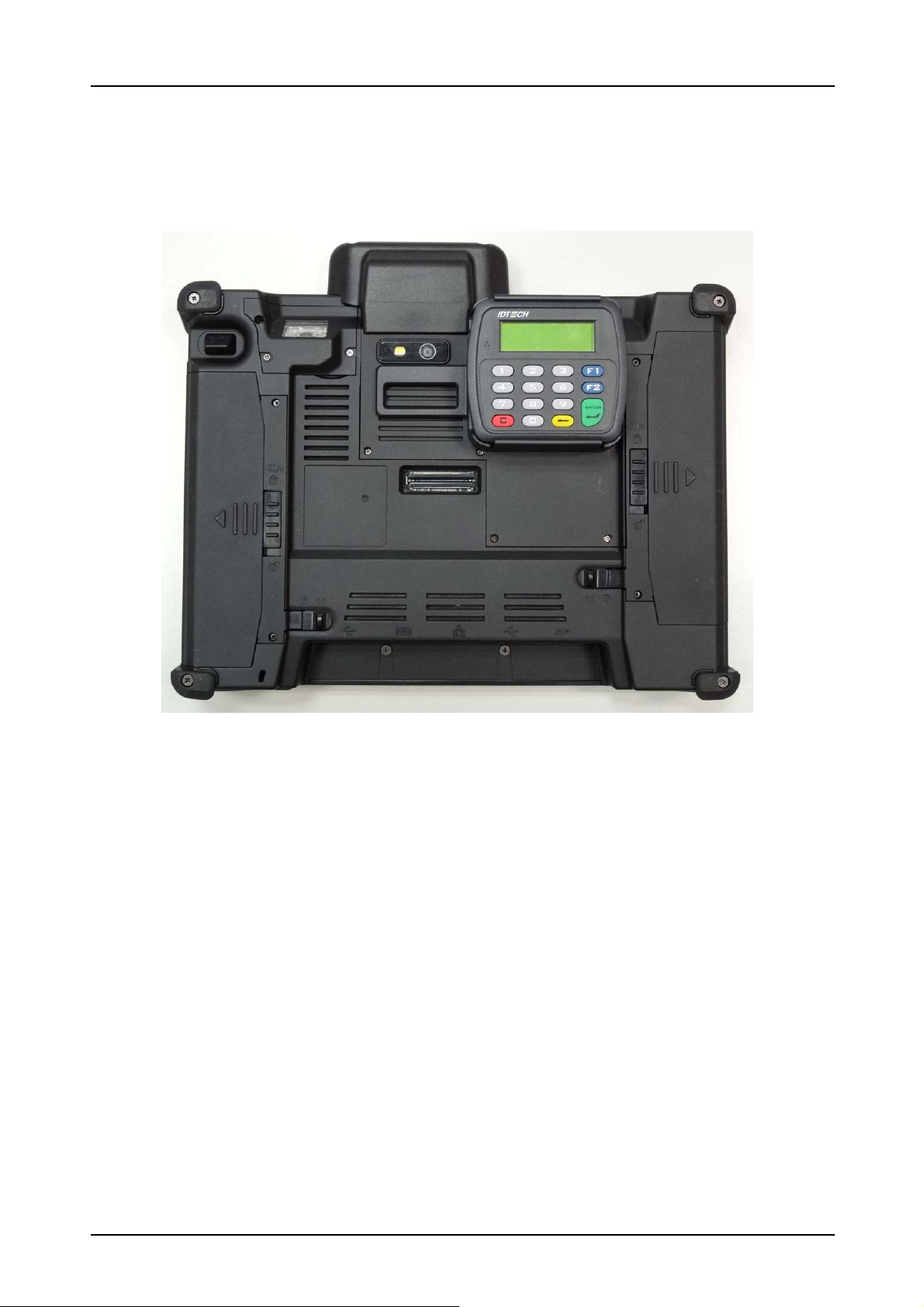

The Pin pad is designed with a ready-to-use interface. Install the Pin pad on the back of your Tablet PC as shown below.
24
Page 25
Specifications
Specifications
Features Specifications
Processor Type & Speed Intel Atom N2600 1.6GHz 512KB x2 L2 cache Chipset
System Memory
Display
Type
Maximum Memory
Display
Screen Auto­rotation
Light Sensor Digitizer
NM10
DDRIII 800 One 204-pin DDRIII SODIMM sockets for 2GB
2GB
Standard：
10.1” WXGA (1280x800) TFT LCD with resistive
multi-touch panel
Optional Sunlight readable:
10.1” WXGA (1280x800) TFT LCD with sunlight
readable resistive multi-touch panel
Support screen auto-rotation
Built-in ambient light sensor
Optional Digitizer with active stylus pen with USB interface battery-charger
Storage SSD
Expansion Slot Smart card reader
Camera
I/O Devices
Barcode scanner
Communications
Auto switch between digitizer and touch input mSA TA SSD 32/64/128 GB
SD card slot (SDHC) Front facing 1.3M pixel camer a Optional rear facing 5M pixel auto-focus
camera Optional Barcode scanner, support 1D/2D barcode Internal 10/100/1000M bit Ethernet LAN
Intel Centrino Wireless N 135 (WLAN 1x1 b/g/n and Bluetooth 4.0 EDR)
25
Page 26
Specifications
Features Specifications
Bottom Side I/O: RS-232x1, RJ 45x1, USB
I/O Devices I/O P orts
2.0x2, DC-inx1 R ear Side I/O: Docking connector x1 HD Audio
Audio
One speaker Analog Mic. Array （With 2 Micr ophones）
AC/DC Adapter Input:100V-240V, 50Hz-60Hz,
Output:19V, 3.42A; 65W Compliant with Energy Star 5.2
Power
Battery Module Two Li-Ion battery packs
(11.1V, 2600mAh, 28.86 W)
Battery Life 7~8 hrs Operating
-20°C ~ 45°C
Temperature Storage
-33°C ~71°C
Temperature Operating
5% ~ 95%
Humidity
Environment
Drop 26 drops with 4 feet high to 2” plywood over
concrete, unit on with SSD
Dust Proof/Water
IP-4X / IP-X3
Sealing Vibration MIL- STD 810G 514.6 Procedure I category 24
Figure 514.6E-1, unit on with SSD
Operating System Windows 7 Professional x86
Windows Embedded Standard 7 (by customer request)
Security Computrace Enable BIOS
Administrator password Boot password TPM 1.2 (PCBA option) Kensington Lock slot
Dimensions 274 (W) x 202 (H) x 45.9 (D) mm /
10.8 (W) x 8.0 (H) x 1.8 (D) inch
Weight Weight: 1.47 kg / 3.24 lbs
Specifications are subject to change without prior notice.
26
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
