Page 1
TM
TM
HDBaseT
Cat.6A S/FTP UltraFlex
exible cable
Patch Cable
suitable for industrial environments
TM
triple blade contacts
overmolded connectors
UL certied

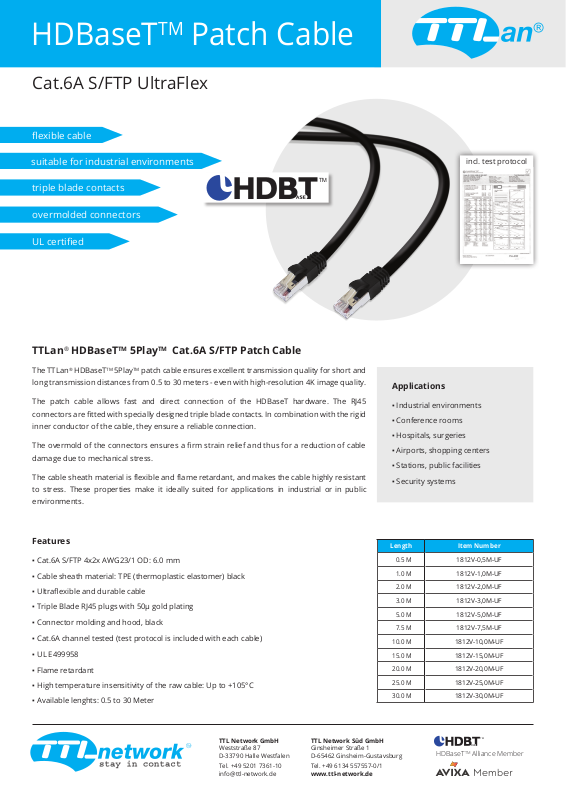

TTLan® HDBaseTTM 5PlayTM Cat.6A S/FTP Patch Cable
The TTLan® HDBaseT
long transmission distances from 0.5 to 30 meters - even with high-resolution 4K image quality.
The patch cable allows fast and direct connection of the HDBaseT hardware. The RJ45
connectors are tted with specially designed triple blade contacts. In combination with the rigid
inner conductor of the cable, they ensure a reliable connection.
The overmold of the connectors ensures a rm strain relief and thus for a reduction of cable
damage due to mechanical stress.
The cable sheath material is flexible and flame retardant, and makes the cable highly resistant
to stress. These properties make it ideally suited for applications in industrial or in public
environments.
TM
5PlayTM patch cable ensures excellent transmission quality for short and
incl. test protocol
Applications
▪ Industrial environments
▪ Conference rooms
▪ Hospitals, surgeries
▪ Airports, shopping centers
▪ Stations, public facilities
▪ Security systems
Features
▪ Cat.6A S/FTP 4x2x AWG23/1 OD: 6.0 mm
▪ Cable sheath material: TPE (thermoplastic elastomer) black
▪ Ultraexible and durable cable
▪ Triple Blade RJ45 plugs with 50µ gold plating
▪ Connector molding and hood, black
▪ Cat.6A channel tested (test protocol is included with each cable)
▪ UL E499958
▪ Flame retardant
▪ High temperature insensitivity of the raw cable: Up to +105°C
▪ Available lenghts: 0.5 to 30 Meter
TTL Network GmbH
Weststraße 87
D-33790 Halle Westfalen
Tel. +49 5201 7361-10
[email protected]
Length Item Number
10.0 M
15.0 M
20.0 M
25.0 M
30.0 M
TTL Network Süd GmbH
Ginsheimer Straße 1
D-65462 Ginsheim-Gustavsburg
Tel. +49 6134 557557-0/1
www.ttl-network.de
0.5 M
1.0 M
2.0 M
3.0 M
5.0 M
7.5 M
1812V-0,5M-UF
1812V-1,0M-UF
1812V-2,0M-UF
1812V-3,0M-UF
1812V-5,0M-UF
1812V-7,5M-UF
1812V-10,0M-UF
1812V-15,0M-UF
1812V-20,0M-UF
1812V-25,0M-UF
1812V-30,0M-UF
HDBaseTTM Alliance Member
