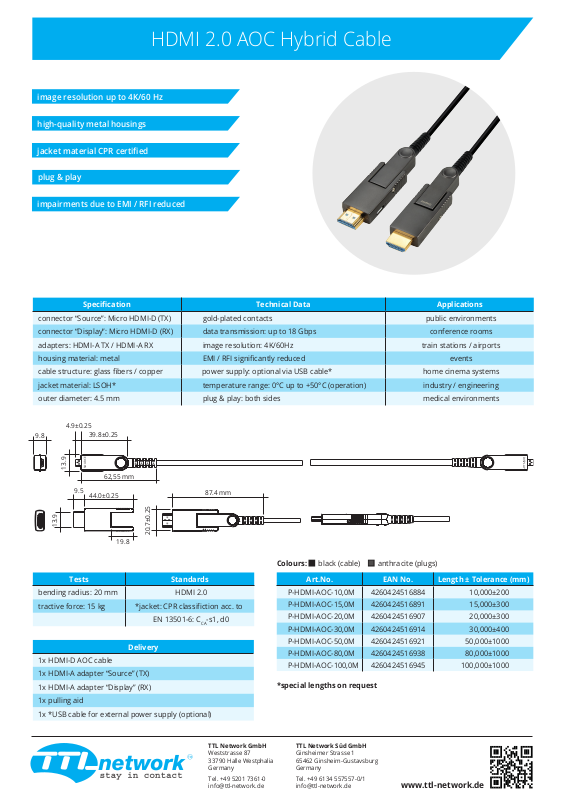

HDMI 2.0 AOC Hybrid Cable
image resolution up to 4K/60 Hz
high-quality metal housings
jacket material CPR certied
plug & play
impairments due to EMI / RFI reduced
Specication Technical Data Applications
connector “Source”: Micro HDMI-D (TX) gold-plated contacts public environments
connector “Display”: Micro HDMI-D (RX) data transmission: up to 18 Gbps conference rooms
adapters: HDMI-A TX / HDMI-A RX image resolution: 4K/60Hz train stations / airports
housing material: metal EMI / RFI signicantly reduced events
cable structure: glass bers / copper power supply: optional via USB cable* home cinema systems
jacket material: LSOH* temperature range: 0°C up to +50°C (operation) industry / engineering
outer diameter: 4.5 mm plug & play: both sides medical environments
4.9±0.25
13.9
9.5
39.8±0.25
SOURCE
62,55 mm
44.0±0.25
87.4 mm
20.7±0.25
19.8
9.8
13.9
Tests Standards
bending radius: 20 mm HDMI 2.0
tractive force: 15 kg *jacket: CPR classifiction acc. to
EN 13501-6: C
-s1, d0
CA
Delivery
1x HDMI-D AOC cable
1x HDMI-A adapter “Source” (TX)
1x HDMI-A adapter “Display” (RX)
1x pulling aid
1x *USB cable for external power supply (optional)
Colours:
black (cable) anthracite (plugs)
Art.No. EAN No. Length ± Tolerance (mm)
P-HDMI-AOC-10,0M 4260424516884 10,000±200
P-HDMI-AOC-15,0M 4260424516891 15,000±300
P-HDMI-AOC-20,0M 4260424516907 20,000±300
P-HDMI-AOC-30,0M 4260424516914 30,000±400
P-HDMI-AOC-50,0M 4260424516921 50,000±1000
P-HDMI-AOC-80,0M 4260424516938 80,000±1000
P-HDMI-AOC-100,0M 4260424516945 100,000±1000
*special lengths on request
