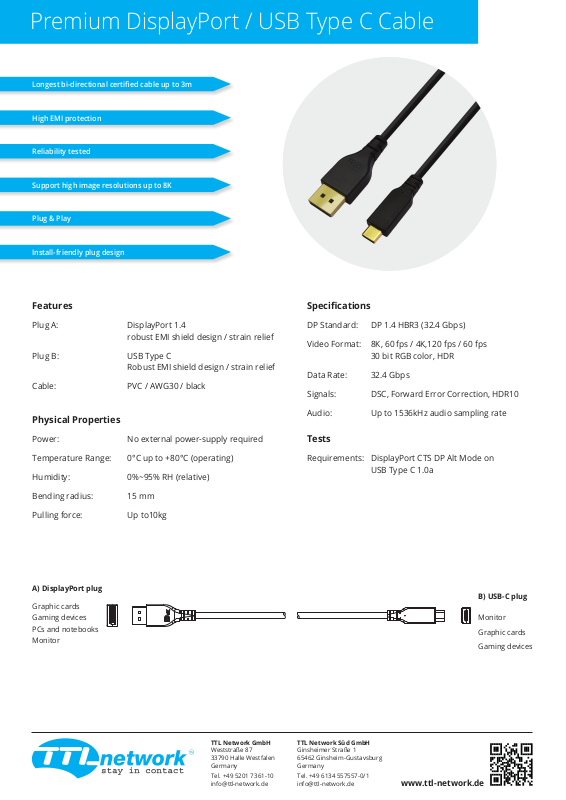

Page 1

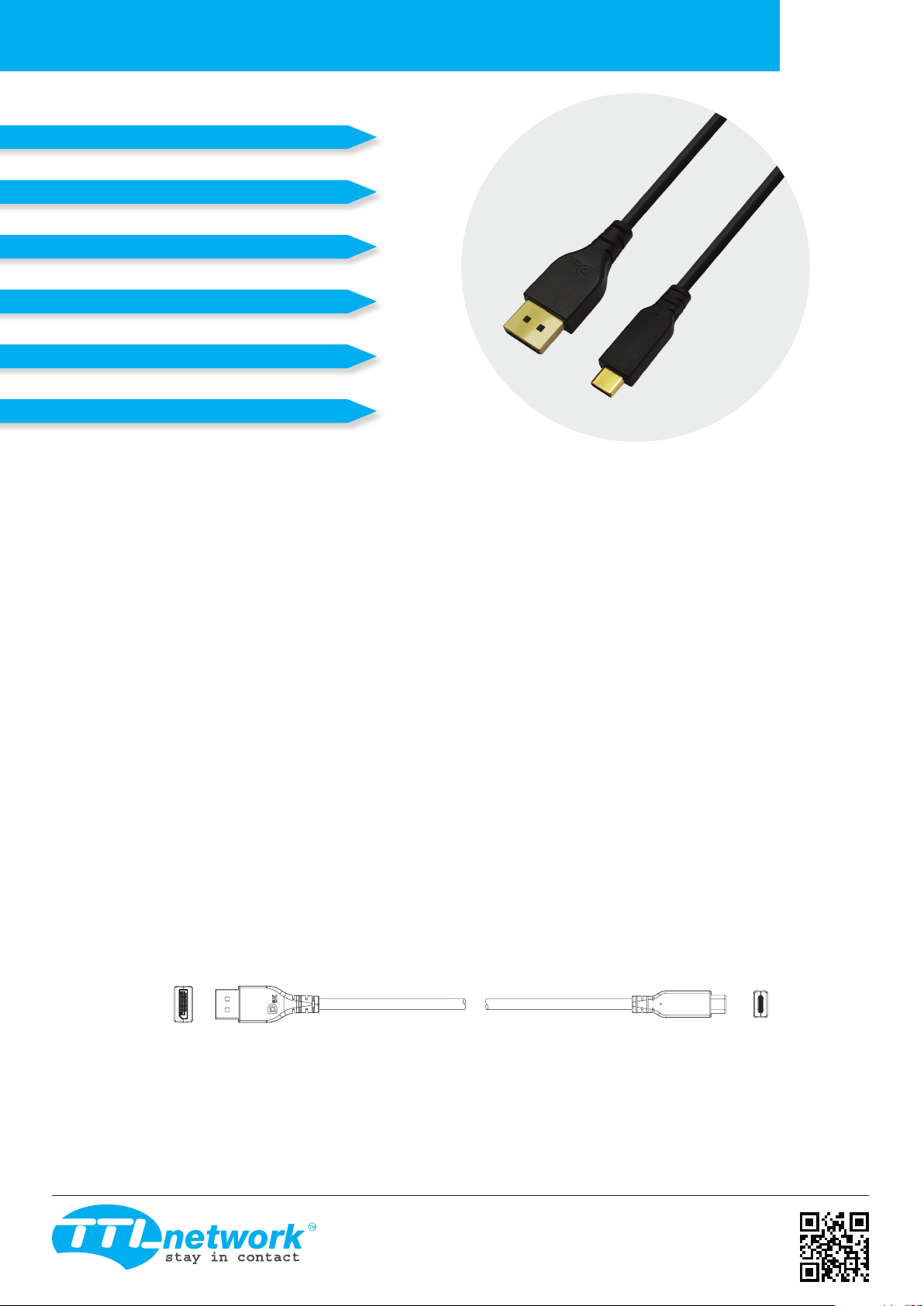

Premium DisplayPort / USB Type C Cable

Longest bi-directional certied cable up to 3m

High EMI protection

Reliability tested

Support high image resolutions up to 8K

Plug & Play

Install-friendly plug design

Features

Plug A: DisplayPort 1.4 robust EMI shield design / strain relief

Plug B: USB Type C Robust EMI shield design / strain relief

Cable: PVC / AWG30 / black

Physical Properties

Power: No external power-supply required

Temperature Range: 0°C up to +80°C (operating)

Humidity: 0%~95% RH (relative)

Bending radius: 15 mm

Pulling force: Up to10kg

Specications

DP Standard: DP 1.4 HBR3 (32.4 Gbps)

Video Format: 8K, 60 fps / 4K,120 fps / 60 fps 30 bit RGB color, HDR

Data Rate: 32.4 Gbps

Signals: DSC, Forward Error Correction, HDR10

Audio: Up to 1536kHz audio sampling rate

Tests

Requirements: DisplayPort CTS DP Alt Mode on USB Type C 1.0a

A) DisplayPort plug

Graphic cards Gaming devices PCs and notebooks Monitor

TTL Network GmbH

Weststraße 87 33790 Halle Westfalen Germany

Tel. +49 5201 7361-10 [email protected]

TTL Network Süd GmbH

Ginsheimer Straße 1 65462 Ginsheim-Gustavsburg Germany

Tel. +49 6134 557557-0/1 [email protected]

B) USB-C plug

Monitor

Graphic cards

Gaming devices

www.ttl-network.de

Page 2

Premium DisplayPort / USB Type C Cable

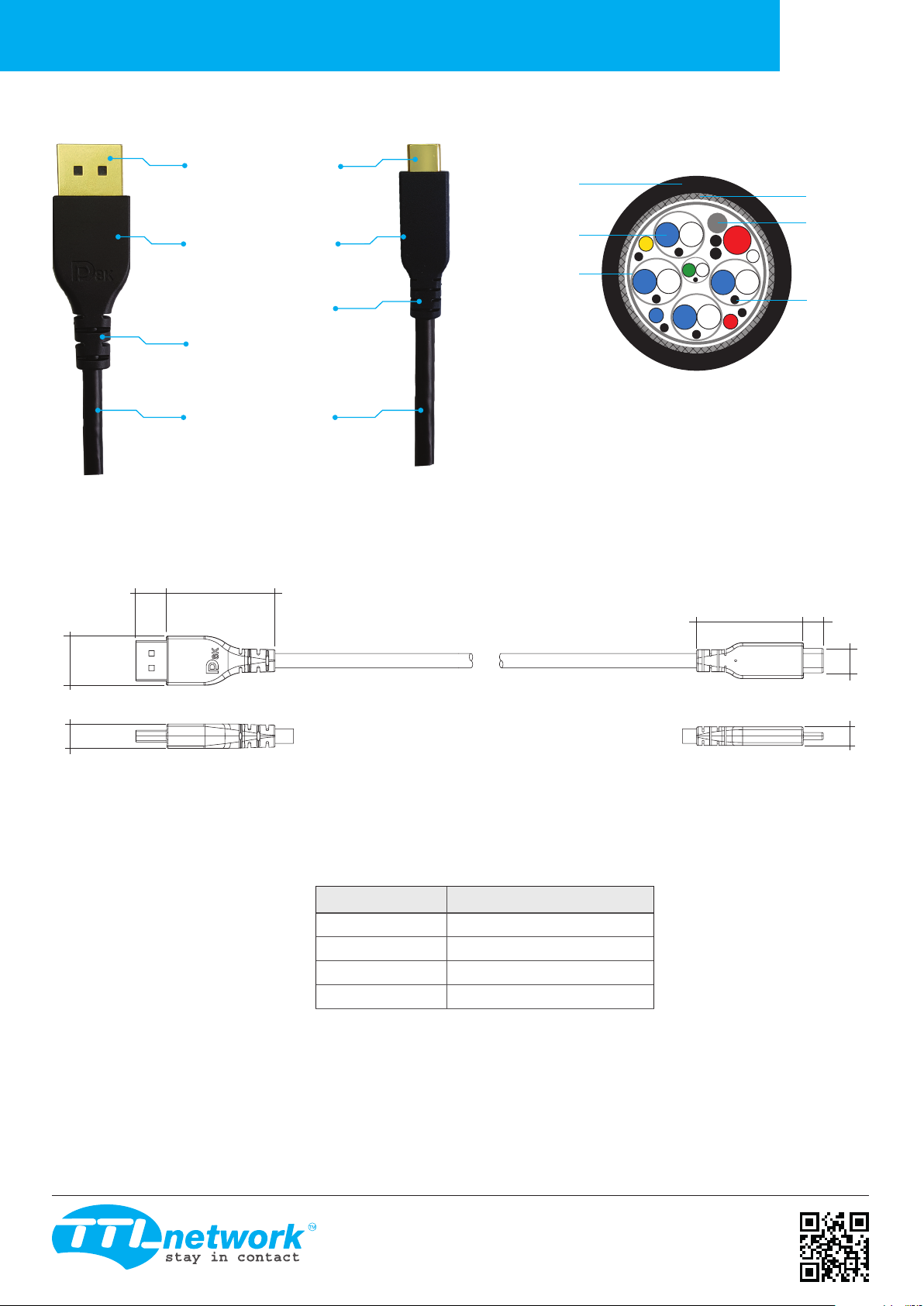

Installation

cable

DP | USB Type C plug

jacket

braid

19.4

11.1

robust EMC proof

housings

strain relief

PVC AWG30 cable

42.6

copper wires

shielding foil

Cable Ø 4.9 mm

(AL)

36.0

filler

drain wires

8.25

12.26.3

9.6

(mm)

Length Item Number

0.5 m

1.0 m

2.0 m

3.0 m

USBC-DP-PQ-MM-0,5M

USBC-DP-PQ-MM-1,0M

USBC-DP-PQ-MM-2,0M

USBC-DP-PQ-MM-3,0M
