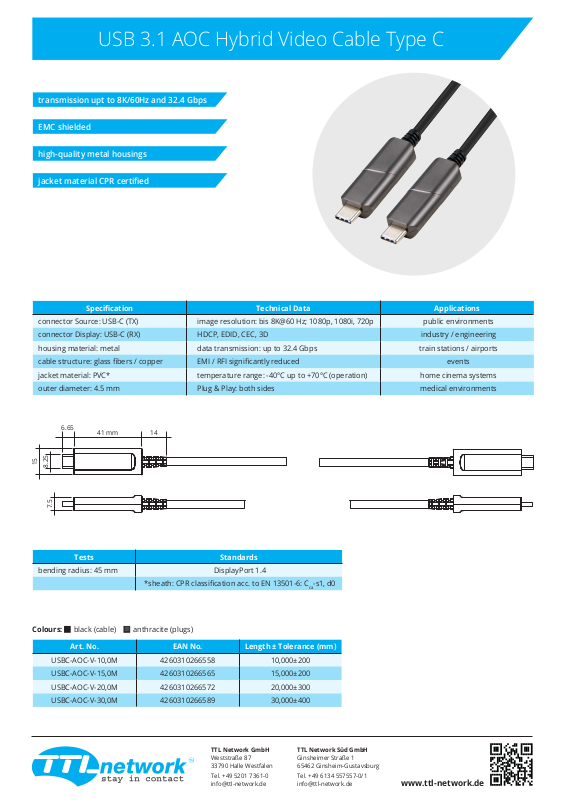

USB 3.1 AOC Hybrid Video Cable Type C
transmission upt to 8K/60Hz and 32.4 Gbps
EMC shielded
high-quality metal housings
jacket material CPR certied
Specication Technical Data Applications
connector Source: USB-C (TX) image resolution: bis 8K@60 Hz; 1080p, 1080i, 720p
connector Display: USB-C (RX) HDCP, EDID, CEC, 3D industry / engineering
housing material: metal data transmission: up to 32.4 Gbps train stations / airports
cable structure: glass bers / copper EMI / RFI signicantly reduced events
jacket material: PVC* temperature range: -40°C up to +70°C (operation) home cinema systems
outer diameter: 4.5 mm Plug & Play: both sides medical environments
public environments
15
6.65
8.25
7.5
41 mm 14
Tests Standards
bending radius: 45 mm DisplayPort 1.4
*sheath: CPR classication acc. to EN 13501-6: Cca-s1, d0
Colours: black (cable) anthracite (plugs)
Art. No. EAN No. Length ± Tolerance (mm)
USBC-AOC-V-10,0M 4260310266558 10,000±200
USBC-AOC-V-15,0M 4260310266565 15,000±200
USBC-AOC-V-20,0M 4260310266572 20,000±300
USBC-AOC-V-30,0M 4260310266589 30,000±400
