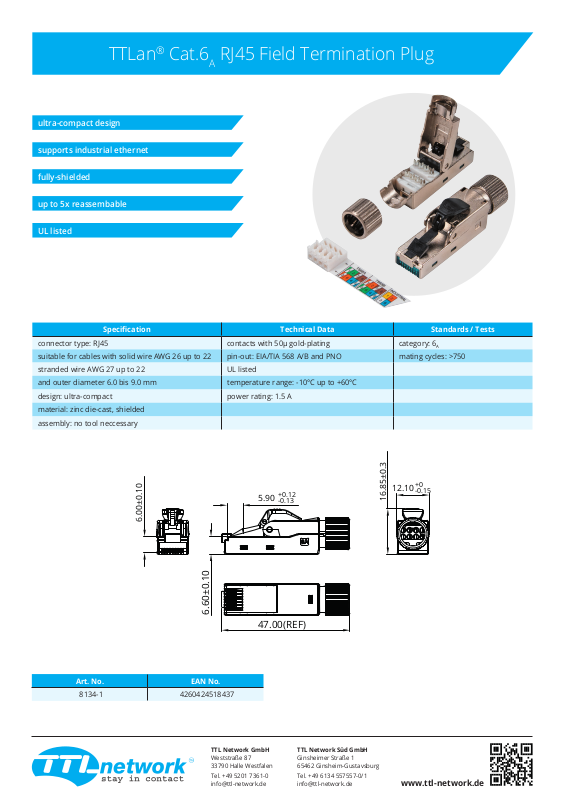

TTLan® Cat.6A RJ45 Field Termination Plug
-0.15
6.00±0.10
ultra-compact design
supports industrial ethernet
fully-shielded
up to 5x reassembable
UL listed
Specication Technical Data Standards / Tests
connector type: RJ45 contacts with 50µ gold-plating category: 6
suitable for cables with solid wire AWG 26 up to 22 pin-out: EIA/TIA 568 A/B and PNO mating cycles: >750
stranded wire AWG 27 up to 22 UL listed
and outer diameter 6.0 bis 9.0 mm temperature range: -10°C up to +60°C
design: ultra-compact power rating: 1.5 A
material: zinc die-cast, shielded
assembly: no tool neccessary
A
6.60±0.10
Art. No. EAN No.
8134-1 4260424518437
TTL Network GmbH
Weststraße 87
33790 Halle Westfalen
Tel. +49 5201 7361-0
[email protected]
+0.12
5.90
-0.13
47.00(REF)
TTL Network Süd GmbH
Ginsheimer Straße 1
65462 Ginsheim-Gustavsburg
Tel. +49 6134 557557-0/1
[email protected]
+0
12.10
16.85±0.3
www.ttl-network.de
