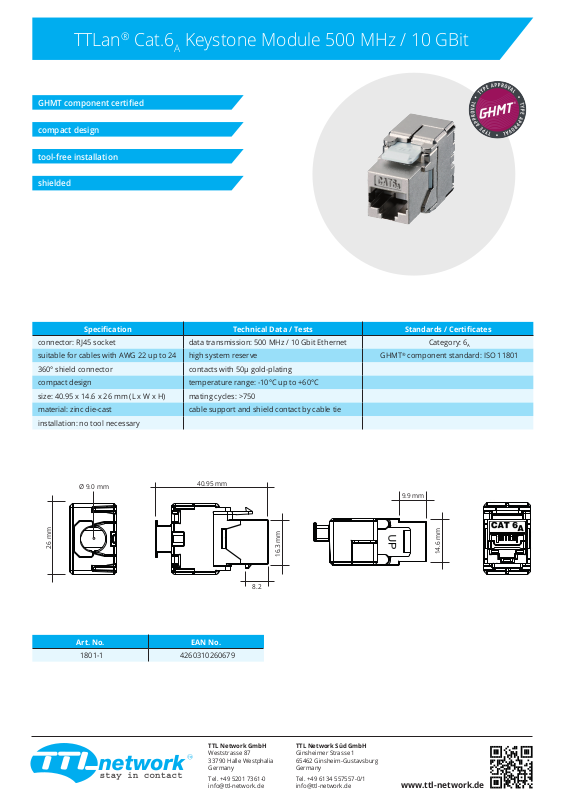

TTLan® Cat.6A Keystone Module 500 MHz / 10 GBit
GHMT component certied
compact design
tool-free installation
shielded
Specication Technical Data / Tests Standards / Certicates
connector: RJ45 socket data transmission: 500 MHz / 10 Gbit Ethernet Category: 6
A
suitable for cables with AWG 22 up to 24 high system reserve GHMT® component standard: ISO 11801
360° shield connector contacts with 50µ gold-plating
compact design temperature range: -10°C up to +60°C
size: 40.95 x 14.6 x 26 mm (L x W x H) mating cycles: >750
material: zinc die-cast cable support and shield contact by cable tie
installation: no tool necessary
Ø 9.0 mm
26 mm
40.95 mm
8.2
16.3 mm
9.9 mm
14.6 mm
Art. No. EAN No.
1801-1 4260310260679
