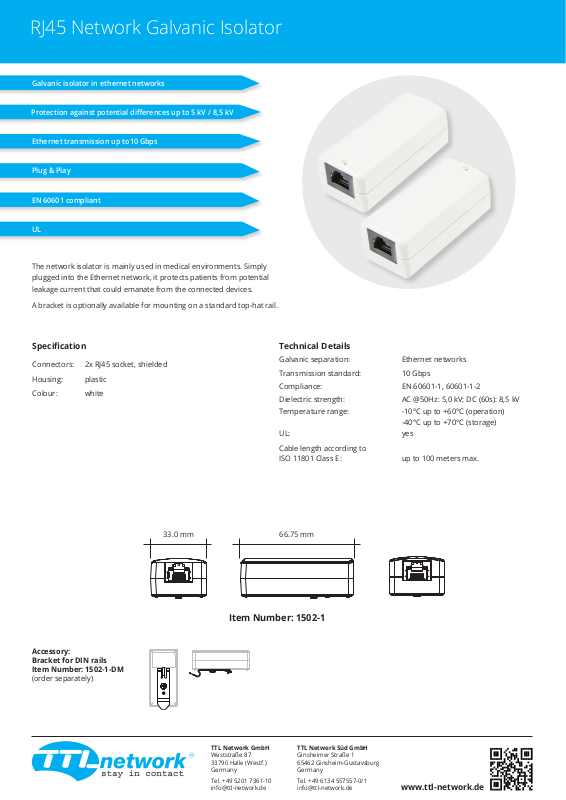

RJ45 Network Galvanic Isolator
Galvanic isolator in ethernet networks
Protection against potential dierences up to 5 kV / 8,5 kV
Ethernet transmission up to10 Gbps
Plug & Play
EN 60601 compliant
UL
The network isolator is mainly used in medical environments. Simply
plugged into the Ethernet network, it protects patients from potential
leakage current that could emanate from the connected devices.
A bracket is optionally available for mounting on a standard top-hat rail.
Specication
Connectors: 2x RJ45 socket, shielded
Housing: plastic
Colour: white
Technical Details
Galvanic separation: Ethernet networks
Transmission standard: 10 Gbps
Compliance: EN 60601-1, 60601-1-2
Dielectric strength: AC @50Hz: 5,0 kV; DC (60s): 8,5 kV
Temperature range: -10°C up to +60°C (operation)
-40°C up to +70°C (storage)
UL: yes
Cable length according to
ISO 11801 Class E: up to 100 meters max.
66.75 mm33.0 mm
Item Number: 1502-1
Accessory:
Bracket for DIN rails
Item Number: 1502-1-DM
(order separately)
