TTE Technology 48FS4690 Users Manual
User’s Guide
For use with models
visit our website at www.tclusa.com
or call 1-877-300-8837 (for mainland 48 States),
or 1-877-800-1269 (for AK, HI, and Puerto Rico).
: 48FS4690
Need assistance?
Figures and illustrations in this User’s Guide are
provided for reference only and may dier from
actual product appearance. Product design and
specications may be changed without notice.
Important Information
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
Caution: To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside.
Refer servicing to qualied service personnel.
This symbol indicates “dangerous voltage”
inside the product that presents a risk of
electric shock or personal injury.
WARNING
To reduce the risk of re or electric shock, do not
expose this product to rain or moisture. This product
should not be exposed to dripping or splashing. No
objects lled with liquids, such as vases, should be
placed on the component.
WARNING
Refer to the identication/rating label located on the back panel of your product for its proper operating voltage.
FCC regulations state that unauthorized changes or modications to this equipment may void the user’s authority to
operate it.
Cable TV Installer: This reminder is provided to call your attention to Article 820-40 of the National Electrical Code
(Section 54 of the Canadian Electrical Code, Part 1) which provides guidelines for proper grounding and, in particular,
species that the cable ground should be connected to the grounding system of the building as close to the point of
cable entry as practical.
Important: This television is a table model and is designed to sit on a rm, at surface. Don’t place the TV on soft
carpeting or similar surface because the ventilation slots on the bottom of the unit will be blocked, resulting in reduced
lifetime from overheating. To assure adequate ventilation for this product, maintain a spacing of 4 inches from the top
and side of the TV receiver and 2 inches from the rear of the TV receiver and other surfaces.
Also, make sure the stand or base you use is of adequate size and strength to prevent the TV from being accidentally
tipped over, pushed off, or pulled off. This could cause personal injury and/or damage to the TV. Refer to the
Important Safety Instructions on the next page.
The Power button (followed by the power symbol) on this TV and your remote control puts the TV into a very lowpower standby mode but will not completely turn the power off. In order to completely shut the power off, you will
need to disconnect the power cord from the outlet. The mains plug/appliance coupler is used as disconnect device,
the disconnect device shall remain readily operable. Therefore, you should ensure that the TV is installed in a manner
that allows you to disconnect the power cord when desired.
The batteries shall not be exposed to excessive heat such as sunshine, re or the like.
This symbol indicates that this product
incorporates double insulation between hazardous
main voltage and user accessible parts. When
servicing, use only identical replacement parts.
This symbol indicates important
instructions accompanying the product.
WARNING
The TV is unstable if it is not properly attached to the
base or mounted to the wall. Please follow the base
or wall mounting instructions provided in the User’s
Guide to ensure your safety.
Product Registration
Please register your TCL purchase on-line at www.tclusa.com. It will make it easier to contact you should it ever be
necessary. Registration is not required for warranty coverage.
Product Information
Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here and record the
serial and model numbers in case you need them. These numbers are located on the product.
Model No. ______________________ Serial No._____________________________________
Purchase Date __________________ Dealer/Address/Phone__________________________
1
Important Safety Instructions
1. Read and follow all instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
5. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
ampliers) that produce heat.
6. Protect the power cord from being walked on or pinched particularly at plugs, receptacles, and the point
where it exits from the component.
7. Do not use this component near water.
8. Only use the attachments/accessories specied by the manufacturer.
9. Clean only with dry cloth.
10. Use only with the cart, stand, tripod, bracket, or table specied by the manufacturer, or sold with the
component. When the TV is placed on a cart, use caution when moving the cart to avoid injury from tipover.
11. Warning: To avoid any injury caused by lean of the product, please always ensure the whole product was
place within the table surface in horizontal.
12. Unplug this component during lightning storms or when unused for long periods of time.
13. Refer all servicing to qualied service personnel. Service is required when the component is damaged
in any way, such as power supply cord or plug damage, liquid spilled on or objects falling onto the
component, rain or moisture exposure, abnormal operation, or if the component has been dropped.
14. If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is
grounded so as to provide some protection against voltage surges and built-up static charges. Section 810
of the National Electrical Code, ANSI/NFPA No. 70-2011 (Section 54 of Canadian Electrical Code, Part 1)
provides information with respect to proper grounding of the mast and supporting structure, grounding of
the lead-in wire to an antenna-discharge unit, size of grounding conductors, location of antenna-discharge
unit, connection to grounding electrodes, and requirements for the grounding electrode. See following
example:
ELECTRIC SERVICE
ELECTRIC SERVICE
EQUIPMENT
EQUIPMENT
ANTENNA LEAD IN WIRE
ANTENNA LEAD IN WIRE
GROUND CLAMP
GROUND CLAMP
ANTENNA DISCHARGE UNIT
ANTENNA DISCHARGE
UNIT(NEC SECTION 810-20)
(NEC SECTION 810-20)
GROUNDING CONDUCTORS
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
(NEC SECTION 810-21)
GROUND CLAMPS
GROUND CLAMPS
POWER SERVICE GROUNDING
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
ELECTRODE SYSTEM (NEC ART
(NEC ART 250, PA RTH)
250, PARTH)
2
Table of Contents
Important Information ................................ 1
Important Safety Instructions ..................... 2
Chapter 1 - Connections and Setup
Before Initial Setup .................................... 4
Check Supplied Parts ................................ 4
Attaching Your TV to the Base Stand ........ 5
Mounting Your TV to the Wall .................... 5
Buttons on TV ............................................ 6
Explanation of Jacks on TV ....................... 6
Choose Your Connections ......................... 7

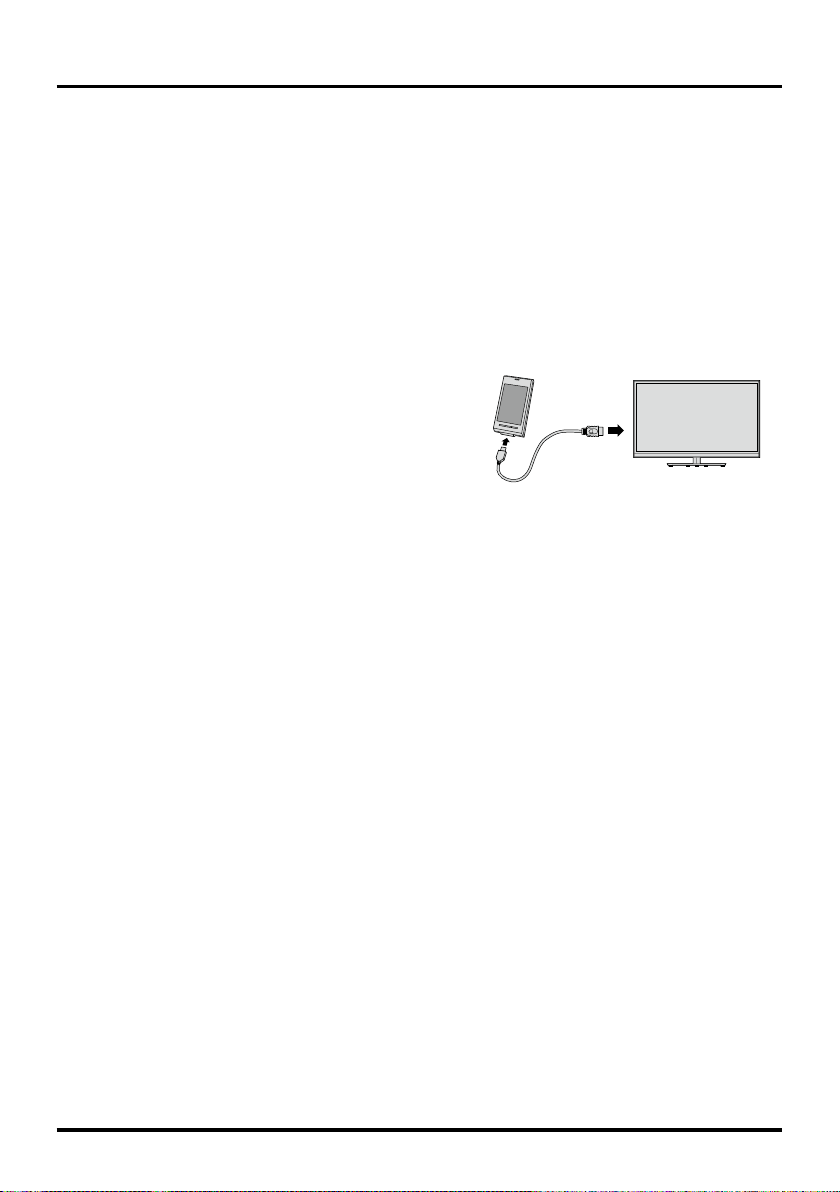

MHL Function ............................................ 9

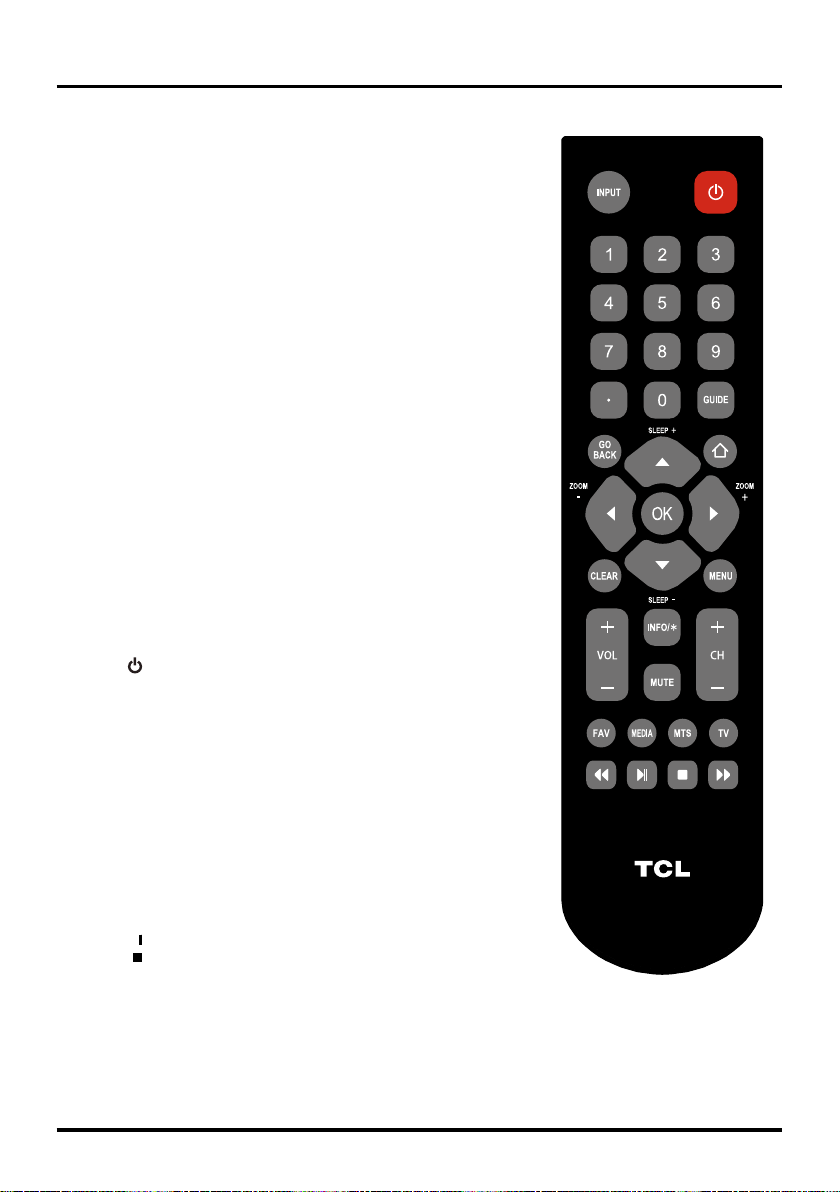

Remote Control Functions ....................... 10

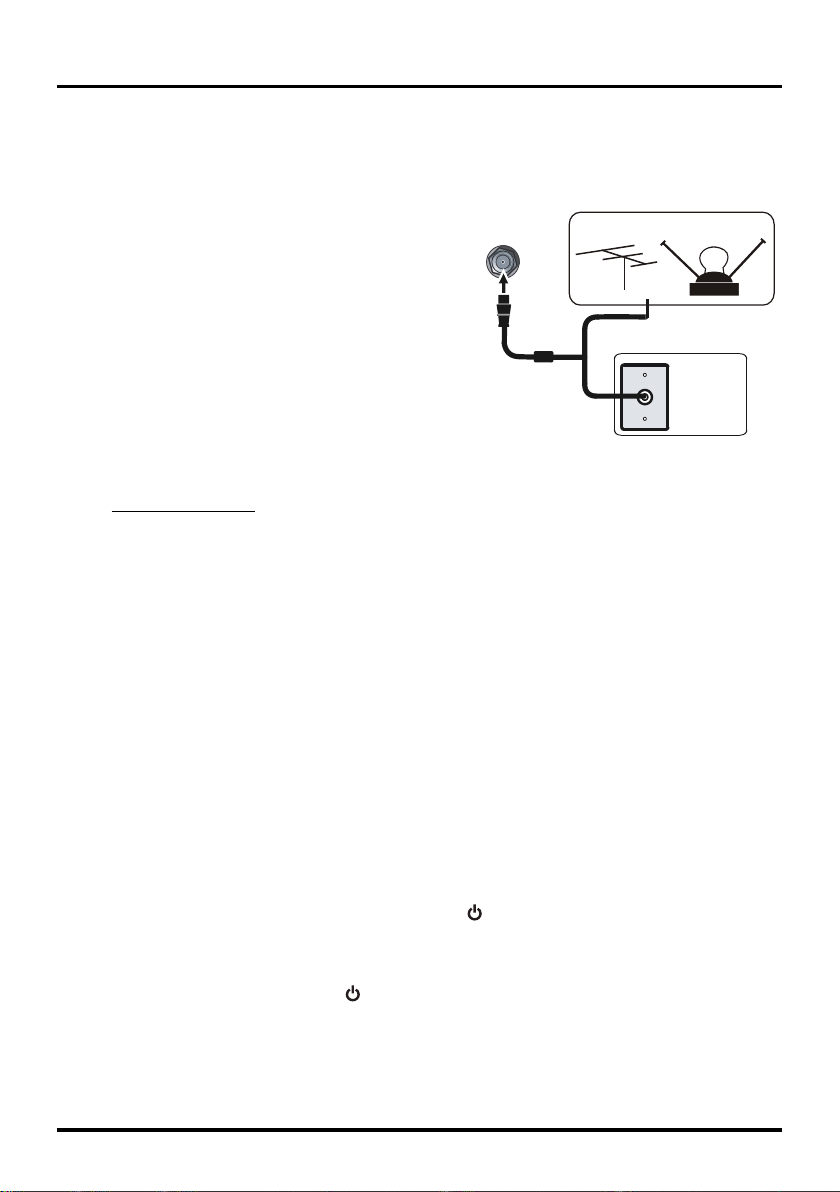

Obtain the Signal ......................................11
Switching On ............................................11
Switching Off ............................................11

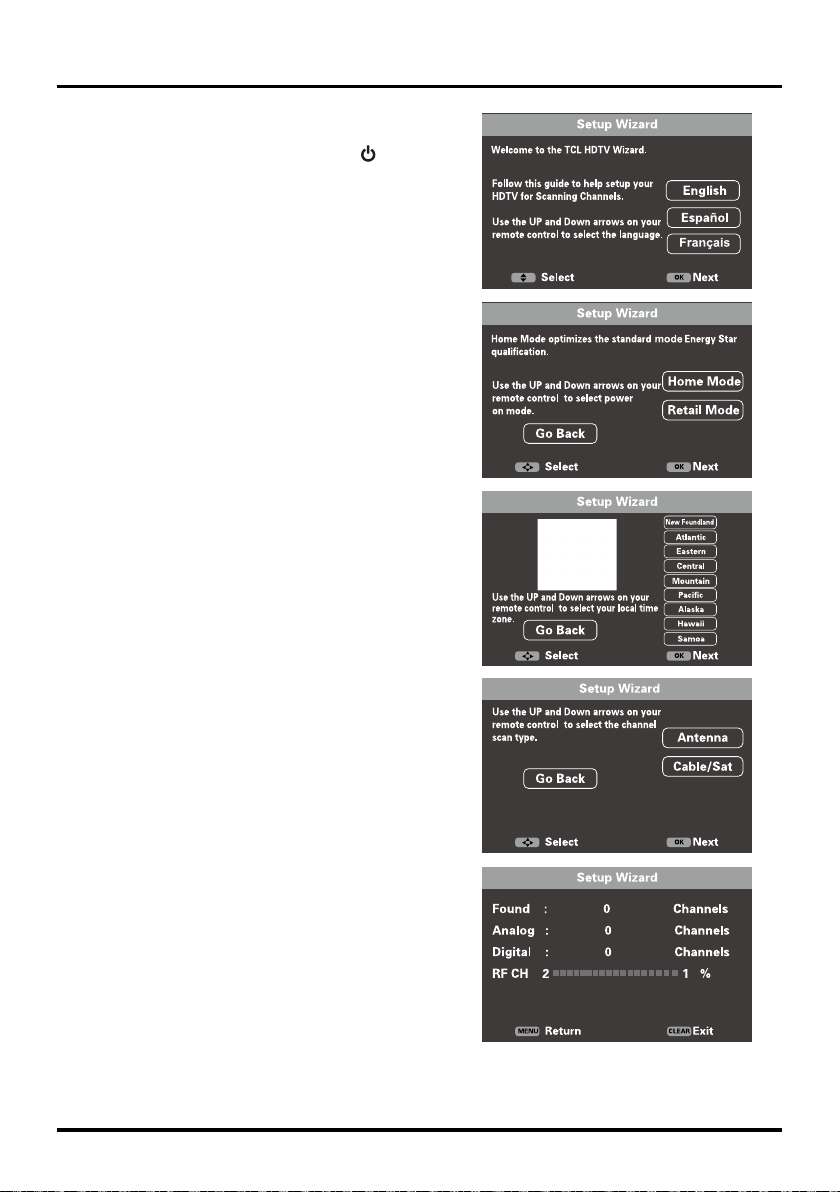

Setup Wizard ........................................... 12
Chapter 2 - Menu Operation

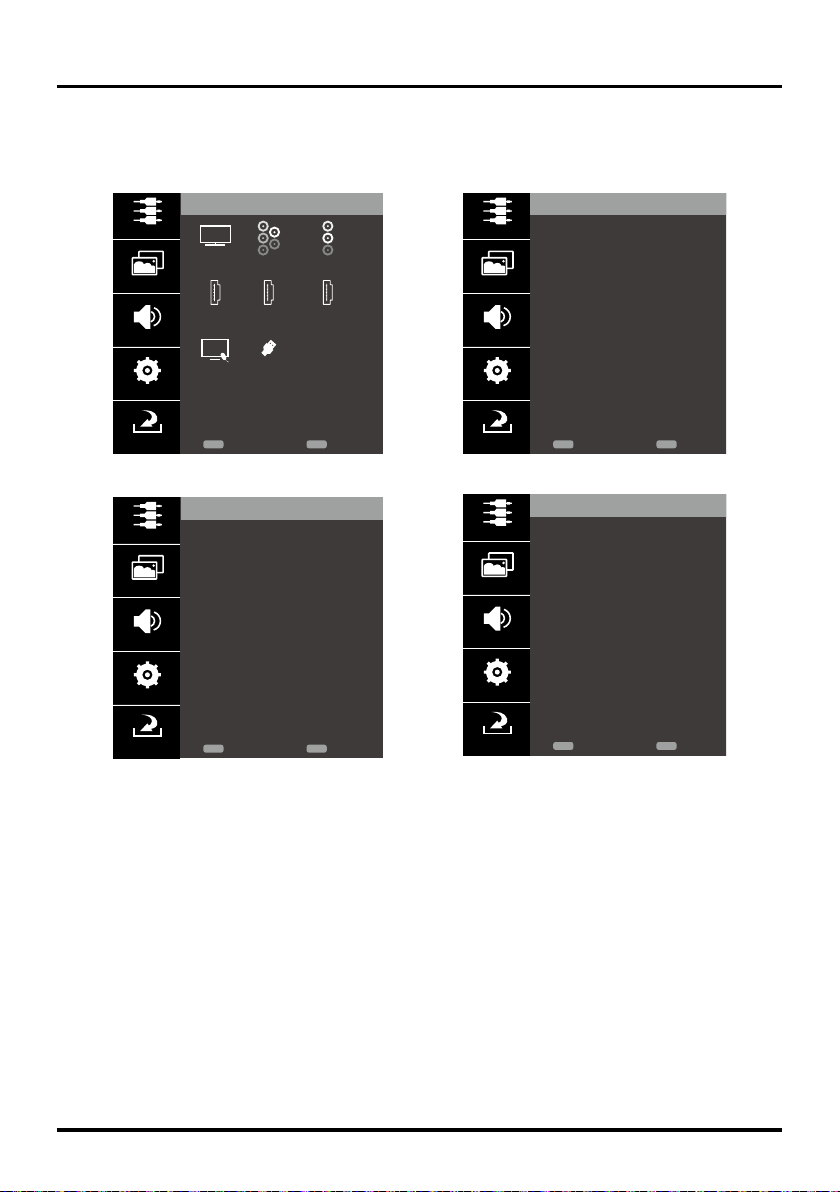

Menu Display ........................................... 13
Using Menu System ................................ 14
Input Menu............................................... 14
Picture Menu ........................................... 14
Picture Mode.................................................14
Brightness ..................................................... 14
Contrast ........................................................14
Saturation .....................................................14
Sharpness.....................................................14
Tint ................................................................ 14
Color Mode ...................................................14
Back Light ..................................................... 14
Dynamic Backlight ........................................14
Dynamic Light Sensor...................................14
Geometry ...................................................... 15
Advanced Settings ........................................ 15
Sound Menu ............................................ 15
Equalizer ....................................................... 15
Speaker ........................................................15
SPDIF Type ..................................................15
Smart Volume ............................................... 15
MTS ..............................................................15
Audio Language ...........................................15
Setting Menu ........................................... 16
Language ...................................................... 16
Channel ........................................................16
Closed Caption .............................................16
Parental Control ............................................ 17
Time Setting .................................................18
Software Info. ...............................................19
Location. ......................................................19
Restore to Default ........................................ 19
USB Menu ............................................... 19
Chapter 3 - Other Information
Frequently Asked Questions (FAQs) ....... 20
Troubleshooting ....................................... 21
Care and Cleaning................................... 23
Television Specications.......................... 23
Limited Warranty ..................................... 24
3
Chapter 1 Connections and Setup
Before Initial Setup
Protect Against Power Surges
• Connect all components before you plug any power cords into the wall outlet or power strip.
• NEVER plug your TV into an outlet that is controlled by a wall switch.
• Turn off the TV before you connect or disconnect any cables.
• Make sure all antennas and cables are properly grounded. Refer to the Important Safety Instructions.
Safety Information
• Protect components from overheating.
• Don’t block ventilation holes on any of the components. Arrange the components so that air can circulate
freely.
• Don’t stack components.
• If you place the component in a stand, make sure you allow adequate ventilation.
• If you connect an audio receiver or amplier, place it on the top shelf so the heated air from it won’t harm
other components.
Avoid Audio Interference
• Position cables properly; insert each cable rmly into the designated jack.
• If you place components above the TV, route all cables down one side of the back of the TV instead of
straight down the middle.
• If your antenna uses 300-ohm twin lead cables, do not coil the cables.
• Keep twin lead cables away from audio/video cables.
Avoid Direct Light
Don’t place the TV where sunlight or room lighting is directed toward the screen. Use soft or indirect lighting.
Check Supplied Parts
Check that the following parts were packed with your product.
• 1 Remote Control and 2 AAA Batteries
• User’s Guide
• Quick Start Guide
• Power Cable
• Parts for Base Stand Assembly
• Base Stand
• (M5 x 12) Screw x 4, (ST5 x 14) Screw x 3,
Replacing your remote
If you need to replace your remote, visit www.tclusa.com. A shipping and handling fee, and the appropriate sales tax, will be charged
upon ordering. Have your Visa or MasterCard ready.
4
Connections and Setup
Attaching Your TV to the Base Stand
Your TV comes without the base stand attached so that you can choose to mount your TV either to its base
stand or to a wall (wall mount sold separately). If you want to mount your TV to the wall, don’t attach the base
stand. Follow the Mounting Your TV to the Wall instructions.
First, remove the TV bag and place it on a large, at surface such as a table or countertop. Remove the TV
from the carton and place it face down on the TV bag. Be sure that the TV is face down to avoid scratching
the screen.
Then follow the steps below:
Note: Keep the screws and plastic parts away from grease and organic solvents to avoid damage. Especially
during the assembly process.
1
Screws(ST5X14)
2
Bass Stand
Screws(M5X12)
Bass Stand
Mounting Your TV to the Wall
If you are mounting your TV to the wall, don’t attach the base stand.
To mount your TV to the wall, purchase a VESA wall mount.
Models of 50” Purchase a VESA 400 x 400, screw (C6x10 )
The VESA number is the horizontal and vertical measurement of the mounting holes. For example, 400x200
refers to the fact that the mounting measurements are 400mm horizontally and 200mm vertically.
Notes: Follow the directions included with the wall mount to mount the TV to the wall.
Caution: Your wall mount must be able to bear a minimum of ve times the TV’s net weight to avoid causing
damage.
5
Connections and Setup
Buttons on TV
If you cannot locate your remote, you can use the TV panel buttons on your
TV to operate many TV features.
Selects channels stored in the channel list or acts as the
CH-/+
down/up arrow (▼/▲) through the menu items.
VOL-/+
MENU Brings up the TV’s main menu.
INPUT Selects the signal source.
Explanation of Jacks on TV
This section describes the jacks on the side/back panel of your TV. There are several ways to connect
components.
Y/VIDEO
Decreases/Increases the volume or acts as the left/right
arrow (◄/►) through the menu items.
VOL+ also acts as the OK button when in the menu system.
(POWER button) Turns the TV on or to standby mode.
P
RPB
L
AUDIO
R
COMPONENT IN (CMPT)
AUDIO/VIDEO IN (AV)
COMPONENT IN (CMPT): Lets you connect a component that has component video jacks, such as a DVD
player or set-top box. ( Green jack for Y, Blue jack for Pb and Red jack for Pr )
• Y Pb Pr (Component Video): Provides good picture quality because the video is separated into three
signals. Use three video-grade or component video cables for the connection.
• L/R AUDIO: Provides left and right audio connection when using the CMPT VIDEO input. Red and white
jacks for R AUDIO and L AUDIO connection.(Note: AV IN and COMPONENT IN share the same L/R
AUDIO and Y/Video input jacks.)
AUDIO/VIDEO IN (AV IN): Lets you connect a component that has composite video jacks, such as a VCR,
DVD player or set-top box. Green jack for VIDEO connection, red and white jacks for R AUDIO and L AUDIO
connection.
6
Connections and Setup
USB: Allows you to connect a compatible mass storage device.
HDMI 1 / DVI IN (High-Denition Multimedia Interface/Digital Visual
Interface): Provides an uncompressed digital connection that carries both video
and audio data by way of an integrated mini-plug cable. Since HDMI technology
is based on Digital Visual Interface (DVI), the jack on the back of your TV is also
compatible with DVI components.
Note: If using a DVI component, remember to connect the audio cable because
the DVI cable carries only the picture signal, not the sound. DVI share the hare
the same L/R AUDIO jack of Audio/Video IN.
HDMI 2 (MHL) IN: Lets you connect a component, such as a digital cable or
satellite box, with an HDMI output for the best picture quality.
MHL stands for Mobile High-denition Link, and allows you to link a MHLcapable mobile device to the television.
HDMI 3 IN: Lets you connect a component, such as a digital cable or satellite
box, with an HDMI output for the best picture quality.
ANT/CABLE/SAT IN: Lets you connect a coaxial cable to receive the signal
from your antenna, cable, or cable box, or satellite receiver.
SPDIF - DIGITAL AUDIO OUT (coaxial): Use a digital coaxial cable to connect
your TV to a compatible audio receiver.
Choose Your Connections
There are several ways to connect components, such as BD player, DVD players and set-top boxes, to your
TV.
Note: No cables are supplied with this unit. Please purchase the necessary cables. A high-speed HDMI cable
is recommended for better compatibility.
Input Signal Compatability
Antenna/Cable 480i, 480p, 720p, 1080i (NTSC, ATSC, and QAM formats)
Composite Video 480i
Component Video 480i, 480p, 720p/60Hz, 1080i/60Hz
HDMI 480i, 480p, 720p/60Hz, 1080i/60Hz, 1080p/60Hz
PC VGA SVGA XGA SXGA WXGA
7
COMPONENT IN (CMPT)
Connections and Setup
HDMI 2 IN
Same connection to HDMI 1/HDMI 3 IN

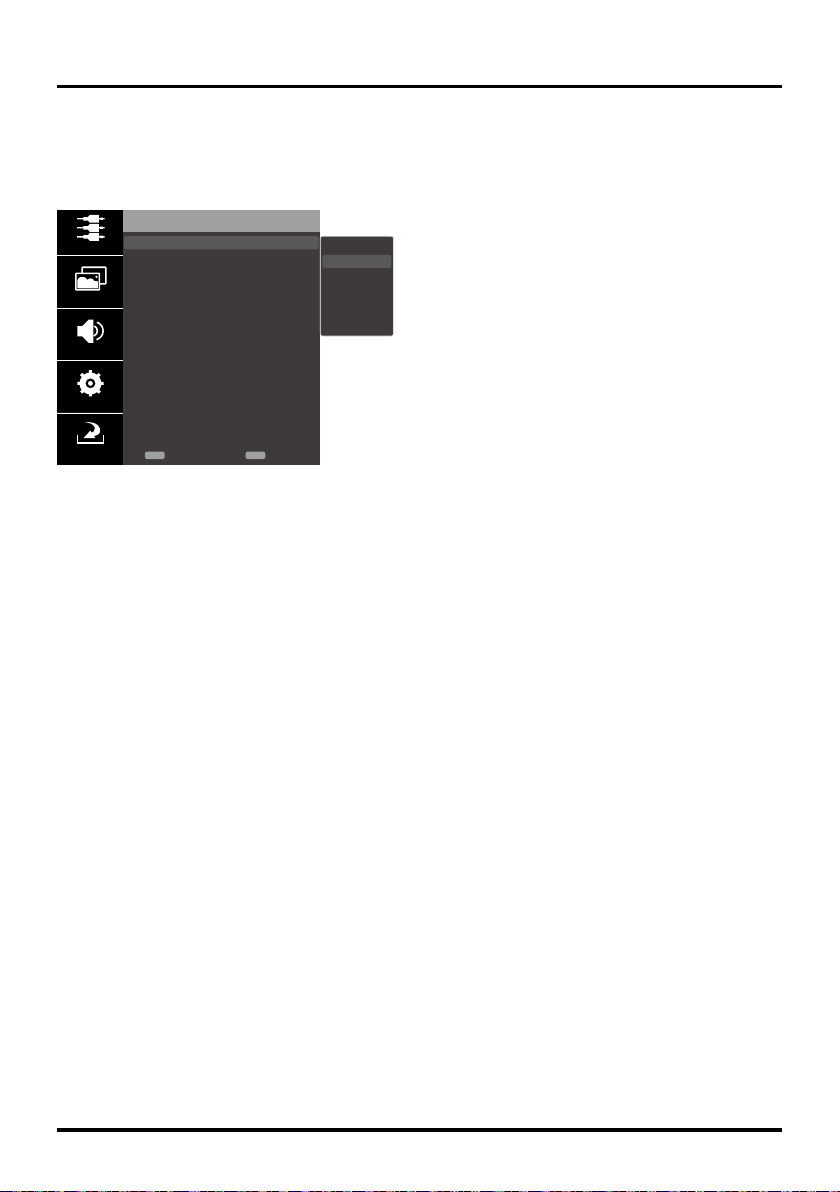

Menu operation for input source selection
or select the input source directly by pressing
INPUT button.
Plug the Roku Streaming Stick into MHL port
HDMI 2 IN
(MHL)
8
Input
Input
(Roku)
Loading...
