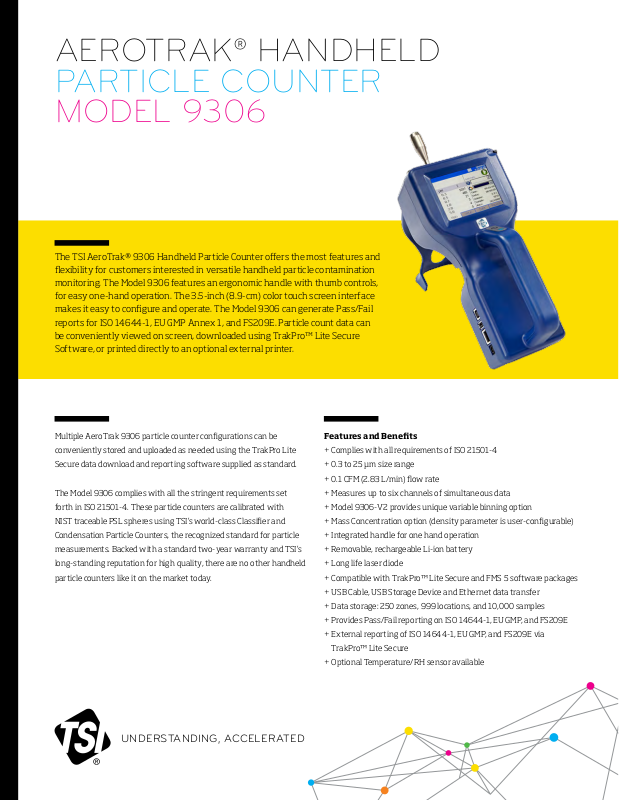

TSI Alnor 9306-V2 Data sheet

AEROTRAK® HANDHELD

PARTICLE COUNTER

MODEL 9306

The TSI AeroTrak® 9306 Handheld Particle Counter oers the most features and
exibility for customers interested in versatile handheld particle contamination
monitoring. The Model 9306 features an ergonomic handle with thumb controls,
for easy one-hand operation. The 3.5-inch (8.9-cm) color touch screen interface
makes it easy to congure and operate. The Model 9306 can generate Pass/Fail
reports for ISO 14644-1, EU GMP Annex 1, and FS209E. Particle count data can
be conveniently viewed on screen, downloaded using TrakPro™ Lite Secure
Software, or printed directly to an optional external printer.

Multiple AeroTrak 9306 particle counter congurations can be

conveniently stored and uploaded as needed using the TrakPro Lite

Secure data download and reporting software supplied as standard.

The Model 9306 complies with all the stringent requirements set

forth in ISO 21501-4. These particle counters are calibrated with

NIST traceable PSL spheres using TSI’s world-class Classier and

Condensation Particle Counters, the recognized standard for particle

measurements. Backed with a standard two-year warranty and TSI’s

long-standing reputation for high quality, there are no other handheld

particle counters like it on the market today.

Features and Benets

+ Complies with all requirements of ISO 21501-4

+ 0.3 to 25 μm size range

+ 0.1 CFM (2.83 L/min) ow rate

+ Measures up to six channels of simultaneous data

+ Model 9306-V2 provides unique variable binning option

+ Mass Concentration option (density parameter is user-congurable)

+ Integrated handle for one hand operation

+ Removable, rechargeable Li-ion battery

+ Long life laser diode

+ Compatible with TrakPro™ Lite Secure and FMS 5 software packages

+ USB Cable, USB Storage Device and Ethernet data transfer

+ Data storage: 250 zones, 999 locations, and 10,000 samples

+ Provides Pass/Fail reporting on ISO 14644-1, EU GMP, and FS209E

+ External reporting of ISO 14644-1, EU GMP, and FS209E via

TrakPro™ Lite Secure

+ Optional Temperature/RH sensor available

UNDERSTANDING, ACCELERATED

SPECIFICATIONS

AEROTRAK HANDHELD PARTICLE COUNTER
MODEL 9306

9306

Size Range

Particle Channel
Sizes

Size Resolution

Counting Eciency

Concentration Limit

Light Source

Zero Count

Flow Rate

Flow Rate Control

Calibration

Calibration
Frequency

Sampling Modes

Sampling Time

Sampling Frequency

Exhaust

Communication Mode

Alarm Status

Status Indicators

Environmental
Sensors

Display

Reports

Unit ID

0.3 to 25 µm
9306-03: 0.3, 0.5, 0.7, 1.0, 2.0, 5.0 µm

9306-04: 0.3, 0.5, 1.0, 3.0, 5.0, 10.0 µm
9306-V2: 0.3 to 10 µm, user-selectable; factory­ calibrated at 0.3, 0.5, 1.0, 3.0, 5.0, 10.0 µm

<15% @ 0.5 µm (per ISO 21501-4 requirements)

50% at 0.3 µm; 100% for particles >0.45 µm (per ISO
21501-4 and JIS)

5,950,00 particles/ft3 (210,000,000/m3)
@ 10% coincidence loss

Long life laser diode

<1 count per 5 minutes (per ISO 21501-4 and JIS B9921)

0.1 CFM (2.83 L/min) with ±5% accuracy (meets ISO
21501-4 and JIS requirements)

Electronic, automatic closed loop (patented* ow
control technology)

NIST Traceable with TSI calibration system

Recommended minimum once per year

Manual, automatic, beep; cumulative/dierential;
count or concentration

1 second to 99 hours

1 to 9999 cycles or continuous

Internally HEPA ltered

Modbus® TCP over Ethernet or USB

Audible alarm on counts

Low battery, ow, laser

Optional Temp/RH probe

QVGA 3.5-inch (8.9-cm) touch screen

Provides Pass/Fail on ISO 14644-1, EU GMP, and
FS209E reports

Congurable IP address

Security

Data Storage

Data Transfer

Languages

Software

External Surface

Dimension
(H x W x D)

Weight

Power

Battery

Battery Life

Recharge Time

Standards

Warranty

Operating Range

Storage Range

Included Accessories

Optional Accessories

2-level password protection to lock out usage and
conguration

250 Zones

999 Locations

10,000 sample records including: date, time, six total
particle size channels, ow status, and instrument status

Via USB storage device, connection to TrakPro™ Lite
Secure software through Ethernet or USB cable, or
optional TSI FMS software

English, Japanese, German, French, Spanish, and
Chinese (simplied), Italian

Compatible with TrakPro™ Lite, TrakPro™ Lite Secure
and FMS 5 Software

High Impact injection molded plastic

9.4 in. x 4.6 in. x 4.9 in. (23.9 cm x 11.7 cm x 12.4 cm)
(without isokinetic inlet, includes handle)

2.2 lb (1.0 kg) with battery

110 to 240 VAC, 50 to 60 Hz universal in-line power
supply

Removeable/rechargeable Li-Ion

>6 hours of continuous use

<2 hours

ISO 21501-4, CE, JIS B9921

Two years, extended warranties available

41˚to 95˚F (5˚ to 35˚C), 20% to 95% noncondensing

32˚ to 122˚F (0˚ to 50˚C), up to 98% RH noncondensing

Operating manual on CD, power supply, battery,
isokinetic inlet, purge lter, stylus, USB cable and
TrakPro™ Lite Secure

Spare Battery, external battery charger, isokinetic
probe, sample tubing, Temp/RH probe, printer, printer
paper and carrying case

*Patent Number 6,167,107

Specications are subject to change without notice.

AeroTrak, TSI, and the TSI logo are registered trademarks, and TrakPro
is a trademark of TSI Incorporated.

Modbus is a registered trademark of Modicon, Inc.
