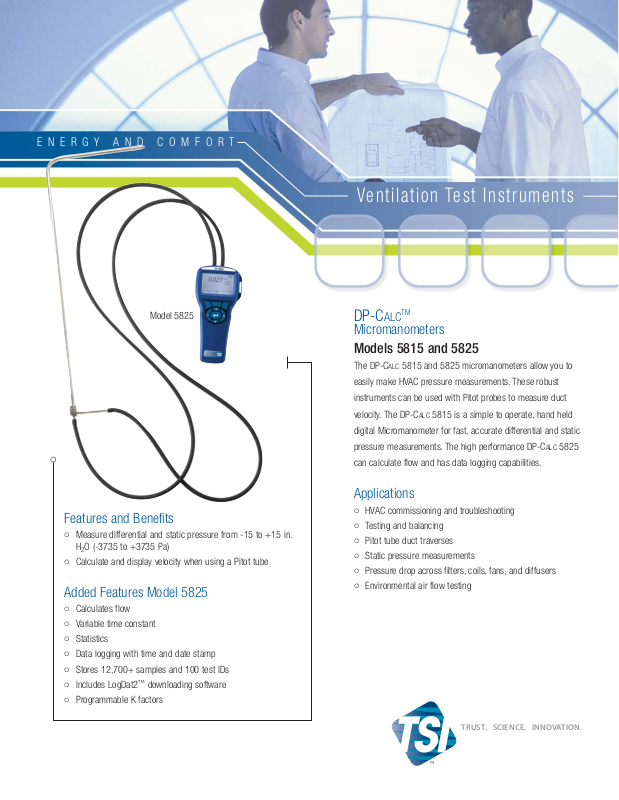

TSI Alnor 5815, 5825 Data sheet
.
DP-CALC
TM
Micromanometers
Models 5815 and 5825
The DP-CALC 5815 and 5825 micromanometers allow you to
easily make HVAC pressure measurements. These robust
instruments can be used with Pitot probes to measure duct
velocity. The DP-CALC 5815 is a simple to operate, hand held
digital Micromanometer for fast, accurate differential and static
pressure measurements. The high performance DP-C
ALC 5825
can calculate flow and has data logging capabilities.
Applications
HVAC commissioning and troubleshooting
Testing and balancing
Pitot tube duct traverses
Static pressure measurements
Pressure drop across filters, coils, fans, and diffusers
Environmental air flow testing
Ventilation Test Instruments
Features and Benefits
Measure differential and static pressure from -15 to +15 in.
H2O (-3735 to +3735 Pa)
Calculate and display velocity when using a Pitot tube
Added Features Model 5825
Calculates flow
Variable time constant
Statistics
Data logging with time and date stamp
Stores 12,700+ samples and 100 test IDs
Includes LogDat2™downloading software
Programmable K factors
ENERGY AND COMFORT
Model 5825
TRUST. SCIENCE. INNOVATION
ENERGY AND COMFORT
Specifications
DP-CALC Models 5815 and 5825
Static/Differential Pressure
Range
1
-15 to +15 in. H2O ( -28.0 to +28.0 mm Hg,
-3735 to +3735 Pa)
Accuracy ±1% of reading ±0.005 in. H
2
O
(±0.01 mm Hg, ±1 Pa)
Resolution 0.001 in. H
2
O (0.1 Pa, 0.01 mm Hg)
Velocity (Pitot Tube)
Range
2
250 to 15,500 ft/min (1.27 to 78.7 m/s)
Accuracy
3
±1.5% at 2,000 ft/min (10.16 m/s)
Resolution 1 ft/min (0.1 m/s)
Duct Size (5825)
1 to 250 inches in increments of 0.1 in.
(1 to 635 cm in increments of 0.1 cm)
Volumetric Flow Rate (5825)
Range Actual range is a function of velocity, pressure,
duct size, and K factor
Instrument Temperature Range
Operating 40 to 113°F (5 to 45°C)
Storage -4 to 140°F (-20 to 60°C)
Data Storage Capabilities (5825)
Range 12,700+ samples and 100 test IDs
Logging Interval (5825)
1 second to 1 hour
Time Constant (5825)
User selectable
External Meter Dimensions
3.3 in. x 7.0 in. x 1.8 in. (8.4 cm x 17.8 cm x 4.4 cm)
Meter Weight with Batteries
0.6 lbs. (0.27 kg)
Power Requirements
Four AA-size batteries (5815)
Four AA-size batteries or optional AC adapter (5825)
Ventilation Test Instruments
TSI Incorporated
- 500 Cardigan Road, Shoreview, MN 55126-3996 USA
USA Tel: +1 800 874 2811 E-mail: info@tsi.com Website: www.tsi.com
UK Tel: +44 149 4 459200 E-mail: tsiuk@tsi.com Website: www.tsiinc.co.uk
France Tel: +33 491 95 21 90 E-mail: tsifrance@tsi.com Website: www.tsiinc.fr
Germany Tel: +49 241 523030 E-mail: tsigmbh@tsi.com Website: www.tsiinc.de
Sweden Tel: +46 8 595 13230 E-mail: tsiab@tsi.com Website: www.tsi.se
India Tel: +91 80 41132470 E-mail: tsi-india@tsi.com
China Tel: +86 10 8260 1595 E-mail: tsibeijing@tsi.com
Contact your local TSI Distributor or visit our website
wwwwww..ttssii..ccoomm
for more detailed specifications.
P/N 2980574 Rev B Copyright © 2007 by TSI Incorporated Printed in U.S.A.
.
5815 5825
Differential and static pressure
••
Velocity with pitot tube
••
Sample statistics
•
Volumetric flow rate
•
Actual and standard velocity
•
Variable time constant
•
LogDat2 downloading software
•
K factor
•
Certificate of Calibration
••
1
Overpressure range = 190 in. H2O (7 psi, 360 mmHg, 48 kPa).
2
Pressure velocity measurements are not recommended below 1,000 ft/min (5 m/s).
2
Accuracy is a function of converting pressure to velocity. Conversion accuracy improves when actual pressure
values increase.
Specifications are subject to change without notice.
