T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
B-0831-02
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
This Space for Architect/Engineer Approval
Job Name__________________________Date_________
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
Loosen Vandal Resistant Screw
(Do Not Remove) and Pull Off
Push Button Assembly to Access
Metering Adjustment Screw.
(Requires 3/32" Hex Key)
Push Button Metering Cartridges
w/ Hot & Cold Handles and
Vandal Resistant Screws
(Spanner Bit Included)
B-0199-03-N05
0.5 GPM Non-Aerated
Spray Device
3 1/2"
89mm
Rough-In Requirement:
(2)
Product Specifications:
1 1/8" [
4"
102mm
5 13/16"
147mm
29mm] Holes
1 7/16"
37mm
1/2" NPSM Shank Inlets
w/ Coupling Nuts
Mounting
Surface
Thickness

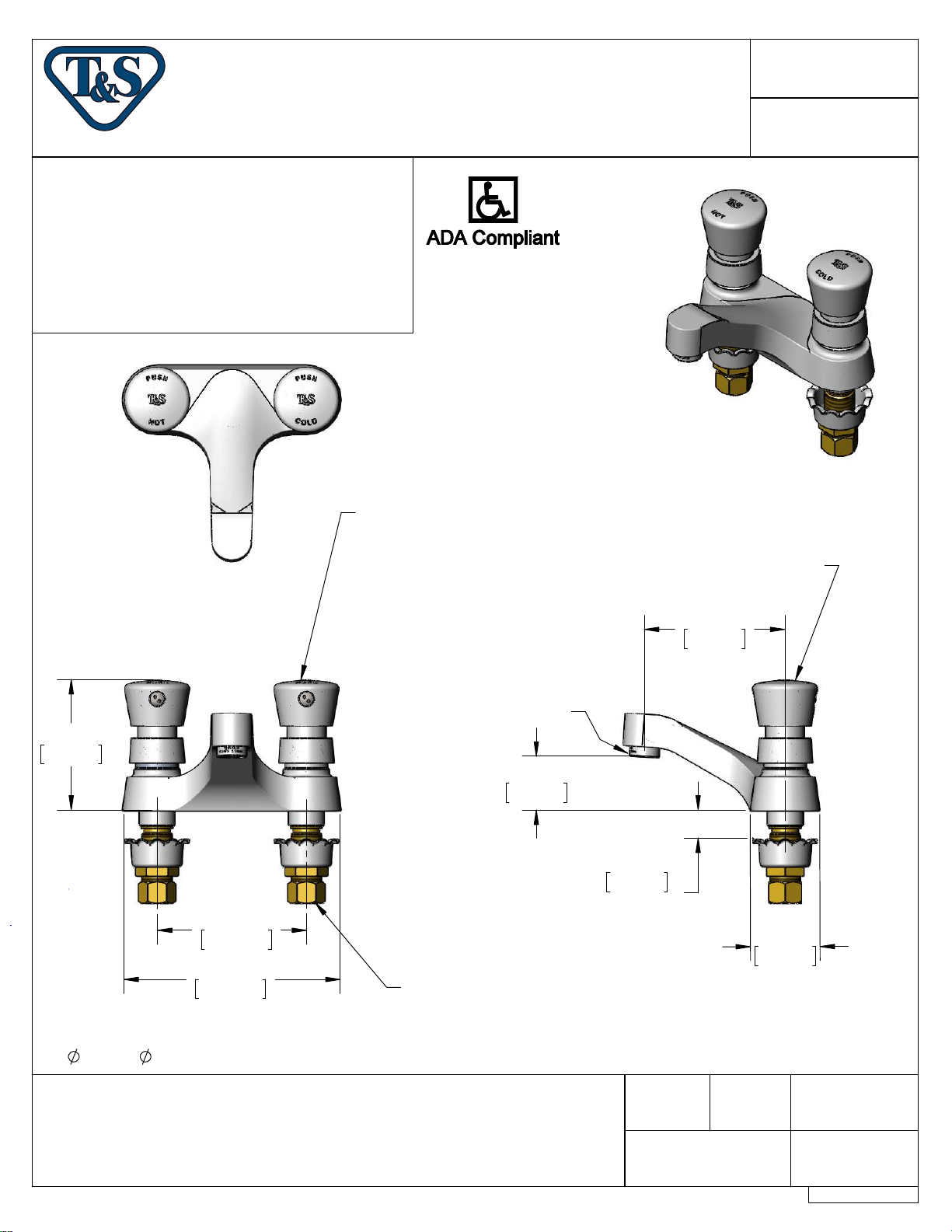

4" Centerset Deck Mount Faucet w/ P ush B utton Metering Cartridges,
0.5 GPM Non-Aerated Spray Device & 1/2" NPSM Shank Inlets w/
Coupling Nuts
3/4"
19mm
Maximum
Drawn
DMH
Scale:
3 3/4"
96mm
Checked
JRM
1:3
1 7/8"
47mm
Approved
JHB
Date:
05/24/13
of
1Sheet:
2
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
B-0831-02
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
3
1
2

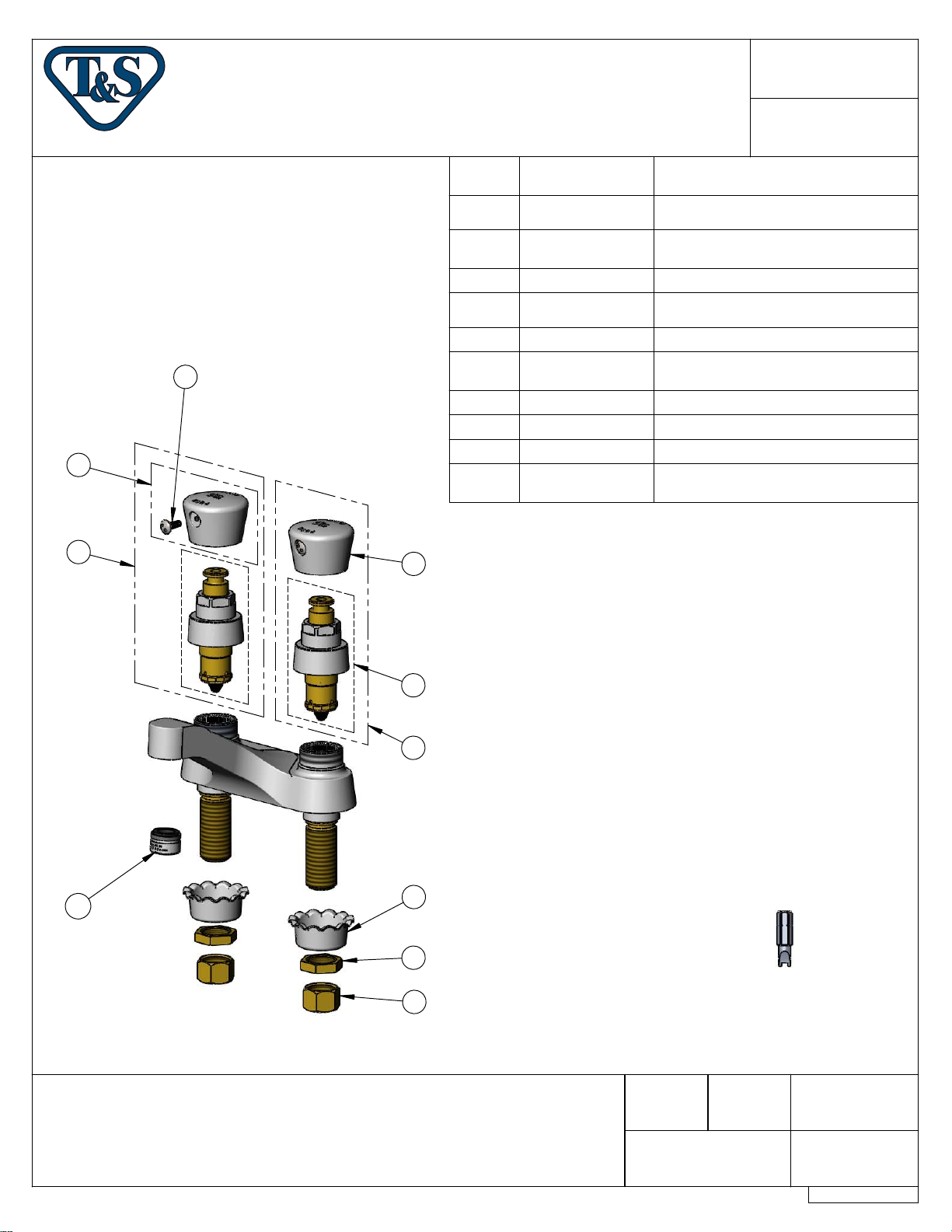

ITEM
NO.
1 014194-40
2 238AH
3 014145-45 VR Screw, Push Button Cap
4 014195-40
5 238A Push Button Metering Cartridge
6 238AC
7 001000-45 Rosette Washer
8 002954-45 Shank Lock Nut
9 000958-20 Coupling Nut
10 B-0199-03-N05
4
SALES NO. DESCRIPTION
Hot Push Button Cap w/ Spanner
Bit
Metering Cartridge w/ Hot Push
Button Cap & Spanner Bit
Cold Push Button Cap w/
Spanner Bit
Metering Cartridge w/ Cold Push
Button Cap & Spanner Bit
0.5 GPM Spray Device, 13/16-27
Male
5
6
10
Product Specifications:
7
8
9
4" Centerset Deck Mount Faucet w/ P ush Button Metering Cartridges,
0.5 GPM Non-Aerated Spray Device & 1/2" NPSM Shank Inlets w/
Coupling Nuts
Drawn
DMH
Scale:
014734-45
Spanner Bit for
Vandal Resistant Screw
Checked
JRM
Approved
JHB
Date:
NTS
05/24/13
of2Sheet:
2
