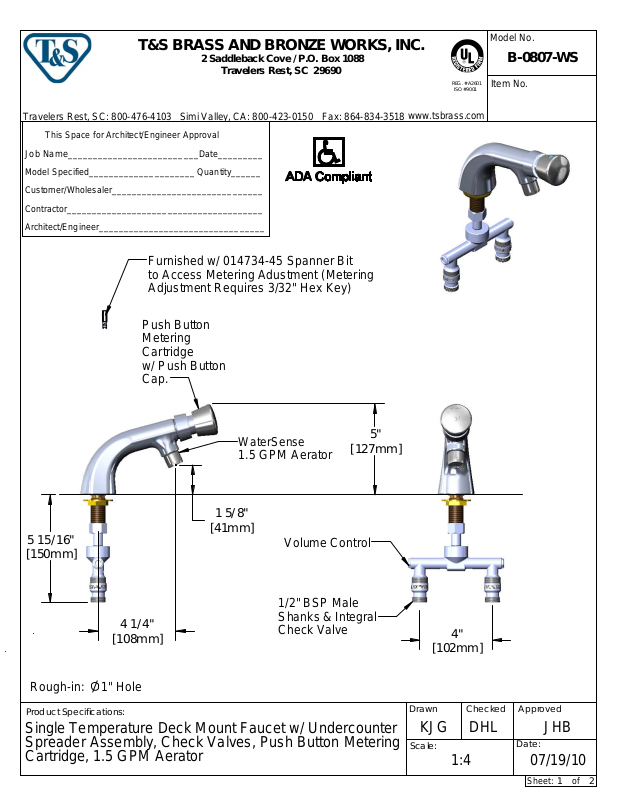

T&S Brass B-0807-WS User Manual

T&S BRASS AND BRONZE WORKS, INC.

2 Saddleback Cove / P.O. Box 1088

Travelers Rest, SC 29690

Travelers Rest, SC: 800-476-4103

This Space for Architect/Engineer Approval

Job Name__________________________Date_________

Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________

Furnished w/ 014734-45 Spanner Bit
to Access Metering Adustment (Metering
Adjustment Requires 3/32" Hex Key)

Push Button
Metering
Cartridge
w/ Push Button
Cap.

Simi Valley, CA: 800-423-0150

Fax: [phone]

REG. #A2601

ISO #9001

www.tsbrass.com

Model No.

B-0807-WS

Item No.

WaterSense

1.5 GPM Aerator

5"

[127mm]

1 5/8"

[41mm]

5 15/16"

Volume Control

[150mm]

1/2" BSP Male

4 1/4"

Shanks & Integral
Check Valve

[108mm]

Rough-in: 1" Hole

Product Specifications:

Single Temperature Deck Mount Faucet w/ Undercounter
Spreader Assembly, Check Valves, Push Button Metering
Cartridge, 1.5 GPM Aerator

4"

[102mm]

Drawn Checked

DHL

Scale:

1:4

Approved

JHBKJG

Date:

07/19/10

Sheet:

of

1

2

T&S BRASS AND BRONZE WORKS, INC.

Travelers Rest, SC: 800-476-4103

2 Saddleback Cove / P.O. Box 1088

Travelers Rest, SC 29690

Simi Valley, CA: 800-423-0150

Fax: [phone]

REG. #A2601

ISO #9001

www.tsbrass.com

Model No.

B-0807-WS

Item No.

ITEM

NO.

SALES NO. DESCRIPTION

1 000999-45 Brass Lock Washer
2 002954-45 Shank Lock Nut

3 002899-40 4" Spreader Unit
4 001043-45 Washer

5 044A 3/8" to Aerator Adapter
6 B-0199-34 1.5 GPM Aerator 55/64-27 Female

7 238A Push Button Metering Cartridge
8 014193-40 Blank Push Cap Asm

9 238AB Push Button Metering Cartridge w/ Push Button Cap
10 B-0199-02-WS 1.5 GPM Female Aerator, Adapter & Washer
11 014734-35 Spanner Bit

4

5

1

6

10

2

3

Product Specifications:

Single Temperature Deck Mount Faucet w/ Undercounter
Spreader Assembly, Check Valves, Push Button Metering
Cartridge, 1.5 GPM Aerator

7

8

9

11

Drawn

KJG

Scale:

Checked

DHL

1:2

Approved

JHB

Date:

07/19/10

Sheet:

of

2

2
