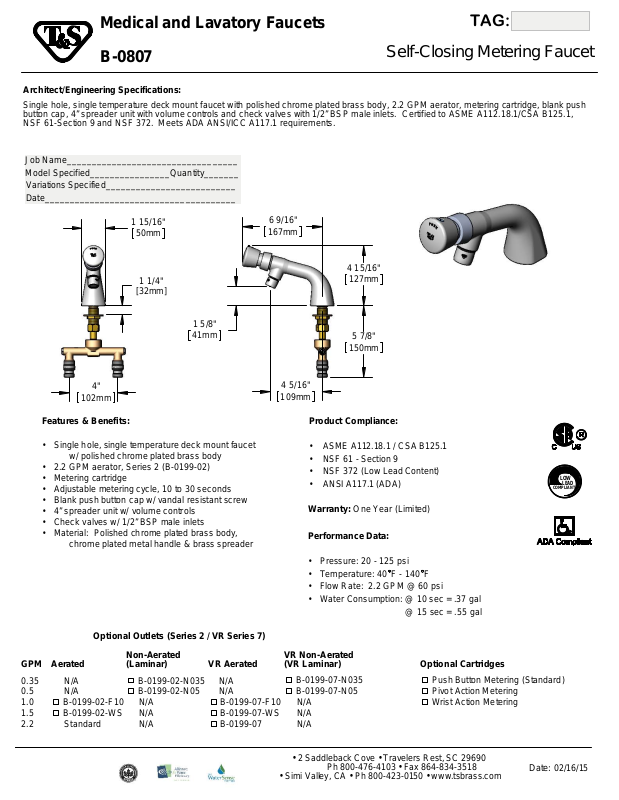

Medical and Lavatory Faucets
TAG:
B-0807
Architect/Engineering Specifications:
Single hole, single temperature deck mount faucet with polished chrome plated brass body, 2.2 GPM aerator, metering cartridge, blank push
button cap, 4” spreader unit with volume controls and check valves with 1/2” BSP male inlets. Certified to ASME A112.18.1/CSA B125.1,
NSF 61-Section 9 and NSF 372. Meets ADA ANSI/ICC A117.1 requirements.
Job Name__________________________________
Model Specified________________Quantity_______
Variations Specified__________________________
Date______________________________________
Self-Closing Metering Faucet
50mm
1 1/4"
[32mm]
1 5/8"
41mm
1 15/16"
4"
102mm
Features & Benefits:
Single hole, single temperature deck mount faucet•
w/ polished chrome plated brass body
2.2 GPM aerator, Series 2 (B-0199-02)•
Metering cartridge •
•
Adjustable metering cycle, 10 to 30 seconds
Blank push button cap w/ vandal resistant screw
•
•
4” spreader unit w/ volume controls
•
Check valves w/ 1/2” BSP male inlets
•
Material: Polished chrome plated brass body,
chrome plated metal handle & brass spreader
6 9/16"
167mm
4 5/16"
109mm
4 15/16"
127mm
5 7/8"
150mm
Product Compliance:
ASME A112.18.1 / CSA B125.1•
NSF 61 - Section 9•
NSF 372 (Low Lead Content)
•
•
ANSI A117.1 (ADA)
Warranty:
Performance Data:
Pressure: 20 - 125 psi •
Temperature: 40
Flow Rate: 2.2 GPM @ 60 psi •
Water Consumption: @ 10 sec = .37 gal•
One Year (Limited)
@ 15 sec = .55 gal
LOW
LEAD
COMPLIANT
F - 140 F•
GPM
0.35
0.5
1.0
1.5
2.2
Optional Outlets (Series 2 / VR Series 7)
Aerated
N/A
N/A
B-0199-02-F10
B-0199-02-WS
Standard
Non-Aerated
(Laminar)
B-0199-02-N035
B-0199-02-N05
N/A
N/A
N/A
VR Aerated
N/A
N/A
B-0199-07-F10
B-0199-07-WS
B-0199-07
VR Non-Aerated
(VR Laminar)
B-0199-07-N035
B-0199-07-N05
N/A
N/A
N/A
2 Saddleback Cove
•
Simi Valley, CA
•
•
Travelers Rest, SC 29690
Ph 800-423-0150
•
Fax 864-834-3518• Ph 800-476-4103
Optional Cartridges
Push Button Metering (Standard)
Pivot Action Metering
Wrist Action Metering
www.tsbrass.com
•
Date:
02/16/15
