T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
REG. #A2601
ISO #9001
Model No.
B-0804
Item No.
Travelers Rest, SC: 800-476-4103
This Space for Architect/Engineer Approval
Job Name__________________________Date_________
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
Simi Valley, CA: 800-423-0150
Variations or Applicable Options:
-WH6 6" Wrist Action Handles
-WH4 4" Wrist Action Handles
-175F 4-Arm Kitchen Handles
Wrist Action Metering
Cartridge With Lever Handle
and Blue Color Coded Index
Fax: 864-834-3518
www.tsbrass.com
2.2 GPM
Vandal Resistant
Aerator
1 9/16"
(40mm)
1/2" NPSM Male
Shank
4 5/16"
(110mm)

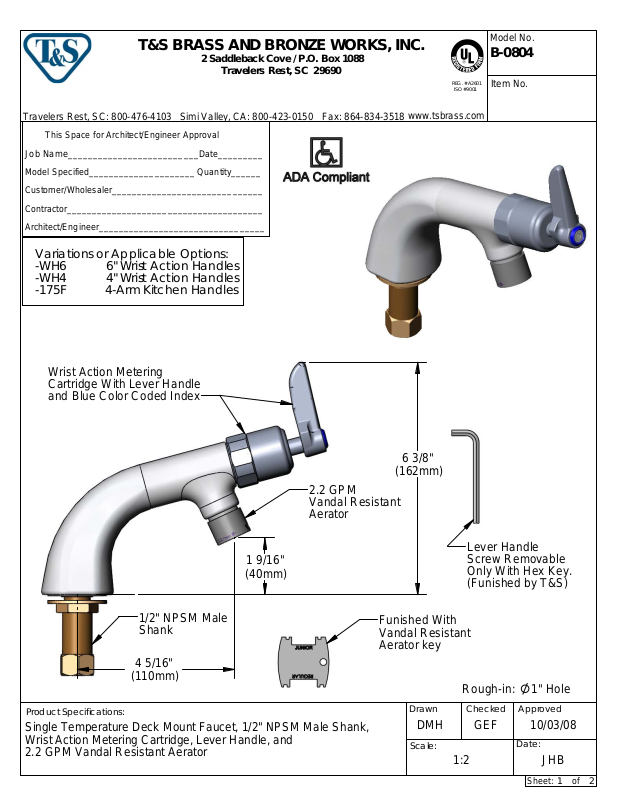

Product Specifications:
Single Temperature Deck Mount Faucet, 1/2" NPSM Male Shank,
Wrist Action Metering Cartridge, Lever Handle, and
2.2 GPM Vandal Resistant Aerator
6 3/8"
(162mm)
Funished With
Vandal Resistant
Aerator key
Scale:
1:2
Lever Handle
Screw Removable
Only With Hex Key.
(Funished by T&S)
Rough-in: 1" Hole
CheckedDrawn
GEF
Approved
10/03/08DMH
Date:
JHB
Sheet:
of
1
2
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
REG. #A2601
ISO #9001
Model No.
B-0804
Item No.
Travelers Rest, SC: 800-476-4103
Simi Valley, CA: 800-423-0150
ITEM NO. SALES NO. DESCRIPTION
1 011821-45 Abrasive Washer
2 000999-45 Brass Lock Washer
3 002954-45 Shank Lock Nut
4 000958-20 Coupling Nut
5 001043-45 Washer
6 044A 3/8" to Aerator Adapter
7 B-0199-06 VR Aerator w/ Key
8 Q015425-45 Vandal Resistant Key
9 012449-40 Wrist Action Metering Cartridge Asm
10 001638-45 Lever Handle
11 001660-45 Blue Index-CW
12 010586-45 Pin-In-Socket Screw
13 010587-45 Pin-in-Socket Hex Key
Fax: 864-834-3518
www.tsbrass.com
9
5
1
6
2
7
3
4
Product Specifications:
8
Single Temperature Deck Mount Faucet, 1/2" NPSM Male Shank,
Wrist Action Metering Cartridge, Lever Handle, and
2.2 GPM Vandal Resistant Aerator
10
Drawn
DMH
Scale:
11 12
Checked
GEF
1:2
13
Approved
10/03/08
Date:
JHB
Sheet:
of
2
2
