T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
B-0800
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
This Space for Architect/Engineer Approval
Job Name
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
__________________________Date_________
Metering Cartridge
(Requires 3/32" Hex
Key for Adjustment)
Blank Push Button Cap
& Spanner Bit
Rose Spray

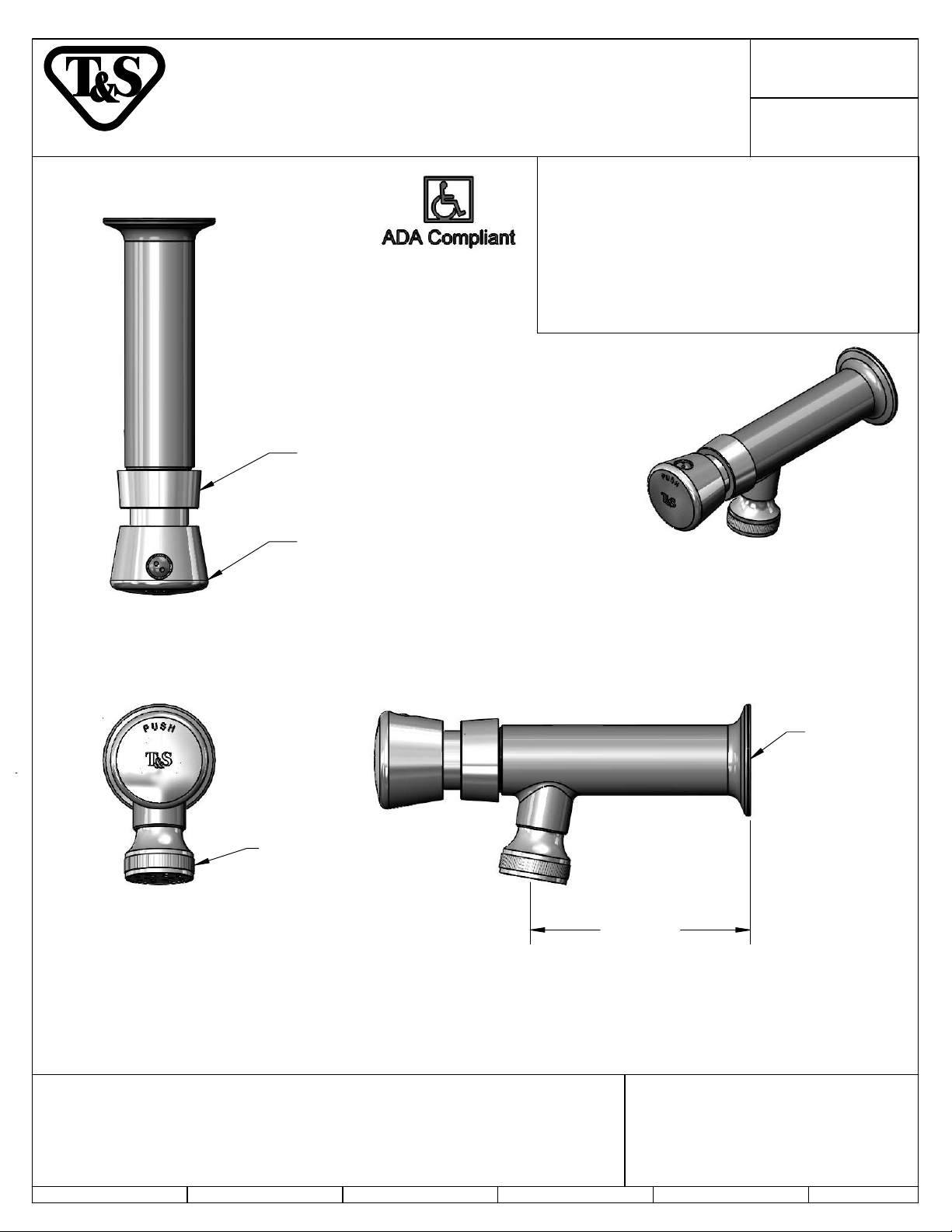

Product Specifications:
Wash Sink Metering Faucet w/ Rosespray, Pus h Button Metering Cartridge &
1/2" NPT Female Inlet
Ø 2" [51mm]
Flange w/
1/2" NPT
Female Inlet
4"
[102mm]
Product Compliance:
ASM E A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
ANSI A117.1 (ADA)
KJG
Checked:
Approved:Drawn:
JHB
07/07/14Date: 1:2 DMH
Scale:
of
2
1Sheet:
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
B-0800
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com

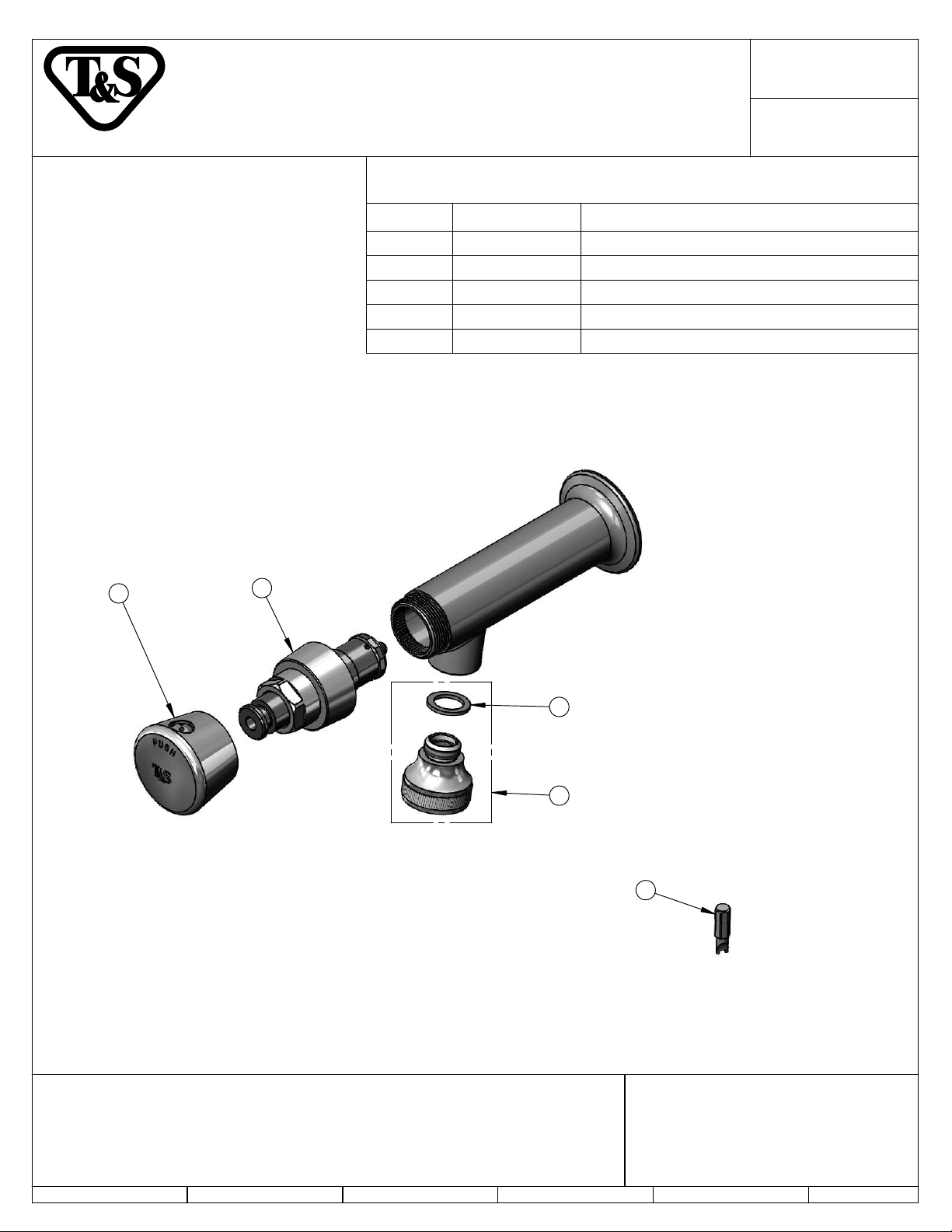

BOM Table
ITEM NO. SALES NO. DESCRIPTION
1 014193-40 Push Button Cap Asm.
2 B-0103 Spray Head Assembly
3 001043-45 Washer
4 014734-45 #8 Spanner Bit
5 238A Push Button Metering Ctg.
1
5
3
2
Product Specifications:
Wash Sink Metering Faucet w/ Rosespray, Pus h Button Metering Cartridge &
1/2" NPT Female Inlet
4
Product Compliance:
ASM E A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
ANSI A117.1 (ADA)
KJG
Checked: Date:
DMH
Approved:Drawn:
07/07/14
Scale:
NTS
of
2
2Sheet:JHB
