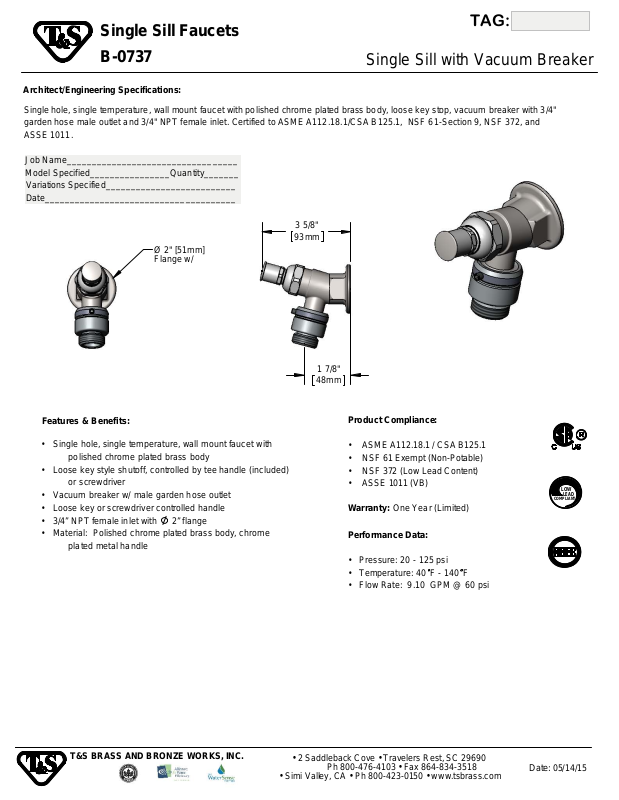

Single Sill Faucets
TAG:
B-0737
Architect/Engineering Specifications:
Single hole, single temperature, wall mount faucet with polished chrome plated brass body, loose key stop, vacuum breaker with 3/4"
garden hose male outlet and 3/4" NPT female inlet. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, NSF 372, and
ASSE 1011.
Job Name__________________________________
Model Specified________________Quantity_______
Variations Specified__________________________
Date______________________________________
3 5/8"
93mm
Ø 2" [51mm]
Flange w/
Single Sill with Vacuum Breaker
Features & Benefits:
Single hole, single temperature, wall mount faucet with •
polished chrome plated brass body
Loose key style shutoff, controlled by tee handle (included) •
or screwdriver
Vacuum breaker w/ male garden hose outlet•
Loose key or screwdriver controlled handle •
3/4” NPT female inlet with
Material: Polished chrome plated brass body, chrome•
plated metal handle
2” flange•
1 7/8"
48mm
Product Compliance:
ASM E A112.18.1 / CSA B125.1•
NSF 61 Exempt (Non-Potable)•
NSF 372 (Low Lead Content)•
ASSE 1011 (VB)•
Warranty:
Performance Data:
Pressure: 20 - 125 psi
•
•F
Temperature: 40
•
Flow Rate: 9.10 GPM @ 60 psi
One Year (Limited)
F - 140
LOW
LEAD
COMPLIANT
T&S BRASS AND BRONZE WO RKS, INC.
• 2 Saddleback Cove
Ph 800-476-4103 •
Simi Valley, CA
•
Travelers Rest, SC 29690
•
Ph 800-423-0150
•
Fax 864-834-3518
www.tsbrass.com
•
Date:
05/14/15
