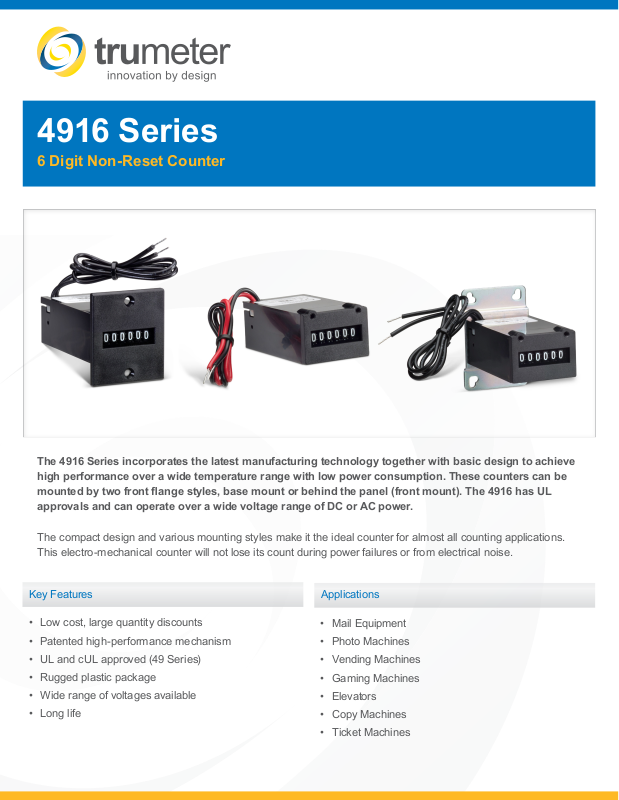

Trumeter 4916 Series Data Sheet

4916 Series
6 Digit Non-Reset Counter
The 4916 Series incorporates the latest manufacturing technology together with basic design to achieve high performance over a wide temperature range with low power consumption. These counters can be
mounted by two front ange styles, base mount or behind the panel (front mount). The 4916 has UL
approvals and can operate over a wide voltage range of DC or AC power.
The compact design and various mounting styles make it the ideal counter for almost all counting applications. This electro-mechanical counter will not lose its count during power failures or from electrical noise.
• Low cost, large quantity discounts
• Patented high-performance mechanism
• UL and cUL approved (49 Series)
• Rugged plastic package
• Wide range of voltages available
• Long life
Applications
• Mail Equipment
• Photo Machines
• Vending Machines
• Gaming Machines
• Elevators
• Copy Machines
• Ticket Machines
Specifications
Display 6 Digit, white on black, 0.160” gures Operating Voltage ±10% DC: 5, 12, 24, 48, 110, 125 (2W)
AC: 24, 48, 120, 230 (5VA)
Reset None Count Speed 10 CPS, standard. 50/50 ratio on/o󰀨.
Max. On Time Innite
Temperature Storage: 14°F to 122°F (-10°C to +50°C)
Operating: 23°F to 104°F (-5°C to +40°C)
Approvals UL# and cUL# E36690 Termination UL/cUL wire leads, 11” long, standard Weight 4.0 oz (113 g)
Part Number Ordering Chart
Example: R 9 - 49 1 6 AD
Mounting
B Bail Mount D D-Base Mount (Front/H-Base Mount) R Behind the Panel Mount (Front) P Panel Mount (Flange 1.81”x1.81”)
FL Flange Mount (1.53”x1.8)
RV Combo Front/V-Base Mount OR Special Metal D - Base Mount
Voltage 1 230 VAC 2 120 VAC 3 24 VAC 7 110 VDC 8 24 VDC 9 12 VDC 11 5 VDC 12 125 VDC 23 9 VDC
Product Number 49 Product Number
Reset 1 Non-reset
# of Figures 6 6 Figure
Su󰀩x
Blank Counter Set at 999800 (Standard) A Counter Set at 000000 B Counter Set at 999980 C 24” Lead Wires D Diode Suppresion E 16" Lead Wires
Dimensions
D - D-Base Mount
4-40 MAX DEPTH .187
2.52
( 64.00 )
2.12
( 53.85 )
0.98
( 25.00 )
0.63
( 16 )
1 2 3 4 5 6
1.41
( 35.9 )
R
0.20
( 5.18 )
0.063 ( 1.6 )
R- Behind The Panel Mount (Front)
2 x 4-40 UNC 0.187 (4.75) deep
1.41
0.439 ( 11.2 )
( 35.9 )
1.00 ( 25.4 )
1 2 3 4 5 6
0.068 ( 25.4 )
0.97
( 24.7 )
OR - Front / Base Combo Mount (Front)
2 x 4-40 UNC 0.187 (4.75) deep
1.89
( 48.01 )
1.41
( 35.9 )
1
( 25.40 )
0.69
( 17.53 )
1 2 3 4 5 6
2.2
( 55.88 )
( 71.25 )
( 66.25 )
2.6
( 66.2 )
( 71.25 )
2.61
( 66.25 )
2.81
2.61
2.81
( 24.7 )
0.047
( 1.20 )
V - V-Base Mount / RV- Combo Front / V-Base Mount
1.968
1.752
( 44.5 )
1.306
( 33.16 )
( 50 )
2 x 4-40 UNC 0.187 ( 4.75 ) deep
1 2 3 4 5 6
0.984 ( 25 )
1.125
( 28.6 )
1.496 ( 38 )
2.252
( 57.2 )
2.61
( 66.25 )
2.81
( 71.25 )
0.196 ( 5 )
0.047 ( 1.2 )
FL - Panel Mount (Flange FL) 1.535 x 1.8 (39 x 45.7)
P - Panel Mount (Flange) 1.81 x 1.81(46 x 46)
1.535 ( 39 )
0.768
( 19.5 )
0.97
( 24.7 )
1.811 ( 46 )
Panel
0.97
Cutout
0.906 ( 23 )
1 2 3 4 5 6
1.811 ( 46 )
PANEL
CUTOUT
1.46
(37.1)
1.40
( 35.6 )
0.138(2X) (3.5)
0.12
( 3.05 )
0.06
( 1.5 )
1.01
1.40
(25.7)
(35.6)
2.49
( 63.2 )
Ø 0.138 ( 3.5 )
0.97
( 24.7 )
Part Number Ordering Chart
FL1 - 4916 230VAC, 6 figures, panel mount
FL2-4916 120VAC, 6 figures, panel mount
FL3-4916 24VAC, 6 figures, panel mount
FL7- 4916 CD 110VDC, 6 figures, panel mount, w/diode, 24" LDS
FL8-4916D 24VDC, 6 figures, panel mount, w/diode
R11- 4 916 D 5VDC, 6 figures, front mount, w/diode
R2- 4916 120VAC, 6 figures, rear mount
R8- 4916 24VDC, 6 figures, rear mount
R9-4916AD 12VDC, 6 figures, rear mount, w/diode, set @ 000000
RV1- 4916 230VAC, 6 figures, front & V-base mount
RV2- 4916 120VAC, 6 figures, front & V-base mount
RV3-4916 24VAC, 6 figures, front & V-base mount
RV8-4916 24VDC, 6 figures, front & V-base mount
RV9-4916 12VDC, 6 figures, front & V-base mount
RV11- 4916 5VDC, 6 figures, front & V-base mount
RV2- 4916B 120VAC, 6 figures, V-base mount, set @ 999980
4916-DS-2.0 02/20
