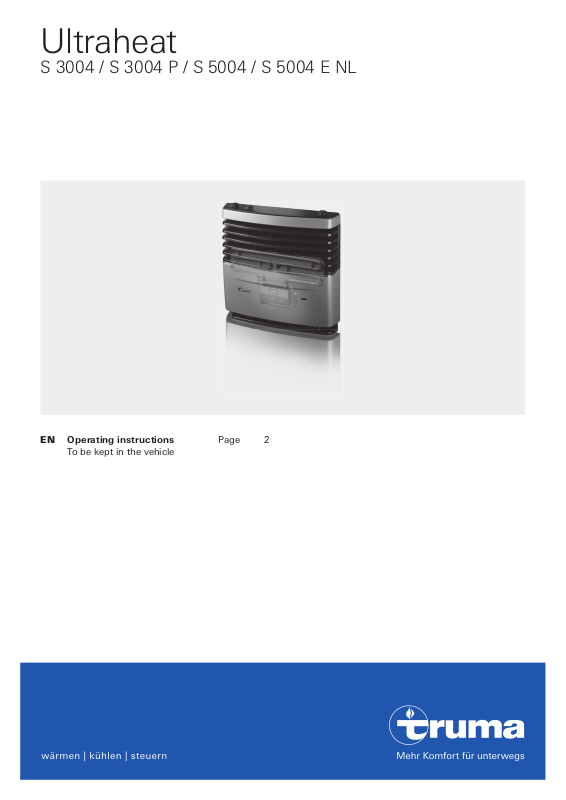

Page 1
Ultraheat
S 3004 / S 3004 P / S 5004 / S 5004 E NL
EN Operating instructions
To be kept in the vehicle
Page 2
Page 2
Ultraheat – Additional electric heater
Table of contents
Symbols used ........................................................................ 2
Intended use .......................................................................... 2
Short description ............................................................... 2
Safety instructions ............................................................ 3
Operating instructions
Control panel with room thermostat .................................... 3
Start-up ................................................................................ 3
Switching off ...................................................................... 3
Disposal ............................................................................... 3
Technical data ..................................................................... 4
Accessories ......................................................................... 4
Manufacturer’s Warranty
(European Union) ................................................................ 4
Symbols used
Symbol indicates a possible hazard.
Risk of burns! Hot surface.
Wear protective gloves to prevent possible mechanical
injuries.
Intended use
The Ultraheat additional electric heater is suitable for installation in an S 3004, S 3004 P, S 5004 or S 5004E NL heater.
The additional heater is attached to the installation box of the
heater and sits between the installation box and the heat exchanger. An electrical connection with 230 V ~ 50 Hz (8.5 A)
is required to operate the additional heater.
Short description
Heating is basically possible in gas mode, electric mode and
combined gas and electric mode.
If the heater is operating with gas and electricity at the same
time, electric mode is switched off before any possible overheating can occur because of the more powerful gas burner.
In Electric mode we recommend operating the TEB-3 or
TN-3 fan at level 3 (manual or automatic) based on an operating level of 2000 W (be sure to comply with the power
supply fuse protection at the campsite).
If heating power of more than 2000 W is required (heatingup /
cold outside temperatures), the heater must be operated
in gas mode, since 230 V electric mode is only secondary
heating.
Heating is also generally possible without the TEB-3 or TN-3
fan with the S3004 / S3004P heaters independently of the
operating mode (gas or electric).
However, in order to ensure that the warm air is distributed
evenly and quickly and to lower the surface temperature of
the heater unit, we recommend leaving the fan and a warm
air system on at all times during heater operation.
If your Ultraheat additional heater is being operated with a
remote sensor (accessory) it must not be placed in the vicinity
of external heat sources (cookers, lamps, opposite warm air
outlets etc.) or in locations in which heat can accumulate
(below shelves, in corners, behind curtains).
2 EN
Page 3
Safety instructions
b
Repairs may only be carried out by an expert.
Operating instructions
The heater casing becomes hot by design during
operation. Due diligence towards third parties
(particularly small children) lies with the user.
The warm air outlet of the heater must not be blocked
under any circumstances. Therefore, no textiles or similar
are to be hung in front of or over the heater for drying. Incorrect use can damage your heater caused by overheating. Do
not bring any combustible objects in the vicinity of the heater!
It is in the interest of your safety to comply with this request.
During the initial start-up of a brand new appliance, small
quantities of fumes and a slight odour may briefly occur.
When the appliance is started up after a particularly long period of non-use, there may be some smoke and/or smell due
to dust or dirt. It is a good idea to allow the appliance to run
at maximum output for a few minutes and to ensure that the
area is well ventilated.
Guarantee claims, warranty claims and acceptance of liability
will be ruled out in the event of the following:
– Modifications to the device (including accessories)
– Failure to use original Truma parts as replacement parts and
accessories
– Failure to follow the installation and operating instructions
This may also invalidate the device operating permit, which in
many countries also denotes cancellation of the vehicle operating permit.
Attention: In spite of careful manufacturing, the heater
may have sharp edges, therefore always wear protective gloves during maintenance and cleaning work.
Always observe the operating instructions prior to starting! The vehicle owner is responsible for correct operation of
the appliance.

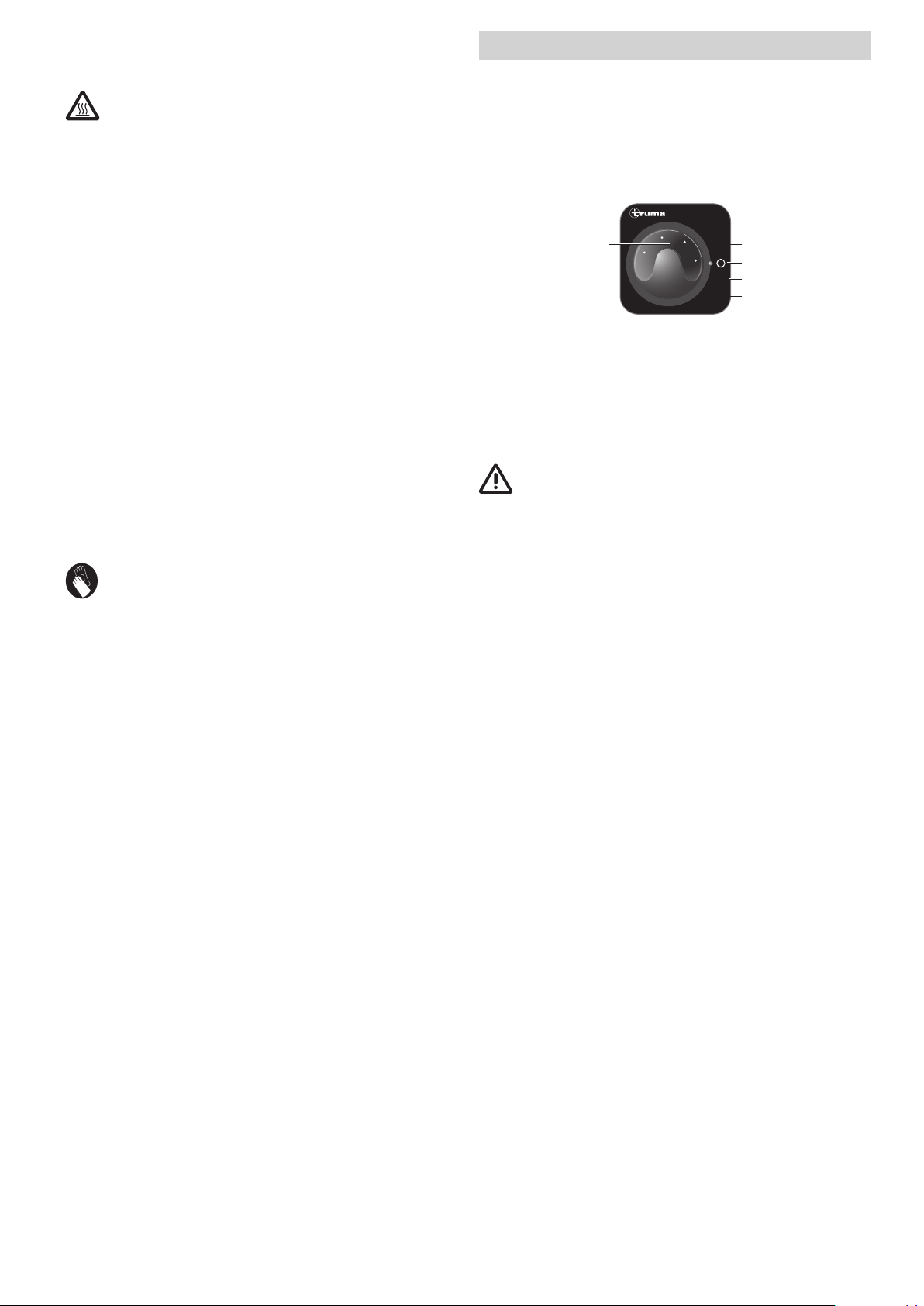

Control panel with room thermostat
Ultraheat
5
9
230 V ~
7
2000
500
1000
b
a
b
3
1
c
a = Rotary switch “Off”
b = Rotary switch “On”
Operating level 500 – 1000 – 2000 W
c = Control knob for room temperature
(illuminated by green “operation” LED)
Start-up
Before switching on, be sure to check that the campsite
power supply fusing corresponds to the set operating
levels (b) (see “Technical data”).
Important: The cable drum must be fully unwound in order
to prevent the power cable of the recreational vehicle from
overheating.
To switch on, move rotary switch to desired operating level (b).
This appliance may be used by children from 8 years old and
by persons with disabilities or with a lack of experience only
if they are supervised or have been instructed in the safe use
of the appliance and understand the resulting risks. Children
must not be allowed to play with the appliance.
The green LED for operation is lit and simultaneously indicates the selected room temperature setting.
Set the desired room temperature at the control knob (c).
The thermostat setting on the control panel (1 – 9) must be
determined individually depending on the heating requirement
and the type of vehicle.
Switching off
Switch the heater off using the rotary switch (a).
Disposal
The device must be disposed of in accordance with the administrative regulations of the respective country in which it is
used. National regulations and laws (in Germany, for example,
the End-of-life Vehicle Regulation) must be observed.
3EN
Page 4
Technical data
Power supply
230 V ~, 50 Hz
Power consumption at operating level:
500 W: 2.2 A
1000 W: 4.5 A
2000 W: 8.5 A
Weight
approx. 2 kg
Subject to technical changes

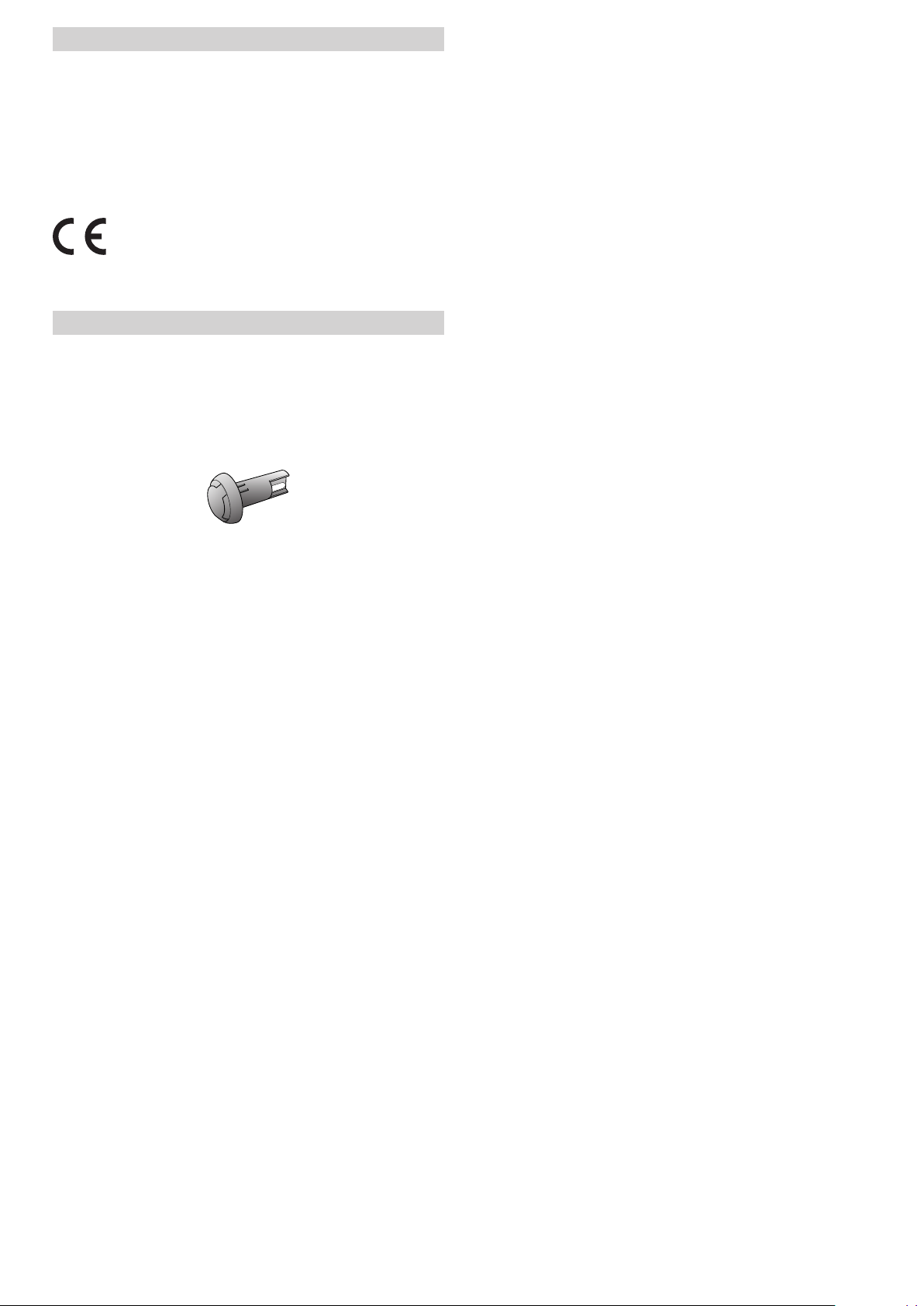

Accessories
5m extension cable for the control panel (part no. 34300-01)
– no picture –
The FFC 2 remote sensor monitors the room temperature
independently of the location of the control panel, complete
with 4m connection cable (part no. 34203-01).
Manufacturer’s Warranty
(European Union)
1. Scope of Manufacturer’s Warranty
As the Manufacturer of the unit, Truma undertakes a warranty
towards the Consumer that covers any material and/or manufacturing defects of the unit.
This Warranty is applicable in EU member states as well as
in Iceland, Norway, Switzerland and Turkey. A Consumer is
the natural person who was the first one to purchase the
unit from the Manufacturer, OEM or dealer and who neither
resold the unit in a commercial or self-employed professional
capacity nor did he or she install it for a third party in such a
capacity.
This provision shall not affect the validity of the German Product Liability Act (Produkthaftungsgesetz).
Neither does the voluntary Manufacturer’s Warranty affect the
Consumer’s legally applicable claims for defects towards the
seller in the relevant country of purchase. In individual countries there may be warranties that can be issued by the relevant dealer (official distributor, Truma Partner). In such cases
the warranty can be implemented directly through the dealer
from whom the Consumer bought the unit. The warranty regulations of the country in which the unit was purchased by
the Consumer for the first time shall also be applicable.
2. Warranty exclusions
No warranty claim shall be applicable under the following
circumstances:
– Improper, unsuitable, faulty or negligent use and any use
that is not compliant with the intended purpose
– Improper installation, assembly or commissioning, contrary
to operating or installation instructions
– Improper operation or operation contrary to operating or
installation instructions, particularly any disregard for maintenance, care or warning notes,
– Instances where installations, repairs or any other proce-
dures have been conducted by non-authorised parties
– Consumable materials and parts which are subject to natu-
ral wear and tear
– Installation of replacement, supplementary or accessory
parts that are not original manufacturer’s parts or which
have not been approved by the manufacturer. If the device
is subject to networked control, this applies, in particular,
if the control units or the software have not been approved
by Truma or if the Truma control unit (e.g. Truma CP plus
or Truma iNet Box) has not been exclusively used for controlling Truma devices or devices approved by Truma.
– Damage arising from foreign substances (e.g. oil or, plas-
ticisers in the gas), chemical or electrochemical influences
in the water, or cases when the unit has come into contact with unsuitable substances (e.g. chemical products,
flammable substances or unsuitable cleaning agents)
– Damage caused by abnormal environmental or unsuitable
operating conditions
– Damage caused by force majeure or natural disasters or
any other influences not within Truma’s responsibility
– Damage resulting from improper transport
– End customer’s or third-party modifications of the device,
including any replacement, supplementary or accessory
parts, or installation of the same, especially concerning the
exhaust gas system or the cowl.
3. Making a warranty claim
The Manufacturer’s Warranty covers any of the aforementioned defects that occur within 24 months upon concluding
the purchase agreement between the seller and the Consumer.
The Manufacturer or an authorised service partner undertakes
to remedy such defects through subsequent fulfilment, i.e.
at its discretion either by repairing or replacing the defective
item. Any defective parts shall become the property of the
Manufacturer or the authorised service partner. If the unit is no
longer manufactured at the time of defect notification and if
replacement delivery has been opted for, then the Manufacturer may deliver a similar product.
If the Manufacturer remedies a defect under its warranty
commitment, the term of the Warranty shall not recommence
anew with regard to the repaired or replaced parts; rather, the
original warranty period shall continue to be applicable to the
unit. Only the Manufacturer itself and an authorised service
partner shall be entitled to conduct a warranty job. Any costs
that occur in the event of a warranty claim shall be settled directly between the authorised service partner and the Manufacturer. The Warranty does not cover additional costs arising
from complicated removal or installation jobs on the unit (e.g.
dismantling of furnishings or parts of the vehicle body), and
neither does it cover travel expenses incurred by the authorised service partner or the Manufacturer.
No further-reaching claims shall be permitted, especially damage claims presented by the Consumer or third parties.
4 EN
The warranty must be claimed with an authorised service partner or at the Truma Service Centre. All the relevant addresses
and phone numbers can be found at www.truma.com, in the
“Service” section.
The Manufacturer‘s address is:
Truma Gerätetechnik GmbH & Co. KG
Truma Servicezentrum
Wernher-von- Braun-Straße 12
85640 Putzbrunn, Germany
To ensure a smooth procedure, we would be grateful if you
could have the following details ready before contacting us:
– Detailed description of the defect
– Serial number of the unit
– Date of purchase
The authorised service partner or the Truma Service Centre
will then specify the further procedure. To avoid transport
damage, the affected unit must only be shipped by prior arrangement with the authorised service partner or the Truma
Service Centre.
If the warranty claim is recognised by the Manufacturer, then
the transport expenses shall be borne by the same. If no
warranty claim is applicable, the Consumer will be notified
accordingly and any repair and transport expenses shall then
be the Consumer’s liability. We ask you not to send in a unit
without prior arrangement.
Page 5
DE Bei Störungen wenden Sie sich bitte an
das Truma Servicezentrum oder an einen
unserer autorisierten Servicepartner
(siehe www.truma.com).
Für eine rasche Bearbeitung halten Sie
bitte Gerätetyp und Seriennummer (siehe
Typenschild) bereit.
EN Should problems occur, please contact
the Truma Service Centre or one of
our authorised service partners (see
www.truma.com).
In order to avoid delays, please have the unit
model and serial number ready (see type
plate).
FR Veuillez vous adresser au centre de SAV
Truma ou à un de nos partenaires de SAV
agréés en cas de dysfonctionnements
(voir www.truma.com).
CS Návod k použití a montážní návod si lze v řeči
Vaší země vyžádat u výrobce Truma nebo
servisu Truma ve Vaší zemi.
ES Las instrucciones de uso y de montaje en su
idioma pueden solicitarse al fabricante Truma
o al Servicio postventa Truma en su país.
FI Saat käyttö- ja asennusohjeen pyynnöstä
omalla kielelläsi valmistajalta (Truma) tai
maasi Truma-huoltoon.
NO Spør om bruks- og monteringsanvisning på
norsk hos produsenten Truma eller Trumas
serviceavdeling i landet ditt.
PL Instrukcję obsługi i instrukcję montażu w
Państwa wersji językowej można otrzymać
w firmie Truma lub serwisie firmy Truma
znajdującym się w Państwa kraju.
Pour un traitement rapide de votre demande,
veuillez tenir prêts le type d’appareil et le
numéro de série (voir plaque signalétique).
IT In caso di guasti rivolgersi al centro
di assistenza Truma o a un nostro
partner di assistenza autorizzato
(consultare il sito www.truma.com).
Affinché la richiesta possa essere elaborata
rapidamente, tenere a portata di mano il
modello dell’apparecchio e il numero di
matricola (vedere targa dati).
NL Bij storingen kunt u contact opnemen
met het Truma Servicecentrum of met
een van onze erkende servicepartners
(zie www.truma.com).
Voor een snelle bediening dient u
apparaattype en serienummer (zie typeplaat)
gereed te houden.
DA Ved fejl kontaktes Trumas serviceafdeling
eller en af vores autoriserede servicepartnere
(se www.truma.com).
Sørg for at have oplysninger om apparattype
og serienummer (se typeskiltet) klar for hurtig
behandling.
SL Navodila za uporabo in vgradnjo v vašem
jeziku lahko naročite pri proizvajalcu Truma
oz. v servisni službi podjetja Truma v vaši
državi.
SV Vid fel kontakta Truma servicecenter eller
någon av våra auktoriserade servicepartner
(se www.truma.com).
För snabb handläggning bör du ha
aggregatets typ och serienummer (se
typskylten) till hands.
Truma Gerätetechnik GmbH & Co. KG
Wernher-von-Braun-Straße 12
85640 Putzbrunn
Deutschland
Service
Telefon +49 (0)89 4617-2020
Telefax +49 (0)89 4617-2159
[email protected]
www.truma.com
30090-39700 · 03 · 09/2018 · ©
Loading...
