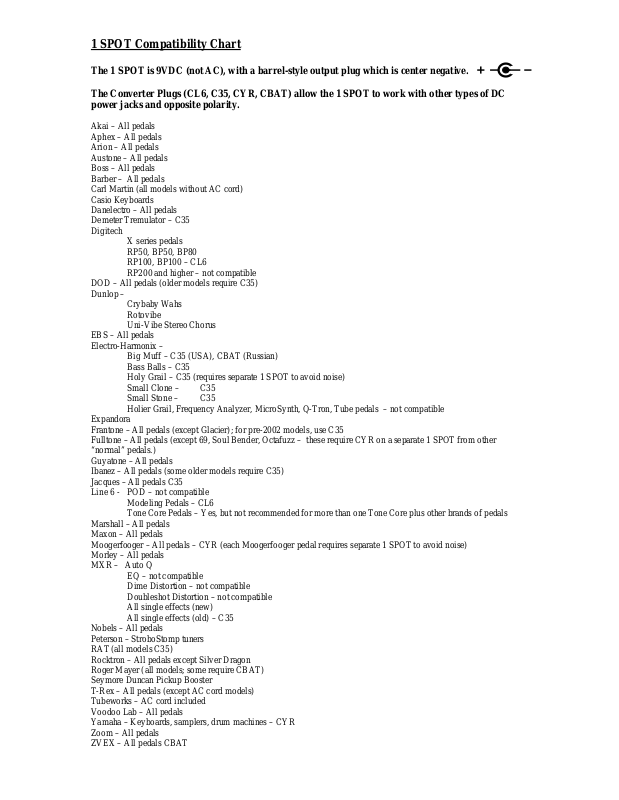

1 SPOT Compatibility Chart
The 1 SPOT is 9VDC (not AC), with a barrel-style output plug which is center negative.
The Converter Plugs (CL6, C35, CYR, CBAT) allow the 1 SPOT to work with other types of DC
power jacks and opposite polarity.
Akai – All pedals
Aphex – All pedals
Arion – All pedals
Austone – All pedals
Boss – All pedals
Barber – All pedals
Carl Martin (all models without AC cord)
Casio Keyboards
Danelectro – All pedals
Demeter Tremulator – C35
Digitech
X series pedals
RP50, BP50, BP80
RP100, BP100 – CL6
RP200 and higher – not compatible
DOD – All pedals (older models require C35)
Dunlop –
Crybaby Wahs
Rotovibe
Uni-Vibe Stereo Chorus
EBS – All pedals
Electro-Harmonix –
Big Muff – C35 (USA), CBAT (Russian)
Bass Balls – C35
Holy Grail – C35 (requires separate 1 SPOT to avoid noise)
Small Clone – C35
Small Stone – C35
Holier Grail, Frequency Analyzer, MicroSynth, Q-Tron, Tube pedals – not compatible
Expandora
Frantone – All pedals (except Glacier); for pre-2002 models, use C35
Fulltone – All pedals (except 69, Soul Bender, Octafuzz – these require CYR on a separate 1 SPOT from other
“normal” pedals.)
Guyatone – All pedals
Ibanez – All pedals (some older models require C35)
Jacques – All pedals C35
Line 6 - POD – not compatible
Modeling Pedals – CL6
Tone Core Pedals – Yes, but not recommended for more than one Tone Core plus other brands of pedals
Marshall – All pedals
Maxon – All pedals
Moogerfooger – All pedals – CYR (each Moogerfooger pedal requires separate 1 SPOT to avoid noise)
Morley – All pedals
MXR – Auto Q
EQ – not compatible
Dime Distortion – not compatible
Doubleshot Distortion – not compatible
All single effects (new)
All single effects (old) – C35
Nobels – All pedals
Peterson – StroboStomp tuners
RAT (all models C35)
Rocktron – All pedals except Silver Dragon
Roger Mayer (all models; some require CBAT)
Seymore Duncan Pickup Booster
T-Rex – All pedals (except AC cord models)
Tubeworks – AC cord included
Voodoo Lab – All pedals
Yamaha – Keyboards, samplers, drum machines – CYR
Zoom – All pedals
ZVEX – All pedals CBAT
