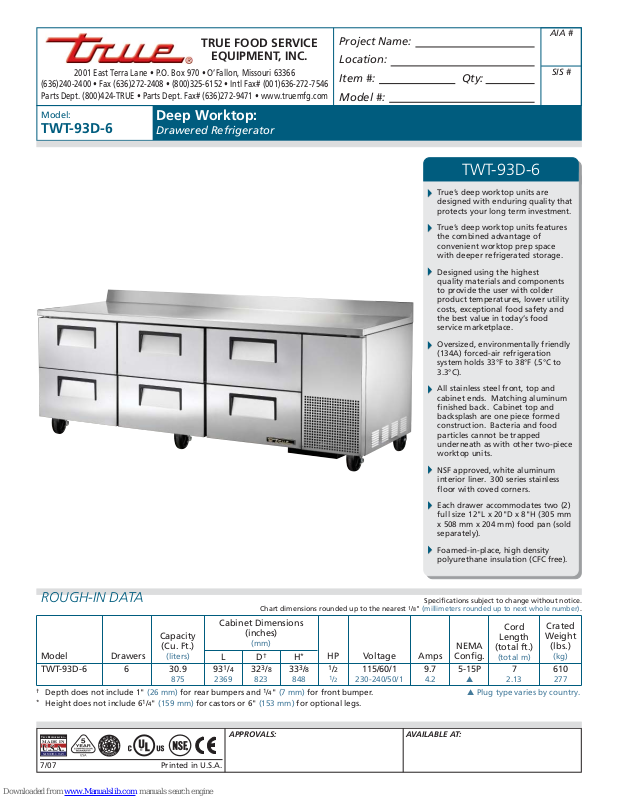

True TWT-93D-6 Specifications

TRUE FOOD SERVICE

.S.A.

EQUIPMENT, INC.

2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

TWT-93D-6

Deep Worktop:

Drawered Refrigerator

TWT-93D-6

True’s deep worktop units are
designed with enduring quality that
protects your long term investment.

True’s deep worktop units features
the combined advantage of
convenient worktop prep space
with deeper refrigerated storage.

Designed using the highest
quality materials and components
to provide the user with colder
product temperatures, lower utility
costs, exceptional food safety and
the best value in today’s food
service marketplace.

Oversized, environmentally friendly
(134A) forced-air refrigeration
system holds 33°F to 38°F (.5°C to

3.3°C).

All stainless steel front, top and
cabinet ends. Matching aluminum
fi nished back. Cabinet top and
backsplash are one piece formed
construction. Bacteria and food
particles cannot be trapped
underneath as with other two-piece
worktop units.

NSF approved, white aluminum
interior liner. 300 series stainless
fl oor with coved corners.

Each drawer accommodates two (2)
full size 12"L x 20"D x 8"H (305 mm
x 508 mm x 204 mm) food pan (sold
separately).

Foamed-in-place, high density
polyurethane insulation (CFC free).

ROUGH-IN DATA

Capacity

Model Drawers
TWT-93D-6 6 30.9

†

Depth does not include 1" (26 mm) for rear bumpers and 1/4" (7 mm) for front bumper. ▲ Plug type varies by country.

*

Height does not include 61/4" (159 mm) for castors or 6" (153 mm) for optional legs.

T

RUE

R

EFRIGERATION

TM

MADE IN

U.S.A.

U.S.A.

SINCE 1945

7/07

(Cu. Ft.)

(liters)

875

®

Printed in U.S.A.

R

1

Chart dimensions rounded up to the nearest

/8" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

(mm)

*

LD†H

931/4

2369

323/8

823

APPROVALS: AVAILABLE AT:

333/8

848

HP Voltage Amps

1

/2

/2

115/60/1

230-240/50/1

1

Specifi cations subject to change without notice.

Crated

Weight

(lbs.)

(kg)

610

277

9.7

4.2

NEMA

Confi g.

5-15P

▲

Cord

Length

(total ft.)

(total m)

7

2.13

Model:

TWT-93D-6

Deep Worktop:

Drawered Refrigerator

STANDARD FEATURES

DESIGN

• True’s commitment to using the
highest quality materials and oversized
refrigeration systems provides the user
with colder product temperatures, lower
utility costs, exceptional food safety and
the best value in today’s food service
marketplace.

REFRIGERATION SYSTEM

• Factory engineered, self-contained,
capillary tube system using
environmentally friendly (CFC free) 134A
refrigerant.

• Oversized, factory balanced refrigeration
system with guided airfl ow to provide
uniform product temperatures.

• Extra large evaporator coil balanced
with higher horsepower compressor
and large condenser; maintains cabinet
temperatures of 33°F to 38°F (.5°C to

3.3°C) for the best in food preservation.

• Sealed, cast iron, self-lubricating
evaporator fan motor(s) and larger fan
blades give True worktop units a more
effi cient low velocity, high volume
airfl ow design. This unique design
ensures faster temperature recovery
and shorter run times in the busiest of
foodservice environments.

• Condensing unit is accessed from
behind front grill; slides out for easy
maintenance.

CABINET CONSTRUCTION

• Exterior - stainless steel front, top and
cabinet ends. Matching aluminum
fi nished back. Cabinet top and
backsplash are one piece formed
construction.

• Interior - attractive, NSF approved, white
aluminum liner. 300 series stainless fl oor
with coved corners.

• Insulation - entire cabinet structure and
drawer facings are foamed-in-place using
high density, CFC free, polyurethane
insulation.

• 5" (127 mm) diameter stem castors - locks
provided on front set. 36" (915 mm)
work surface height.

DRAWERS

• Stainless steel exterior with white
aluminum liner to match cabinet interior.

• Each drawer fi tted with 12" (305 mm)
long recessed handle that is foamed­in-place with a sheet metal interlock to
ensure permanent attachment.

• Heavy-duty stainless steel drawer slides
and rollers. Removable without tools for
easy cleaning.

• Magnetic drawer gaskets of one piece
construction, removable without tools
for ease of cleaning.

PAN CAPACITY

• Each drawer accommodates two (2) full
size 12"L x 20"W x 8"D (305 mm x 508
mm x 204 mm), four (4)

1

/3 pans (sold separately).

MODEL FEATURES

1

/2 pans, or six (6)

• Evaporator is epoxy coated to eliminate
the potential of corrosion.

• Drawers will support a wide variety of
incremental pan size confi gurations;
divider bars available.

• NSF-7 compliant for open food product.

ELECTRICAL

• Unit completely pre-wired at factory and
ready for fi nal connection to a 115/60/1
phase, 15 amp dedicated outlet. Cord
and plug set included.

115/60/1
NEMA-5-15R

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

❒

230-240V / 50 Hz.

❒ 6" (153 mm) standard legs.
❒ 6" (153 mm) seismic/fl anged legs.

1

/2" (64 mm) diameter castors.

❒ 2
❒ 3" (85 mm) diameter castors.
❒ Single utility shelf.
❒ Double utility shelf.
❒ 30" (762 mm) deep,

1

/2" (13 mm) thick,
white polyethylene cutting board.
Requires ”L” brackets.

1

❒ 32

/8" (816 mm) deep, 1/2" (13 mm) thick,
composite cutting board. Requires “L”
brackets.

❒ Heavy duty, 16 gauge tops.
❒ Heavy duty package - 16 gauge tops, 20

gauge door, sides and back with stainless
interior.

❒ Exterior round digital temperature

display (factory installed).

❒ Remote cabinets (condensing unit

supplied by others; system comes
standard with 404A expansion valve
and requires R404A refrigerant). Consult
factory technical service department for
BTU information.

PLAN VIEW

1"

587/8"

391/2"

(1004 mm)

3515/16"

(913 mm)

63/16"

(158 mm)5"(127 mm)

One year warranty on all parts

and labor and an additional 4
year warranty on compressor.

WARRANTY

(U.S.A. only)

931/4"

(2369 mm)

ELEVATION

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

123/4"

(324 mm)

81/4"

(210 mm)

KCL

(1496 mm)

39/16"

(91 mm)

335/16"

(847 mm)

293/4"

(756 mm)

Model Elevation Right Plan 3D

TWT-93D-6 TFPY36E TFPY33S TFPY36P TFPY363

251/2"

(648 mm)

1

/4"

(7 mm)

323/8"

(823 mm)

3013/32"

(773 mm)

RIGHT VIEW

131/32"

(51 mm)

TRUE FOOD SERVICE EQUIPMENT

2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • Fax [phone] • [phone] • Intl. Fax# [phone] • www.truemfg.com

(26 mm)

25/8"

(67 mm)

39/16"

(91 mm)
