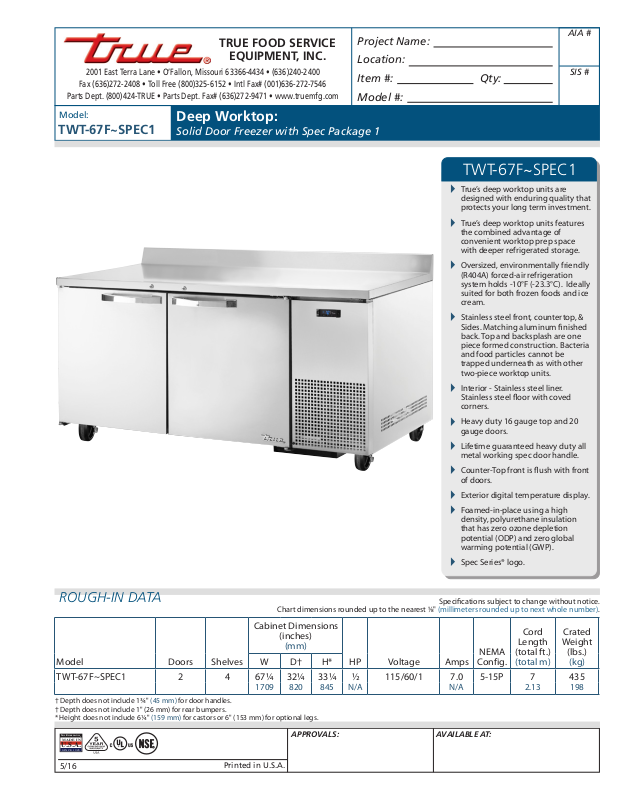

True TWT-67F User Manual

TRUE FOOD SERVICE

EQUIPMENT, INC.

2001 East Terra Lane • O’Fallon, Missouri 63366-4434 • [phone]

Fax [phone] • Toll Free [phone] • Intl Fax# [phone]

Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

TWT-67F~SPEC1

Deep Worktop:

Solid Door Freezer with Spec Package 1

TWT-67F~SPEC1

True’s deep worktop units are



designed with enduring quality that
protects your long term investment.

True’s deep worktop units features



the combined advantage of
convenient worktop prep space
with deeper refrigerated storage.

Oversized, environmentally friendly



(R404A) forced-air refrigeration
system holds -10°F (-23.3°C). Ideally
suited for both frozen foods and ice
cream.

Stainless steel front, countertop, &



Sides. Matching aluminum nished
back. Top and backsplash are one
piece formed construction. Bacteria
and food particles cannot be
trapped underneath as with other
two-piece worktop units.

Interior - Stainless steel liner.



Stainless steel oor with coved
corners.

Heavy duty 16 gauge top and 20



gauge doors.

Lifetime guaranteed heavy duty all



metal working spec door handle.

Counter-Top front is ush with front



of doors.

Exterior digital temperature display.



Foamed-in-place using a high



density, polyurethane insulation
that has zero ozone depletion
potential (ODP) and zero global
warming potential (GWP).

Spec Series® logo.



ROUGH-IN DATA

Model Doors Shelves

Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

(mm)

HP Voltage Amps

Specications subject to change without notice.

NEMA

Config.

Cord

Length
(total ft.)

(total m)

Crated

Weight

(lbs.)

(kg)W D† H*

TWT-67F~SPEC1 2 4 67¼ 32¼ 33¼ ½ 115/60/1 7.0 5-15P 7 435

1709 820 845 N/A N/A 2.13 198

† Depth does not include 1¾" (45 mm) for door handles.
† Depth does not include 1" (26 mm) for rear bumpers.
* Height does not include 6¼" (159 mm) for castors or 6" (153 mm) for optional legs.

T

RUE

R

EFRIGERATION

MADE IN

U.S.A.

SINCE 1945

5/16

®

Printed in U.S.A.

APPROVALS: AVAILABLE AT:

Model:

TWT-67F~SPEC1

Deep Worktop:

Solid Door Freezer with Spec Package 1

STANDARD FEATURES

DESIGN

True’s commitment to using the highest

•

quality materials and oversized refrigeration
systems provides the user with colder product
temperatures, lower utility costs, exceptional
food safety and the best value in today’s food
service marketplace.

REFRIGERATION SYSTEM

Factory engineered, self-contained, capillary

•

tube system using environmentally friendly
(CFC free) R404A refrigerant.
Oversized, factory balanced refrigeration system

•

with guided airow to provide uniform product
temperatures.
Extra large evaporator coil balanced with higher

•

horsepower compressor and large condenser;
maintains -10°F (-23.3°C) cabinet temperatures.
Ideally suited for both frozen foods and ice
cream.
Sealed, cast iron, self-lubricating evaporator

•

fan motor(s) and larger fan blades give True
worktop units a more ecient, low velocity,
high volume airow design. This unique design
ensures faster temperature recovery and
shorter run times in the busiest of food service
environments.
Condensing unit is accessed from behind front

•

grill; slides out for easy maintenance.
Automatic defrost system time-initiated, time-

•

terminated.

CABINET CONSTRUCTION

Exterior - stainless steel front, top and ends.

•

Matching aluminum nished back. Top and
backsplash are one piece formed construction.
Bacteria and food particles cannot be trapped
underneath as with other two-piece worktop
units.

Interior - Stainless steel liner. Stainless steel oor

•

with coved corners.
Insulation - entire cabinet structure and solid

•

doors are foamed-in-place using a high density,
polyurethane insulation that has zero ozone
depletion potential (ODP) and zero global
warming potential (GWP).
5" (127 mm) diameter stem castors - locks

•

provided on front set. 36" (915 mm) work
surface height.

DOORS

Stainless steel exterior with clear coated

•

aluminum liner to match cabinet interior.
door lock standard.

•

Lifetime guaranteed heavy duty all metal

•

working spec door handles.
Positive seal doors swing within cabinet

•

dimensions.
Magnetic door gaskets of one piece

•

construction, removable without tools for ease
of cleaning.

SHELVING

Four (4) adjustable, heavy duty PVC coated wire

•

shelves 23 ⁄ "L x 28"D (601 mm x 712 mm). Four
(4) chrome plated shelf clips included per shelf.
Shelf support pilasters made of same material

•

as cabinet interior; shelves are adjustable on ½ "
(13 mm) increments.

MODEL FEATURES

Evaporator is epoxy coated to eliminate the

•

potential of corrosion.
Heavy duty 16 gauge top and 20 gauge doors.

•

Counter-Top front is ush with front of door.

•

Exterior digital temperature display.

•

Spec Series® logo.

•

NSF-7 compliant for open food product.

•

ELECTRICAL

Unit completely pre-wired at factory and ready

•

for nal connection to a 115/60/1 phase, 15 amp
dedicated outlet. Cord and plug set included.

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

❑ 6" (153 mm) standard legs.
❑ 6" (153 mm) seismic/anged legs.
❑ 2 ½" (64 mm) diameter castors.
❑ 3" (85 mm) diameter castors.
❑ Single overshelf.
❑ Double overshelf.
❑ 30" (762 mm) deep,½ " (13 mm) thick, white

polyethylene cutting board. Requires “L”
brackets.

❑ 30" (762 mm) deep,½ " (13 mm) thick,

composite cutting board. Requires “L” brackets.

❑ Half bun tray racks. Each holds up to eleven 18"L

x 26"D (458 mm x 661 mm) sheet pans (sold
separately).

❑ Additional shelves.

PLAN VIEW

583/8"

13/4"

(1709 mm)

331/4"

(845 mm)

5"

(127 mm)

Three year warranty on all parts

and laborand an additional 2 year

*RESIDENTIAL APPLICATIONS: TRUE assumes no liability for parts or
labor coverage for component failure or other damages resulting
from installation in non-commercial or residential applications.

WARRANTY

warranty on compressor.

(U.S.A. only)

*

ELEVATION

671/4"

888

(915 mm)

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

36"

61/4"

(159 mm)

KCL

Model Elevation Right Plan 3D Back

TWT-67F~SPEC1

251/8"

(638 mm)

(45 mm)

TRUE FOOD SERVICE EQUIPMENT

2001 East Terra Lane • O’Fallon, Missouri 63366-4434 • [phone] • Fax [phone] • Toll Free [phone] • Intl. Fax# [phone] • www.truemfg.com

(1484 mm)

RIGHT VIEW

321/4"

(820 mm)

1"

(26 mm)

61/4"

(159 mm)
