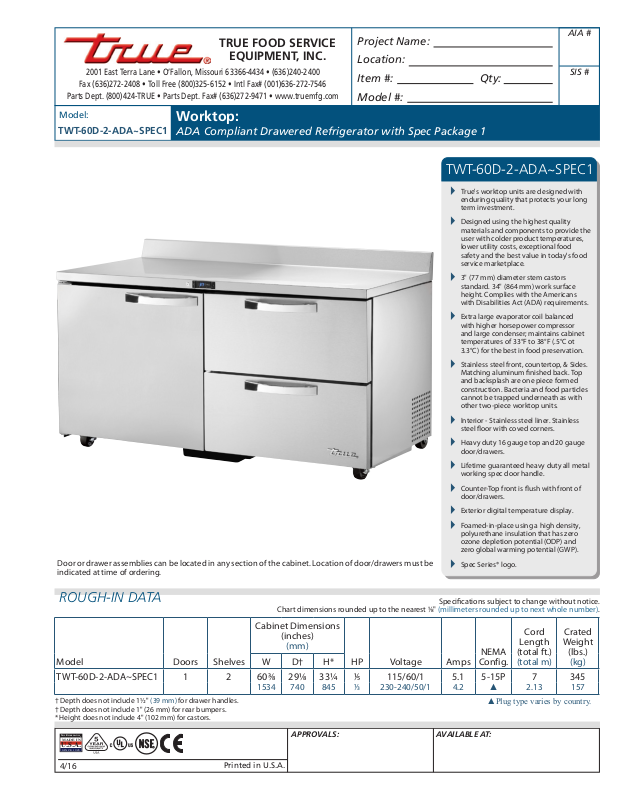

Model:

TWT-60D-2-ADA~SPEC1

Door or drawer assemblies can be located in any section of the cabinet. Location of door/drawers must be
indicated at time of ordering.

Worktop:

ADA Compliant Drawered Refrigerator with Spec Package 1

TWT-60D-2-ADA~SPEC1

True's worktop units are designed with



enduring quality that protects your long
term investment.

Designed using the highest quality



materials and components to provide the
user with colder product temperatures,
lower utility costs, exceptional food
safety and the best value in today's food
service marketplace.

3" (77 mm) diameter stem castors



standard. 34" (864 mm) work surface
height. Complies with the Americans
with Disabilities Act (ADA) requirements.

Extra large evaporator coil balanced



with higher horsepower compressor
and large condenser; maintains cabinet
temperatures of 33°F to 38°F (.5°C ot

3.3°C) for the best in food preservation.

Stainless steel front, countertop, & Sides.



Matching aluminum nished back. Top
and backsplash are one piece formed
construction. Bacteria and food particles
cannot be trapped underneath as with
other two-piece worktop units.

Interior - Stainless steel liner. Stainless



steel oor with coved corners.

Heavy duty 16 gauge top and 20 gauge



door/drawers.

Lifetime guaranteed heavy duty all metal



working spec door handle.

Counter-Top front is ush with front of



door/drawers.

Exterior digital temperature display.



Foamed-in-place using a high density,



polyurethane insulation that has zero
ozone depletion potential (ODP) and
zero global warming potential (GWP).

Spec Series® logo.



ROUGH-IN DATA

Model Doors Shelves

Chart dimensions rounded up to the nearest ⁄" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

(mm)

HP Voltage Amps

Specications subject to change without notice.

NEMA

Config.

Cord

Length
(total ft.)

(total m)

Crated

Weight

(lbs.)

(kg)W D† H*

TWT-60D-2-ADA~SPEC1 1 2 60⁄ 29⁄ 33¼ ⁄ 115/60/1 5.1 5-15P 7 345

1534 740 845 ⁄ 230-240/50/1 4.2 ▲ 2.13 157

† Depth does not include 1½" (39 mm) for drawer handles.
† Depth does not include 1" (26 mm) for rear bumpers.
* Height does not include 4" (102 mm) for castors.

T

RUE

R

EFRIGERATION

®

MADE IN

U.S.A.

SINCE 1945

4/16

Printed in U.S.A.

APPROVALS: AVAILABLE AT:

▲Plug type varies by country.

Model:

TWT-60D-2-ADA~SPEC1

Worktop:

ADA Compliant Drawered Refrigerator with
Spec Package 1

STANDARD FEATURES

DESIGN

True's commitment to using the highest

•

quality materials and oversized refrigeration
systems provides the user with colder product
temperatures, lower utility costs, exceptional food
safety and the best value in today's food service
marketplace.

REFRIGERATION SYSTEM

Factory engineered, self-contained, capillary tube

•

system using environmentally friendly (CFC free)
134A refrigerant.
Oversized, factory balanced refrigeration system

•

with guided airow to provide uniform product
temperatures.
Extra large evaporator coil balanced with higher

•

horsepower compressor and large condenser;
maintains cabinet temperatures of 33°F to 38°F
(.5°C ot 3.3°C) for the best in food preservation.
Sealed, cast iron, self-lubricating evaporator fan

•

motor(s) and larger fan blades give True worktop
units a more ecient, low velocity, high volume
airow design. This unique design ensures faster
temperature recovery and shorter run times in the
busiest of foodservice environments.
Condensing unit access in back of cabinet, slides

•

out for easy maintenance.

CABINET CONSTRUCTION

Exterior - stainless steel front, top and ends.

•

Matching aluminum nished back. Top and
backsplash are one piece formed construction.
Bacteria and food particles cannot be trapped
underneath as with other two-piece worktop units.
Interior - Stainless steel liner. Stainless steel oor

•

with coved corners.
Insulation - entire cabinet structure, solid door,

•

and drawer facings are foamed-in-place using a
high density, polyurethane insulation that has zero
ozone depletion potential (ODP) and zero global
warming potential (GWP).

3" (77 mm) diameter stem castors. 34" (864 mm)

•

work surface height. Compliant with American
Disablities Act (ADA) requirements.

DOORS/DRAWERS

Door or drawer assemblies can be located in any

•

section of the cabinet. Location of door/drawers
must be indicated at time of ordering.
Door constructed of stainless steel exterior with

•

clear coated aluminum liner to match cabinet
interior. Drawers have stainless steel exterior
facings and liners with stainless steel frames.
door lock standard on door section. Locks not

•

available for drawers.
Each door and drawer tted with Lifetime

•

guaranteed heavy duty all metal working spec
handle.
Door section - positive seal self-closing door with

•

90° stay open feature. Door swings within cabinet
dimensions.
Magnetic drawer/door gaskets of one piece

•

construction, removable without tools for ease of
cleaning.
Drawer section - Heavy-duty stainless steel drawer

•

slides and rollers. Removable without tools for easy
cleaning.
Drawers will support a wide variety of incremental

•

pan size congurations; divider bars available.
Each drawer accommodates one (1) full size 12"L

•

x 20"W x 6"D (305 mm x 208 mm x 153 mm) food
pan (sold separately). Dawer will support varying
size pan congurations with pan divider bars
(drawer pans and divider bars optional).

SHELVING

Two (2) adjustable, heavy duty PVC coated wire

•

shelves 27 ½ "L x 16"D (699 mm x 407 mm). Four (4)
chrome plated shelf clips included per shelf.
Shelf support pilasters made of same material as

•

cabinet interior; shelves are adjustable on ½ " (13
mm) increments.

PAN CAPACITY

" Each drawer accommodates one (1) full size 12""L

•

x 20""W x 6""D (305 mm x 208 mm x 153 mm) food
pan (sold separately). Drawer will support varying
size pan congurations with pan divider bars
(drawer pans and divider bars optional)."

MODEL FEATURES

Evaporator is epoxy coated to eliminate the

•

potential of corrosion.
Heavy duty 16 gauge top and 20 gauge door.

•

Counter-Top front is ush with front of door/

•

drawers.
Exterior digital temperature display.

•

Spec Series® logo.

•

NSF-7 compliant for open food product.

•

ELECTRICAL

Unit completely pre-wired at factory and ready

•

for nal connection to a 115/60/1 phase, 15 amp
dedicated outlet. Cord and plug set included.

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

❑ 230 - 240V / 50 Hz.
❑ Single overshelf.
❑ Double overshelf.
❑ 28 ¼" (718 mm) deep, ½" (13 mm) thick, white

polyethylene cutting board. Requires "L" brackets

❑ 28 ¼" (718 mm) deep, ½" (13 mm) thick, composite

cutting board. Requires "L" brackets.

PLAN VIEW

5827/32"

(1495 mm)

2823/32"

(729 mm)

11/2"

(39 mm)

291/8"

(740 mm)

RIGHT VIEW

603/8"

(1534 mm)

31/2"

(89 mm)

331/4"

(845 mm)

131/2"

3"

(77 mm)

(343 mm)

ELEVATION

Three year warranty on all parts

and laborand an additional 2 year

*RESIDENTIAL APPLICATIONS: TRUE assumes no liability for parts or
labor coverage for component failure or other damages resulting
from installation in non-commercial or residential applications.

WARRANTY

warranty on compressor.

(U.S.A. only)

*

888

293/4"

(756 mm)

173/16"

(437 mm)

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

333/4"

(858 mm)

4"

(102 mm)

371/4"

(947 mm)

KCL

Model Elevation Right Plan 3D Back

TWT-60D-2-ADA~SPEC1
